2018 Acura TLX Power

111
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if you press the ENGINE START/STOP button
to turn the engine off wi thout the shift lever in
(P.●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Press the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Appears if the driver’s door is open and you try to shift
to a position other than
(P.
●Moving the shift lever to (P If you leave the vehicle.
●Appears when the transmission system temperature is
too high. The vehicle no longer moves.●Immediately stop in a safe place and shift to (P.●Let the engine idle until the message disappears.
Models with shift lever
U.S. models
Canadian models
18 ACURA TLX-31TZ36300.book 111 ページ ２０１７年２月２１日　火曜日　午後２時３２分

113
Instrument Panel
Gauges and Multi-Information Display
Gauges
Gauges include the speedometer, tachometer, fuel gauge and related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1Fuel Gauge
NOTICE
You should refuel when the needle approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 547
18 ACURA TLX-31TZ36300.book 113 ページ ２０１７年２月２１日　火曜日　午後２時３２分

uuGauges and Multi-Information Display uMulti-Information Display
120
Instrument Panel

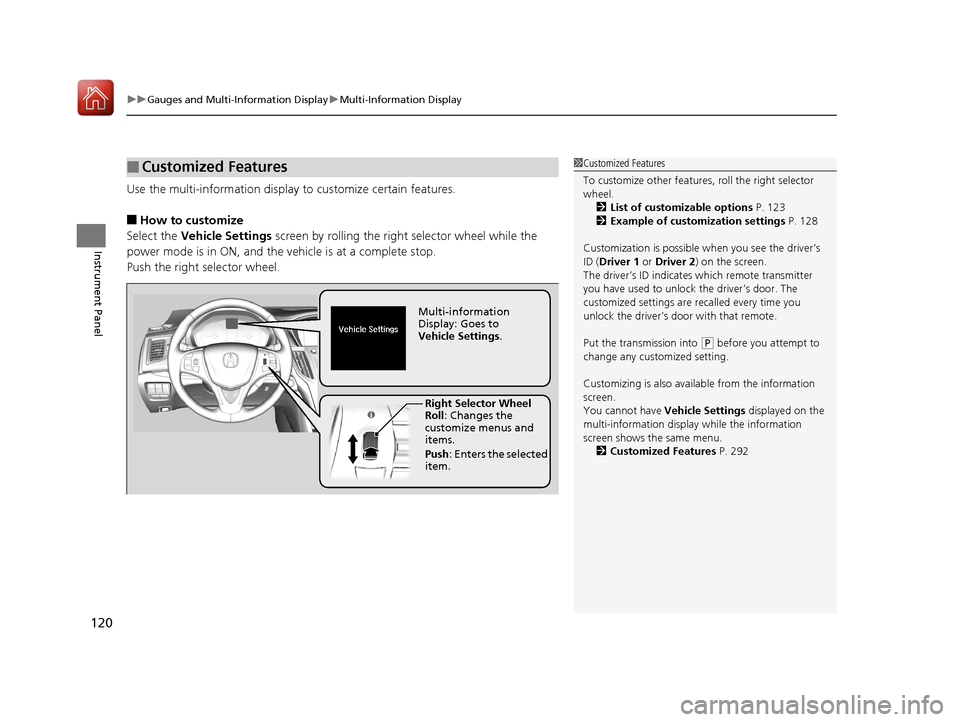

Use the multi-information display to customize certain features.
■How to customize
Select the Vehicle Settings screen by rolling the right selector wheel while the
power mode is in ON, and the vehicle is at a complete stop.
Push the right selector wheel.
■Customized Features1 Customized Features
To customize other features , roll the right selector
wheel.
2 List of customizable options P. 123
2 Example of customization settings P. 128
Customization is possible when you see the driver’s
ID ( Driver 1 or Driver 2) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.
Put the transmission into
( P before you attempt to
change any customized setting.
Customizing is also available from the information
screen.
You cannot have Vehicle Settings displayed on the
multi-information display while the information
screen shows the same menu. 2 Customized Features P. 292
Right Selector Wheel
Roll: Changes the
customize menus and
items.
Push : Enters the selected
item.
Multi-information
Display: Goes to
Vehicle Settings .
18 ACURA TLX-31TZ36300.book 120 ページ ２０１７年２月２１日　火曜日　午後２時３２分

127
uuGauges and Multi-Information Display uMulti-Information Display
Continued
Instrument Panel
*1: Default SettingSetup Group Customizable Features
Description Selectable Settings
Dynamic
Mode SetupPreferred Dynamic ModeChanges the Integrated Dynamics System mode
setting for when you set the power mode to ON.Last Used*1/Econ /Normal /
Sport
Wireless
Charger
Setup
*Wireless Charging Turns the wireless charging feature on and off. On*1/Off
Maintenance
Info.Maintenance ResetResets/Cancels the engine oil life display when you
have performed the maintenance service. Cancel /Reset
Default All —Cancels/Resets all the customized settings as
default. Cancel
/Set
* Not available on all models
18 ACURA TLX-31TZ36300.book 127 ページ ２０１７年２月２１日　火曜日　午後２時３２分

131
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 132
Locking and Unlocking the Doors
Key Types and Functions .................. 133
Low Keyless Access Remote Signal Strength .. 135Locking/Unlocking the Doors from the Outside .......................................... 136
Locking/Unlocking the Doors from the Inside ............................................. 144
Childproof Door Locks ..................... 146
Auto Door Locking/Unlocking .......... 147
Opening and Closing the Trunk ....... 148
Security System ................................ 151
Immobilizer System .......................... 151
Security System Alarm ...................... 151
Opening and Closing the Windows .... 154Opening and Closing the Moonroof....... 156Operating the Switches Around the
Steering Wheel ENGINE START/STOP Button............. 157
Turn Signals ..................................... 160
Light Switches.................................. 161
Fog Lights
*...................................... 164
Daytime Running Lights ................... 164
Auto High-Beam .............................. 165
Wipers and Washers ........................ 168
Brightness Control ........................... 171
Rear Defogger/Heated Door Mirror Button........................................ 172
Driving Position Memory System ...... 173
Adjusting the Steering Wheel .......... 175
Adjusting the Mirrors ....................... 176
Interior Rearview Mirror ................... 176
Power Door Mirrors ......................... 177
Adjusting the Seats .......................... 179
Front Seats ...................................... 179
Interior Lights/Interior Convenience
Items ................................................ 188
Interior Lights .................................. 188
Interior Convenience Items .............. 191
Climate Control System ................... 204
Using Automatic Climate Control .... 204
Automatic Climate Control Sensors......211
* Not available on all models
18 ACURA TLX-31TZ36300.book 131 ページ ２０１７年２月２１日　火曜日　午後２時３２分

132
Controls
Clock
Adjusting the Clock
You can also adjust the time manually in the information screen, with the power
mode in ON.
■Using the Settings menu on the information screen
1.Press the SETTINGS button.
2. Rotate to select Clock Settings, then
press .
u Repeat the procedure to select Clock
Adjustment .
3. Rotate to change hour, then move .
4. Rotate to change minute, then press
.
■Adjusting the Time
1Adjusting the Clock
These indications are used to show how to operate
the interface dial.
Rotate to select.
Press to enter.
Move to select a secondary menu.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 292
You can turn the clock display in the information
screen on and off. 2 Customized Features P. 292
You cannot adjust the time while the vehicle is
moving.
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Except Canadian models
Models with navigation system
Models without navigation system
18 ACURA TLX-31TZ36300.book 132 ページ ２０１７年２月２１日　火曜日　午後２時３２分

134
uuLocking and Unlocking the Doors uKey Types and Functions
Controls
The built-in key can be us ed to lock/unlock the
doors when the keyless access remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless access remote until it clicks.
■Keyless Access Remote
Built-in Key Release Knob
Models without two-way keyless
access remote
Models with two-way keyless
access remote
Built-in Key Release Knob
18 ACURA TLX-31TZ36300.book 134 ページ ２０１７年２月２１日　火曜日　午後２時３２分

136
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Locking/Unlocking the Doors from the Outside
When you carry the keyless access remote,
you can lock/unlock the doors and open the
trunk.
You can lock/unlock the doors and trunk
within a radius of about 32 inches (80 cm) of
the outside door handle or trunk release
button.
■Using the Keyless Access System1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors.
No doors opened: The li ght fades out after 30
seconds.
Doors relocked: The light goes off immediately.
2 Interior Lights P. 188
Models without rear door touch sensor
Models with rear door touch sensor
1Using the Keyless Access System
If you do not open a door within 30 seconds of
unlocking the vehicle with the keyless access system,
the doors will automatically relock.
You can lock or unlock doors using the keyless access
system only when the power mode is in VEHICLE OFF.
18 ACURA TLX-31TZ36300.book 136 ページ ２０１７年２月２１日　火曜日　午後２時３２分
