2018 Acura TLX remote start

517

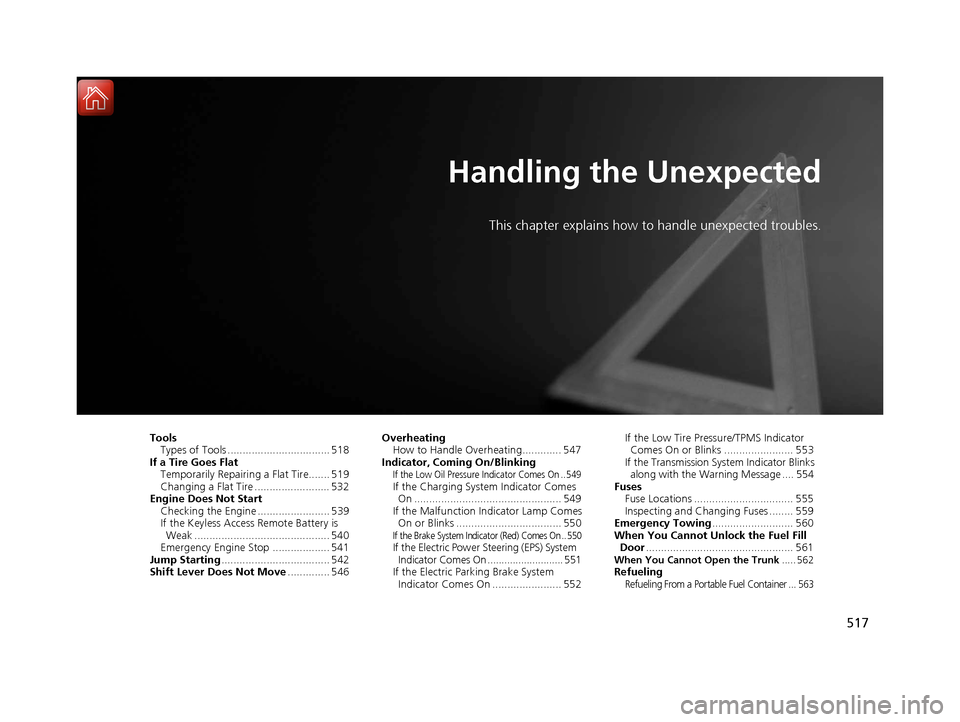

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 518
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 519
Changing a Flat Tire ......................... 532
Engine Does Not Start Checking the Engine ........................ 539
If the Keyless Access Remote Battery is Weak ............................................. 540
Emergency Engine Stop ................... 541
Jump Starting .................................... 542
Shift Lever Does Not Move .............. 546Overheating
How to Handle Overheating............. 547
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On .. 549If the Charging System Indicator Comes On ................................................. 549
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 550
If the Brake System Indicator (Red) Comes On .. 550If the Electric Power Steering (EPS) System Indicator Comes On ........................... 551
If the Electric Parking Brake System Indicator Comes On ....................... 552 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 553
If the Transmission System Indicator Blinks along with the Warning Message .... 554
Fuses Fuse Locations ................................. 555
Inspecting and Changing Fuses ........ 559
Emergency Towing ........................... 560
When You Cannot Unlock the Fuel Fill Door ................................................. 561When You Cannot Open the Trunk ..... 562RefuelingRefueling From a Portable Fuel Container ... 563
18 ACURA TLX-31TZ36300.book 517 ページ ２０１７年２月２１日　火曜日　午後２時３２分

539
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 540
uMake sure the keyless access remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 157
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2 Battery P. 504●If the interior lights come on normally 2 Fuses P. 555
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 362
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 151
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 113
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 559
If the problem continues:
2Emergency Towing P. 560
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 542
18 ACURA TLX-31TZ36300.book 539 ページ ２０１７年２月２１日　火曜日　午後２時３２分

540
uuEngine Does Not Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, and the indicator on the ENGINE START/
STOP button flashes, and the engine won’t start.
Start the engine as follows: 1.Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the indicator on the
ENGINE START/STOP button is flashing.
The buttons on the keyle ss access remote
should be facing you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds while the
indicator stays on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
18 ACURA TLX-31TZ36300.book 540 ページ ２０１７年２月２１日　火曜日　午後２時３２分

569Continued
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
AcuraLink*
Audio System
Blind Spot Information System*
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigati on Braking SystemTM
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback*
Wireless charger*
* Not available on all models
18 ACURA TLX-31TZ36300.book 569 ページ ２０１７年２月２１日　火曜日　午後２時３２分

581
Index
D
Daytime Running Lights.......................... 164
Dead Battery ............................................ 542
Defrosting the Windshield and Windows ................................................. 210
Devices that Emit Radio Waves ............... 569
Dimming Headlights .............................................. 161
Rearview Mirror ...................................... 176
Dipstick (Engine Oil) ................................ 478
Directional Signals (Turn Signal) ............. 160
Door Mirrors ............................................. 177
Doors ........................................................ 133
Auto Door Locking.................................. 147
Auto Door Unlocking .............................. 147
Door Open Indicator ................................. 33
Door Open Message ................................. 97
Keys........................................................ 133
Locking/Unlocking the Doors from the
Inside .............................................. 13, 144
Locking/Unlocking the Doors from the Outside ................................................. 136
Lockout Prevention System ..................... 142
DOT Tire Quality Grading ........................ 498
Driver’s Knee Airbag .................................. 48
Driving ...................................................... 355
Automatic Transmission .......................... 370
Braking ................................................... 429
Dual Clutch Transmission ........................ 370
Shifting Gear .................................. 371, 378
Starting the Engine ................................. 362 Driving Position Memory System
............. 173
Dual Clutch Transmission ......................... 370
Creeping ................................................. 370
Fluid ........................................................ 486
Kickdown ................................................ 370
Operating the Shift Lever ................... 20, 379
Shift Lever Does Not Move ...................... 546
Shifting ................................................... 378
Dust and Pollen Filter ............................... 508
E
ECON (Econ mode) Indicator ..................... 85
Elapsed Time ............................................. 118
Electric Parking Brake Indicator .................................................... 73
Electric Parking Brake System Indicator ............................................ 73, 552
Electric Power Steering (EPS) System Indicator ............................................ 79, 551
Electronic Stability Control (ESC) ............. 418
Emergency ................................................ 560
Emissions Testing (Readiness Codes) ....... 572
Engine ....................................................... 568
Coolant ................................................... 484
Jump Starting .......................................... 542
Oil ........................................................... 477
Remote Engine Start ................................ 365
Starting ................................................... 362
Engine Coolant ......................................... 484
Adding to the Radiator ............................ 485 Adding to the Reserve Tank..................... 484
Overheating ............................................ 547
Temperature Gauge ................................ 113
Engine Oil ................................................. 477
Adding .................................................... 480
Checking................................................. 478
Displaying Oil Life .................................... 470
Low Oil Pressure Indicator ................. 74, 549
Recommended Engine Oil ....................... 477
ENGINE START/STOP Button .................... 157
EPS (Electric Power Steering) System ........ 79
Exhaust Gas Hazard (Carbon Monoxide) .. 69
Exterior Care (Cleaning) ........................... 511
Exterior Mirrors ........................................ 177
F
Features.................................................... 213
Filters Dust and Pollen ....................................... 508
Oil ........................................................... 481
Flat Tire ..................................................... 519
Floor Mats ................................................. 510
Fluids
Automatic Transmission .......................... 486
Brake ...................................................... 487
Dual Clutch Transmission ........................ 486
Engine Coolant ....................................... 484
Windshield Washer ................................. 487
Fog Lights ................................................. 164
Foot Brake ................................................ 432
18 ACURA TLX-31TZ36300.book 581 ページ ２０１７年２月２１日　火曜日　午後２時３２分

583
Index
Auto High-Beam ....................................... 82
Auto Idle Stop (Green) .............................. 89
Auto Idle Stop System (Amber) ................. 89
Automatic Brake Hold ....................... 74, 433
Automatic Brake Hold System ........... 74, 433
Blind Spot Information (BSI) ...................... 88
Brake System (Amber) ............................... 72
Brake System (Red) ........................... 72, 550
Charging System............................... 75, 549
Collision Mitigation Braking System
TM
(CMBSTM) .......................................... 90, 91
Door and Trunk Open ............................... 33
ECON (Econ mode) ................................... 85
Electric Parking Brake ................................ 73
Electric Parking Brake System ............ 73, 552
Electric Power Steering (EPS) System ............................................ 79, 551
Fog Lights ................................................. 82
Gear Position ............................................ 75
High Beam ................................................ 82
Immobilizer System ................................... 83
Keyless Access System............................... 83
Lane Keeping Assist System (LKAS) ... 87, 412
Lights On .................................................. 82
Low Fuel ................................................... 78
Low Oil Pressure ............................... 74, 549
Low Tire Pressure/TPMS ............ 81, 425, 427
M (sequential mode) I ndicator/Sequential
Mode Gear Selection............................... 78
Malfunction Indicator Lamp .............. 75, 550 Precision All-Wheel Steer
TM (P-AWS
®)
System..................................................... 85
Road Departure Mitigation (RDM) .............. 84
Seat Belt Reminder .............................. 35, 78
Security System Alarm ............................... 83
Shift Lever Position .................................... 75
SPORT (Sport mode) .................................. 85
Super Handling-All Wheel Drive
TM
(SH-AWD ®) .............................................. 89
Supplemental Restraint System ............ 53, 79
System Message ........................................ 81
Transmission System ............................ 76, 77
Turn Signal ................................................ 82
Vehicle Stability Assist (VSA ®)
System............................................. 80, 418
VSA ® OFF .......................................... 80, 419
Information ............................................... 565
Information Screen ................................... 223
Instant Fuel Economy ............................... 118
Instrument Panel ........................................ 71
Brightness Control ................................... 171
Integrated Dynamics System .................... 388
Dynamic Mode Button ............................. 388
Interface Dial ............................................ 219
Interior Lights ........................................... 188
Interior Rearview Mirror .......................... 176
Internet Radio ........................................... 250
iPhone ............................................... 250, 276
iPod ................................................... 247, 276
J
Jack (Wheel Nut Wrench) ........................ 535
Jump Starting ........................................... 542
K
Key Number Tag ....................................... 135
Keyless Access System .............................. 136
Keyless Lockout Prevention ..................... 142
Keys ........................................................... 133
Lockout Prevention.................................. 142
Number Tag ............................................ 135
Rear Door Won’t Open............................ 146
Remote Transmitter ................................. 141
Two-way Keyless Access Remote ..... 143, 365
Types and Functions ................................ 133
Kickdown (Automatic Transmission) ....... 370
Kickdown (Dual Clutch Transmission) ..... 370
L
Lane Keeping Assist System (LKAS)......... 410
Language (HFL) ........................................ 318
LATCH (Child Seats) .................................... 61
Legal Information on Apple CarPlay/ Android Auto .......................................... 289
18 ACURA TLX-31TZ36300.book 583 ページ ２０１７年２月２１日　火曜日　午後２時３２分

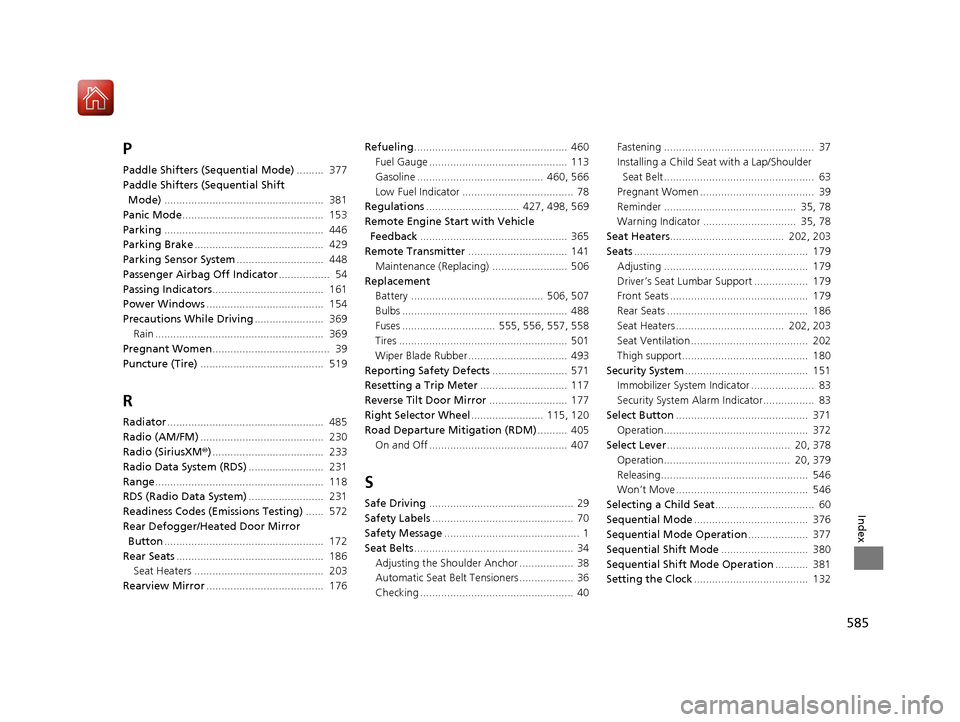

585
Index
P
Paddle Shifters (Sequential Mode)......... 377
Paddle Shifters (Sequential Shift Mode) ..................................................... 381
Panic Mode ............................................... 153
Parking ..................................................... 446
Parking Brake ........................................... 429
Parking Sensor System ............................. 448
Passenger Airbag Off Indicator ................. 54
Passing Indicators ..................................... 161
Power Windows ....................................... 154
Precautions While Driving ....................... 369
Rain ........................................................ 369
Pregnant Women ....................................... 39
Puncture (Tire) ......................................... 519
R
Radiator.................................................... 485
Radio (AM/FM) ......................................... 230
Radio (SiriusXM ®)..................................... 233
Radio Data System (RDS) ......................... 231
Range ........................................................ 118
RDS (Radio Data System) ......................... 231
Readiness Codes (Emissions Testing) ...... 572
Rear Defogger/Heated Door Mirror Button ..................................................... 172
Rear Seats ................................................. 186
Seat Heaters ........................................... 203
Rearview Mirror ....................................... 176 Refueling
................................................... 460
Fuel Gauge .............................................. 113
Gasoline .......................................... 460, 566
Low Fuel Indicator ..................................... 78
Regulations ............................... 427, 498, 569
Remote Engine Start with Vehicle Feedback ................................................. 365
Remote Transmitter ................................. 141
Maintenance (Replacing) ......................... 506
Replacement Battery ............................................ 506, 507
Bulbs ....................................................... 488
Fuses ............................... 555, 556, 557, 558
Tires ........................................................ 501
Wiper Blade Rubber ................................. 493
Reporting Safety Defects ......................... 571
Resetting a Trip Meter ............................. 117
Reverse Tilt Door Mirror .......................... 177
Right Selector Wheel ........................ 115, 120
Road Departure Mitigation (RDM) .......... 405
On and Off .............................................. 407
S
Safe Driving ................................................ 29
Safety Labels ............................................... 70
Safety Message ............................................. 1
Seat Belts ..................................................... 34
Adjusting the Shoulder Anchor .................. 38
Automatic Seat Belt Tensioners .................. 36
Checking ................................................... 40 Fastening .................................................. 37
Installing a Child Seat
with a Lap/Shoulder
Seat Belt .................................................. 63
Pregnant Women ...................................... 39
Reminder ............................................ 35, 78
Warning Indicator ............................... 35, 78
Seat Heaters ...................................... 202, 203
Seats .......................................................... 179
Adjusting ................................................ 179
Driver’s Seat Lumbar Support .................. 179
Front Seats .............................................. 179
Rear Seats ............................................... 186
Seat Heaters .................................... 202, 203
Seat Ventilation ....................................... 202
Thigh support.......................................... 180
Security System ......................................... 151
Immobilizer System Indicator ..................... 83
Security System Alarm Indicator................. 83
Select Button ............................................ 371
Operation................................................ 372
Select Lever ......................................... 20, 378
Operation.......................................... 20, 379
Releasing................................................. 546
Won’t Move ............................................ 546
Selecting a Child Seat ................................. 60
Sequential Mode ...................................... 376
Sequential Mode Operation .................... 377
Sequential Shift Mode ............................. 380
Sequential Shift Mode Operation ........... 381
Setting the Clock ...................................... 132
18 ACURA TLX-31TZ36300.book 585 ページ ２０１７年２月２１日　火曜日　午後２時３２分

586
Index
SH-AWD® (Super Handling-All Wheel
DriveTM) .................................................... 424
SH-AWD ® Torque Distribution Monitor .. 119
Shift Button......................................... 18, 371
Shift Lever ........................................... 20, 378
Shift Lever Position Indicator ................... 379
Shifting (Transmission) ......... 18, 20, 371, 378
Shoulder Anchor ......................................... 38
Side Airbags ................................................ 50
Side Curtain Airbags ................................... 52
SiriusXM ® Radio ........................................ 233
Snow Tires ................................................. 503
Spare Tire (Optional) ........................ 532, 567
Spark Plugs ................................................ 566
Specifications ............................................ 566
Specified Fuel .................................... 460, 566
SPORT (Sport mode) Indicator ................... 85
Sport Mode ............................................... 388
Sport+ Mode ............................................. 388
SRS Airbags (Airbags) ................................. 44
Starting Assist Brake Function ................. 387
Starting the Engine .................................. 362
Does Not Start ......................................... 539
Engine Switch Buzzer............................... 159
Jump Starting .......................................... 542
Remote Engine Start ................................ 365
Steering Wheel ......................................... 175
Adjusting ................................................. 175
Stopping .................................................... 446
Summer Tires ............................................ 503 Super Handling-All Wheel Drive
TM
(SH-AWD® ).............................................. 424
Indicator.................................................... 89
Supplemental Restraint System (SRS) ........ 44
Surround View Camera System ............... 459
Switches (Around the Steering Wheel) ............................................. 4, 5, 157
System Message Indicator .......................... 81
T
Temperature Gauge................................. 113
Temperature Sensor ................................. 211
Temporary Tire Repair Kit ....................... 520
Text Message .................................... 346, 348
Time (Setting) ........................................... 132
Tire Fill Assist ............................................ 425
Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist .................................. 425
Indicator............................................ 81, 553
Tire Fill Assist ........................................... 425
Tire Repair Kit ........................................... 519
Tires ........................................................... 495
Air Pressure ..................................... 496, 567
Chains..................................................... 503
Checking and Maintaining ...................... 495
Flat Tire (Puncture) .......................... 519, 532
Inspection ............................................... 495
Labeling .................................................. 496
Puncture (Flat Tire) .......................... 519, 532
Regulations ............................................. 498 Rotation.................................................. 502
Spare (Optional) .............................. 532, 567
Summer .................................................. 503
Temporary Tire Repair Kit ........................ 520
Wear Indicators....................................... 500
Winter .................................................... 503
Tools ......................................................... 518
Towing a Trailer ....................................... 361
Towing Your Vehicle ............................... 361
Emergency .............................................. 560
TPMS (Tire Pressure Monitoring System)
with Tire Fill Assist ................................. 425
Indicator ........................................... 81, 553
Tire Fill Assist .......................................... 425
Transmission ......................... 18, 20, 371, 378
Automatic................................. 18, 370, 371
Dual Clutch............................... 20, 370, 378
Fluid ....................................................... 486
Gear Position Indicator ...................... 75, 372
Number .................................................. 568
Sequential Mode..................................... 376
Sequential Shift Mode............................. 380
Shift Lever Position Indicator ................... 379
TRIP Button .............................................. 116
Trip Meter ................................................ 117
Troubleshooting ...................................... 517
Blown Fuse ..................... 555, 556, 557, 558
Brake Pedal Vibrates ................................. 25
Buzzer Sounds When Opening Door ......... 26
Emergency Towing ................................. 560
Engine Won’t Start ................................. 539
18 ACURA TLX-31TZ36300.book 586 ページ ２０１７年２月２１日　火曜日　午後２時３２分
