2018 Acura RLX HYBRID stop start

13
Quick Reference Guide
Auto Engine Stop/Start
Your vehicle’s gasoline engine will automatically stop and start during vehicle operation as needed to meet driving and battery conditions.
These are some examples that could cause the gasoline engine to automatically start.
In the following cases, however, Auto Engine Stop may not activate.
●The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.
● The climate control system is in heavy use.
● The High Voltage battery temperature is high or low.
● The High Voltage battery state of charge is low.
When in SPORT mode, Auto Engine Stop does not activate.
Sounds Unique to th e SPORT HYBRID SH-AWD ® System
When you first start driving this vehicle, you will likely hear some unfamiliar sounds, particularly when you turn on the power system, or
while you are driving or accelerating from a stop. Some of thes e sounds are unique to this vehicle‘s powertrain, fuel, and climate control
systems; others are similar to sounds generated by conventional automobile s that typically are masked by louder noises absent from a
vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unus ual noise
should one develop.
18 ACURA RLX E-AWD-31TY36400.book 13 ページ ２０１７年７月２０日　木曜日　午後６時８分

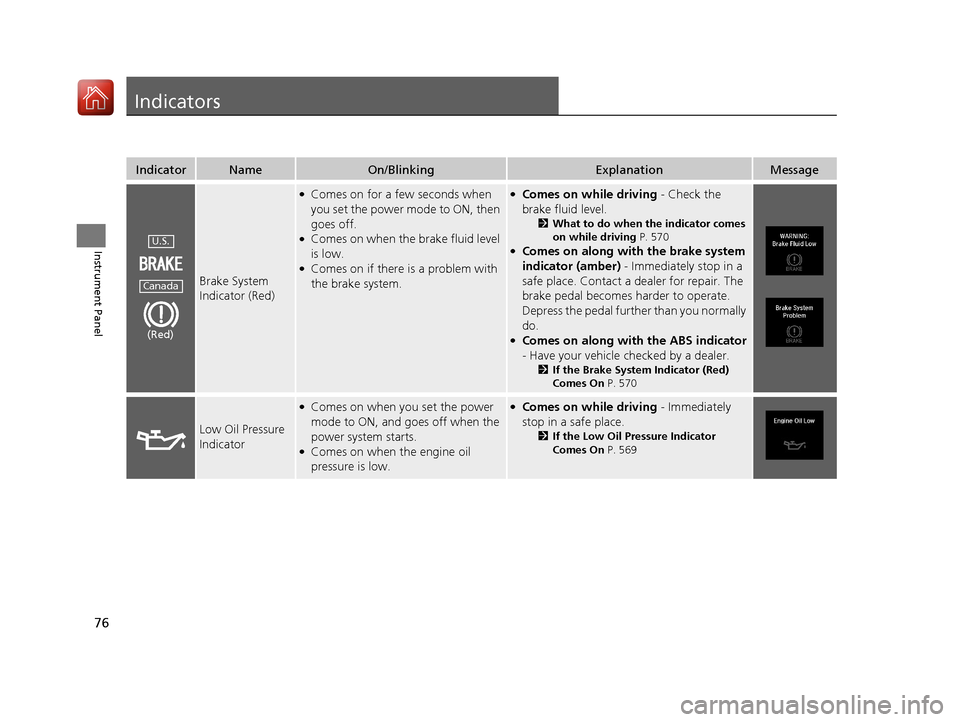

76
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Brake System
Indicator (Red)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the brake fluid level
is low.
●Comes on if there is a problem with
the brake system.
●Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator comes
on while driving P. 570
●Comes on along with the brake system
indicator (amber) - Immediately stop in a
safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you normally
do.
●Comes on along with the ABS indicator
- Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 570
Low Oil Pressure
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
power system starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 569
U.S.
Canada
(Red)
18 ACURA RLX E-AWD-31TY36400.book 76 ページ ２０１７年７月２０日　木曜日　午後６時８分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System Indicator
•All the gear positions may light for
several seconds, and go off.•When all the gear positions light,
immediately stop your vehicle in a safe
place.
• Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to a dealer for inspection.
•The current gear position blinks if
the transmission system has a
problem.•Blinks while driving - Avoid sudden starts
and acceleration and have your vehicle
checked by a dealer immediately.
• The current gear position or all the
gear positions blink if there is a
problem with the transmission and
the vehicle is no longer able to run.•Immediately park your car in a safe place.
2 Emergency Towing P. 581
•Have your vehicle checked by a dealer.
•The current gear position or all the
gear positions blink if there is a
problem with the transmission and it
is not possible to select
(P.
•Depending on the circumstances, you can
set the power system to ON as an
emergency measure.
2 If the Transmission System Indicator
Blinks along with the Warning
Message P. 573
•While the vehicle is stopped, apply the
parking brake.
• Have your vehicle checked by a dealer
immediately.
18 ACURA RLX E-AWD-31TY36400.book 82 ページ ２０１７年７月２０日　木曜日　午後６時８分

94
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
Multi-Information Display Warn ing and Information Messages
The following messages appear only on the multi-information display. Roll the ri ght selector wheel to see the message again wit h the
system message indicator on.
MessageConditionExplanation
• Appears when the vehicle is no longer able to run due
to its malfunction.• Immediately stop in a safe place.
• Have your vehicle checked by a dealer immediately.
•Appears if you cannot select (P due to a malfunction.•While the vehicle is stopped, apply the parking brake.
• Depending on the circumstances, you can set the
power system to ON as an emergency measure.
2 If the Transmission System Indicator Blinks along
with the Warning Message P. 573
•Have your vehicle checked by a dealer.
• Appears if the transmission is in a position other than
(N and a malfunction is preventing the system from
starting.
• Depending on the circumstances, you can set the
power system to ON as an emergency measure.
2 If the Transmission System Indicator Blinks along
with the Warning Message P. 573
•Have your vehicle checked by a dealer.
• Appears when you set the power mode to ON again
and the vehicle is able to run.
2 Turning on the Power P. 380
18 ACURA RLX E-AWD-31TY36400.book 94 ページ ２０１７年７月２０日　木曜日　午後６時８分

95
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when the washer fluid is low.•Refill the washer fluid.
2 Refilling Window Washer Fluid P. 514
•Appears if there is a problem with e-pretensioner
system.•Have your vehicle checked by a dealer.
•Appears when the scheduled maintenance is due soon.
• Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 499
•Appears if the temperature of the transmission is too
high and the vehicle ca nnot drive normally.•It may be difficult to accelerate or start uphill.
• Immediately stop in a safe place.
• Until the message goes off, al low the engine to idle so
that the transmissi on can cool down.
• Immediately after the messag e goes off, have your
vehicle checked by a dealer.
• Appears when you attempt to change to another gear
position with the transmission in
(P and the power
system OFF.
• To select another gear position while in (P, the power
system must be ON.
18 ACURA RLX E-AWD-31TY36400.book 95 ページ ２０１７年７月２０日　木曜日　午後６時８分

99
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when you set the power mode to ON without
fastening the driver’s seat belt.
• Appears when you change the gear position after
(P
has been automatically select ed with the driver’s door
open, the driver’s seat belt unfastened, then the brake
pedal is released.
• Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 389
•Appears when you try to change the gear position
without depressing the brake pedal.•Depress the brake pedal, then select a shift button.
•Appears when you try to change the gear position
without releasing your foot off the accelerator pedal.•Release your foot off the acce lerator pedal, then select
a shift button.
• Appears when the parking bu tton is pressed while the
vehicle is moving.
• Appears if you change the gear position to
(R while the
vehicle is moving forward, or to
(D while the vehicle is
reversing.
• Make sure that the vehicle comes to a stop before
operating the select button.
18 ACURA RLX E-AWD-31TY36400.book 99 ページ ２０１７年７月２０日　木曜日　午後６時８分

105
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Flashes when the system sens es a likely collision with a
vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 460
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
●Appears when ACC with LSF has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the RES/
+ /SET/– switch up.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
●Appears when the vehicle in front of you starts moving
while your vehicle is stopped automatically by ACC with
LSF.●Either press the RES/+/SET/– switch, or depress the
accelerator pedal.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
●Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with LSF
is in operation.●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
●Appears when pressing the RES/+/SET/– switch down
while the distance between yo ur vehicle and the vehicle
ahead of you is too close.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 404
18 ACURA RLX E-AWD-31TY36400.book 105 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

uuBluetooth ® HandsFreeLink ®u HFL Menus
362
Features
■Read or stop re ading a message
1. Go to the text/e-mail message screen.
2 Displaying Messages P. 360
2.Press to read the message aloud.
3. Press to stop reading.
Press again to start reading the message
from the beginning.
■Reply to a message
1. Go to the text/e-mail message screen.
2 Displaying Messages P. 360
2.Move and rotate to select Reply,
then press .
3. Rotate to select the reply message, then
press .
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Message sent appears on the screen
when the reply message was successfully
sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.
•I’m on my way.
•I’m running late.•OK
•Yes
•No
You cannot add, edit, or delete reply messages.
Only certain phones receiv e and send messages when
paired and connected. For a list of compatible
phones:
•U.S.: Visit www.Handsfreeli nk.com/Acura, or call
1-888-528-7876.
•Canada: For more information on smartphone
compatibility, call 1-888-528-7876.
