2018 Acura RLX HYBRID tow

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System Indicator
•All the gear positions may light for
several seconds, and go off.•When all the gear positions light,
immediately stop your vehicle in a safe
place.
• Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to a dealer for inspection.
•The current gear position blinks if
the transmission system has a
problem.•Blinks while driving - Avoid sudden starts
and acceleration and have your vehicle
checked by a dealer immediately.
• The current gear position or all the
gear positions blink if there is a
problem with the transmission and
the vehicle is no longer able to run.•Immediately park your car in a safe place.
2 Emergency Towing P. 581
•Have your vehicle checked by a dealer.
•The current gear position or all the
gear positions blink if there is a
problem with the transmission and it
is not possible to select
(P.
•Depending on the circumstances, you can
set the power system to ON as an
emergency measure.
2 If the Transmission System Indicator
Blinks along with the Warning
Message P. 573
•While the vehicle is stopped, apply the
parking brake.
• Have your vehicle checked by a dealer
immediately.
18 ACURA RLX E-AWD-31TY36400.book 82 ページ ２０１７年７月２０日　木曜日　午後６時８分

Continued161
uuOperating the Switches Around the Steering Wheel uAuto High-Beam
Controls
To activate the system , turn the headlight
switch to AUTO and then set the headlights
to low beam. The auto high-beam indicator
will come on.
2 Light Switches P. 156
The high beams remain on unless:
•You have been driving below 15 mph (24 km/h) for an extended amount of time.
• The speed of the vehicle dr ops below 6 mph (10 km/h).
• The windshield wipers have been runnin g at a high speed for more than a few
seconds.
• You enter a well lit location.
The high beams come back on once the condi tion that caused them to turn off no
longer exists.
If needed, you can temporarily turn the hi gh beams off manually. Turn on the high
beams by pushing the lever forward until you hear a click, or flash the high beams
once by pulling the lever toward you. To turn the high beams back on, repeat one
of the procedures.
■Operating the System1 Operating the System
For the auto high-beam to work properly:
•Do not place an object that reflects light on the
dashboard.
•Keep the windshield around the camera clean.
When cleaning the windshield, be careful not to
apply windshield cleanser to the camera lens.
•Do not attach an object, sticker or film to the area
around the camera.
•Do not touch the camera lens.
If the camera receives a st rong impact, or repairing of
the area near the camera is required, consult a dealer.
To help reduce the likel ihood that high interior
temperatures will cause the camera system to shut
off, when parking, find a shady area or face the front
of the vehicle away from the sun.
If you use a reflective sun shade, do not allow it to
cover the camera housing. Covering the camera can
concentrate heat on the camera.
If the Auto High-Beam Cannot Operate: Clean
Windshield message appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.
Headlight Switch
18 ACURA RLX E-AWD-31TY36400.book 161 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

uuOperating the Switches Around the Steering Wheel uAuto High-Beam
162
Controls
Disable or re-enable the system when the
vehicle is parked and the power mode is in ON
and the light switch is in the AUTO position.
Disabling the system: Pull the light switch
lever toward you and hold it for at least 40
seconds. The auto high-beam indicator in the
meter will blink twice.
Re-enabling the system: Pull the light
switch lever toward you and hold it for at least
30 seconds. The auto high-beam indicator in
the meter will blink once.
Enabling high sensitivity: Pull the light
switch lever toward you and hold it for 90
seconds. The auto high-beam indicator in the
meter will blink five times.
When the power mode is set to VEHICLE OFF,
sensitivity is returned to normal.
■Disabling or Re-enabling the System1 Disabling or Re-enabling the System
The auto high-beam is in the previously selected
disabled or re-enabled sett ing each time you turn the
power system on.
AUTO Position
18 ACURA RLX E-AWD-31TY36400.book 162 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

163
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, AUTO, LO, HI)
Move the lever up or down to change the
wiper settings.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
■Windshield Wiper/Washer1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the wipers stop operating due to any obstacle such
as the build-up of snow, park the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF, then remove
the obstacle.
MIST
OFF
LO : Low speed wipe
HI: High speed wipe Pull to
use
washer.
AUTO
18 ACURA RLX E-AWD-31TY36400.book 163 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

373
Driving
This chapter discusses driving and refueling.
Before DrivingDriving Preparation .......................... 374
Maximum Load Limit........................ 377
Towing a Trailer ................................ 379
When Driving Turning on the Power ...................... 380
Precautions While Driving................. 385
Dual Clutch Transmission ................. 386
Shifting ............................................ 387
SPORT Mode.................................... 395
Reactive Force Pedal......................... 396
Acoustic Vehicle Al erting System ...... 397
AcuraWatch
TM.................................. 398
Front Sensor Camera ....................... 402 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) ......................... 404
Road Departure Mitigation (RDM) System.... 418Lane Keeping Assist System (LKAS) .. 423
Traffic Jam Assist ............................. 430
Vehicle Stabilit y Assist (VSA®), aka Electronic
Stability Control (ESC), System........... 441
Agile Handling Assist ....................... 443SPORT HYBRID Super Handling-All Wheel DriveTM (SPORT HYBRID SH-AWD®) .... 444Blind spot information (BSI) System .. 445Tire Pressure Monitoring System (TPMS) .. 447Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 449
High Voltage Battery ........................ 451 Braking
Brake System ................................... 452
Anti-lock Brake System (ABS) ........... 458
Brake Assist System ......................... 459
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 460
Parking Your Vehicle When Stopped ................................ 468
Parking Sensor System
*................... 470
Cross Traffic Monitor ....................... 474
Multi-View Rear Camera
*................ 478
Surround View Camera System*..... 480
Refueling Fuel Information .............................. 490
How to Refuel ................................. 491
Fuel Economy and CO
2 Emissions .... 492
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 373 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

377
uuBefore Driving uMaximum Load Limit
Continued
Driving
Maximum Load Limit
The maximum load for your vehicl e is 850 lbs (385 kg). See the
Tire and Loading Information label attached to the driver’s doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The comb ined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the am ount of available cargo and luggage load
capacity is 650 lbs. (1,400 - 750 (5 x 150) = 650 lbs.)1 Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accesso ries and all cargo.
2 Specifications P. 586
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 586
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.Label Example
18 ACURA RLX E-AWD-31TY36400.book 377 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

378
uuBefore Driving uMaximum Load Limit
Driving
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a tra iler, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVW R) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.
Load Limits Example
Example1 Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 2 = 300 lbs (68 kg x 2 = 136 kg) Cargo Weight
550 lbs
(249 kg)
Example2 Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 5 = 750 lbs (68 kg x 5 = 340 kg) Cargo Weight
100 lbs
(45 kg)
18 ACURA RLX E-AWD-31TY36400.book 378 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

379
Driving

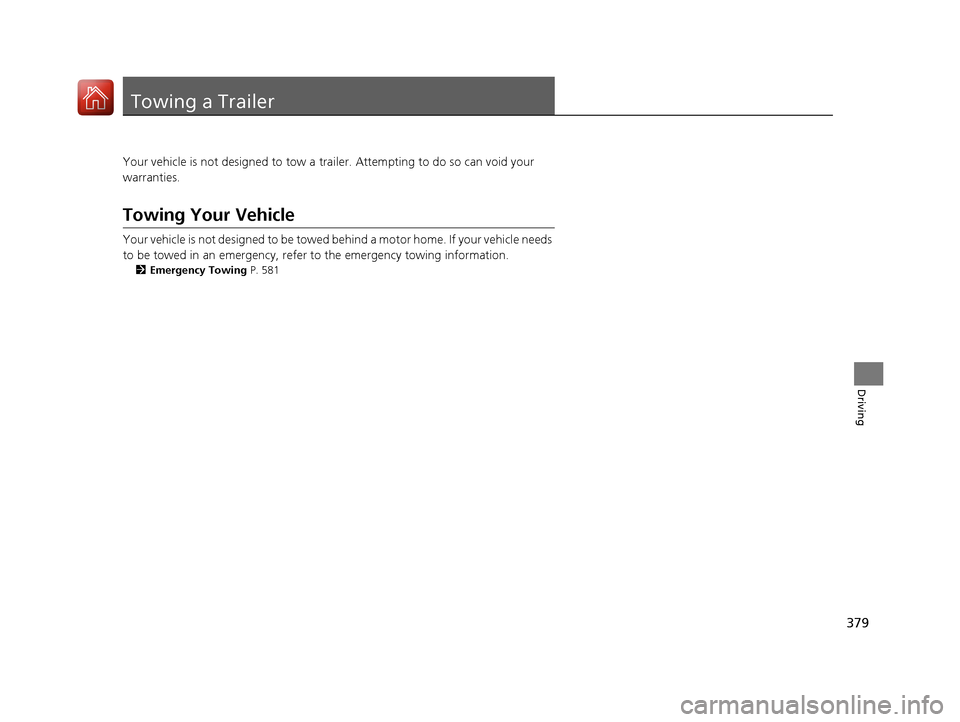

Towing a Trailer
Your vehicle is not designed to tow a trailer. Attempting to do so can void your
warranties.
Towing Your Vehicle
Your vehicle is not designed to be towed behind a motor home. If your vehicle needs
to be towed in an emergency, refer to the emergency towing information.
2Emergency Towing P. 581
