2018 Acura RDX snow chains

Continued291
uuWhen Driving uAdaptive Cruise Control (ACC)*
Driving
The system may automatically shut off and the ACC indicator will come on under
certain conditions. Some examples of thes e conditions are listed below. Other
conditions may reduce some of the ACC functions.
2 Front Sensor Camera* P. 284
■Environmental conditions
Driving in bad weather (r ain, fog, snow, etc.).
■Roadway conditions
Driving on a snowy or wet roadway (obscure d lane marking, vehicle tracks, reflected
lights, road spra y, high contrast).
■Vehicle conditions
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, compact spare tire
*, etc.).
• The camera temperature gets too hot.
• The parking brake is applied.
• When the front grille is dirty.
• When the front of the vehicle tilts up du e to heavy cargo in the cargo space or
rear seats.
• When tire chains are installed.
■ACC Conditions and Limitations1ACC Conditions and Limitations
The radar sensor for ACC is shared with the Collision
Mitigation Braking System
TM (CMBSTM).
2 Collision Mitigation Braking SystemTM
(CMBSTM)* P. 324
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera
* P. 284
* Not available on all models

322
uuBraking uAnti-lock Brake System (ABS)
Driving
Anti-lock Brake System (ABS)
Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you.
The electronic brake distribution (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distri bution according to vehicle loading.
You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pe dal. This is sometimes referred to as
“stomp and steer.”
■ABS operation
The brake pedal may pulsate slightly when the ABS is working. Keep holding the
pedal firmly down. On dry pavement, you w ill need to press on the brake pedal very
hard before the ABS activates. However, you may feel the ABS activate immediately
if you are trying to stop on snow or ice.
ABS may activate when you depress the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surfaces, such as potholes, cracks, manholes, etc.
When the vehicle speed goes unde r 6 mph (10 km/h), the ABS stops.
■ABS1Anti-lock Brake System (ABS)
NOTICE
The ABS may not function correctly if you use an
incorrect tire type and size.
When the ABS indicator comes on while driving,
there may be a problem with the system.
While normal braking is not affected, there is a
possibility of the ABS not operating. Have the vehicle
checked by a dealer immediately.
The ABS does not reduce the ti me or distance it takes
to stop the vehicle. It only helps with steering control
during hard braking.
In the following cases, yo ur vehicle may need more
stopping distance than a vehicle without the ABS:
•When driving on rough road surfaces, including
when driving on uneven surf aces, such as gravel or
snow.
•When tire chains are installed.
The following may be observed with the ABS system:
•Motor sounds coming from the engine
compartment when the brakes are applied, or
when system checks are being performed after the
engine has been started and while vehicle is
accelerates.
•Brake pedal and/or the ve hicle body vibration when
ABS activates.
These vibrations and sounds are normal to ABS
systems and are no cause for concern.

329
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
Driving
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, compact spare tire
*, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too hot.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.
■Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved, winding or und ulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehi cle and a vehicle in front of you is
significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in fr ont of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
* Not available on all models

384

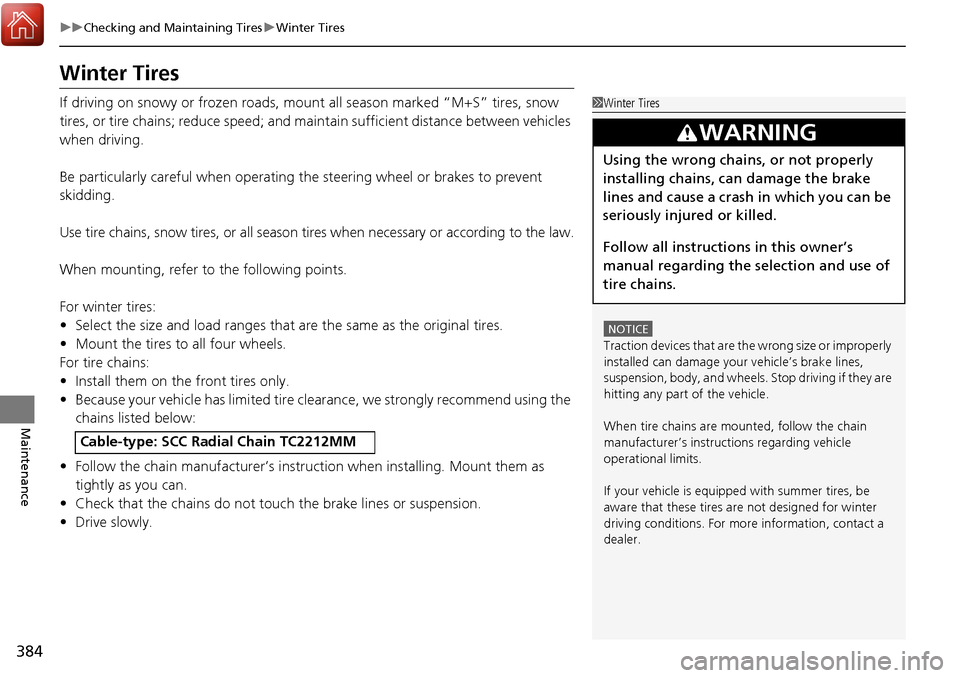

uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked “M+S” tires, snow
tires, or tire chains; reduce speed; and ma intain sufficient distance between vehicles
when driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season ti res when necessary or according to the law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire clearance, we strongly recommend using the
chains listed below:
• Follow the chain manufacturer’s instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not to uch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC Radial Chain TC2212MM
1Winter Tires
NOTICE
Traction devices that are th e wrong size or improperly
installed can damage your vehicle’s brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer’s instructi ons regarding vehicle
operational limits.
If your vehicle is equipped with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instruction s in this owner’s
manual regarding the selection and use of
tire chains.

449

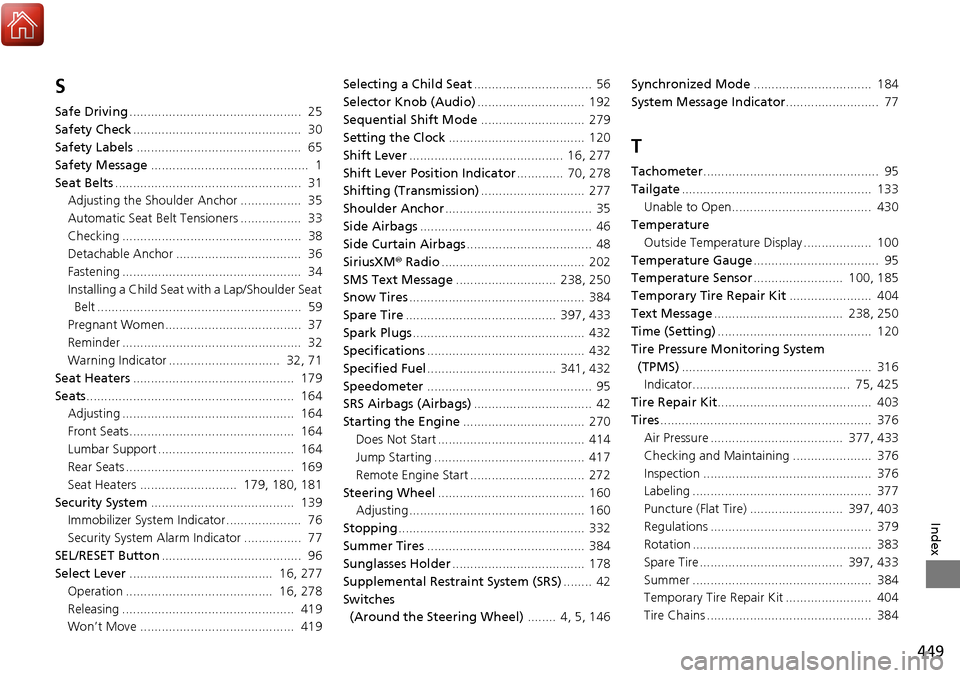

Index
S
Safe Driving................................................ 25
Safety Check ............................................... 30
Safety Labels .............................................. 65
Safety Message ............................................ 1
Seat Belts .................................................... 31
Adjusting the Shoulder Anchor ................. 35
Automatic Seat Belt Tensioners ................. 33
Checking .................................................. 38
Detachable Anchor ................................... 36
Fastening .................................................. 34
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 59
Pregnant Women...................................... 37
Reminder .................................................. 32
Warning Indicator ............................... 32, 71
Seat Heaters ............................................. 179
Seats .......................................................... 164
Adjusting ................................................ 164
Front Seats.............................................. 164
Lumbar Support ...................................... 164
Rear Seats ............................................... 169
Seat Heaters ........................... 179, 180, 181
Security System ........................................ 139
Immobilizer System Indicator..................... 76
Security System Alarm Indicator ................ 77
SEL/RESET Button ....................................... 96
Select Lever ........................................ 16, 277
Operation ......................................... 16, 278
Releasing ................................................ 419
Won’t Move ........................................... 419 Selecting a Child Seat
................................. 56
Selector Knob (Audio) .............................. 192
Sequential Shift Mode ............................. 279
Setting the Clock ...................................... 120
Shift Lever ........................................... 16, 277
Shift Lever Position Indicator ............. 70, 278
Shifting (Transmission) ............................. 277
Shoulder Anchor ......................................... 35
Side Airbags ................................................ 46
Side Curtain Airbags ................................... 48
SiriusXM ® Radio ........................................ 202
SMS Text Message ............................ 238, 250
Snow Tires ................................................. 384
Spare Tire .......................................... 397, 433
Spark Plugs ................................................ 432
Specifications ............................................ 432
Specified Fuel .................................... 341, 432
Speedometer .............................................. 95
SRS Airbags (Airbags) ................................. 42
Starting the Engine .................................. 270
Does Not Start ......................................... 414
Jump Starting .......................................... 417
Remote Engine Start ................................ 272
Steering Wheel ......................................... 160
Adjusting ................................................. 160
Stopping .................................................... 332
Summer Tires ............................................ 384
Sunglasses Holder ..................................... 178
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering Wheel) ........ 4, 5, 146Synchronized Mode
................................. 184
System Message Indicator .......................... 77
T
Tachometer................................................. 95
Tailgate ..................................................... 133
Unable to Open....................................... 430
Temperature Outside Temperature Display ................... 100
Temperature Gauge ................................... 95
Temperature Sensor ......................... 100, 185
Temporary Tire Repair Kit ....................... 404
Text Message .................................... 238, 250
Time (Setting) ........................................... 120
Tire Pressure Monitoring System
(TPMS) ..................................................... 316
Indicator............................................ 75, 425
Tire Repair Kit ........................................... 403
Tires ........................................................... 376
Air Pressure ..................................... 377, 433
Checking and Maintaining ...................... 376
Inspection ............................................... 376
Labeling .................................................. 377
Puncture (Flat Tire) .......................... 397, 403
Regulations ............................................. 379
Rotation .................................................. 383
Spare Tire ........................................ 397, 433
Summer .................................................. 384
Temporary Tire Repair Kit ........................ 404
Tire Chains .............................................. 384

450
Index
Tire Repair Kit .......................................... 403
Wear Indicators ....................................... 381
Winter ..................................................... 384
Tools .......................................................... 396
Towing a Trailer ........................................ 263
Equipment and Accessories...................... 264
Load Limits .............................................. 263
Towing Your Vehicle ................................ 267
Emergency............................................... 429
TPMS (Tire Pressure Monitoring System) ......... 316
Indicator ............................................ 75, 425
Transmission .............................................. 277
Automatic ............................................... 277
Fluid ........................................................ 362
Number ................................................... 434
Sequential Shift Mode ............................. 279
Shift Lever Position Indicator .............. 70, 278
Trip Meter ................................................. 100
Troubleshooting ....................................... 395
Blown Fuse ...................................... 426, 427
Brake Pedal Vibrates .................................. 21
Buzzer Sounds When Opening Door .......... 22
Emergency Towing .................................. 429
Engine Won’t Start .................................. 414
Noise When Braking .................................. 23
Overheating............................................. 420
Puncture/Flat Tire ............................. 397, 403
Rear Door Won’t Open ...................... 22, 131
Select Lever Won’t Move ......................... 419
Warning Indicators .................................... 68 Turn Signals
.............................................. 149
Indicators (Instrument Panel) ..................... 75
Two-way Keyless Access Remote .................................... 121, 129, 272
U
Unlocking the Doors ................................ 125
Unlocking the Front Doors from the Inside ................................. 12, 130
USB Adapter Cable ................................... 188
USB Flash Drives ....................................... 223
USB Port .................................................... 189
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 434
Vehicle Stability Assist (VSA ®).................. 311
Off Button............................................... 312
Off Indicator.............................................. 73
System Indicator ................................ 73, 311
Viscosity (Oil) .................................... 355, 433
VSA ® (Vehicle Stability Assist) .................. 311
W
Wallpaper................................................. 196
Warning and Information Messages ......... 84
Warning Indicator On/Blinking ............... 422
Warning Labels ........................................... 65 Warranties (Warranty Manual provided
separately) .............................................. 439
Watts ........................................................ 432
Wear Indicators (Tire) .............................. 381
Wheel Nut Wrench (Jack Handle) ........... 400
Window Washers ..................................... 153
Adding/Refilling Fluid .............................. 364
Switch .................................................... 153
Windows (Opening and Closing) ............ 142
Windshield ............................................... 153
Cleaning ................................................. 392
Defrosting/Defogging ............................. 183
Washer Fluid ........................................... 364
Wiper Blades........................................... 372
Wipers and Washers ............................... 153
Winter Tires .............................................. 384
Snow Tires .............................................. 384
Tire Chains.............................................. 384
Wipers and Washers ................................ 153
Automatic Intermittent Wipers ................ 154
Checking and Replacing Wiper Blades..... 372
Front....................................................... 153
Rear ........................................................ 155
WMA ................................................. 204, 212
Worn Tires ................................................ 376
