Thousands of miles 9 18 27 36 45 54 63 72 81 90 99 108
Thousands of km 15 30 45 60 75 90 105 120 135 150 165 180
Visually inspect the conditions of toothed timing belt
Check exhaust gas emissions
Check engine control system operation (using diagnosis socket)
Replace accessory drive belt(s)
Replace toothed timing belt (*)
Replace spark plugs (1)
Replace air filter cartridge
Change engine oil and replace oil filter (or every 12 months) (2)
Change brake fluid (or every 24 months)
Change pollen filter (or every 15 months)
(*) Regardless of the distance covered, the timing belt should be replaced every 4 years for particularly demanding use (cold climates, city
driving, idling for a long time, dusty areas) or, in any case, every 5 years.
(1)The following are extremely important to ensure correct operation and prevent serious damage to the
engine:
– only use spark plugs of the same make and type specially certified for 1.4 Turbo Multi Air engines
(see “Engine” paragraph in “Technical specifications” chapter);
– strictly comply with the spark plug replacement interval given in the Scheduled Servicing Plan;
– it is advisable to contact an Abarth Dealership.
(2) If the car is equipped with esseesse kit (for versions/markets, where provided), the engine oil and engine oil
filter must be changed every 10,000 km or every 12 months.
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 185

186
HEAVY USAGE OF THE CAR
Should the car be used predominantly in one of the
following particularly demanding conditions:
❒dusty roads;
❒short distances (less than 7-8 km) and with external
temperatures below zero;
❒frequently idling engine or long distance low speed
driving (e. g. taxis or door-to-door deliveries) or in
the case of long term inactivity;
❒in cities;
perform the following inspections more frequently than
shown on the Scheduled Servicing Plan:
❒check front disc brake pad conditions and wear;
❒check cleanliness of bonnet and boot locks and
linkage cleanliness and lubrication;
❒visually inspect the conditions of: engine, gearbox,
transmission, pipes and hoses (exhaust – fuel
– brakes), rubber parts (boots, sleeves, bushes, etc.);
❒check battery charge and liquid level (electrolyte);
❒visually inspect condition of accessory drive belts;
❒check pollen filter and replace it, if required;
❒check air filter and replace, if required.
PERIODIC CHECKS
Every 1,000 km or before long journeys, check and, if
necessary, top up the following:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions;
❒operation of lighting system (headlights, direction
indicators, hazard lights, etc.);
❒operation of the windscreen wiper/washer system,
position and wear of the windscreen and rear
window wiper blades.
Every 3,000 km check and top up if required: engine oil
level.
It is advisable to use PETRONAS LUBRICANTS products,
designed and produced specifically for Abarth cars (see
table “Capacities” in section “Technical Specifications”).
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 186

187
CHECKING FLUID LEVELS
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 166
Never smoke while
working in the engine
compartment: inflammable
gases and vapours may be
present, constituting a fire risk.
WARNING
When topping up, take
care not to mix up the
various types of fluids:
they are not compatible with
each other and could seriously
damage the car.
1. Engine coolant – 2. Battery – 3. Windscreen washer fluid – 4. Brake
fluid – 5. Engine oil.
132 4
5
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 187

188
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U171Abfig. 167
ENGINE OIL fig. 167
Check the oil level a few minutes (about five) after the
engine has stopped, with the car parked on level ground.
Check that the level is within the MIN and MAX marks
on the dipstick B.
The range between the MIN. and MAX. marks
corresponds to about 1 litre of oil.
If the oil level is near or under the MIN line, add oil
through the filler A until it reaches the MAX line.
The oil level should never exceed the MAX line.ENGINE OIL CONSUMPTION
The maximum engine oil consumption is usually 400
grams every 1000 km.
When the car is new, the engine needs to run in,
therefore the engine oil consumption can only be
considered stabilised after the first 5,000 - 6,000 km.
IMPORTANT The oil consumption depends on driving
style and the car usage conditions.
IMPORTANT After adding or changing the oil, let the
engine run for a few seconds and wait a few minutes
after switching it off before checking the level.
When the engine is hot, take care when
working inside the engine compartment
to avoid burns. Remember that when the engine
is hot, the fan may operate: danger of injury.
Pay attention to scarves, ties and other loose
fitting garments: they may get caught by moving
components.
WARNING
Do not add any oil with different
specifications to those of the existing
engine oil.
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 188

189
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U172Abfig. 168
ENGINE COOLANT fig. 168
The coolant level must be checked when the engine is
cold and must range between the MIN. and MAX. marks
on the reservoir.
If the level is low, slowly pour a mixture of 50%
demineralised water and 50% PARAFLU
UPby
PETRONAS LUBRICANTS through the filler neck A
until the level reaches MAX.
The used engine oil and the replaced oil
filter contain substances that may be
dangerous for the environment. It is
advisable to have oil and filters changed by an
Abarth Dealership where they will be disposed in
accordance with nature and the law.
PARAFLUUPanti-freeze is used in the
engine cooling system. Use the same fluid
as in the cooling system when topping up.
PARAFLU
UPmay not be mixed with any other
types of fluids. If this accidentally occurs, do not
start the engine and contact an Abarth
Dealership.
A 50-50 mixture of PARAFLUUPand demineralised
water gives freeze protection to -35°C.
When the vehicle is used under particularly harsh
weather conditions, we recommend using a 60-40
mixture of PARAFLU
UPand demineralised water.
The engine cooling system is pressurised.
If necessary, only replace the cap with
another genuine one or the operation of the
system may be adversely affected. Do not
remove the cap from the reservoir when the
engine is hot: danger of scalding.
WARNING
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 189

F0U173Abfig. 169190
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

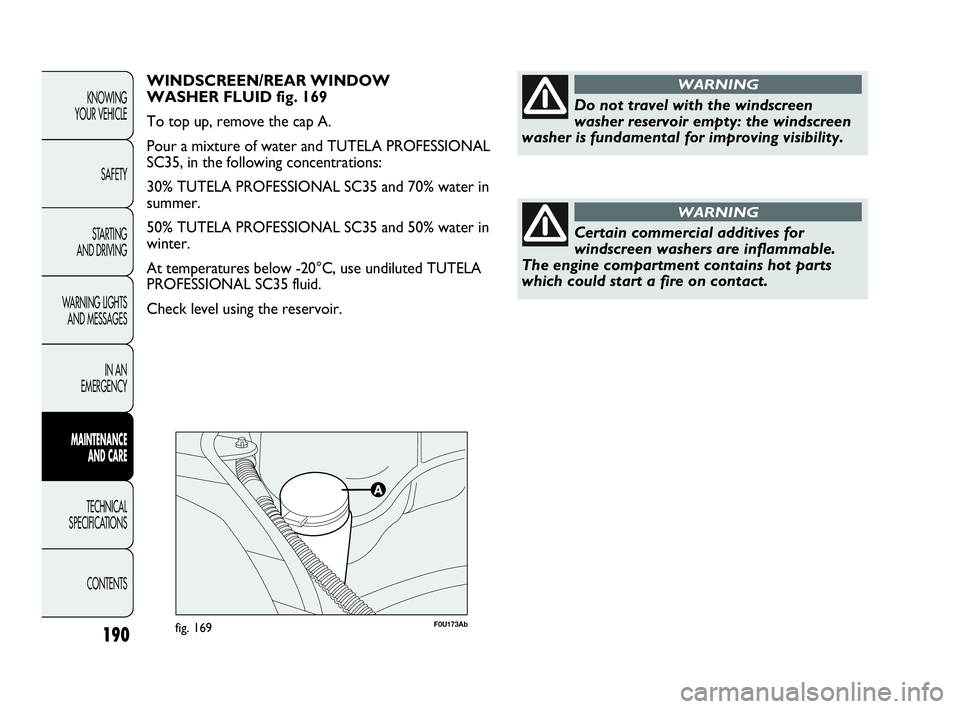

WINDSCREEN/REAR WINDOW
WASHER FLUID fig. 169
To top up, remove the cap A.
Pour a mixture of water and TUTELA PROFESSIONAL
SC35, in the following concentrations:
30% TUTELA PROFESSIONAL SC35 and 70% water in
summer.
50% TUTELA PROFESSIONAL SC35 and 50% water in
winter.
At temperatures below -20°C, use undiluted TUTELA
PROFESSIONAL SC35 fluid.
Check level using the reservoir.
Do not travel with the windscreen
washer reservoir empty: the windscreen
washer is fundamental for improving visibility.
WARNING
Certain commercial additives for
windscreen washers are inflammable.
The engine compartment contains hot parts
which could start a fire on contact.
WARNING
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 190

195
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
IMPORTANT If the charge level remains under 50% for
a long time, the battery is damaged by sulphation,
reducing its capacity and efficiency at start-up.
The battery will also be more at risk of freezing
(e.g. already at -10°C). Refer to the paragraph
“Car inactivity” in “Starting and driving” if the car is left
parked for a long time.
If after buying the car, you want to install electrical
accessories which require permanent electrical supply
(alarm, etc.) or accessories influencing the electrical
supply requirements, contact an Abarth Dealership
whose qualified personnel, in addition to suggesting the
most suitable devices available in Lineaccessori Abarth,
will evaluate the overall electric absorption, checking
whether the car’s electric system is capable of
withstanding the load required, or whether it should be
integrated with a more powerful battery.
Since these devices continue absorbing energy even with
the engine off, they gradually run down the battery.WHEELS AND TYRES
Check the pressure of each tyre, including the space-saver,
every two weeks and before long journeys. The pressure
should be checked with the tyre rested and cold.
While driving the car, the pressure increases under
standard conditions: for the correct tyre inflation
pressure, see “Wheels” in the “Technical specifications”
chapter.
Incorrect pressure causes abnormal tyre wear fig. 171:
A normal pressure: tread evenly worn;
B low pressure: tread particularly worn at the edges;
C high pressure: tread particularly worn in the centre.
The tyres must be replaced when the tread is less than
1.6 mm thick. In all cases, follow the laws in force in the
country where you are driving.
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 195

202
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
INTERIORS
Periodically check that water is not trapped under the
mats (due to water dripping off shoes, umbrellas, etc.)
which could cause oxidisation of the sheet metal. Glasses
To clean glasses, use specific window cleaner products.
Also use clean cloths to avoid scratching the glass or
altering the transparency.
IMPORTANT Wipe the rear window inside gently with
a cloth in the direction of the filaments to avoid
damaging the heating device.
Engine compartment
Wash the engine compartment thoroughly at the end of
every winter. Be careful not to direct the jet of water
onto electronic control units. Adequately protect the
upper air vents to prevent damage to the windscreen
wiper motor. Have this operation performed at a
specialised workshop.
IMPORTANT The washing should take place with the
engine cold and the ignition key in the STOP position.
After the washing operation, make sure that the various
protections (e.g. rubber caps and guards) have not been
removed or damaged.
Front headlights
IMPORTANT Never use aromatic substances (e.g.: petrol)
or ketenes (e.g.: acetone) for cleaning front headlight plastic
lens.
Never use flammable products, such as
petrol ether or rectified petrol to clean
the inside of the car. The electrostatic charges
which are generated by rubbing during the
cleaning operation may cause a fire.
WARNING
Do not keep aerosol cylinders in the
vehicle: risk of bursting. Aerosol cylinders
must not be exposed to a temperature
exceeding 50°C. When the car is exposed to
sunlight, the internal temperature can greatly
exceed this value.
WARNING
183-204 PUNTO Abarth GB 1ed 17-07-2012 15:17 Pagina 202
