2018.5 OPEL VIVARO B odometer

84Instruments and controlsInstruments and
controlsControls ....................................... 85
Steering wheel adjustment ........85
Steering wheel controls .............85
Horn ........................................... 85
Steering column controls ...........85
Windscreen wiper and washer ..86
Rear window wiper and washer ...................................... 87
Outside temperature ..................87
Clock ......................................... 88
Power outlets ............................. 89
Cigarette lighter ......................... 90
Ashtrays .................................... 90
Warning lights, gauges and indi‐ cators ........................................... 91
Instrument cluster ......................91
Speedometer ............................. 91
Odometer .................................. 92
Trip odometer ............................ 92
Tachometer ............................... 92
Fuel gauge ................................ 92
Fuel economy gauge .................93
Service display .......................... 94
Control indicators ......................94Turn lights.................................. 97
Seat belt reminder .....................98
Airbag and belt tensioners .........98
Airbag deactivation ....................98
Charging system .......................99
Malfunction indicator light ..........99
Service vehicle soon .................99
Stop engine ............................... 99
Brake system ............................. 99
Antilock brake system (ABS) ...100
Upshift ..................................... 100
Electronic Stability Program ....100
Electronic Stability Program off ........................................... 100
Engine coolant temperature ....100
Preheating ............................... 101
AdBlue ..................................... 101
Tyre pressure monitoring system .................................... 101
Engine oil pressure ..................101
Fuel economy mode ................102
Low fuel ................................... 102
Stop-start system ....................102
Exterior light ............................ 102
High beam ............................... 102
Fog light ................................... 103
Rear fog light ........................... 103
Cruise control .......................... 103
Speed limiter ........................... 103Tachograph............................. 103
Door open ................................ 103
Displays ..................................... 103
Driver Information Centre ........103
Info Display .............................. 104
Vehicle messages ......................104
Warning chimes .......................105
Engine oil level ........................ 106
Trip computer ............................. 106
Tachograph ................................ 108

92Instruments and controlsOdometer
Displays the recorded distance.
Trip odometer The trip odometer appears below the
odometer in the Driver Information
Centre and displays the distance
travelled since the last reset.

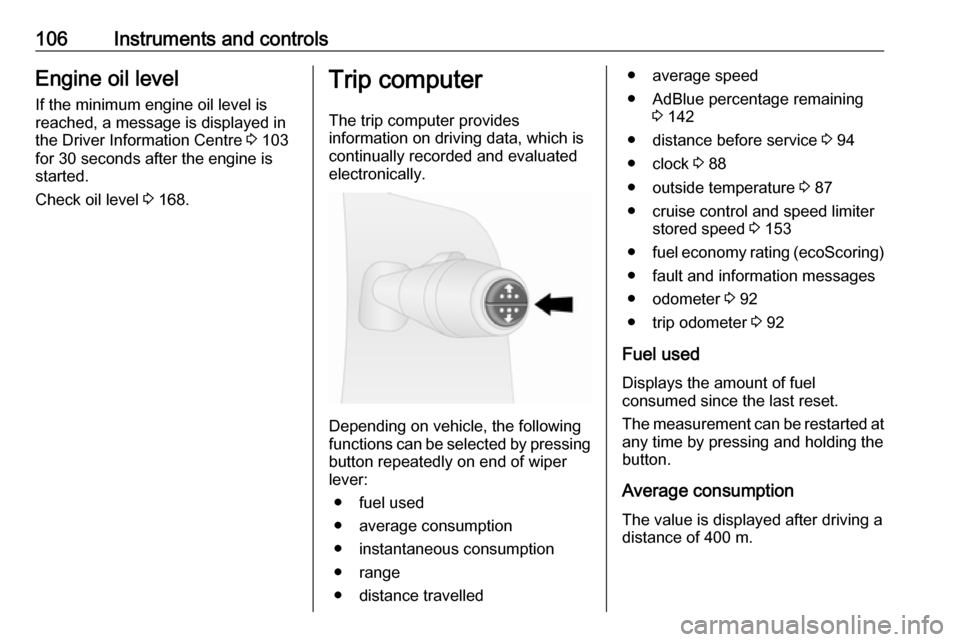

To reset, with the trip odometer
displayed, press and hold button on
end of wiper lever for a few seconds
with the ignition on. The display will
flash and the value will reset to zero.
Driver Information Centre 3 103.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for each gear as much as possible.
Caution
If the needle is in the yellow
warning zone, the maximum
permitted engine speed is
exceeded. Engine at risk.
Fuel gauge
Displays fuel level in the tank.
The arrow indicates the vehicle side
where the fuel filler flap is located.
Control indicator Y also illuminates in
instrument cluster 3 94 when fuel
level is low (range of approx. 50 km):
refuel immediately 3 161.
Never run the tank dry.
Diesel fuel system, bleeding 3 174.

Instruments and controls103Fog light> illuminates green.
Illuminated when the front fog lights are on 3 113.
Rear fog light ø illuminates yellow.
Illuminated when the rear fog light is
on 3 114.
Cruise control
m , U illuminates green or yellow.
m illuminates green when a certain
speed is stored.
U illuminates green when the system
is on.
Cruise control 3 153.
Speed limiter
U illuminates yellow.
Illuminates when the system is on. Speed limiter 3 155.Tachograph
& illuminates when there is a fault
3 108.
Door open
y illuminates red.
Illuminates when a door is not fully
closed.
A corresponding message also
appears in the Driver Information
Centre 3 103.Displays
Driver Information Centre
Depending on vehicle configuration,
the following items appear in the
display:
● outside temperature 3 87
● clock 3 88
● odometer 3 92
● trip odometer 3 92
● service display 3 94
● vehicle messages 3 104
● trip computer 3 106

106Instruments and controlsEngine oil levelIf the minimum engine oil level is
reached, a message is displayed in
the Driver Information Centre 3 103
for 30 seconds after the engine is
started.
Check oil level 3 168.Trip computer
The trip computer provides
information on driving data, which is
continually recorded and evaluated
electronically.
Depending on vehicle, the following
functions can be selected by pressing button repeatedly on end of wiper
lever:
● fuel used
● average consumption
● instantaneous consumption
● range
● distance travelled
● average speed
● AdBlue percentage remaining 3 142
● distance before service 3 94
● clock 3 88
● outside temperature 3 87
● cruise control and speed limiter stored speed 3 153
● fuel economy rating (ecoScoring)
● fault and information messages
● odometer 3 92
● trip odometer 3 92
Fuel used Displays the amount of fuel
consumed since the last reset.
The measurement can be restarted at
any time by pressing and holding the
button.
Average consumption The value is displayed after driving a
distance of 400 m.

108Instruments and controls● trip odometer
● fuel saved in km
Unit of measurement To change the unit of measurement
for the duration of a journey:
Vehicles with power button:
With ignition off, simultaneously press and hold button on end of wiper lever
and press the power button 3 133.
The Driver Information Centre flashes
for approx. 10 seconds until the new
unit is displayed. Release button on end of wiper lever when the display
stops flashing.
Vehicles without power button:
With ignition off, simultaneously press and hold button on end of wiper lever
and switch on the ignition. The Driver Information Centre flashes for
approx. 10 seconds until the new unit
is displayed. Release button on end
of wiper lever when the display stops
flashing.
When the engine is switched off, the
trip computer automatically returns to
the original unit of measurement.Interruption of power supply
If the power supply has been
interrupted or if the vehicle battery
voltage has dropped too low, the
values stored in the trip computer will be lost.Tachograph
The tachograph is operated as
described in the operating
instructions supplied. Observe
regulations regarding use.
Depending on equipment, the
tachograph may be fitted in a console located above the Infotainment
system in the instrument panel.

Instruments and controls109Note
When a tachograph is fitted, the total
distance travelled may be shown
only on the tachograph and not in the odometer within the instrument
display.
Odometer 3 92.
Control indicator & 3 103 illuminates
in the instrument cluster in the event
of a fault. Seek the assistance of a
workshop.
