Instrument and control functions
4-9
1
2
34
5
6
7
8
9
10
11
12
EAU79281
DisplayThe display has two different main
screen display modes, STREET
MODE and TRACK MODE. Most of the
functions are viewable in either mode,
but the layout differs slightly. The fol-
lowing items can be found on the dis-
play.
Speedometer

Tachometer

Information display

Transmission gear display

Front brake pressure indicator

Acceleration indicator

YRC setting display MODE/PWR/
TCS/SCS

YRC setting display LCS/QS/LIF

ERS indicator (ERS-equipped
models)

GPS indicator (CCU-equipped
models)

Clock

Revolution peak hold indicator

Lap timer

Various warning icons

Error mode warning “Err”
TIPThis model uses a thin-film-transistor
liquid-crystal display (TFT LCD) for
good contrast and readability in various
lighting conditions. However, due to the
nature of this technology, it is normal
for a small number of pixels to be inac-tive. STREET MODE
1. YRC items LCS/QS/LIF
2. ERS indicator (YZF-R1M)
3. Speedometer
4. GPS indicator (CCU-equipped models)
5. Logging indicator (CCU-equipped models)
6. Clock
7. Revolution peak hold indicator
8. Front brake pressure indicator
9. Acceleration indicator
10.Transmission gear display
11.YRC items MODE/PWR/TCS/SCS
12.Information display
13.Tachometer
ODO
12345
km
TRIP-2
1234.5
km
1
Ny
2 km/h
·1000 r/minMODE -
A
PWR
1
TCS
1
SCS
1
A
-
1
LCS
QS
LIF
GPS
12 :
00
7
11 1 089
4
1
2
36
5
1312
BX4-9-E0.book 9 ページ ２０１６年１２月１日　木曜日　午後８時７分

Instrument and control functions
4-10
1
2
345
6
7
8
9
10
11
12
TRACK MODE
WARNING
EWA18210
Stop the vehicle before making any
setting changes. Changing settings
while riding can distract the opera-
tor and increase the risk of an acci-
dent.
Speedometer
The speedometer shows the vehicle’s
traveling speed.TIPThe display can be switched between
kilometers and miles. See “Unit” onpage 4-22.
Tachometer
The tachometer shows the engine
speed, as measured by the rotational
velocity of the crankshaft, in revolutions
per minute (r/min).TIP
In TRACK MODE, the tachometer
starts at 8000 r/min.

In STREET MODE, the tachome-
ter can be color-adjusted and has
a revolution peak hold indicatorwhich can be turned on or off.
NOTICE
ECA10032
Do not operate the engine in the ta-
chometer red zone.
Red zone: 14000 r/min and above
Information display
This section of the main screen is used
to show additional riding related infor-
mation such as air and coolant temper-
ature readings, tripmeters, and fuel
consumption statistics. The information
display items can be set into four
groups via the MENU screen.
The information display items are:
A.TEMP: air temperature
C.TEMP: coolant temperature
TRIP-1: tripmeter 1
TRIP-2: tripmeter 2
F-TRIP: fuel tripmeter
ODO: odometer
FUEL CON: the amount of fuel con-
sumed
FUEL AVG: average fuel consumption
CRNT FUEL: current fuel consumptionTIP
ODO will lock at 999999 and can-
not be reset.

TRIP-1 and TRIP-2 will reset to 0
and begin counting again after
9999.9 has been reached.

When the fuel tank reserve level
1. YRC items LCS/QS/LIF
2. ERS indicator (YZF-R1M)
3. Lap timer
4. Coolant temperature warning “ ”
5. Oil pressure warning “ ”
6. Clock
7. Transmission gear display
8. Information display
9. YRC items MODE/PWR/TCS/SCS
10.Speedometer
11.Tachometer
MODE
-
A
PWR
1
TCS
1
SCS
1
km/h
123
ODO
km
7890
GEARN
LAP 09
LATEST12
12 34
·1000 r/min
A
-
1
LC LCS
QS
LIF
12 :
00
11109
8
5
4
1
2
36
7
BX4-9-E0.book 10 ページ ２０１６年１２月１日　木曜日　午後８時７分

Instrument and control functions
4-15
1
2
34
5
6
7
8
9
10
11
12
EAU79291
MENU screenThe MENU screen contains the follow-
ing setting modules. Select a module to
make related setting changes. Al-
though some settings can be changed
or reset via the main screen, the MENU
screen offers access to all display and
control settings. MENU access and operation
The following wheel switch operations
are common operations for accessing,
selecting, and moving within the MENU
screen and its modules.
Long push - press and hold the wheel
switch for one second to access the
MENU screen or exit MENU entirely.
Select - rotate the wheel switch up or
down to highlight the desired module or
setting item and then short push the
wheel switch (briefly press the wheel
switch inward) to confirm the selection.
Triangle mark
- certain setting screens have an upward pointing triangle mark
item. Select the triangle mark to exit
that screen and move back one screen
(or long push the wheel switch to exit
MENU entirely).
TIPShould vehicle motion be detected, the
screen will automatically exit MENUand change to the main screen.
“Display Mode”
There are two main screen display
modes, STREET MODE and TRACK
MODE.
To set the main screen display mode1. Long push the wheel switch to en-
ter the MENU screen.
Display Description
Switch the main screen
display between street and
track modes.
Adjust YRC settings (all
models) and ERS settings
(YZF-R1M).
View and reset lap times.
Turn vehicle information
logging function on/off
(CCU-equipped models).Display ModeYRC SettingL ap TimeLogging
View and reset three
maintenance item
intervals.
Set fuel consumption and
distance units.
Set background colors.
Turn the shift indicator on/
off and adjust tachometer
settings.
Set the multi-function
display window items.
Adjust screen brightness.
Adjust the clock.
Return all settings to
factory default settings.
Maintenance
Unit
WallpaperShift IndicatorDisplay SettingBrightnessCloc
k
All Reset
BX4-9-E0.book 15 ページ ２０１６年１２月１日　木曜日　午後８時７分

Instrument and control functions
4-29
1
2
34
5
6
7
8
9
10
11

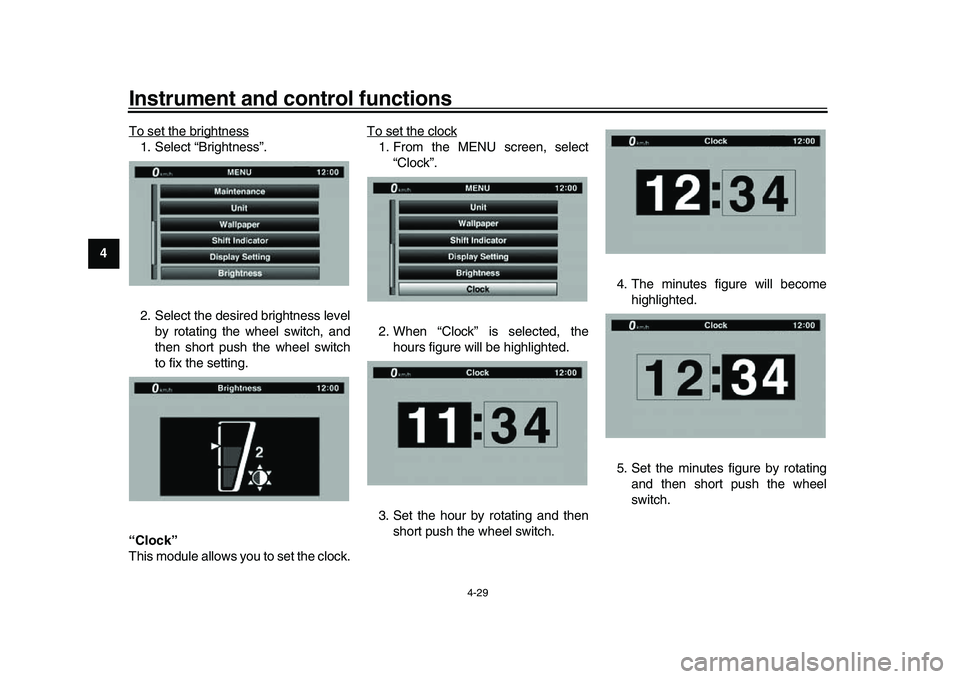

12 To set the brightness
1. Select “Brightness”.
2. Select the desired brightness level
by rotating the wheel switch, and
then short push the wheel switch
to fix the setting.
“Clock”
This module allows you to set the clock. To set the clock
1. From the MENU screen, select
“Clock”.
2. When “Clock” is selected, the hours figure will be highlighted.
3. Set the hour by rotating and then short push the wheel switch. 4. The minutes figure will become
highlighted.
5. Set the minutes figure by rotating and then short push the wheel
switch.
BX4-9-E0.book 29 ページ ２０１６年１２月１日　木曜日　午後８時７分

Instrument and control functions
4-30
1
2
345
6
7
8
9
10
11
12
6. Short push the wheel switch again
to exit and go back to the MENU
screen.
“All Reset”
This module resets everything, except
the odometer and clock, to its factory
preset or default setting.
Select YES to reset all items. After se-
lecting YES, all items will be reset and
the screen will automatically return to
the MENU screen.
EAU12822
Clutch leverThe clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 4-47.)
EAU67010
Shift pedalThe shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission.
When the quick-shift system is turned
on, the shift switch senses shift pedal
movement and allows for upshifting
without operating the clutch lever. See
QSS on page 4-17 for more informa-
tion.
1. Clutch lever
1
1. Shift pedal
2. Shift switch
1
2
