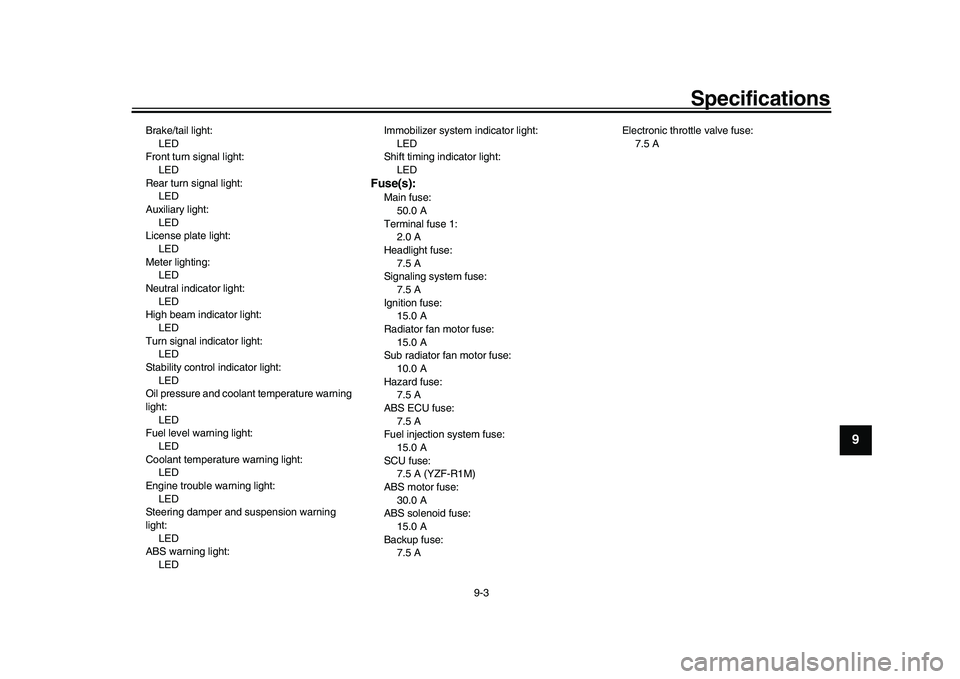

Brake/tail light:LED
Front turn signal light:
LED
Rear turn signal light: LED
Auxiliary light: LED
License plate light:
LED
Meter lighting: LED
Neutral indicator light: LED
High beam indicator light:
LED
Turn signal indicator light: LED
Stability control indicator light:
LED
Oil pressure and coolant temperature warning
light:
LED
Fuel level warning light:
LED
Coolant temperature warning light: LED
Engine trouble warning light: LED
Steering damper and suspension warning
light:
LED
ABS warning light:
LED Immobilizer system indicator light:
LED
Shift timing indicator light:
LED
Fuse(s):Main fuse:50.0 A
Terminal fuse 1:
2.0 A
Headlight fuse: 7.5 A
Signaling system fuse: 7.5 A
Ignition fuse:
15.0 A
Radiator fan motor fuse: 15.0 A
Sub radiator fan motor fuse: 10.0 A
Hazard fuse:
7.5 A
ABS ECU fuse: 7.5 A
Fuel injection system fuse: 15.0 A
SCU fuse:
7.5 A (YZF-R1M)
ABS motor fuse: 30.0 A
ABS solenoid fuse: 15.0 A
Backup fuse:
7.5 A Electronic throttle valve fuse:
7.5 A
