2017 YAMAHA YXZ1000R SS ECO mode

4-10
4
Clock, hour meter, voltage display and
coolant temperature display
The clock displays time in 12-hour format.
The hour meter shows the total time the en-
gine has been running.
The voltage display shows the battery volt-
age.
The coolant temperature display shows the
temperature of the coolant.Push the “MODE” button to switch between
the clock “CLOCK”, the hour meter “HOUR”,
the voltage display “VOLTAGE”, and the
coolant temperature display in the following
order:
CLOCK
→ HOUR → VOLTAGE → coolant
temperature → CLOCK
TIPIf the engine overheats, the coolant tempera-
ture warning light will come on, and the cool-
ant temperature display will be automatically
selected. To set the clock1. Set the display to the clock.
2. Push both the “SELECT” button and
“RESET” button for three seconds. The
hour digits will start flashing.
3. Push the “RESET” button to set the hours.
1. Clock/Hour meter/Voltage display/Coolant temperature display
2. “SELECT” button
3. “RESET” button
4. “MODE” button
23
4
1
U2HC7ME0.book Page 10 Tuesday, April 19, 2016 10:33 AM

4-14
4
Activation point: this function allows you to
select the engine speed at which the indi-
cator light is activated.
 Deactivation point: this function allows you
to select the engine speed at which the in-
dicator light is deactivated.
To adjust the shift timing indicator light1. Turn the key to “ ” (off).
2. Push and hold the “MODE” button.
3. Turn the key to “ ” (on), and then re- lease the “MODE” button after five sec-
onds. After all segments of the display
disappear and the shift timing indicator
light comes on, the shift timing indicator
light can be adjusted.
To set the flashing pattern1. Push the “RESET” button to select one of the following flashing pattern settings:
On: the indicator light stays on when
activated. (The indicator light will con-
firm this setting by staying on.) 
Flash: the indicator light flashes when
activated. (The indicator light will con-
firm this setting by flashing four times
per second.)
 Off: the indicator light is deactivated; in
other words, it does not come on or
flash. (The indicator light will confirm
this setting by flashing once every two
seconds.)
2. Push the “MODE” button to confirm the selected flashing pattern. The control
mode changes to the activation point set-
ting mode. The shift timing indicator light
remains on and the tachometer shows
the current setting r/min for the activation
point.
To set the shift activation point
TIP The shift timing indicator light activation
point can be set between 7000 r/min and
12000 r/min. The activation point can be set
in increments of 500 r/min.
U2HC7ME0.book Page 14 Tuesday, April 19, 2016 10:33 AM

4-30
4
EBU35660Flag pole bracketThis model is equipped with a flag pole brack-
et.NOTICEECB03010Do not use the flag pole bracket as a cargo
hook.
EBU36462Adjusting the front shock absorber as-
sembliesThe shock absorber assemblies are equipped
with a spring preload adjusting nut, a rebound
damping force adjusting screw (for
YXZ10YMXH), a high speed rebound damp-
ing force adjusting bolt (for YXZ10YMSH), a
low speed rebound damping force adjusting
screw (for YXZ10YMSH), a high speed com-
pression damping force adjusting bolt, and a
low speed compression damping force ad-
justing screw.
WARNING
EWB04140Suspension components become hot
during operation. Never touch the com-
pression damping force adjusting bolt
and screw, the rebound damping force
adjusting bolt and screw, or the oil reser-
voir with your bare hand or skin until
suspension components have cooled.
1. Flag pole bracket
1
1
U2HC7ME0.book Page 30 Tuesday, April 19, 2016 10:33 AM

7-14
7
Become familiar with the way the vehicle han-
dles in the various drive modes. Start off with
two-wheel drive “2WD”, then four-wheel drive
“4WD”, and finally four-wheel drive with the
differential locked “DIFF LOCK”. Steering
may take more effort in four-wheel drive with
the differential locked “DIFF LOCK”. Also
practice driving in reverse.TIPTake the time to learn basic operation of the
vehicle before driving at higher speeds or at-
tempting more difficult maneuvers.
Getting ready to ride
Perform the pre-operation checks on page
5-1. Follow the instructions on page 6-2 when
starting the engine.
Turning
Use care in turns — turning the steering wheel
too far or too fast can result in loss of control
or a rollover. Slow down before entering
turns. When making tight turns from a stand-
still or at slow speeds, avoid sudden or hard
acceleration. Driving aggressively or making
abrupt maneuvers even on flat, open areas
can cause side rollovers. Avoid sideways slid-
ing, skidding, or back-wheel sliding, and nev-
er do donuts. If you feel the vehicle begin to
slide sideways or the back wheels slide dur-
ing a turn, steer into the direction of the slide,
if possible, and gradually let off the accelera-
tor pedal to regain directional control and
avoid rollover. For example, if you feel the
back of the vehicle start to slide to your right,
steer to the right.
U2HC7ME0.book Page 14 Tuesday, April 19, 2016 10:33 AM

8-37
8
TIPIf a torque wrench is not available when in-
stalling the spark plug, a good estimate of the
correct torque is 1/4–1/2 turn past finger tight.
However, the spark plug should be tightened
to the specified torque as soon as possible. NOTICEECB02900Do not use any tools to remove or install
the spark plug cap, otherwise the ignition
coil coupler may be damaged. The spark
plug cap may be difficult to remove be-
cause the rubber seal on the end of the cap
fits tightly. To remove the spark plug cap,
simply twist it back and forth while pulling
it out; to install it, twist it back and forth
while pushing it in.

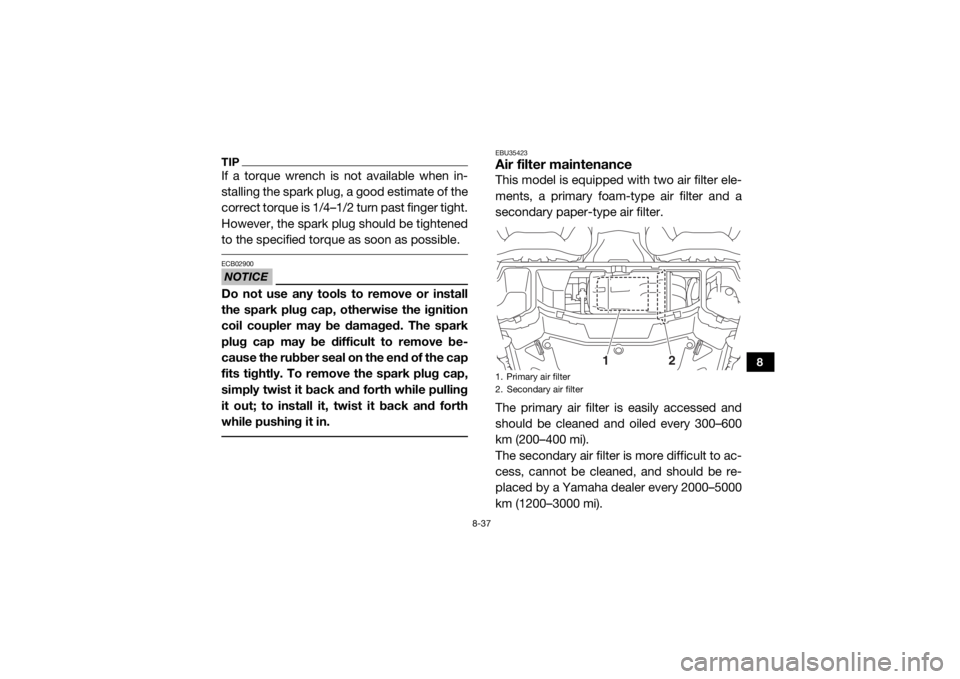

EBU35423Air filter maintenanceThis model is equipped with two air filter ele-
ments, a primary foam-type air filter and a
secondary paper-type air filter.
The primary air filter is easily accessed and
should be cleaned and oiled every 300–600
km (200–400 mi).
The secondary air filter is more difficult to ac-
cess, cannot be cleaned, and should be re-
placed by a Yamaha dealer every 2000–5000
km (1200–3000 mi).1. Primary air filter
2. Secondary air filter
1
2
U2HC7ME0.book Page 37 Tuesday, April 19, 2016 10:33 AM

10-3
10
Spark plug (s):Manufacturer/model:NGK/CR9EB
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction system:Spur gear
Primary reduction ratio: 88/53 (1.660)
Secondary reduction system:
Shaft drive
Secondary reduction ratio: 41/22 × 33/9 (6.833)
Transmission type: Constant mesh 5-speed forward, 1-speed reverse
Operation:
Right hand operation
Reverse gear: 37/15 (2.467)
1st:35/17 (2.059)
2nd:
34/22 (1.545)
3rd: 31/26 (1.192)
4th: 25/26 (0.962) 5th:
25/31 (0.806)
Chassis:Frame type:
Steel tube frame
Caster angle: 6.80 °
Trail: 33.7 mm (1.33 in)Front tire:Type:Tubeless
Size: 27 x 9.00R-14NHS
Manufacturer/model:
MAXXIS/MU09Rear tire:Type:Tubeless
Size:
27 x 11.00R-14NHS
Manufacturer/model: MAXXIS/MU10Loading:Maximum loading limit:
317.0 kg (699 lb)
U2HC7ME0.book Page 3 Tuesday, April 19, 2016 10:33 AM

11-1
11
EBU32770
CONSUMER INFORMATION
EBU33320Identification number recordsRecord the vehicle identification number and
model label information in the spaces provid-
ed for assistance when ordering spare parts
from a Yamaha dealer or for reference, in
case the vehicle is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:EBU32800Vehicle identification number
The vehicle identification number is stamped
into the frame.The vehicle identification number is used to
identify your vehicle.
EBU33331Model label
The model label can be found under the driver
seat. Record the information on this label in
the space provided. This information will be
needed to order spare parts from your
Yamaha dealer.1. Vehicle identification number
1
U2HC7ME0.book Page 1 Tuesday, April 19, 2016 10:33 AM

12-2
12
Helmet indicator light .....................................................4-6
High beam indicator light ............................................... 4-3
Hood ............................................................................ 8-10IIdentification number records ...................................... 11-1
Indicator lights and warning lights ................................. 4-2
Instruments, lights and switches, Pre-operation check ........................................................................... 5-8JJump-starting ............................................................... 8-60LLabel locations ............................................................... 1-1
Light switch .................................................................. 4-16
Loading ..........................................................................6-9MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................8-6
Maintenance chart, emission control system ................ 8-4
Model label ................................................................... 11-1
Multi-function meter unit ................................................ 4-7NNeutral indicator light .....................................................4-2OOn-Command drive knob ............................................ 4-17
Owner’s manual and tool kit .......................................... 8-2PPanels .......................................................................... 8-10
Parking ........................................................................... 6-9
Parking brake indicator light .......................................... 4-3
Parking brake lever ...................................................... 4-20
Parking brake lever free play, adjusting ....................... 8-49 Parking brake pads, checking ..................................... 8-45
Passenger handhold, Pre-operation check ................... 5-7
Pedal, lubrication ......................................................... 8-51
RRear knuckle upper and lower pivot, lubrication ......... 8-53
Reverse gear lock lever ................................................ 4-18
Reverse indicator light ................................................... 4-2SSafety information .......................................................... 2-1
Seat belt indicator light .................................................. 4-6
Seat belts ..................................................................... 4-25
Seat belts, Pre-operation check .................................... 5-7
Seats ............................................................................ 4-22
Shift lever ..................................................................... 4-21
Shift lever operation and reverse driving ....................... 6-3
Shift lever, Pre-operation check .................................... 5-8
Shift timing indicator light .............................................. 4-4
Shock absorber assemblies, adjusting the front ......... 4-30
Shock absorber assemblies, adjusting the rear ........... 4-38
Spark arrester, cleaning ............................................... 8-42
Spark plugs, checking ................................................. 8-35
Specifications .............................................................. 10-1
Stabilizer bushes, checking ......................................... 8-52
Starting the engine ......................................................... 6-2
Steering, Pre-operation check ....................................... 5-7
Steering shaft, lubrication ............................................ 8-54
Steering wheel position ................................................ 4-24
Storage .......................................................................... 9-2
Storage compartments ................................................ 4-26TTail/brake light ............................................................. 8-64
Tire, replacing .............................................................. 8-55
