TIPTo achieve the proper engine oil temperature for
an accurate oil level reading, the engine must have
first completely cooled down, and then warmed
up again for several minutes to normal operating
temperature. 3. Remove the engine oil tank filler cap, andwipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick into the filler hole (without screwing it in), and then remove it again to
check the oil level.TIPThe engine oil should be between the minimum
and maximum level marks.
5. If the engine oil is at or below the minimumlevel mark, add sufficient oil of the recom-
mended type through the engine oil tank filler
hole to raise it to the correct level. NOTICE:
Be sure the engine oil is at the correct lev-
el, otherwise engine damage may result.
[ECB00852]
1. Engine oil tank filler cap
2. O-ring
3. Engine oil dipstick
4. Maximum level mark
5. Half-level mark
6. Minimum level mark12
3
4
65
UBW260E0.book Page 15 Thursday, May 12, 2016 2:28 PM
Page 105 of 154
8-16
8
TIPWhen adding oil, be careful not to overfill the en-
gine oil tank; the oil level rises faster starting from
the half-level mark on the dipstick. 6. Check the O-ring for damage, and replace itif necessary.
7. Insert the dipstick into the engine oil tank filler hole, and then tighten the engine oil tank filler
cap. NOTICE: Make sure that the engine oil
tank filler cap is securely tightened; other-
wise, oil may seep out when the engine is
running.
[ECB00363]
To change the engine oil (with or without oil fil-
ter element replacement) 1. Place the ATV on a level surface.
2. Remove the engine guard by removing the bolts. 3. Start the engine, warm it up for several minu-
tes, and then turn it off.
4. Place an oil pan under the engine to collect the used oil.
5. Remove the engine oil tank filler cap, and then remove the engine oil tank drain bolt and
its gasket.
1. Engine guard
2. Bolt
2 21
UBW260E0.book Page 16 Thursday, May 12, 2016 2:28 PM
Page 108 of 154

8-19
811. Install the crankcase engine oil drain bolt, the
engine oil tank drain bolt and their new gas-
ket, and then tighten the bolts to their speci-
fied torques.
12. Refill with the specified amount of the recom- mended engine oil through the engine oil tank
filler hole.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.
NOTICEECB00301In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
Make sure that no foreign material enters the
crankcase. 13. Check the engine oil tank filler cap O-ring for
damage, and replace it if necessary.
14. Install and tighten the engine oil tank filler cap.
15. Start the engine, and then let it idle for several minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
16. Turn the engine off, and then check the oil level and correct it if necessary.
17. Install the engine guard by installing the bolts, and then tighten them to the specified torque.
NOTICE: Be sure to apply LOCTITE
® to the
engine guard bolts before installing them.
[ECB00372]
Tightening torques: Crankcase engine oil drain bolt:20 N·m (2.0 kgf·m, 14 lb·ft)
Engine oil tank drain bolt: 20 N·m (2.0 kgf·m, 14 lb·ft)
Recommended oil: See page 10-1.
Oil quantity: Without oil filter element replacement:1.40 L (1.48 US qt, 1.23 Imp.qt)
With oil filter element replacement: 1.45 L (1.53 US qt, 1.28 Imp.qt)
UBW260E0.book Page 19 Thursday, May 12, 2016 2:28 PM
Page 109 of 154

8-20
8
EBU29861CoolantThe coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart. Have a Yamaha dealer
change the coolant. WARNING! Never attempt
to remove the radiator cap when the engine is
hot.
[EWB02671]
EBU27945
To check the coolant level 1. Place the ATV on a level surface.TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture. 2. Check the coolant level in the coolant reser- voir.
TIPThe coolant should be between the minimum and
maximum level marks. 3. If the coolant is at or below the minimum levelmark, remove the coolant reservoir cap, add
coolant or distilled water to the maximum lev-
el mark, and then install the reservoir cap.
NOTICE: If coolant is not available, use
distilled water or soft tap water instead.
Do not use hard water or salt water since
they are harmful to the engine. If water has
Tightening torque:
Engine guard bolt:7 N·m (0.7 kgf·m, 5.1 lb·ft)1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
1
2
3
UBW260E0.book Page 20 Thursday, May 12, 2016 2:28 PM
Page 110 of 154

8-21
8been used instead of coolant, replace it
with coolant as soon as possible, other-
wise the cooling system will not be pro-
tected against frost and corrosion. If water
has been added to the coolant, have a
Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01012]
TIP
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
If the engine overheats, see page 8-51 for fur-
ther instructions.
EBU26808Cleaning the air filter elementThe air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are rid-
ing in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case. 1. Place the ATV on a level surface.
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)1. Air filter case check hose
1
UBW260E0.book Page 21 Thursday, May 12, 2016 2:28 PM
Page 112 of 154
8-23
88. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent to clean the sponge
material. Never use low-flash-point sol-
vents or gasoline to clean the sponge ma-
terial because the engine could catch fire
or explode.
[EWB01942]
9. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do
not twist the sponge material when
squeezing it.
[ECB00442]
10. Check the sponge material and replace it if damaged.
11. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the sponge material.TIPThe sponge material should be wet but not drip-
ping. 12. Pull the sponge material over the air filter ele-ment frame.
13. Apply all-purpose grease to the air filter ele- ment seat.
1. Sponge material
2. Air filter element frame
1
2
UBW260E0.book Page 23 Thursday, May 12, 2016 2:28 PM
Page 114 of 154
8-25
817. Install the seat.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated
more often if the ATV is operated in extremely
dusty areas. Each time the air filter element main-
tenance is performed, check the air inlet of the air
filter case for obstructions. Check the air filter
case rubber joint to the throttle body and the rub-
ber joint manifold fittings for an air-tight seal.
Tighten all fittings securely to avoid the possibility
of unfiltered air entering the engine. EBU30861Cleaning the spark arresterSelect a well-ventilated area free of combustible
materials and make sure the exhaust and muffler
are cool.
1. Remove the tailpipe cover by removing the bolts. 2. Remove the retainer by removing the bolts,
and then remove the tailpipe and gasket from
the muffler.
1. Tailpipe cover
2. Bolt2
1 2
UBW260E0.book Page 25 Thursday, May 12, 2016 2:28 PM
Page 116 of 154

8-27
8
WARNING
EWB02341Do not start the engine when cleaning the
spark arrester, otherwise it could cause injury
to the eyes, burns, carbon monoxide poison-
ing, possibly leading to death, and start a fire.
Always let the exhaust system cool prior to

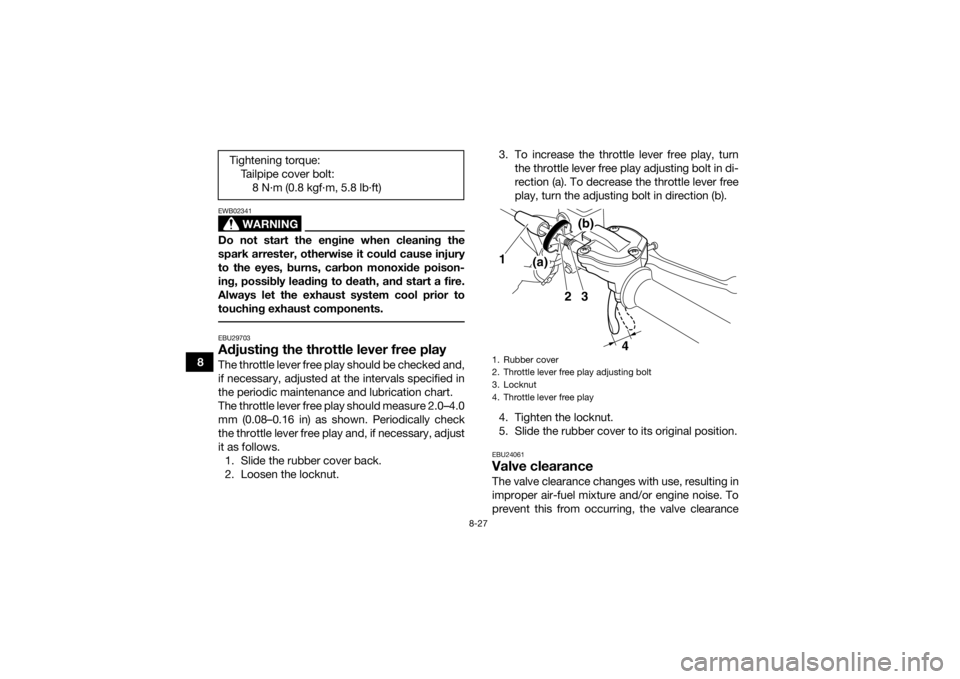

touching exhaust components. EBU29703Adjusting the throttle lever free playThe throttle lever free play should be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The throttle lever free play should measure 2.0–4.0
mm (0.08–0.16 in) as shown. Periodically check
the throttle lever free play and, if necessary, adjust
it as follows.1. Slide the rubber cover back.
2. Loosen the locknut. 3. To increase the throttle lever free play, turn
the throttle lever free play adjusting bolt in di-
rection (a). To decrease the throttle lever free
play, turn the adjusting bolt in direction (b).
4. Tighten the locknut.
5. Slide the rubber cover to its original position.
EBU24061Valve clearanceThe valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
Tightening torque:
Tailpipe cover bolt:8 N·m (0.8 kgf·m, 5.8 lb·ft)1. Rubber cover
2. Throttle lever free play adjusting bolt
3. Locknut
4. Throttle lever free play
32
4
(a)(b)
