Smart key system
3-4
3Included with the vehicle is one smart
key, two mechanical keys, and one
identification number card. The identi-
fication number can also be found on
the inside of the smart key itself.
If the vehicle battery is discharged, the
mechanical key can be used to open
the seat. Carry one mechanical key
in a
ddition to the smart key.
If the smart key is lost or the smart key
battery has discharged, the identifica-
tion number can be used to operate
the vehicle in emergency mode. (See
page 7-38.) Write down the i dentifi-
cation num ber in case of emer gen-
cy.
If the smart key is lost and the smart
key system identification number is un-
known, the entire smart key system will
need to be replaced at considerable
cost. Keep the i dentification num ber
car d in a safe place.
NOTICE
ECA21573
The smart key has precision elec-
tronic components. O bserve the fol-
lowin g precautions to prevent
possi ble malfunction or d amage.
z Do not place or store the smart
key in a storag e compartment.
The smart key may be damag ed
from roa d vi brations or exces-
sive heat.
z Do not d rop, ben d, or su bject
the smart key to stron g impacts.
z Do not sub merge the smart key
in water or other liqui ds.
z Do not place heavy items or ex-
cessive stress on the smart key. z
Do not leave the smart key in a
place exposed to direct sun-
lig ht, hi gh temperature or hi gh
humi dity.
z Do not g rind or attempt to mo d-
ify the smart key.
z Keep the smart key away from
stron g ma gnetic fiel ds an d
ma gnetic o bjects such as key
hol ders, TVs, an d c o

mputers.
z Keep the smart key away from
electric me dical equipment.
z Do not allow oils, polishing
ag ents, fuel, or any stron g
chemicals to come in contact
with the smart key. The smart
key body may become discol-
ore d or cracked .
TIP
zThe smart key battery life is ap-
proximately two years, but this
may vary according to operating
conditions.
z Replace the smart key battery
when the smart key system indi-
cator light flashes for 20 seconds
when the vehicle is turned on, or
when the smart key indicator light
does not come on when the smart
key button is pushed. (See page
3-6.) After changing the smart key
battery, if the smart key system
still does not operate, check the
vehicle battery and then have a
Yamaha dealer check the vehicle.
z If the smart key continually re-
ceives radio waves, the smart key
battery will discharge quickly. (For
example, when placed in the vicin-
ity of electrical products such as
televisions, radios, or computers.)
UB74E0E0.book Page 4 Tuesday, May 2, 2017 1:04 PM

Smart key system
3-9
3
2. Push the main switch knob and
the smart key indicator light will
come on for approximately 4 sec-
onds.
3. While the smart key system indi- cator light is on, turn the main
switch to “ON”. All of the turn sig-
nal lights flash twice and the vehi-
cle power turns on.TIP
zIf the vehicle battery voltage is
low, the turn signal lights will not
flash.
z See “Emergency mode” on page
7-38 for information on turning the
vehicle power on without the
smart key.
EAU76510OFF (off)
All electrical systems are off.
To turn the vehicle power off
1. With the smart key turned on and
within operating range, turn the
main switch to “OFF”.
2. The turn signal lights flash once and the vehicle power turns off.
TIP
When the main switch is turned to
“OFF” but the smart key cannot be
confirmed (the smart key is either out-
side operation range or has been
turned off), the beeper will sound for 3
seconds and the smart key system in-
dicator light will flash for 30 seconds.z During this 30 seconds, the main
switch can be freely operated.
z After 30 seconds, the vehicle
power will turn off automatically.
z To turn the vehicle power off im-
mediately, push the main switch
knob four times within 2 seconds.
EAU79040OPEN (open)
The seat and storage compartment A
can be opened.
To open the seat, push the “SEAT”
button, and then lift the rear of the seat.
1. Turn.
1
1. Push.
2. Turn.
1
2
UB74E0E0.book Page 9 Tuesday, May 2, 2017 1:04 PM

Operation and important rid ing points
6-1
6
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU78221
TIP
This model is equipped with a lean an-
gle sensor to stop the engine in case of
a turnover. In this case, the engine
trouble warning light will come on but
this is not a malfunction. Before re-
starting the engine, turn the main
switch off and then back on to reset the
engine trouble warning light. Failing to
do so will prevent the engine from
starting even though the engine will
crank when pushing the start switch.
UB74E0E0.book Page 1 Tuesday, May 2, 2017 1:04 PM

Periodic maintenance an d a djustment
7-38
7
EAU76561
Emer gency mo de
When the smart key is lost or dam-
aged, or its battery has discharged, the
vehicle can still be turned on and the
engine started. You will need the smart
key system identification number.
To operate the vehicle in emer gency
mo de
1. Stop the vehicle in a safe place and turn the main switch to “OFF”.
2. Push the main switch knob for 5 seconds until the smart key sys-
tem indicator light flashes once,
then release it. Repeat two more
times. The smart key system indi-
cator light will come on for three
seconds to indicate the transition
to emergency mode.
3. After the smart key system indica- tor light goes off, input the identifi-
cation number as follows. 4. Inputting the identification number
is done by counting the number of
flashes of the smart key system in-
dicator light.
For example, if the identification
number is 123456:
Push and hold the knob.
↓
The smart key system indicator
light will start to flash.
↓
Release the knob after the smart
key system indicator light flashes
once.
↓
The first digit of the identification
number has been set as “1”.
↓
Push and hold the knob again.
↓
1. Smart key system indicator light “ ”
1
1. Identification number card
2. Smart key (inside)
3. Identification number
868588
868588
1
3 2
UB74E0E0.book Page 38 Tuesday, May 2, 2017 1:04 PM

Periodic maintenance an d a djustment
7-39
7 Release the knob after the smart
key system indicator light flashes
twice.
↓
The second digit has been set as
“2”.
↓
Repeat the above procedure until
all digits of the identification num-
ber have been set. The smart key
system indicator light will flash for
10 seconds if the correct identifi-
cation number was entered.
TIP
When one of the following situations
applies, emergency mode will be ter-
minated and the smart key system in-
dicator light will flash quickly for 3
seconds. In this case, start over again
from step 2.
z When there are no knob opera-
tions for 10 seconds during the
identification number input pro-
cess.
z When the smart key system indi-
cator light is allowed to flash nine
or more times.
z The identification number is not
entered correctly.
5. While the smart key system indi-
cator light is on, push the knob
once more to complete emergen-
cy mode access. The smart key
indicator light will go off and then
come back on for approximately 4
seconds.
6. While the smart key system indi- cator light is on, turn the main
switch to “ON”. The vehicle can
now be operated normally.
UB74E0E0.book Page 39 Tuesday, May 2, 2017 1:04 PM

Specifications
9-1
9
Dimensions:
Overall length:2185 mm (86.0 in)
Overall width:
775 mm (30.5 in)
Overall height: 1415/1465 mm (55.7/57.7 in)
Seat height: 795 mm (31.3 in)
Wheelbase:
1540 mm (60.6 in)
Ground clearance: 135 mm (5.31 in)
Minimum turning radius: 2.6 m (8.53 ft)
Wei ght:
Curb weight:
179 kg (395 lb)
Engine:
Combustion cycle:
4-stroke
Cooling system:
Liquid cooled
Valve train: SOHC
Number of cylinders: Single cylinder
Displacement:
292 cm³
Bore × stroke:
70.0 × 75.9 mm (2.76 × 2.99 in)
Compression ratio: 10.9 : 1
Starting system:
Electric starter
Lubrication system: Wet sump
Engine oil:
Recommended brand:
YAMALUBE
SAE viscosity grades: 10W-40
Recommended engine oil grade: API service SG type or higher, JASO
standard MA or MB
Engine oil quantity: Oil change:1.50 L (1.59 US qt, 1.32 Imp.qt)
With oil filter removal: 1.60 L (1.69 US qt, 1.41 Imp.qt)
Final transmission oil:
Type:Motor oil SAE 10W-30 type SE or higher or
Gear oil SAE 85W GL-3
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Coolant quantity:
Coolant reservoir (up to the maximum level
mark):
0.18 L (0.19 US qt, 0.16 Imp.qt)
Radiator (including all routes): 1.10 L (1.16 US qt, 0.97 Imp.qt)
Air filter:
Air filter element:
Oil-coated paper element
Fuel:
Recommended fuel:Regular unleaded gasoline (Gasohol [E10]
acceptable)
Fuel tank capacity: 13 L (3.4 US gal, 2.9 Imp.gal)
Fuel reserve amount: 2.4 L (0.63 US gal, 0.53 Imp.gal)
Fuel injection:
Throttle body:ID mark:
B741 00
Spark plu g(s):
Manufacturer/model:
NGK/LMAR8A-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Clutch:
Clutch type:Dry, centrifugal, shoe
Drivetrain:
Primary reduction ratio:1.000
Final drive: Belt
Secondary reduction ratio:
7.590 (48/18 x 37/13)
Transmission type: V-belt automatic
Chassis:
Frame type:
Underbone
Caster angle: 26.5 °
UB74E0E0.book Page 1 Tuesday, May 2, 2017 1:04 PM

Consumer information
10-1
10
EAU53562
Id entification num bers
Record the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26411Vehicle i dentification num ber
The vehicle identification number is
stamped into the frame.
TIP
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.
EAU26442En gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26501Mo del la bel
The model label is affixed to the inside
of the rear storage compartment. (See
page 4-20.) Record the information on
this label in the space provided. This
information will be needed when order-
ing spare parts from a Yamaha dealer.

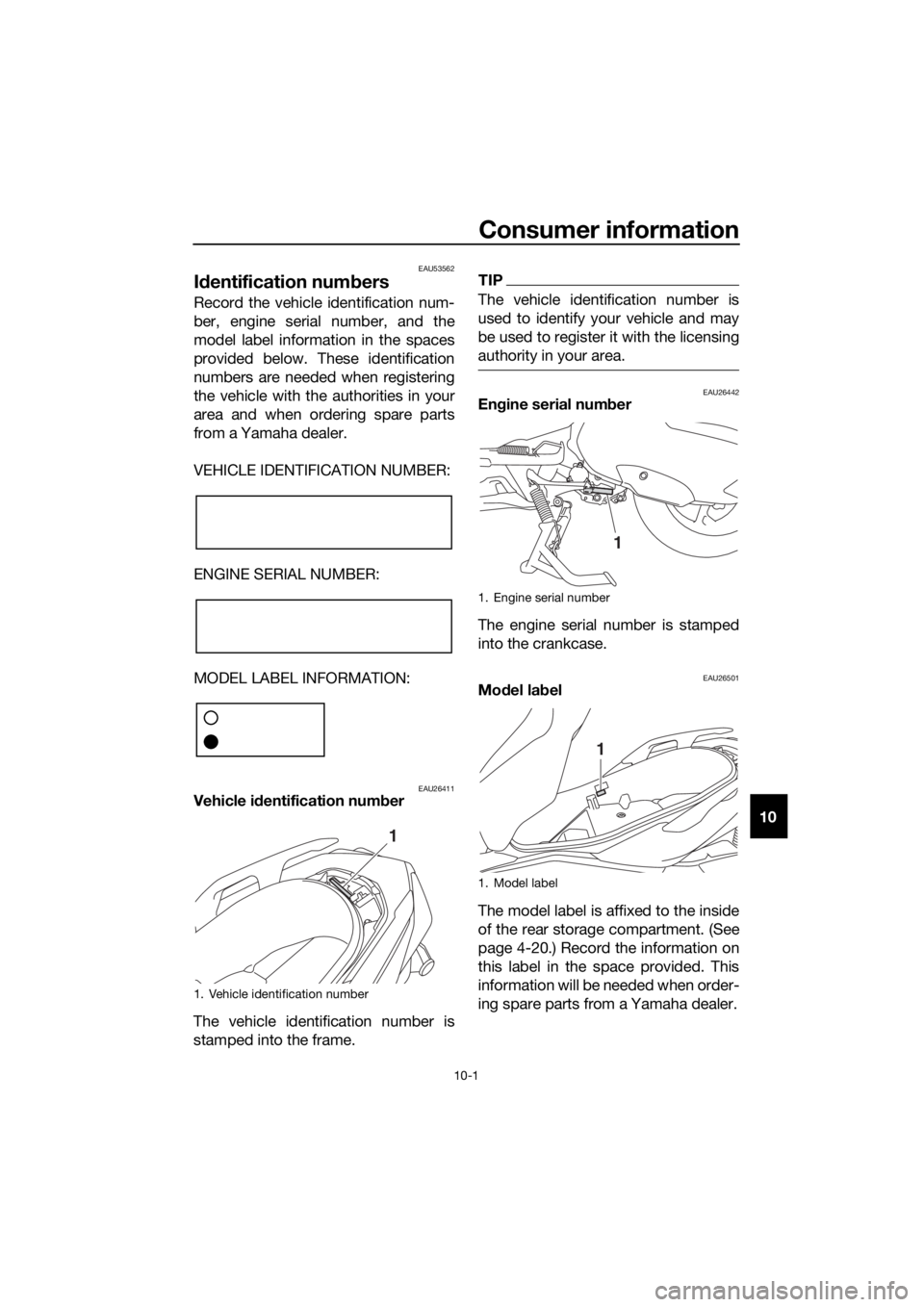

1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
1
UB74E0E0.book Page 1 Tuesday, May 2, 2017 1:04 PM
