2017 YAMAHA XMAX 300 warning light

Instrument and control functions
4-18
4
EAU13213

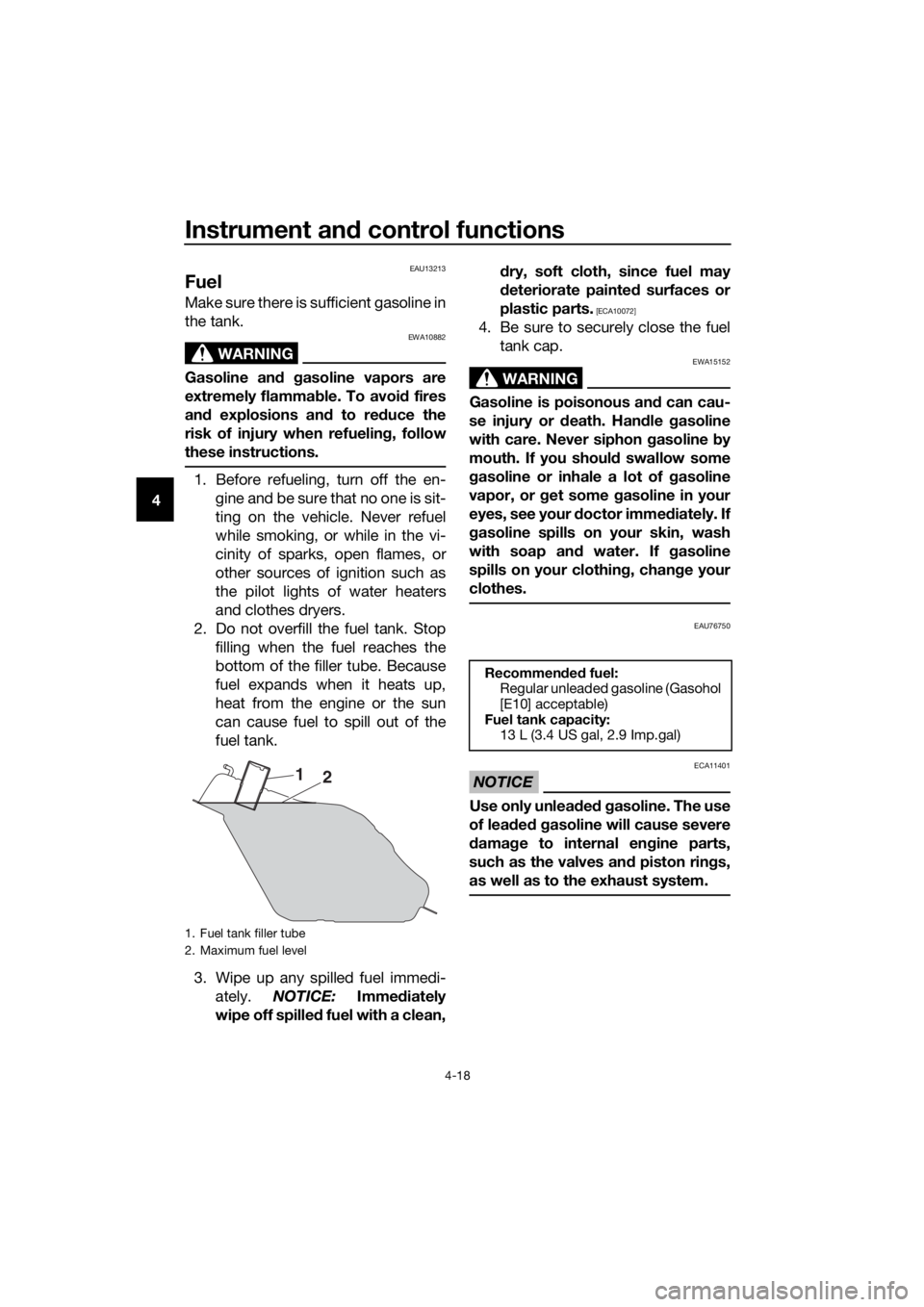

Fuel
Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline an d g asoline vapors are
extremely flamma ble. To avoi d fires
an d explosions an d to re duce the
risk of injury when refuelin g, follow
these instructions.
1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. Stop filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank.
3. Wipe up any spilled fuel immedi- ately. NOTICE: Immediately
wipe off spille d fuel with a clean, d
ry, soft cloth, since fuel may
d eteriorate painte d surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous an d can cau-
se injury or death. Han dle gasoline
with care. Never siphon gasoline by
mouth. If you shoul d swallow some
g asoline or inhale a lot of gasoline
vapor, or get some g asoline in your
eyes, see your doctor imme diately. If
g asoline spills on your skin, wash
with soap an d water. If gasoline
spills on your clothin g, chan ge your
clothes.
EAU76750
NOTICE
ECA11401
Use only unlea ded g asoline. The use
of lead ed g asoline will cause severe
d amag e to internal en gine parts,
such as the valves an d piston rin gs,
as well as to the exhaust system.
1. Fuel tank filler tube
2. Maximum fuel level
1 2
Recommen ded fuel:
Regular unleaded gasoline (Gasohol
[E10] acceptable)
Fuel tank capacity: 13 L (3.4 US gal, 2.9 Imp.gal)
UB74E0E0.book Page 18 Tuesday, May 2, 2017 1:04 PM

Operation and important rid ing points
6-1
6
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU78221
TIP
This model is equipped with a lean an-
gle sensor to stop the engine in case of
a turnover. In this case, the engine
trouble warning light will come on but
this is not a malfunction. Before re-
starting the engine, turn the main
switch off and then back on to reset the
engine trouble warning light. Failing to
do so will prevent the engine from
starting even though the engine will
crank when pushing the start switch.
UB74E0E0.book Page 1 Tuesday, May 2, 2017 1:04 PM

Operation and important ri din g points
6-2
6
EAU78231
Startin g the eng ine
NOTICE
ECA10251
See pag e 6-5 for en gine break-in in-
structions prior to operatin g the ve-
hicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the side-
stand must be up. (See page 4-27.) 1. Turn the main switch on and make sure that the stop/run/start switch
is set to “ ”.
The following warning lights and
indicator lights should come on for
a few seconds, then go off.z Engine trouble warning light
z Traction control system indi-
cator light
z Smart key system indicator
light
TIP
The ABS warning light should come on
and stay on until the vehicle reaches a
traveling speed of 10 km/h (6 mi/h) or
higher.
NOTICE
ECA22510
If a warnin g or in dicator li ght does
not work as d escribed a bove, see
pa ge 4-1 for the correspon din g
warnin g an d in dicator li ght circuit
check.
2. Close the throttle.
3. While applying the front or rear brake, push the “ ” side of the
stop/run/start switch. Release it
when the engine starts.
TIP
If the engine does not start, release the
start switch after 5 seconds. Before
pressing the start switch again, wait 10
seconds to allow battery voltage to re-
store.
NOTICE
ECA11043
For maximum en gine life, never ac-
celerate har d when the en gine is
col d!
UB74E0E0.book Page 2 Tuesday, May 2, 2017 1:04 PM

Operation and important ri din g points
6-4
6
EAU16794
Brakin g
WARNING
EWA10301
zAvoi d b rakin g har d or su ddenly
(especially when leanin g over to
one si de), otherwise the scooter
may ski d or overturn.
z Railroa d crossin gs, streetcar
rails, iron plates on roa d con-
struction sites, an d manhole
covers become extremely slip-
pery when wet. Therefore, slow
d own when approachin g such
areas an d cross them with cau-
tion.
z Keep in min d that b raking on a
wet roa d is much more difficult.
z Ride slowly d own a hill, as brak-
in g d ownhill can be very d iffi-
cult.
1. Close the throttle completely.
2. Apply both front and rear brakes simultaneously while gradually in-
creasing the pressure.
EAU16821
Tips for re ducin g fuel con-
sumption
Fuel consumption depends largely on
your riding style. Consider the follow-
ing tips to reduce fuel consumption:
z Avoid high engine speeds during
acceleration.
z Avoid high engine speeds with no
load on the engine.
z Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
UB74E0E0.book Page 4 Tuesday, May 2, 2017 1:04 PM

Periodic maintenance an d a djustment
7-13
7
EAU20071
Coolant
The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU78580To check the coolant level
1. Place the vehicle on the center- stand.
TIP
zThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
z Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level through
the check window.
TIP
The coolant should be between the mi-
nimum and maximum level marks.
3. If the coolant is at or below the mi-nimum level mark, remove the left
floorboard mat by pulling it up.
4. Remove the coolant reservoir cov- er.
5. Remove the coolant reservoir cap, add coolant to the maximum level
mark, and then install the reservoir
cap. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the ra diator
cap when the en gine is hot.
[EWA15162] NOTICE: If coolant is not
availa ble, use distille d water or
soft tap water instea d. Do not
use har d water or salt water
since it is harmful to the en gine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possi ble, other-
wise the coolin g system will not
1. Coolant level check window
2. Maximum level mark
3. Minimum level mark
1
2
3
1. Floorboard mat
1. Coolant reservoir cover
1
1
UB74E0E0.book Page 13 Tuesday, May 2, 2017 1:04 PM

Periodic maintenance an d a djustment
7-31
7
If a fuse is blown, replace it as follows.
1. Turn the main switch off and turn off the electrical circuit in ques-
tion.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a hi gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive d am-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
3. Turn the main switch on and turn
on the electrical circuit in question
to check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
1. Signaling system fuse 2
2. Signaling system fuse
3. ABS control unit fuse
4. Main fuse 2
5. Radiator fan motor fuse
6. Backup fuse
7. Spare fuse
8. ABS motor fuse
9. ABS solenoid fuse
10.Turn signal light and hazard fuse
11.Terminal fuse 1
12.Answer back fuse
123456 7
8910
11
12
7
Specified
fuses:
Main fuse: 20.0 A
Main fuse 2:
7.5 A
Terminal fuse 1: 2.0 A
Signaling system fuse: 10.0 A
Signaling system fuse 2:
7.5 A
Radiator fan motor fuse: 7.5 A
Backup fuse: 7.5 A
Turn signal light and hazard fuse:
7.5 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse:
15.0 A
Answer back fuse: 2.0 A
UB74E0E0.book Page 31 Tuesday, May 2, 2017 1:04 PM

Scooter care and stora ge
8-3
8
Cleaning the windshield
Avoid using any alkaline or strong acid
cleaner, gasoline, brake fluid, or any
other solvent. Clean the windshield
with a cloth or sponge dampened with
a neutral detergent, and after cleaning,
thoroughly wash it off with water. For
additional cleaning, use Yamaha Wind-
shield Cleaner or other quality cleaner.
Some cleaning compounds for plastics
may leave scratches on surfaces of the
windshield. Before using them, make a
test by polishing an area which does
not affect your visibility.
After cleaning
1. Dry the scooter with a chamois or an absorbing cloth.
2. Use a chrome polish to shine chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
3. To prevent corrosion, it is recom- mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean- er to remove any remaining dirt.
5. Touch up minor paint damage caused by stones, etc.
6. Wax all painted surfaces.
7. Let the scooter dry completely be- fore storing or covering it.
WARNING
EWA10943
Contaminants on the brakes or tires
can cause loss of control. z
Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake
d iscs an d b rake linin gs with a
re gular brake disc cleaner or
acetone, an d wash the tires with
warm water an d a mil d d eter-
g ent.
z Before operatin g the scooter
test its brakin g performance
an d cornerin g b ehavior.
NOTICE
ECAU0022
z Apply spray oil an d wax spar-
in gly an d make sure to wipe off
any excess.
z Never apply oil or wax to any
rubber parts, plastic parts or
hea dlig ht, tailli ght an d meter
lenses, but treat them with a
suita ble care pro duct.
z Avoi d using abrasive polishin g
compoun ds as they will wear
away the paint.
TIP
z Consult a Yamaha dealer for ad-
vice on what products to use.
z Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
UB74E0E0.book Page 3 Tuesday, May 2, 2017 1:04 PM

Specifications
9-3
9
High beam indicator light:LED
Turn signal indicator light: LED
Engine trouble warning light:
LED
ABS warning light: LED
Smart key system indicator light: LED
Traction control system indicator/warning
light: LED
Fuse(s):
Main fuse:
20.0 A
Main fuse 2: 7.5 A
Terminal fuse 1: 2.0 A
Signaling system fuse:
10.0 A
Signaling system fuse 2: 7.5 A
Radiator fan motor fuse: 7.5 A
Turn signal light and hazard fuse:
7.5 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse:
15.0 A
Answer back fuse: 2.0 A
Backup fuse: 7.5 A
UB74E0E0.book Page 3 Tuesday, May 2, 2017 1:04 PM
