4. Turn the key to “ ” (on) and turn on theelectrical circuit in question to check if
the device operates. If the fuse blows
again immediately, have a Yamaha dealer
check the electrical system.
5. Install the hood.EBU32670Replacing a headlight bulbIf a headlight bulb burns out, replace it as fol-
lows. 1. Remove the cover at the rear of the head- light by pulling it off.
Specified fuses:Main fuse:40.0 A
Fuel injection system fuse: 10.0 A
Headlight fuse: 15.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Signaling system fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A
Radiator fan motor fuse: 25.0 A
Backup fuse: 10.0 A
EPS fuse: 40.0 A
1. Cover at the rear of the headlight
1
U2MB7BE0.book Page 54 Thursday, March 3, 2016 11:46 AM

8-55
8
2. Remove the headlight bulb cover by pull-ing it off.
3. Disconnect the headlight coupler. 4. Unhook the headlight bulb holder.1. Headlight bulb cover
1
1. Headlight coupler
1. Headlight bulb holder
11
U2MB7BE0.book Page 55 Thursday, March 3, 2016 11:46 AM

8-56
8
5. Wait for the headlight bulb to cool beforetouching or removing it. Remove the
burnt-out bulb by pulling it out.
6. Place a new headlight bulb into position, and then secure it with the bulb holder.
NOTICE: Do not touch the glass part of
the headlight bulb to keep it free from
oil, otherwise the transparency of the
glass, the luminosity of the bulb, and
the bulb life will be adversely affected.
Thoroughly clean off any dirt and fin-
gerprints on the headlight bulb using a
cloth moistened with alcohol or thin-
ner.
[ECB00652]
7. Connect the headlight coupler.
8. Install the bulb cover and the cover at the rear of the headlight. NOTICE: Make
sure the headlight bulb cover is se-
curely fitted over the bulb holder and
seated properly.
[ECB02210]
9. Adjust the headlight beam if necessary.1. Do not touch the glass part of the bulb.
1
U2MB7BE0.book Page 56 Thursday, March 3, 2016 11:46 AM

8-57
8

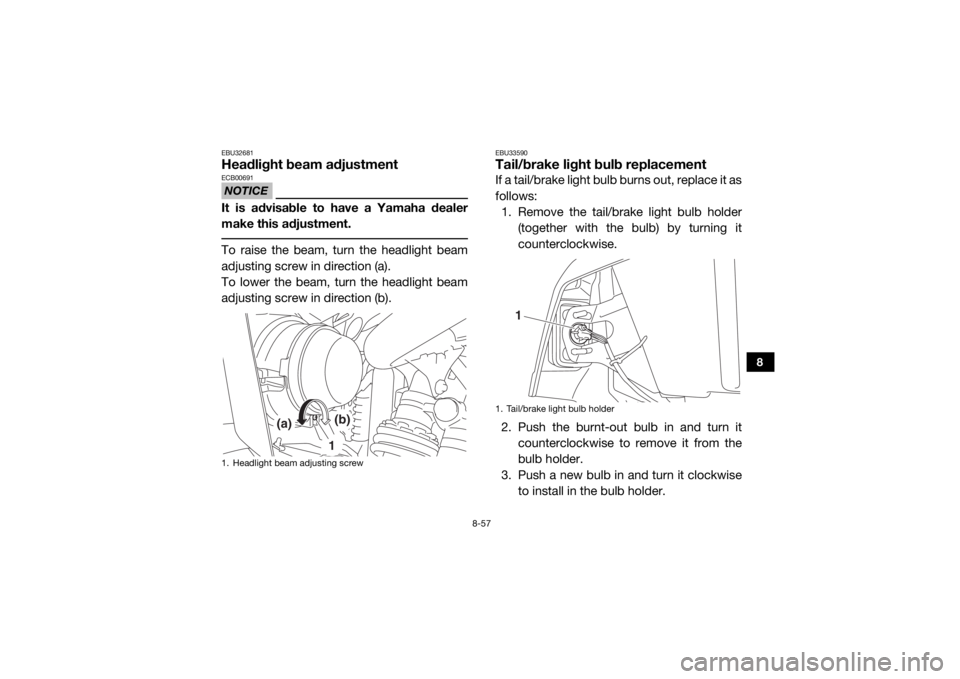

EBU32681Headlight beam adjustmentNOTICEECB00691It is advisable to have a Yamaha dealer
make this adjustment. To raise the beam, turn the headlight beam
adjusting screw in direction (a).
To lower the beam, turn the headlight beam
adjusting screw in direction (b).
EBU33590Tail/brake light bulb replacementIf a tail/brake light bulb burns out, replace it as
follows: 1. Remove the tail/brake light bulb holder
(together with the bulb) by turning it
counterclockwise.
2. Push the burnt-out bulb in and turn it counterclockwise to remove it from the
bulb holder.
3. Push a new bulb in and turn it clockwise to install in the bulb holder.
1. Headlight beam adjusting screw
1
(a)
(b)
1. Tail/brake light bulb holder
1
U2MB7BE0.book Page 57 Thursday, March 3, 2016 11:46 AM
