2017 YAMAHA VIKING air filter

8-29
8
13. Thoroughly apply Yamaha foam air filteroil or other quality liquid foam air filter oil
(not spray type) to the sponge material.
The sponge material should be wet but
not dripping.
14. Pull the sponge material over its frame.
15. Install the air filter element holder.
16. Install the air filter element.

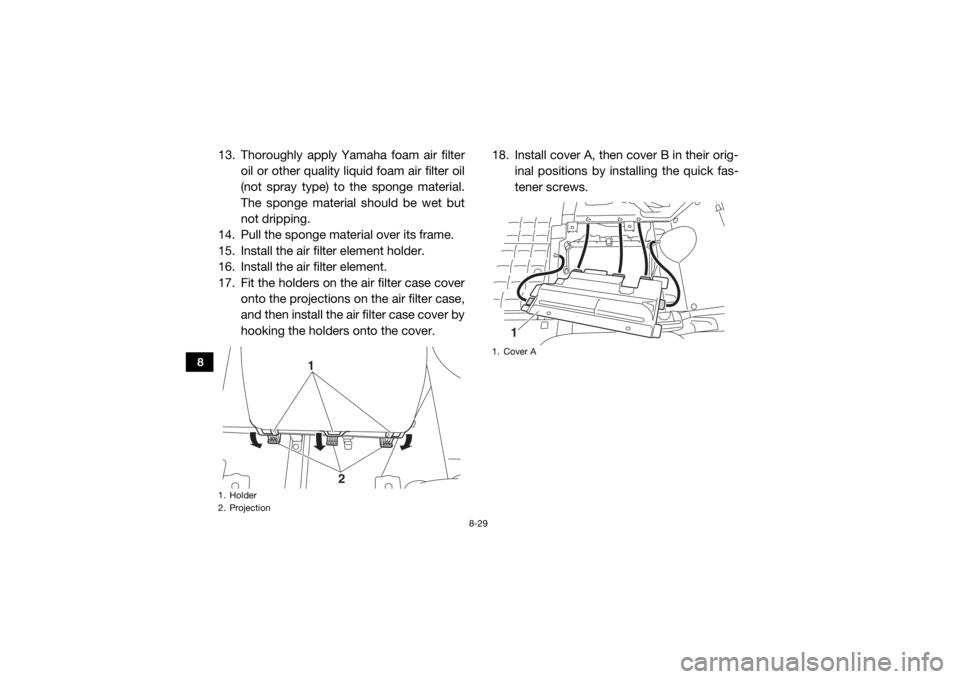

17. Fit the holders on the air filter case cover onto the projections on the air filter case,
and then install the air filter case cover by
hooking the holders onto the cover. 18. Install cover A, then cover B in their orig-
inal positions by installing the quick fas-
tener screws.1. Holder
2. Projection
1
2
1. Cover A
1
UB427BE0.book Page 29 Friday, February 5, 2016 2:14 PM

8-30
8
19. Install the seat by installing the bolts, andthen tighten the bolts to the specified
torque.
20. Place the rubber damper in the original position, and then install the center pas-
senger seat cushion.
EBU32430Cleaning the air filter case/duct check
hoseThere is a check hose at the bottom of the air
filter case under the cargo bed and a check
hose at the bottom of the air duct. The air
duct check hose can be accessed under the
vehicle. If dust or water collects in a check
hose, empty the hose and clean the air filter
element and air filter case.

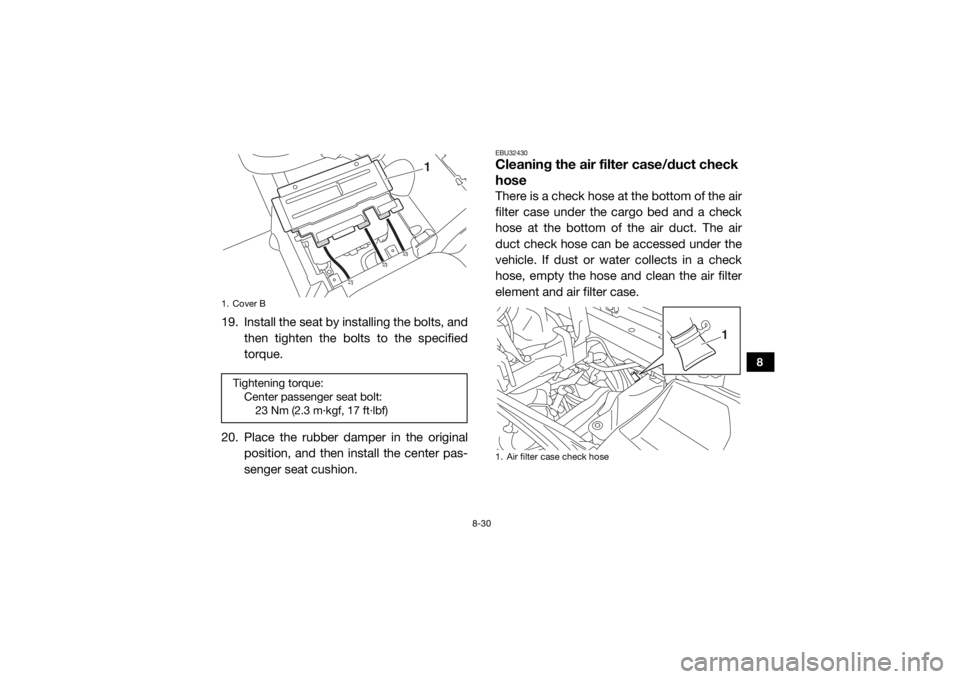

1. Cover BTightening torque:Center passenger seat bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
1
1. Air filter case check hose
1
UB427BE0.book Page 30 Friday, February 5, 2016 2:14 PM

10-2
10
Type:SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter cartridge replacement:2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement: 2.30 L (2.43 US qt, 2.02 Imp.qt)Final gear oil:Type:SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.40 L (0.42 US qt, 0.35 Imp.qt)Differential gear oil:Type:SAE 80 API GL-4 Hypoid gear oil Quantity:
0.18 L (0.19 US qt, 0.16 Imp.qt)
Coolant quantity:Coolant reservoir (up to the maximum level mark):
0.28 L (0.30 US qt, 0.25 Imp.qt)
Radiator (including all routes): 2.74 L (2.90 US qt, 2.41 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity:
36.7 L (9.69 US gal, 8.07 Imp.gal)Fuel injection:Throttle body:ID mark:1XD1 00Spark plug (s):Manufacturer/model:
NGK/CPR7EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Secondary reduction system:Shaft drive
0 10 30 50 70 90 110 130 F
–20 –10 0 10 20 30 40 50 CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
UB427BE0.book Page 2 Friday, February 5, 2016 2:14 PM

12-1
12
INDEX
AAccelerator pedal ......................................................... 4-12
Accelerator pedal, Pre-operation check ........................ 5-6
Air filter case/duct check hose, cleaning ..................... 8-30
Air filter element, cleaning ............................................ 8-25
Auxiliary DC jack .......................................................... 4-24
Axle boots .................................................................... 8-22BBasic guide for safe use ................................................. 7-1
Battery, Periodic maintenance ..................................... 8-42
Brake fluid level, checking ........................................... 8-34
Brake fluid, replacing ...................................................8-36
Brake light switch, adjusting ........................................ 8-38
Brake pedal .................................................................. 4-12
Brake pedal and accelerator pedal, lubrication ........... 8-38
Brake pedal, checking ................................................. 8-36
Brakes, Periodic maintenance ..................................... 8-33
Brakes, Pre-operation check ......................................... 5-3CCable, inspecting and lubrication ................................ 8-38
Cargo bed .................................................................... 4-21
Cleaning ......................................................................... 9-1
Control cables, Pre-operation check ............................. 5-8
Coolant, Periodic maintenance .................................... 8-21
Coolant, Pre-operation check ........................................ 5-6
Coolant temperature warning light ................................. 4-4
Cup holders .................................................................. 4-20DDifferential gear oil, Periodic maintenance .................. 8-19Differential gear, Pre-operation check ........................... 5-6
Doors ........................................................................... 4-15
Driver seat position ...................................................... 4-16
Drive select lever .......................................................... 4-14
Drive select lever operation and reverse driving ............ 6-3
EEngine break-in .............................................................. 6-1
Engine oil and oil filter cartridge, Periodic
maintenance .............................................................. 8-11
Engine oil, Pre-operation check ..................................... 5-5
Engine trouble warning light .......................................... 4-4
EPS warning light ........................................................... 4-5FFinal gear oil, Periodic maintenance ............................ 8-16
Final gear, Pre-operation check ..................................... 5-6
Fittings and fasteners, Pre-operation check .................. 5-7
Front and rear brake pads, checking ........................... 8-33
Front and rear shock absorber assemblies ................. 4-23
Fuel, Pre-operation check .............................................. 5-3
Fuel tank cap ............................................................... 4-14
Fuse, replacing ............................................................. 8-47GGlove compartment ..................................................... 4-18HHeadlight beam, adjusting ........................................... 8-52
Headlight bulb, replacing ............................................. 8-50
Helmet indicator light ..................................................... 4-5
High-range indicator light .............................................. 4-2
Hood ............................................................................ 8-10
Horn switch .................................................................. 4-12
