To install1. Insert the projections on the hood into the
slots in the front grill, and then place the
hood in the original position.
2. Turn the hood locks 1/4 turn counter- clockwise, and then push the tab on each
hood lock down so that it is pointing rear-
ward. Make sure that the hood is securely
installed.NOTICEECB02180Do not drive the vehicle with the hood
open, unlatched, or removed.
EBU33020Engine oil and oil filter cartridgeCheck engine oil level before each operation.
In addition, change the oil and the oil filter car-
tridge at the intervals specified in the periodic
maintenance and lubrication chart.
To check the engine oil level1. Park the vehicle on a level surface.
2. Check the engine oil level on a cold en- gine.TIPIf the engine was started before checking the
oil level, be sure to warm up the engine suffi-
ciently, and then wait at least 10 minutes until
the oil settles for an accurate reading. 3. Lift the cargo bed up. (See page 4-22 forcargo bed lifting and lowering proce-
dures.)
4. Remove the engine oil dipstick, and then
wipe it off with a clean rag.
UB427BE0.book Page 11 Friday, February 5, 2016 2:14 PM

8-12
8
5. Insert the dipstick completely into the oilfiller hole, and then remove it again to
check the oil level.TIPThe engine oil should be between the mini-
mum and maximum level marks.
6. If the engine oil is at or below the mini-mum level mark, remove the right rear
panel by removing the quick fastener
screws and bolts, and then add sufficient
oil of the recommended type to raise it to
the correct level.
1. Engine oil dipstick
1
1. Maximum level mark
2. Minimum level mark
3. Oil filler hole1
2
3
UB427BE0.book Page 12 Friday, February 5, 2016 2:14 PM

8-13
8
7. Insert the dipstick completely into the oilfiller hole, and then install the right rear
panel by installing the bolts and the quick
fastener screws.
8. Lower the cargo bed.
To change the engine oil (with or without
oil filter cartridge replacement) 1. Park the vehicle on a level surface.
2. Start the engine, warm it up for several
minutes, and then turn it off. 3. Lift the cargo bed up. (See page 4-22 for
cargo bed lifting and lowering proce-
dures.)
4. Remove the right rear panel by removing the quick fastener screws and bolts.
5. Place an oil pan under the engine to col- lect the used oil, and then remove the
dipstick.
6. Remove the engine oil drain bolt and its gasket to drain the oil from the crank-
case.1. Right rear panel
2. Quick fastener screw
3. Bolt
1
2
3

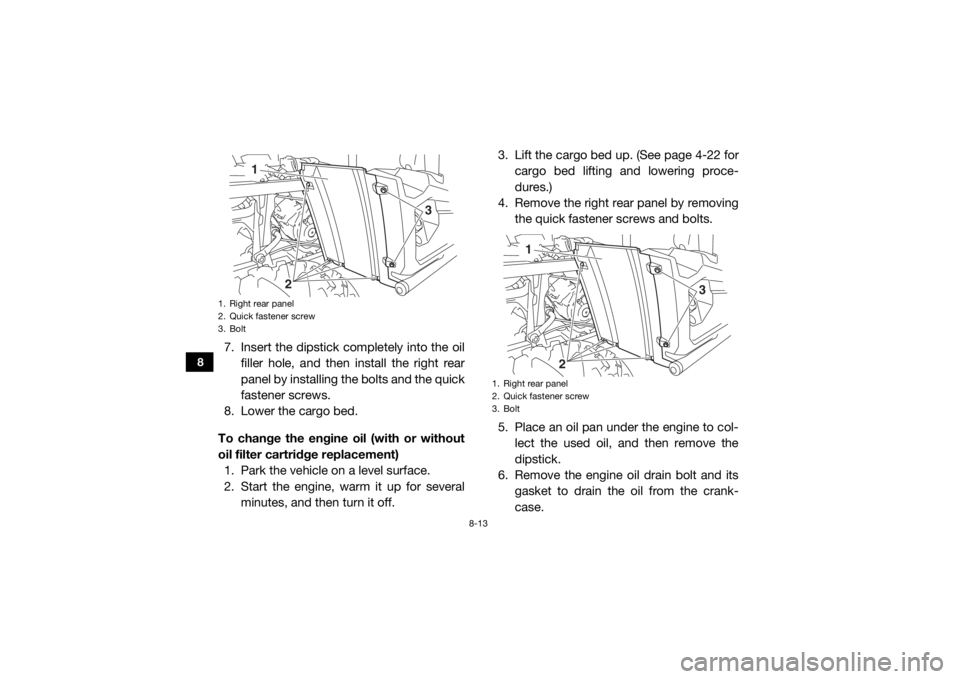

1. Right rear panel
2. Quick fastener screw
3. Bolt
1
2
3
UB427BE0.book Page 13 Friday, February 5, 2016 2:14 PM

8-14
8
TIPSkip steps 7–9 if the oil filter cartridge is not
being replaced. 7. Remove the oil filter cartridge with an oilfilter wrench. Make sure that the O-ring is
removed together with the oil filter car-
tridge. If the O-ring remains attached to
the crankcase, oil leakage may occur.
TIPAn oil filter wrench is available from a Yamaha
dealer. 8. Apply a light coat of clean engine oil tothe O-ring of the new oil filter cartridge.TIPMake sure that the O-ring is properly seated.

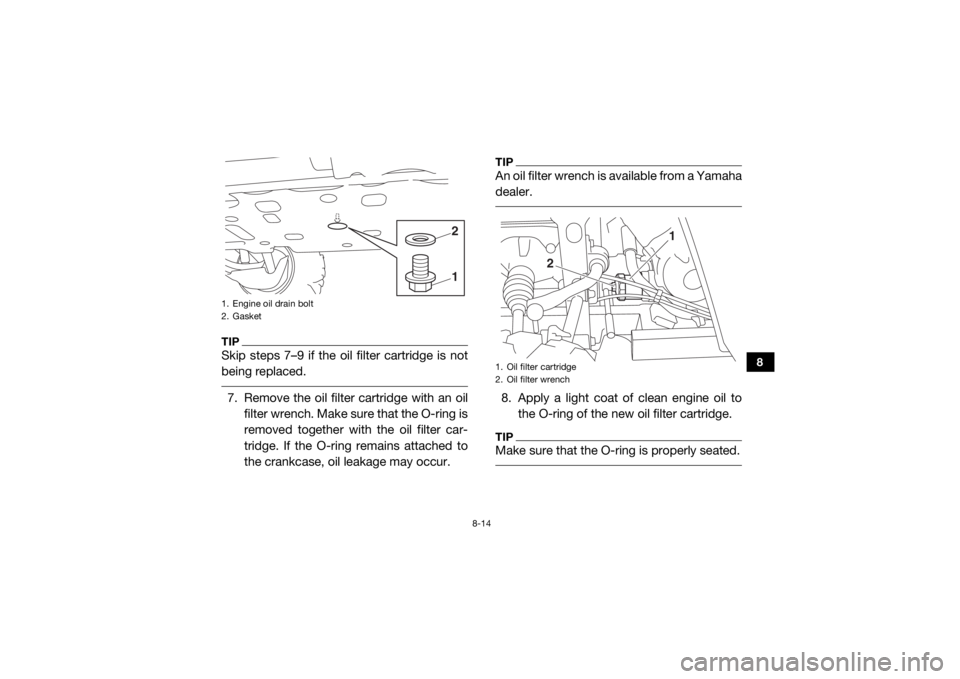

1. Engine oil drain bolt
2. Gasket
1 2

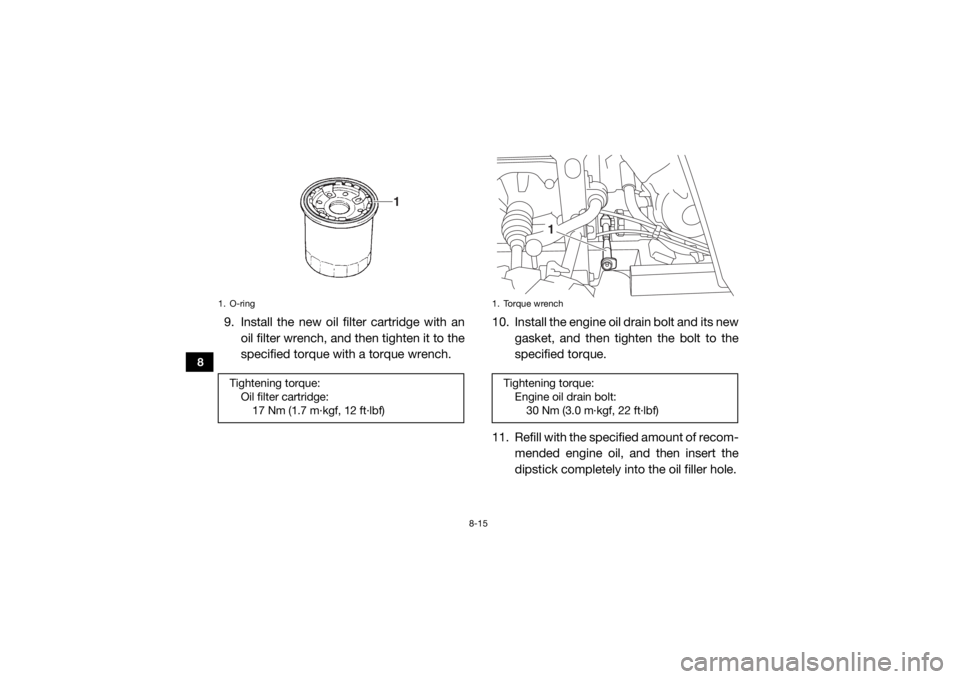

1. Oil filter cartridge
2. Oil filter wrench
2
1
UB427BE0.book Page 14 Friday, February 5, 2016 2:14 PM

8-15
8
9. Install the new oil filter cartridge with anoil filter wrench, and then tighten it to the
specified torque with a torque wrench. 10. Install the engine oil drain bolt and its new
gasket, and then tighten the bolt to the
specified torque.
11. Refill with the specified amount of recom- mended engine oil, and then insert the
dipstick completely into the oil filler hole.1. O-ringTightening torque:Oil filter cartridge:17 Nm (1.7 m·kgf, 12 ft·lbf)
1
1. Torque wrenchTightening torque:Engine oil drain bolt:30 Nm (3.0 m·kgf, 22 ft·lbf)
1
UB427BE0.book Page 15 Friday, February 5, 2016 2:14 PM

8-16
8
TIPBe sure to wipe off spilled oil on any parts af-
ter the engine and exhaust system have
cooled down. NOTICEECB00301In order to prevent clutch slippage (since
the engine oil also lubricates the clutch),
do not mix any chemical additives. Do
not use oils with a diesel specification of
“CD” or oils of a higher quality than
specified. In addition, do not use oils la-
beled “ENERGY CONSERVING II” or
higher. 
Make sure that no foreign material en-
ters the crankcase.
12. Start the engine, and then let it idle for
several minutes while checking it for oil
leakage. If oil is leaking, immediately turn
the engine off and check for the cause.
13. Turn the engine off, wait at least 10 minu-
tes, and then check the oil level and cor-
rect it if necessary.
14. Install the right rear panel by installing the
bolts and the quick fastener screws.
15. Lower the cargo bed.EBU36050Final gear oilCheck the oil level and change the final gear
oil at the intervals specified in the general
maintenance and lubrication chart.
Checking the final gear oil level 1. Park the vehicle on a level surface.
Recommended engine oil: See page 10-1.
Oil quantity: Without oil filter cartridge replacement:2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement: 2.30 L (2.43 US qt, 2.02 Imp.qt)
UB427BE0.book Page 16 Friday, February 5, 2016 2:14 PM

8-17
8
2. Remove the final gear oil filler bolt and itsgasket, and then check the oil level in the
final gear case. The oil level should be at
the brim of the filler hole.
3. If the oil is below the brim of the filler hole, add sufficient oil of the recommended
type to raise it to the correct level.
NOTICE: Be sure no foreign material
enters the final gear case.
[ECB00422]
4. Check the gasket for damage, and re- place it if necessary.
5. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified
torque.
Changing the final gear oil 1. Park the vehicle on a level surface.
2. Place an oil pan under the final gear case to collect the used oil.
3. Remove the final gear oil filler bolt, the fi- nal gear oil drain bolt and their gasket to
drain the oil.

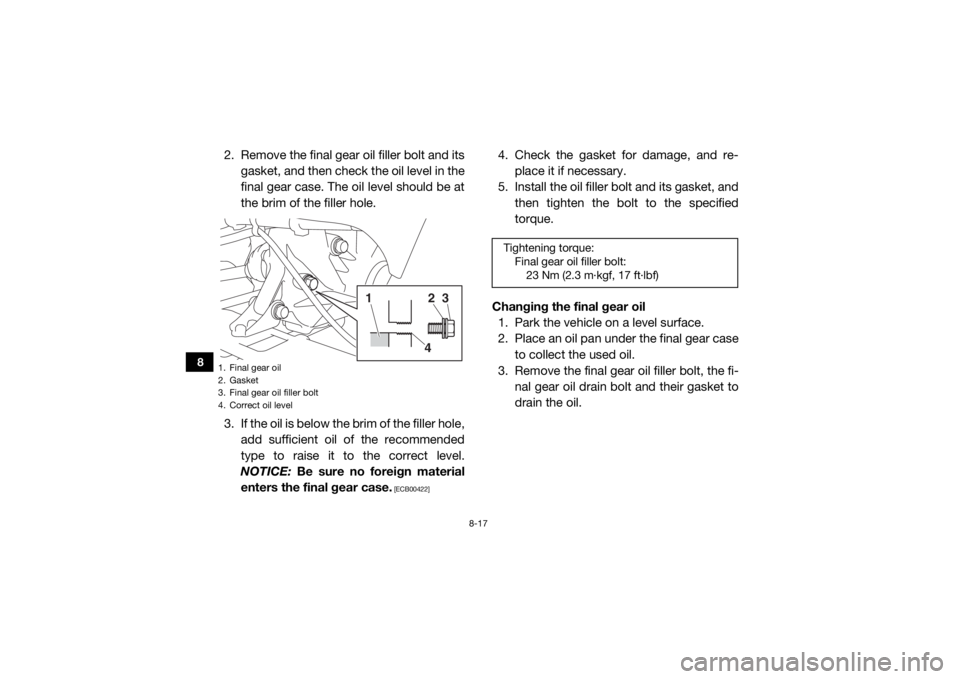

1. Final gear oil
2. Gasket
3. Final gear oil filler bolt
4. Correct oil level
24
3
1
Tightening torque:Final gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
UB427BE0.book Page 17 Friday, February 5, 2016 2:14 PM

8-18
8
4. Install the drain bolt and its new gasket,and then tighten the bolt to the specified
torque.
5. Refill with the recommended final gear oil up to the brim of the filler hole. NOTICE:
Be sure no foreign material enters the
final gear case.
[ECB00422]
TIP GL-4 is a quality and additive rating; GL-5
rated hypoid gear oils may also be used.
 If desired, an SAE 80W-90 hypoid gear oil
may be used instead. 6. Check the oil filler bolt gasket for dam-
age, and replace it if necessary.
7. Install the oil filler bolt and its gasket, and
then tighten the bolt to the specified
torque.
8. Check for oil leakage. If oil leakage is found, check for the cause.

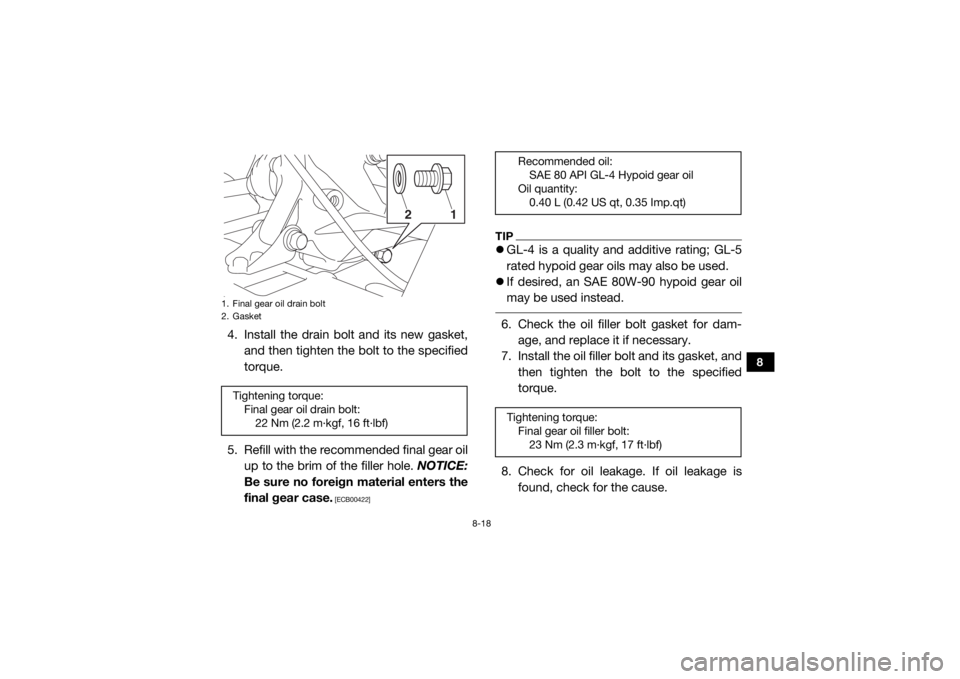

1. Final gear oil drain bolt
2. GasketTightening torque:Final gear oil drain bolt:22 Nm (2.2 m·kgf, 16 ft·lbf)
21
Recommended oil:SAE 80 API GL-4 Hypoid gear oil
Oil quantity: 0.40 L (0.42 US qt, 0.35 Imp.qt)
Tightening torque: Final gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
