2017 YAMAHA TMAX display

Instrument and control functions
5-8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
To increase the grip warmer tempera-
ture, push the “ ” side of the select
switch. To decrease the grip warmer
temperature, push the “ ” side of the
select switch.NOTICE
ECA17931
Be sure to wear gloves when us-
ing the grip warmers.
If the ambient temperature is 20

C (68 F) or higher, do not set
the grip warmer to the high set-
ting.
If the handlebar grip or throttle
grip becomes worn or damaged,
stop using the grip warmers and
replace the grips.
Adjusting the seat heater
This vehicle can be equipped with a
seat heater, which can only be used
when the engine is running. There are
4 seat heater settings. To increase the seat heater tempera-
ture, push the “ ” side of the select
switch. To decrease the seat heater
temperature, push the “ ” side of the
select switch.
NOTICE
ECA23980
Be sure to wear protective cloth-
ing that covers your hip and
legs when using the seat heater.
If the ambient temperature is 20

C (68 F) or higher, do not set
the seat heater to the high set-
ting.
If the seat becomes worn or
damaged, stop using the seat
heater and replace the seat.
Information display
There are 3 information display pages.
The information display page can be
switched by using the select switch.
The following items can be shown in
the information displays:
odometer
tripmeters
fuel reserve tripmeter
estimated traveling range
ambient temperature
average fuel consumption
instantaneous fuel consumption
The items shown in each information
Off
Low
Middle Display
Setting
High
Off
Low
Middle Display
Setting
High
BV1-28199-E0.book 8 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Instrument and control functions
5-9
1
2
3
4
5
6
7
8
9
10
11
12
13
14 display page can be customized. (See
page 5-11.)
Odometer:
The odometer shows the total distance
traveled by the vehicle.
Tripmeter(s):
“TRIP1” and “TRIP2” show the distance
traveled since they were last set to ze-
ro.
When approximately 3.0 L (0.79 US gal,
0.66 Imp.gal) of fuel remains in the fuel
tank, the last segment of the fuel meter
starts flashing. In addition, the informa-
tion display will automatically change to
the fuel reserve tripmeter mode
“F-TRIP” and start counting the dis-
tance traveled from that point.
In this case, push the select switch to
switch the display in the following order:
F-TRIP Display–1 Display–2
Display–3 F-TRIP
To reset a tripmeter, use the select switch to select the information display
page that contains the tripmeter you
want to reset. Push the “ ” side of the
select switch for one second so that the
tripmeter flashes, and then push the
“ ” side of the select switch again for
one second while the tripmeter is flash-
ing.
If you do not reset the fuel reserve trip-
meter manually, it will reset automati-
cally after refueling and traveling 5 km
(3 mi).
TIP
The odometer will lock at 999999.
The tripmeters will reset and con-
tinue counting after 9999.9 is
reached.
Display cannot switch to setting
mode display when the “F-TRIP”
indicated.
Estimated traveling range:
The estimated distance that can be
traveled with the remaining fuel under
the current riding conditions is shown.
Ambient temperature:
This display shows the ambient tem-
perature from –9 C to 50 C in 1  C in-
crements. The temperature displayed
may vary from the actual ambient tem-
perature.
BV1-28199-E0.book 9 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Instrument and control functions
5-10
1
2
3
4
5
6
7
8
9
10
11
12
13
14
TIP
–9 C will be displayed even if the
detected temperature is lower.
50 C will be displayed even if the
detected temperature is higher.
The accuracy of the temperature
reading may be affected when rid-
ing under 20 km/h (12 mi/h) or
when stopped at traffic signals and
railroad crossings.
Average fuel consumption:
The average fuel consumption mode
“km/L”, “L/100km” or for the UK, “MPG”
shows the average fuel consumption
since the display was last reset.
“km/L” shows the average dis-
tance that can be traveled on 1.0 L
of fuel.
“L/100km” shows the average
amount of fuel necessary to travel
100 km.
For the UK: “MPG” shows the av-
erage distance that can be trav-
eled on 1.0 Imp.gal of fuel.
To reset the average fuel consumption,
use the select switch to select the infor-
mation display page that contains the
average fuel consumption display.
Push the “ ” side of the select switch
so that the average fuel consumption
display flashes, and then push the “ ”
side of the select switch again for 2 sec-
onds while the display is flashing.
TIP
After resetting the average fuel con-
sumption display, “– –.–” will be shown until the vehicle has traveled 1 km (0.6
mi).
NOTICE
ECA15474
If there is a malfunction, “– –.–” will
be continuously displayed. Have a
Yamaha dealer check the vehicle.
Instantaneous fuel consumption:
The instantaneous fuel consumption
display mode “km/L”, “L/100km” or for
the UK, “MPG” shows the fuel con-
sumption under current riding condi-
tions.
“km/L” shows the distance that can
be traveled on 1.0 L of fuel.
“L/100km” shows the amount of
fuel necessary to travel 100 km.
For the UK: “MPG” shows the dis-
tance that can be traveled on 1.0
Imp.gal of fuel.
TIP
Instantaneous fuel consumption
cannot be reset.
If traveling at speeds under 10
km/h (6 mi/h), “– –.–” will be dis-
played.
NOTICE
ECA15474
If there is a malfunction, “– –.–” will
be continuously displayed. Have a
Yamaha dealer check the vehicle.
BV1-28199-E0.book 10 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Instrument and control functions
5-11
1
2
3
4
5
6
7
8
9
10
11
12
13
14 Setting mode
TIP
The vehicle must be stopped to
change settings in this mode.
Starting off or turning the vehicle
power off saves all settings made,
then exits the setting mode.
Push the “MENU” switch for 2 seconds
to enter the setting mode. To exit the
setting mode and return to the normal
display, push the “MENU” switch again
for at least 2 seconds.
TIP
Using the select switch “ / ” to
switch the display items.
If grip warmer or seat heater is not
equipped, the “Grip Warmer” or
“Seat Heater” items will not ap-
pear.
Grip warmer settings
1. Use the select switch to highlight “Grip Warmer”.
1. Setting mode display
Display Description This function allows you to
set the low, middle, and
high settings to 10
temperature levels.
This function allows you to
set the low, middle, and
high settings to 10
temperature levels.
This function allows you to
switch the traction control
system on or off.
This function allows you to
check and reset the “OIL”
oil change interval
(distance traveled), “V-
Belt” V-Belt change interval
(distance traveled), and
the “FREE” maintenance
intervals.
1
Grip Warmer
Seat heater
Traction Control
Maintenance
This function allows you to
switch the fuel
consumption units can be
switched between
“L/100km” and “km/L”.
For the UK: This function
does not indicate on
setting mode display.
This function allows you to
change the items shown in
3 information displays.
This function allows you to
adjust the brightness of the
speedometer, tachometer
and the multi-function
display panel to suit the
outside lighting conditions.
This function allows you to
set the clock.
This function allows you to
reset all items to factory
preset or default setting,
except the odometer,
clock, maintenance
counter item “Oil” and
maintenance counter item
“V-Belt”.
Unit
Display
Brightness
Clock
All Reset
BV1-28199-E0.book 11 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Instrument and control functions
5-12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2. Push the “MENU” switch. The grip
warmer setting display will be
shown and “High” will flash in the
display.
3. Push the “MENU” switch. The tem- perature level for the high setting
will start flashing.
Use the select switch to set the
temperature level, and then push
the “MENU” switch. “High” will start
flashing.
4. Use the select switch to highlight “Mid” or “Low”, and then change
the setting using the same proce- dure that was used for the high set-
ting.
5. When you finished changing the settings, use the select switch to
highlight “ ”, and then push the
“MENU” switch to return to the set-
ting mode menu.
Seat heater settings
1. Use the select switch to highlight “Seat Heater”.
2. Push the “MENU” switch. The seat heater setting display will be
shown and “High” will flash in the
display.
3. Push the “MENU” switch. The tem- perature level for the high setting
will start flashing.
Use the select switch to set the
temperature level, and then push
the “MENU” switch. “High” will start
flashing.
BV1-28199-E0.book 12 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Instrument and control functions
5-13
1
2
3
4
5
6
7
8
9
10
11
12
13
14 4. Use the select switch to highlight
“Mid” or “Low”, and then change
the setting using the same proce-
dure that was used for the high set-
ting.
5. When you finished changing the settings, use the select switch to
highlight “ ”, and then push the
“MENU” switch to return to the set-
ting mode menu.
Traction control system settings
1. Use the select switch to highlight “Traction Control”.
2. Push the “MENU” switch. The trac- tion control system setting display
will be shown and “ON” will flash in
the display. 3. To set the traction control system
to “OFF”, push the select switch
“ ” side for 2 seconds.
4. To set the traction control system to “ON” again, push the select
switch “ ” for at least one sec-
ond.
TIP
When the vehicle is powered on, the
traction cotrol sytem is set to “ON”.
5. When you finished changing the settings, push the “MENU” switch
to return to the setting mode menu.
Resetting the maintenance counters
1. Use the select switch to highlight “Maintenance”.
BV1-28199-E0.book 13 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Instrument and control functions
5-14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2. Push the “MENU” switch, and then
use the select switch to select the
item to reset.
3. While the selected item is flashing, push the select switch “ ” for one
second.
4. When you finished resetting, use the select switch to highlight “ ”,
and then push the “MENU” switch
to return to the setting mode menu.
Selecting the units
TIP
For the UK: This function does not indi- cate on setting mode display and can-
not be selected.
1. Use the select switch to highlight “Unit”.
2. Push the “MENU” switch. The unit setting display will be shown and
“L/100km” will flash in the display.
3. Use the select switch to select “L/100km” or “km/L”, and then
push the “MENU” switch again.
4. Push the “MENU” switch to return to the setting mode menu.
BV1-28199-E0.book 14 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分

Instrument and control functions
5-15
1
2
3
4
5
6
7
8
9
10
11
12
13

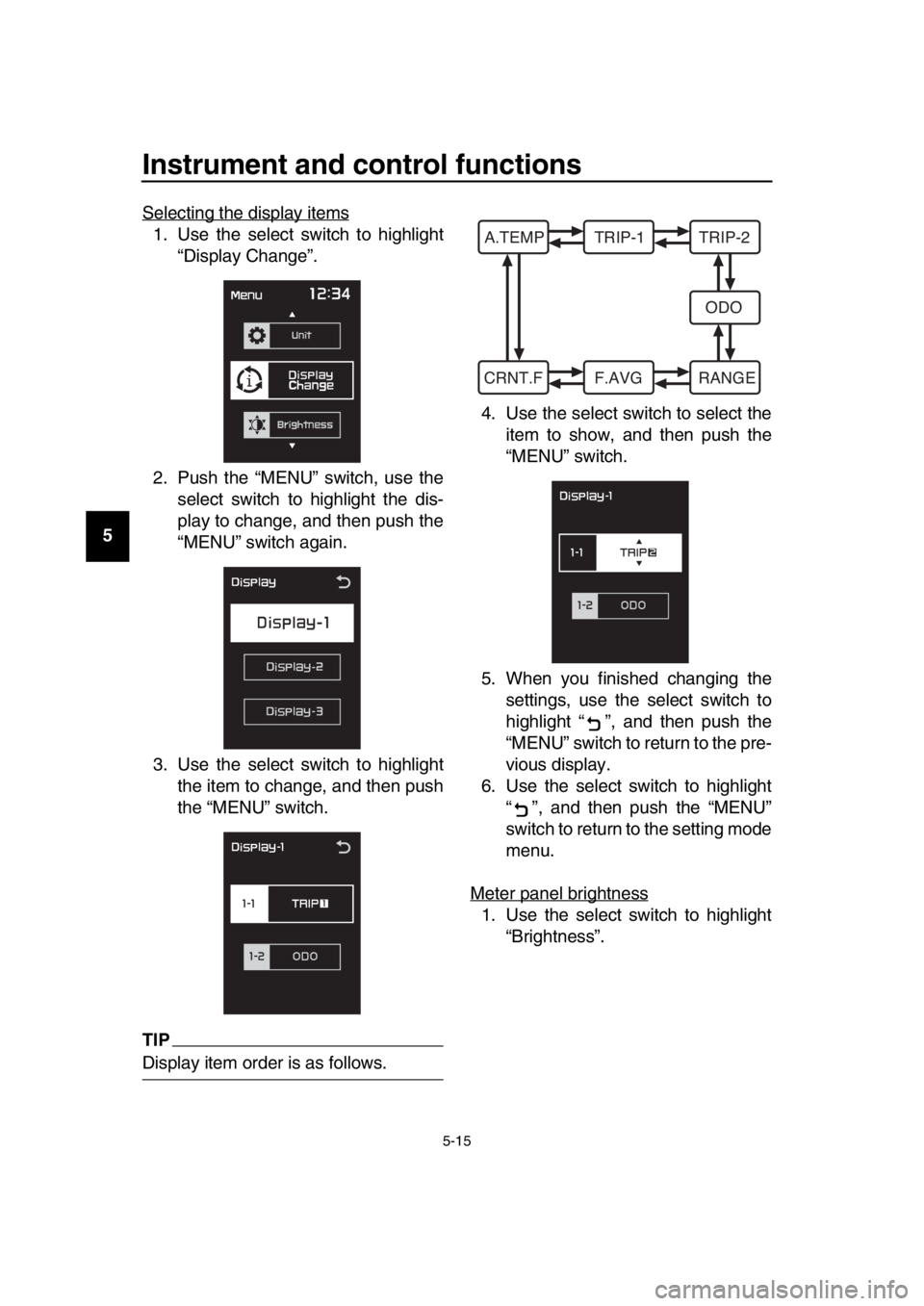

14 Selecting the display items
1. Use the select switch to highlight
“Display Change”.
2. Push the “MENU” switch, use the select switch to highlight the dis-
play to change, and then push the
“MENU” switch again.
3. Use the select switch to highlight the item to change, and then push
the “MENU” switch.
TIP
Display item order is as follows. 4. Use the select switch to select the
item to show, and then push the
“MENU” switch.
5. When you finished changing the settings, use the select switch to
highlight “ ”, and then push the
“MENU” switch to return to the pre-
vious display.
6. Use the select switch to highlight “ ”, and then push the “MENU”
switch to return to the setting mode
menu.
Meter panel brightness
1. Use the select switch to highlight “Brightness”.
A.TEMP TRIP-1 TRIP-2
ODO
CRNT.F F.AVG RANGE
BV1-28199-E0.book 15 ページ ２０１６年１２月１９日　月曜日　午前１１時２５分
