2017 YAMAHA MT-10 CLUTCH

Table of contentsSafety information........................... 1-1
Description ....................................... 2-1
Left view ......................................... 2-1
Right view ....................................... 2-2
Controls and instruments................ 2-3
Special features ............................... 3-1
Cruise control system ..................... 3-1
D-mode (drive mode)...................... 3-3
Traction control system .................. 3-4
Quick shift system ...... .................... 3-6
Instrument and co ntrol functions... 4-1
Immobilizer system ..... .................... 4-1
Main switch/steering lock................ 4-2
Handlebar switches ........................ 4-3
Indicator lights and warning lights ............................................ 4-5
Multi-function meter unit ................. 4-8
Clutch lever................................... 4-16
Shift pedal..... ............................ .... 4-17
Brake lever ................................... 4-17
Brake pedal .................................. 4-18
ABS .............................................. 4-18
Fuel tank cap ................................ 4-19
Fuel............................................... 4-20
Fuel tank overflow hose................ 4-21
Catalytic converter ........................ 4-22
Seat .............................................. 4-22
Adjusting the front fork.................. 4-23 Adjusting the shock absorber
assembly................................... 4-25
Luggage strap holders . ................ 4-27
EXUP system ............................... 4-28
Auxiliary DC jack .......................... 4-28
Sidestand ..................................... 4-29
Ignition circuit cut- off system ........ 4-29
For your safety – pre-operation
checks .............................................. 5-1
Operation and important riding
points ................................................ 6-1
Starting the engine ......................... 6-1
Shifting ........................................... 6-2
Tips for reducing fuel consumption ............................... 6-3
Engine break-in .............................. 6-3
Parking ........................................... 6-4
Periodic maintenance and
adjustment ....................................... 7-1
Owner’s tool kits ............................. 7-2
Periodic maintenance chart for the emission control system ....... 7-3
General maintenance and lubrication chart .......................... 7-5
Checking the spark plugs ............... 7-9
Canister ........................................ 7-10
Engine oil and oil filter cartridge ... 7-10
Coolant ......................................... 7-13 Air filter element ........................... 7-17
Checking the engine idling
speed............ ............................ 7-17
Checking the throttle grip free play ........................................... 7-17
Valve clearance ........................... 7-18
Tires ............................................. 7-18
Cast wheels ................................. 7-20
Adjusting the clutch lever free play ........................................... 7-21
Checking the brake lever free
play ........................................... 7-21
Brake light switches ..................... 7-22
Checking the front and rear
brake pads................................ 7-22
Checking the brake fluid level ...... 7-23
Changing the brake fluid .............. 7-24
Drive chain slack.......................... 7-24
Cleaning and lubricating the drive chain ................................ 7-26
Checking and lubricating the cables ....................................... 7-26
Checking and lubricating the
throttle grip and cable ............... 7-27
Checking and lubricating the
brake and shift pedals .............. 7-27
Checking and lubricating the brake and clutch levers ............ 7-28
Checking and lubricating the sidestand .................................. 7-28B67-9-E1_1.book 1 ページ ２０１７年１月２３日　月曜日　午後６時２１分

Description
2-3
123
4
5
6
7
8
9
10
11
12
EAU10431
Controls and instruments
12 456789
3
1. Clutch lever (page 4-16)
2. Left handlebar switches (page 4-3)
3. Auxiliary DC jack (page 4-28)
4. Main switch/steering lock (page 4-2)
5. Multi-function meter unit (page 4-8)
6. Front brake fluid reservoir (page 7-23)
7. Right handlebar switches (page 4-3)
8. Throttle grip (page 7-17) 9. Brake lever (page 4-17)
B67-9-E1_1.book 3 ページ ２０１７年１月２３日　月曜日　午後６時２１分

Special features
3-2
1
234
5
6
7
8
9
10
11
12
“SET–” side of the setting switch. If you
do not set a new cruising speed, when
you return the throttle grip, the vehicle
will decelerate to the previously set
cruising speed.
Deactivating the cruise control sys-
tem
Perform one of the following operations
to cancel the set cruising speed. The
“SET” indicator light will go off.

Turn the throttle grip past the
closed position in the deceleration
direction.

Apply the front or rear brake.

Disengage the clutch. Push the power switch to turn off the
cruise control system. The “ ” indica-
tor light and the “SET” indicator light will
go off.
TIPTraveling speed decreases as soon as
the cruise control system is deactivat-ed; unless the throttle grip is turned.
Using the resume function
Push the “RES+” side of the cruise con-
trol setting switch to reactivate the
cruise control system. The traveling
speed will return to the previously set
cruising speed. The “SET” indicator
light will come on.
WARNING
EWA16351
It is dangerous to use the resume
function when the previously set
cruising speed is too high for cur-rent conditions.TIPPushing the power switch while the
system is operating will turn the system
off completely and erase the previously
set cruising speed. You will not be able to use the resume function until a new
cruising speed has been set.
Automatic deactivation of the cruisecontrol systemThe cruise control system for this mod-
el is electronically controlled and is
linked with the other control systems.
The cruise control system will automat-
ically become deactivated under the
following conditions:
The cruise control system is not
able to maintain the set cruising
speed.

Wheel slip or wheel spin is detect-
ed. (If the traction control system
has not been turned off, the trac-
tion control system will work.)

The start/engine stop switch is set
to the “ ” position.

The engine stalls.

The sidestand is lowered.
When traveling with a set cruising
speed, if the cruise control system is
deactivated under the above condi-
tions, the “ ” indicator light will go off
and the “SET” indicator light will flash
for 4 seconds, and then go off.
1. Closed position
2. Cruise control cancel direction
1
2
B67-9-E1_1.book 2 ページ ２０１７年１月２３日　月曜日　午後６時２１分

Special features
3-6
1
234
5
6
7
8
9
10
11
12
2. Wait a few seconds and then turn
the key back to “ON”.
3. The “ ” indicator light should turn off and the system be enabled.
TIPIf the “ ” indicator light remains on af-
ter resetting, the vehicle may still be rid-
den; however, have a Yamaha dealercheck the vehicle as soon as possible.
4. Have a Yamaha dealer check the vehicle and turn off the “ ” warn-
ing light.
EAU79480
Quick shift systemThe quick shift system (QS) allows for
full-throttle, clutch lever-less, electroni-
cally-assisted upshifts. When the shift
switch detects motion in the shift pedal
(page 4-17), engine power and drive
torque are momentarily adjusted to al-
low the upshift to occur.TIP
The quick shift system operates
when traveling at least 20 km/h (12
mi/h) with an engine speed of 2000
r/min or higher, and only when ac-
celerating.

It does not operate when the clutchlever is pulled.
B67-9-E1_1.book 6 ページ ２０１７年１月２３日　月曜日　午後６時２１分

Instrument and control functions
4-16
1
2
345
6
7
8
9
10
11
12
the desired engine speed for acti-
vating the indicator light.
2. Push the “CLOCK” button to con- firm the selected engine speed.
The control mode changes to the
shift indicator light off r/min func-
tion.
To set the shift indicator light off r/min
TIP
The shift indicator light can be
set between 7000 r/min and
13000 r/min in increments of 200
r/min.

Be sure to set the off r/min to a
higher engine speed than the on
r/min setting, otherwise the shiftindicator light will not come on.
1. Push the “RESET” button to select the desired engine speed for deac-
tivating the indicator light.
2. Push the “CLOCK” button to con- firm the selected engine speed.
The control mode changes to the
shift timing indicator light bright-
ness function. To adjust the shift i
ndicator light bright-
ness1. Push the “RESET” button to select
the desired indicator light bright-
ness level.
2. Push the “CLOCK” button to con- firm the selected indicator light
brightness level and exit the bright-
ness and shift indicator light con-
trol mode.
EAU12822
Clutch leverThe clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 4-29.)1. Clutch lever
1
B67-9-E1_1.book 16 ページ ２０１７年１月２３日　月曜日　午後６時２１分

Instrument and control functions
4-17
1
2
34
5
6
7
8
9
10
11
12
EAU76301
Shift pedalThe shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission.
When the quick shift system is turned
on, the shift switch senses shift pedal
movement and allows for upshifting
without operating the clutch lever. (See
page 3-6.)
EAU26825
Brake leverThe brake lever is located on the right
side of the handlebar. To apply the front
brake, pull the lever toward the throttle
grip.
The brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the brake
lever and the throttle grip, turn the ad-
justing dial while holding the lever
pushed away from the throttle grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with the “ ” mark on the brake lever.

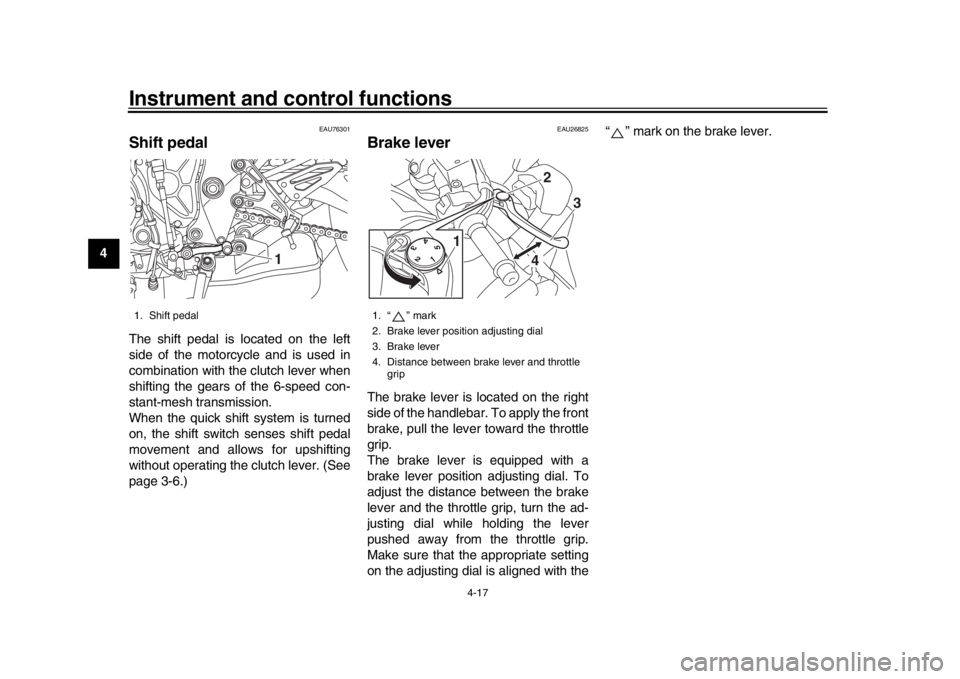

1. Shift pedal
1
1. “ ” mark
2. Brake lever position adjusting dial
3. Brake lever
4. Distance between brake lever and throttle
grip
4
1 2
3
B67-9-E1_1.book 17 ページ ２０１７年１月２３日　月曜日　午後６時２１分

Instrument and control functions
4-29
1
2
34
5
6
7
8
9
10
11
12
EAU15306
SidestandThe sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See the following section for an expla-
nation of the ignition circuit cut-off sys-tem.)
WARNING
EWA10242
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly and have a Yamaha dealer repair it if it does not
function properly.
EAU57950
Ignition circuit
cut-off systemThe ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.
It prevents starting when the trans-
mission is in gear and the sides-
tand is up, but the clutch lever is
not pulled.

It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.

It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
B67-9-E1_1.book 29 ページ ２０１７年１月２３日　月曜日　午後６時２１分

Instrument and control functions
4-30
1
2
345
6
7
8
9
10
11
12
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the start/engine stop switch is set to “ ”.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the “ ” side of the start/engine stop switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the “ ” side of the start/engine stop switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
YES NO YES NO YES NO
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
B67-9-E1_1.book 30 ページ ２０１７年１月２３日　月曜日　午後６時２１分
