2017 YAMAHA FX SVHO oil filter

Table of contents
Transporting on a trailer ................ 64
First-time operation ........................ 65
Engine break-in ............................. 65
Pre-operation checks ..................... 66
Pre-operation checklist .................... 66
Pre-operation check points........... 68
Pre-launch checks ........................... 68
Post-launch checks ......................... 74
Operation ......................................... 77
Operating your watercraft ............. 77
Getting to know your watercraft ...... 77
Learning to operate your
watercraft ...................................... 77
Riding position ................................. 78
Launching the watercraft ................. 78
Starting the engine on water ............ 78
Stopping the engine ......................... 79
Leaving the watercraft...................... 79
Operating the watercraft .................. 79
Turning the watercraft ...................... 80
Stopping the watercraft ................... 81
Operating the watercraft in reverse
or neutral....................................... 82
Boarding the watercraft ................... 83
Starting off........................................ 85
Capsized watercraft ......................... 86
Beaching and docking the
watercraft ...................................... 87
Operating in weeded areas .............. 87
After removing the watercraft from
the water ....................................... 88
Care and storage............................. 89
Post-operation care ...................... 89
Flushing the cooling water
passages....................................... 89
Cleaning the watercraft .................... 90
Battery care ...................................... 90
Long-term storage ........................ 93
Cleaning ........................................... 93
Lubrication ....................................... 93Rustproofing ..................................... 93
Maintenance .................................... 94
Maintenance ................................. 94
Tool kit.............................................. 94
Removing and installing the engine
cover ............................................. 94
Periodic maintenance chart ............. 96
Engine oil and oil filter ...................... 98
Specifications .................................. 99
Specifications ............................... 99
Trouble recovery ........................... 100
Troubleshooting .......................... 100
Troubleshooting chart .................... 100
Emergency procedures .............. 103
Cleaning the jet intake and
impeller ....................................... 103
Raising the reverse gate................. 104
Jumping the battery ....................... 104
Replacing the fuses ........................ 105
Towing the watercraft..................... 107
Submerged watercraft ................... 107
Index............................................... 109
UF3J74E0.book Page 2 Wednesday, July 6, 2016 11:57 AM

Description
24

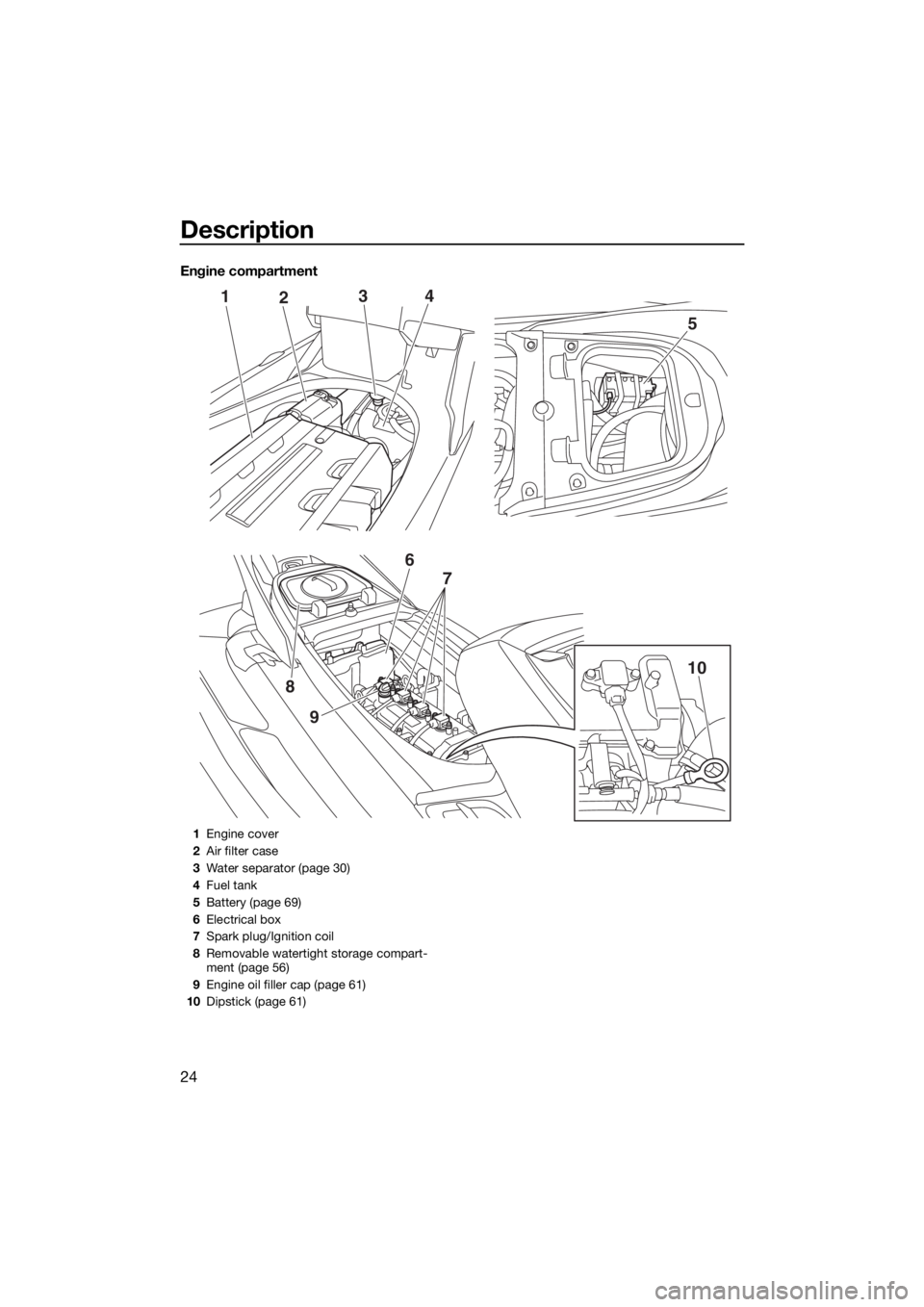

Engine compartment
124
9
8
5
3
6
7
10
1Engine cover
2Air filter case
3Water separator (page 30)
4Fuel tank
5Battery (page 69)
6Electrical box
7Spark plug/Ignition coil
8Removable watertight storage compart-
ment (page 56)
9Engine oil filler cap (page 61)
10Dipstick (page 61)
UF3J74E0.book Page 24 Wednesday, July 6, 2016 11:57 AM

Maintenance
96
EJU43101Periodic maintenance chart
The periodic maintenance chart gives general guidelines for periodic maintenance. Have a
Yamaha dealer perform the checks in the following chart. However, maintenance may need
to be performed more frequently depending on your operating conditions. If you have any
questions, consult a Yamaha dealer.
This “√” mark indicates items to be checked and serviced by a Yamaha dealer.
Item OperationInitial Thereafter every
Page
10 hours50 hours
or 12
months
*1100
hours or
12
months
*1200
hours or
24
months
*1
Fuel lineCheck fuel hoses and
clamps√—
Fuel filler cap/Wa-
ter separatorCheck O-rings for cracks
and deformation√—
Fuel tankCheck installation and
straps√—
Water inlet strainerCheck for clogs and dam-
age√—
Cooling water hos-
esCheck for damage and
leakage, and check
clamps√—
Engine oilReplace√√98
Oil filterReplace√98
Intermediate hous-
ingLubricate√—
Spark plugsCheck√√—
BatteryCheck state of charge,
terminals, bands, and
breather hose√—
Battery leadsCheck terminals√—
Steering masterCheck operation and for
looseness√√—
Steering cableCheck exterior and con-
nections, and lubricate√—
Electric trim rodCheck exterior and con-
nections, and lubricate√—
Shift rod and re-
verse gateCheck exterior and con-
nections, and lubricate√—
Air filter elementCheck for damage and
dirt√—
Air intake hosesCheck for damage, and
check clamps√
—
Throttle bodyLubricate throttle valves√—
UF3J74E0.book Page 96 Wednesday, July 6, 2016 11:57 AM

Maintenance
98
EJU36943Engine oil and oil filter
WARNING
EWJ00341
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
NOTICE
ECJ00992
Do not run the engine with too much or not
enough oil in the engine, otherwise the en-
gine could be damaged.
It is recommended to have a Yamaha dealer
change the engine oil and the engine oil filter.
However, if you choose to change the oil and
filter on your own, consult a Yamaha dealer.
UF3J74E0.book Page 98 Wednesday, July 6, 2016 11:57 AM

Specifications
99
EJU34543
Specifications
Watercraft capacity:
Maximum people on board:
3 person
Maximum load capacity:
240 kg (530 lb)
Dimensions and weight:
Length:
3560 mm (140.2 in)
Width:
1230 mm (48.4 in)
Height:
1230 mm (48.4 in)
Dry weight:
378 kg (833 lb) (FX SVHO)
379 kg (836 lb) (FX Cruiser SVHO / FX Limited
SVHO)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
183.9 kW at 7500 r/min
Maximum fuel consumption:
83.7 L/h (22.1 US gal/h, 18.4 Imp.gal/h)
Cruising range at full throttle:
0.84 hour
Trolling speed:
1250 ±100 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1812 cm³
Bore × stroke:
86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio:
8.5 : 1
Valve clearance-intake (cold):
0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold):
0.36–0.45 mm (0.0142–0.0177 in)
Lubrication system:
Wet sump
Cooling system:
Water
Starting system:
ElectricIgnition system:
T.C.I.
Spark plug (NGK):
LFR7A
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Battery capacity:
12 V, 19 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24+24 °
Jet thrust nozzle trim angle:
-6, -3, 0, 3, 6 °
Fuel and oil:
Recommended fuel:
Premium unleaded gasoline
Minimum octane rating (PON):
91
Minimum octane rating (RON):
95
Recommended engine oil:
YAMALUBE 4W or 4-stroke motor oil
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SG, SH, SJ, SL
Fuel tank total capacity:
70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
3.6 L (3.81 US qt, 3.17 Imp.qt)
Engine oil quantity without oil filter replacement:
3.5 L (3.70 US qt, 3.08 Imp.qt)
Engine oil total quantity:
5.3 L (5.60 US qt, 4.66 Imp.qt)
UF3J74E0.book Page 99 Wednesday, July 6, 2016 11:57 AM

Trouble recovery
102
Watercraft slow or
loses powerWatercraft
operation
modeLow RPM Mode acti-
vatedDeactivate Low RPM
Mode 35
Cavitation Jet intake clogged Clean 103
Impeller damaged or
wornHave serviced by
Yamaha dealer103
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine43
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
43
Spark plug Fouled or defective Have serviced by
Yamaha dealer—
Incorrect heat range Have serviced by
Yamaha dealer—
Gap incorrect Have serviced by
Yamaha dealer—
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel Stale or contaminat-
edHave serviced by
Yamaha dealer—
Incorrect octane
numberUse correct fuel
59
Air filter Clogged Have serviced by
Yamaha dealer—
Oil buildup Have serviced by
Yamaha dealer—
Throttle lever Faulty Have serviced by
Yamaha dealer— TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF3J74E0.book Page 102 Wednesday, July 6, 2016 11:57 AM

109
Index
A
Adjustable tilt steering system ................. 29
Adjustable tilt steering system checks .... 71
After removing the watercraft from the
water ..................................................... 88
Analog speedometer/tachometer ............ 39
B
Battery care.............................................. 90
Battery checks ......................................... 69
Battery, jumping ..................................... 104
Beaching and docking the watercraft ...... 87
Beverage holders ..................................... 55
Bilge water check..................................... 69
Bilge water, draining ................................ 63
Bilge water, draining on land ................... 63
Bilge water, draining on water ................. 63
Boarding alone ......................................... 83
Boarding and starting off from a dock ..... 86
Boarding the watercraft ........................... 83
Boarding with passenger(s) ..................... 84
Bow eye ................................................... 51
Bow storage compartment ...................... 52
Builder’s plate ............................................ 2
C
Capsized watercraft ................................. 86
Check engine warning ............................. 44
Cleaning ................................................... 93
Cleaning the watercraft ............................ 90
Cleat ......................................................... 51
Cooling water pilot outlet check .............. 74
Cooling water pilot outlets ....................... 30
Craft Identification Number (CIN)............... 1
Cruise assist............................................. 37
Cruising limitations................................... 11
D
Digital speedometer ................................. 40
E
Electric trim system.................................. 33
Emergency procedures .......................... 103
Engine break-in ........................................ 65
Engine compartment check ..................... 68
Engine cover, removing and installing ..... 94
Engine idling speed check ....................... 76
Engine oil ................................................. 61
Engine oil and oil filter .............................. 98Engine oil level check ............................... 69
Engine oil requirements ........................... 61
Engine overheat warning.......................... 43
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 72
Engine shut-off switch ............................. 27
Engine stop switch ................................... 27
Engine unit check ..................................... 69
Enjoy your watercraft responsibly ............ 19
Equipment ................................................ 49
F
Fire extinguisher check ............................ 73
Fire extinguisher holder and cover........... 57
Fire extinguisher holder, cover, and
band checks ......................................... 73
Flushing the cooling water passages....... 89
Fuel .......................................................... 59
Fuel level check........................................ 68
Fuel level meter ........................................ 42
Fuel level warning..................................... 43
Fuel requirements .................................... 59
Fuel system checks ................................. 68
Fuses, replacing ..................................... 105
G
Getting to know your watercraft .............. 77
Glossary, watercraft ................................. 20
Glove compartment ................................. 53
H
Handgrip .................................................. 50
Hazard information................................... 15
Hood check .............................................. 74
Hour meter/voltmeter ............................... 41
Hull and deck check ................................ 73
I
Identification numbers ............................... 1
Information display................................... 40
J
Jet intake and impeller, cleaning............ 103
Jet intake checks ..................................... 73
Jet thrust nozzle and reverse gate
check .................................................... 73
Jumper cables, connecting .................... 104
L
Labels, important ....................................... 4
Labels, other .............................................. 8
UF3J74E0.book Page 109 Wednesday, July 6, 2016 11:57 AM
