Page 44 of 118
Watercraft operation
38
and the engine will respond normally to the
throttle operation.
TIP:
Once the cruise assist is activated, the set
engine speed can be increased by pushing
the cruise assist up switch or decreased by
pushing the cruise assist down switch. Each
time a switch is pushed, the beeper willsound one time quickly and the set engine
speed will change. However, the adjustment
is limited to a maximum of five increments
above or below the initial cruise assist set-
ting.
To deactivate the cruise assist:
Relax your grip on the throttle lever. The
beeper sounds two times quickly and the di-
gital speedometer display stops blinking
when the cruise assist is deactivated.
TIP:
The cruise assist is also deactivated when the
engine is stopped.

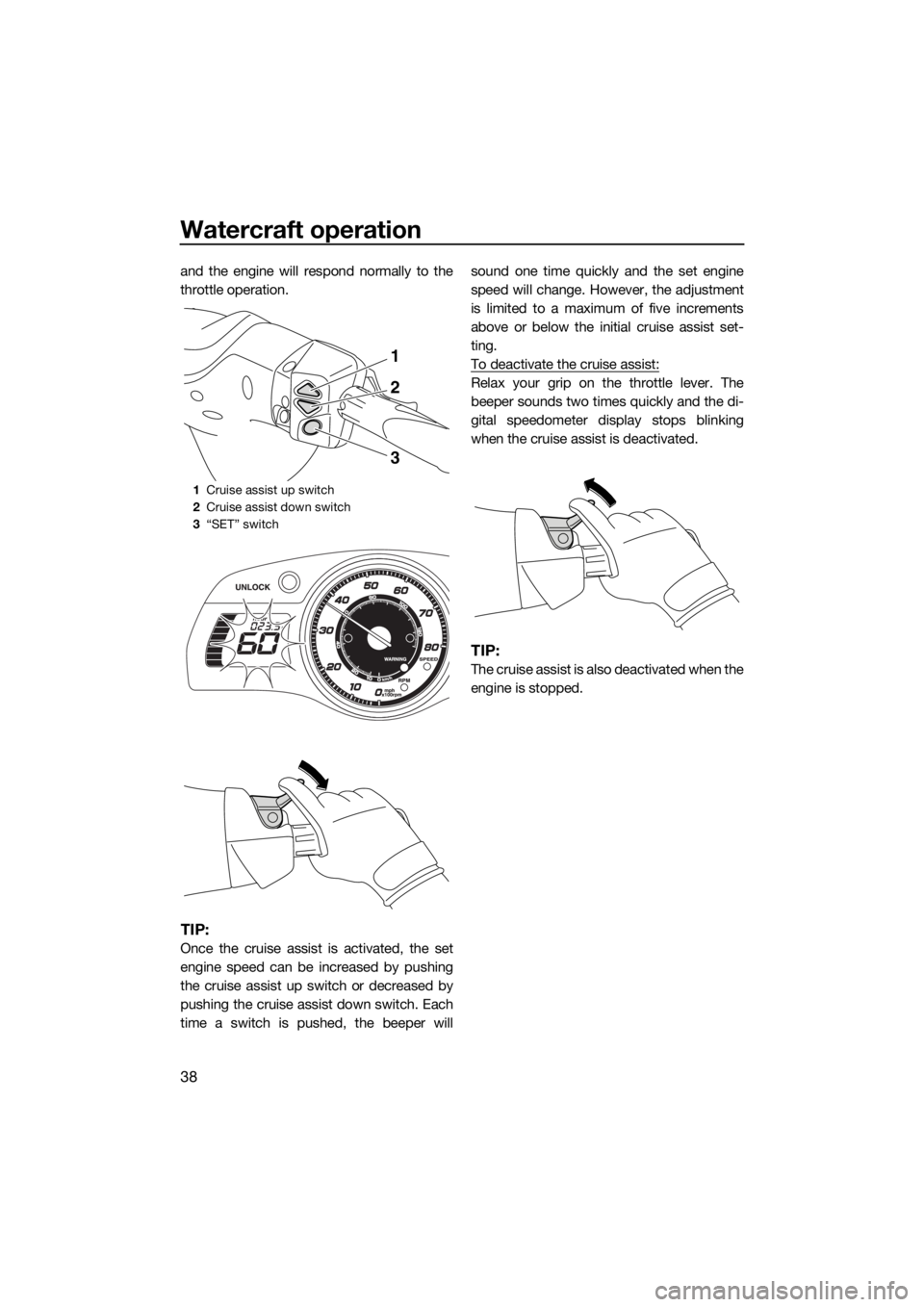

1Cruise assist up switch
2Cruise assist down switch
3“SET” switch
1
2
3
UF3J74E0.book Page 38 Wednesday, July 6, 2016 11:57 AM
Page 87 of 118
Operation
81
steer without throttle. You may still have
some turning ability immediately after re-
leasing the throttle lever, but once the
engine slows down, the watercraft will no
longer respond to handlebar input until
you apply throttle again or you reach
trolling speed.
At trolling speed, the watercraft can be
turned gradually by handlebar position
alone using just the amount of thrust
available at idle.
D. If the engine is stopped while riding,
there is no thrust. The watercraft will go
straight even though the handlebars are
turned.
You need throttle to steer.
E. If the RiDE lever is squeezed and the
handlebars are turned when the water-
craft is cruising at planing speed, the wa-tercraft will turn gradually while slowing
down.
This model is equipped with the Yamaha En-
gine Management System (YEMS) that in-
cludes an off-throttle steering (OTS) system.
It will activate at planing speeds should you
attempt to steer the watercraft after releasing
the throttle lever (see condition C above).
The OTS system assists in turning by con-
tinuing to supply some thrust while the water-
craft is decelerating, but you can turn more
sharply if you apply throttle while turning the
handlebars. The OTS system does not func-
tion below planing speeds or when the en-
gine is off. Once the engine slows down, the
watercraft will no longer turn in response to
handlebar input until you apply throttle again
or you reach trolling speed.
EJU43251Stopping the watercraft
The watercraft is not equipped with a sepa-
rate braking system. The watercraft slows
down by water resistance or, when operating
in reverse, by the water jet. The watercraft
slows down as soon as the throttle lever is re-
leased, but will coast for a distance before
fully stopping. If you are not sure you can
stop in time before hitting an obstacle, apply
throttle and turn in another direction.
From full speed, the watercraft comes to a
complete stop due to water resistance in ap-
1Reverse gate
E
1
UF3J74E0.book Page 81 Wednesday, July 6, 2016 11:57 AM
Page 115 of 118
109
Index
A
Adjustable tilt steering system ................. 29
Adjustable tilt steering system checks .... 71
After removing the watercraft from the
water ..................................................... 88
Analog speedometer/tachometer ............ 39
B
Battery care.............................................. 90
Battery checks ......................................... 69
Battery, jumping ..................................... 104
Beaching and docking the watercraft ...... 87
Beverage holders ..................................... 55
Bilge water check..................................... 69
Bilge water, draining ................................ 63
Bilge water, draining on land ................... 63
Bilge water, draining on water ................. 63
Boarding alone ......................................... 83
Boarding and starting off from a dock ..... 86
Boarding the watercraft ........................... 83
Boarding with passenger(s) ..................... 84
Bow eye ................................................... 51
Bow storage compartment ...................... 52
Builder’s plate ............................................ 2
C
Capsized watercraft ................................. 86
Check engine warning ............................. 44
Cleaning ................................................... 93
Cleaning the watercraft ............................ 90
Cleat ......................................................... 51
Cooling water pilot outlet check .............. 74
Cooling water pilot outlets ....................... 30
Craft Identification Number (CIN)............... 1
Cruise assist............................................. 37
Cruising limitations................................... 11
D
Digital speedometer ................................. 40
E
Electric trim system.................................. 33
Emergency procedures .......................... 103
Engine break-in ........................................ 65
Engine compartment check ..................... 68
Engine cover, removing and installing ..... 94
Engine idling speed check ....................... 76
Engine oil ................................................. 61
Engine oil and oil filter .............................. 98Engine oil level check ............................... 69
Engine oil requirements ........................... 61
Engine overheat warning.......................... 43
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 72
Engine shut-off switch ............................. 27
Engine stop switch ................................... 27
Engine unit check ..................................... 69
Enjoy your watercraft responsibly ............ 19
Equipment ................................................ 49
F
Fire extinguisher check ............................ 73
Fire extinguisher holder and cover........... 57
Fire extinguisher holder, cover, and
band checks ......................................... 73
Flushing the cooling water passages....... 89
Fuel .......................................................... 59
Fuel level check........................................ 68
Fuel level meter ........................................ 42
Fuel level warning..................................... 43
Fuel requirements .................................... 59
Fuel system checks ................................. 68
Fuses, replacing ..................................... 105
G
Getting to know your watercraft .............. 77
Glossary, watercraft ................................. 20
Glove compartment ................................. 53
H
Handgrip .................................................. 50
Hazard information................................... 15
Hood check .............................................. 74
Hour meter/voltmeter ............................... 41
Hull and deck check ................................ 73
I
Identification numbers ............................... 1
Information display................................... 40
J
Jet intake and impeller, cleaning............ 103
Jet intake checks ..................................... 73
Jet thrust nozzle and reverse gate
check .................................................... 73
Jumper cables, connecting .................... 104
L
Labels, important ....................................... 4
Labels, other .............................................. 8
UF3J74E0.book Page 109 Wednesday, July 6, 2016 11:57 AM
