2017 VOLVO XC90 TWIN ENGINE HYBRID fuse box

MAINTENANCE AND SERVICING
517

Location of the fuseboxes
Engine compartment
Under the glove compartment
Cargo compartment

Related information
•Replacing fuses (p. 517)
•Fuses in the cargo compartment (p. 527)
•Fuses in the engine compartment (p. 518)
•Fuses in the passenger compartment(p. 523)
Replacing fuses
The fuses help protect the vehicle's electricalcomponents from overloading or short circuits.
Fuse replacement
1. See the list of fuse boxes for their locations.
2. Pull the fuse straight out and examine it fromthe side to see if the curved metal wire in thefuse is intact.
3. If the wire is broken, insert a new fuse of thesame color and amperage (written on thefuse).

WARNING
Never use metal objects or fuses with higheramperage than those stated on the followingpages. Doing so could seriously damage oroverload the vehicle's electrical system.

Related information
•Fuses (p. 516)
•Fuses in the cargo compartment (p. 527)
•Fuses in the engine compartment (p. 518)
•Fuses in the passenger compartment(p. 523)

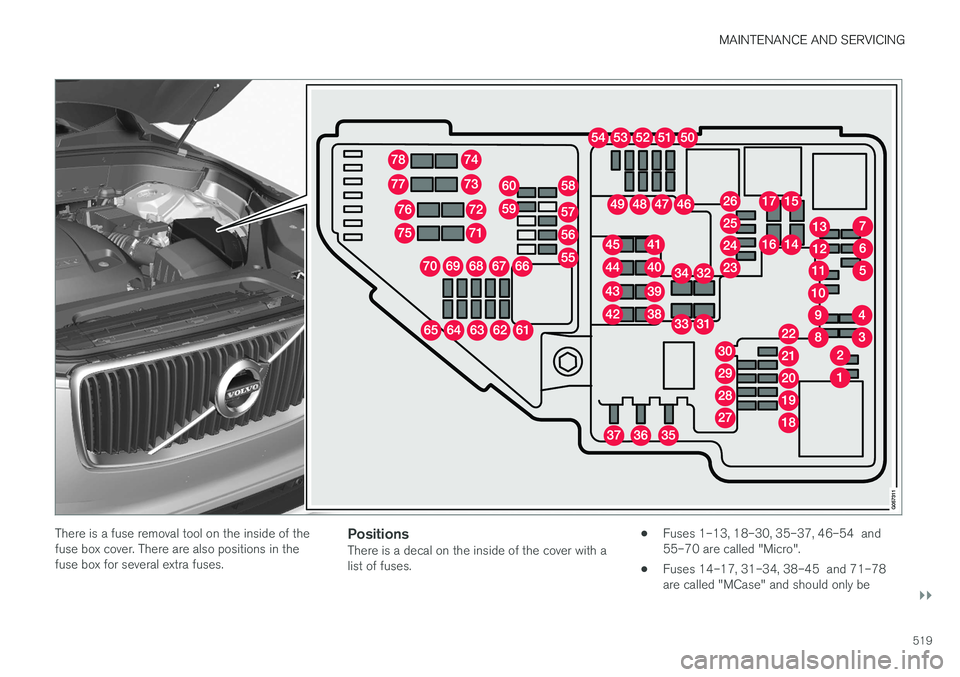

MAINTENANCE AND SERVICING
}}
519
There is a fuse removal tool on the inside of thefuse box cover. There are also positions in thefuse box for several extra fuses.

Positions
There is a decal on the inside of the cover with alist of fuses.
•Fuses 1–13, 18–30, 35–37, 46–54 and55–70 are called "Micro".
•Fuses 14–17, 31–34, 38–45 and 71–78are called "MCase" and should only be

MAINTENANCE AND SERVICING
}}
523
Fuses in the passengercompartment
The fuses in the passenger compartment(located under the glove compartment) help pro-
tect electrical components such as the 120-voltsocket, displays and door modules.There is a fuse removal tool on the inside of thefuse box covers. There are also positions in thefuse box for several extra fuses.

||
MAINTENANCE AND SERVICING
528
The fuse box is under the storage compartment on the right side
There is a fuse removal tool on the inside of thefuse box cover. There are also positions in thefuse box for several extra fuses.

MAINTENANCE AND SERVICING
}}
541
cautions must be followed to preventinjury. Always turn the ignition off whenreplacing distributor ignition componentse.g. plugs, coil, etc.
•Do not touch any part of the distributorignition system while the engine is run-ning. This may result in unintended move-ments and body injury.
The layout of the engine compartment may differ slightlyfrom model to model
Coolant expansion tank
Brake fluid reservoir
Washer fluid reservoir
Relay/fuse box
Air cleaner
Engine oil filler cap

Related information
•Ignition modes (p. 400)
•Opening and closing the hood (p. 539)
•Refilling the windshield washer fluid reservoir(p. 547)
Engine oil
The correct oil must be used for the stated oilchange (service) intervals to apply.
Volvo recommends:
