Page 367 of 406
MAINTENANCE AND SERVICING
* Option/accessory, for more information, see Introduction.365
PosFunctionA
Accelerator pedal sensor, auto- dim mirror function, heated rear seats*7.5
-
Brake lights5
Power moonroof *20
Immobilizer5
Related information
•Fuses – engine compartment (p. 360)
• Fuses – cargo area/trunk (p. 366)
• Fuses – engine compartment cold zone (Start/Stop only) (p. 367)
Page 368 of 406
MAINTENANCE AND SERVICING
* Option/accessory, for more information, see Introduction.
366
Fuses – cargo area/trunk The fuses in the cargo area/trunk protect com- ponents such as trailer connections, the parkingbrake, etc.
Positions
PosFunctionA
Electric parking brake (left side)30
Electric parking brake (right side)30
Heated rear window30
Trailer socket 2 *15
-
PosFunctionA
12-volt socket in cargo area15
-
-
-
-
PosFunctionA
Trailer socket 1*40
-
Related information
•Fuses – engine compartment (p. 360)
• Fuses – glove compartment (p. 363)
• Fuses – engine compartment cold zone (Start/Stop only) (p. 367)
Page 369 of 406
MAINTENANCE AND SERVICING
}}
367

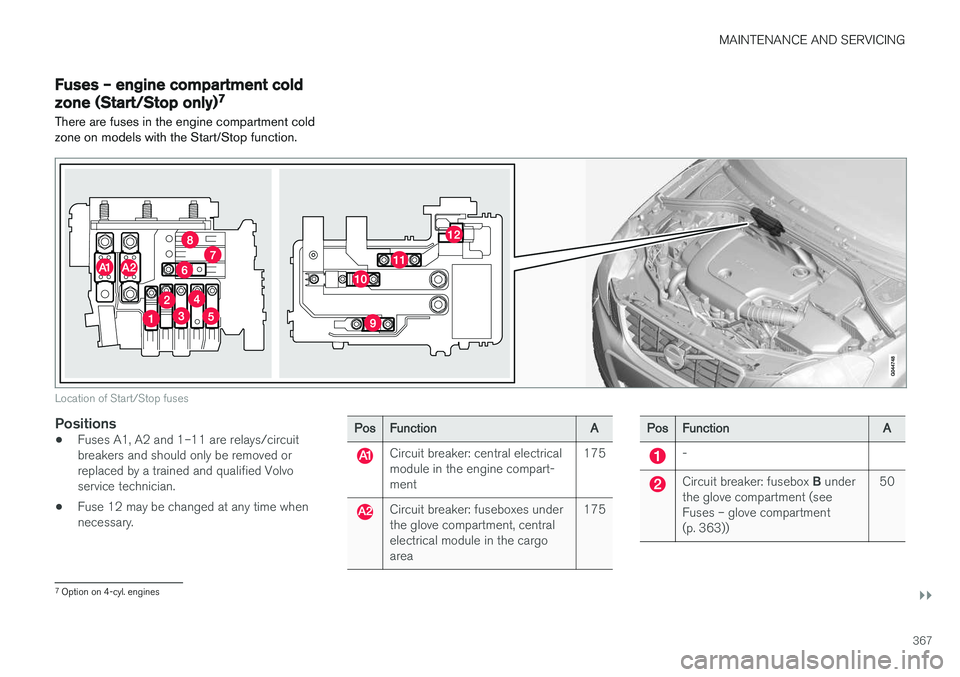

Fuses – engine compartment cold zone (Start/Stop only)7
There are fuses in the engine compartment cold zone on models with the Start/Stop function.
Location of Start/Stop fuses
Positions
• Fuses A1, A2 and 1–11 are relays/circuit breakers and should only be removed orreplaced by a trained and qualified Volvoservice technician.
• Fuse 12 may be changed at any time whennecessary.PosFunctionA
Circuit breaker: central electrical module in the engine compart-ment175
Circuit breaker: fuseboxes under the glove compartment, centralelectrical module in the cargoarea175
PosFunctionA
-
Circuit breaker: fusebox
B under
the glove compartment (see Fuses – glove compartment(p. 363))50
7 Option on 4-cyl. engines
Page 370 of 406
||
MAINTENANCE AND SERVICING
368
PosFunctionA
Circuit breaker: fusebox A under
the glove compartment (see Fuses – glove compartment(p. 363))60
Circuit breaker: fusebox A under
the glove compartment (see Fuses – glove compartment(p. 363))60
Circuit breaker: central electrical module in the cargo area60
Climate system blower40
––
––
Starter motor relay30
Internal diode50
Auxiliary battery70
Central electrical module: auxili- ary battery reference voltage,auxiliary battery charging point15
Related information
• Fuses – engine compartment (p. 360)
• Fuses – glove compartment (p. 363) •
Fuses – cargo area/trunk (p. 366)
• Start/Stop – introduction (p. 268)
Page 392 of 406
SPECIFICATIONS
* Option/accessory, for more information, see Introduction.
390
Battery specifications If the battery is replaced, replace it with a battery of the same cold start capacity as the original(see the decal on the battery).
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accesso- ries contain lead and lead compounds, chemi-cals known to the state of California to causecancer and reproductive harm. Wash handsafter handling. 12 volt system with a voltage-regulated alterna- tor. Single pole system in which the chassis andengine block are used as conductors. The nega-tive terminal is connected to the chassis.
MotorVoltage (V)Cold start capacity
CCA (Cold Cranking Amperes) (A)
Engines with Start/Stop *12800A
All other engines12520–800
A
AGM (Absorbed Glass Mat) batteries have to be used on models with Start/Stop
