2017 VAUXHALL COMBO D tailgate

6In briefIn briefInitial drive informationVehicle unlockingUnlocking with key
Turn the key in the driver's door lock
towards the front of the vehicle.
Unlocking with remote control
Press Ä to unlock the vehicle. Open
the doors by pulling the handles.
Press Å to unlock the load
compartment only. To open the
tailgate, press the button under the
tailgate handle.
Radio remote control 3 20.
Central locking system 3 23.
Load compartment 3 26.
Power windows 3 30.

Keys, doors and windows21
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Key with foldaway key section
Extend the key (to reveal the battery
holder) and remove the battery holder
by undoing the screw with a suitable
screwdriver. Remove the battery
holder from the key and replace the battery (type CR 2032), paying
attention to the installation position.
Refit the battery holder in the key and
secure with the screw.
Manual door locks If the power supply has been
interrupted, the vehicle battery
voltage has dropped too low, or there
is a fault in the central locking system, the door locks cannot be operated
with the remote control.
UnlockingManually unlock the driver's door by
inserting the key in the lock cylinder
and turning towards the front of the
vehicle. Open the driver's door by
pulling the exterior handle.
The front passenger door and sliding side door(s) can then be opened by
operating the exterior or interior
handles.
Manually unlock the rear doors by
turning the key in the lock cylinder (if
available) or open from the inside.
The tailgate cannot be unlocked from the outside under the conditions
stated above.
Rear doors 3 25.
Emergency tailgate opening from inside the vehicle 3 26.
Child locks 3 24.
Locking
Close the rear doors/tailgate 3 25
and lock by turning the key in the lock
cylinder (if available).

Keys, doors and windows23Central locking system
Unlocks and locks the front doors,
sliding side doors and load
compartment.
A pull on an interior door handle
unlocks and opens the respective
door.
For safety reasons, the vehicle
cannot be locked if the key is in the
ignition switch.
Unlocking Notice
In the event of an accident of a
certain severity, the vehicle unlocks
automatically.
Fuel cut-off system 3 94.Van
Press Ä: Front doors are unlocked.
Press Å: Rear doors / tailgate and
sliding side doors are unlocked.
Combi, Combo Tour
Press Ä: All doors, including rear
doors / tailgate and sliding side doors
are unlocked.
Press Å: Rear doors / tailgate only
are unlocked.
Notice
If engaged, the manual lock on the sliding side door remains engaged
even after unlocking the vehicle with
the remote control.
Sliding side door manual lock 3 21.
Locking
Close all doors. If the doors are not
closed properly, the central locking
system will not work.
Notice
If a door or the tailgate is open,
control indicator ( illuminates in the
instrument cluster 3 88.

24Keys, doors and windows
Press e. All doors, including rear
doors / tailgate and sliding side doors
are locked.
Automatic locking
The vehicle can be configured to
automatically lock the doors when
vehicle speed exceeds 12 mph.
Driver Information Centre 3 88.
Unlocking the load compartment
from inside the vehicle
Press Å: The load compartment
(rear doors / tailgate and sliding side
doors) are unlocked.
When the load compartment is
locked, the LED in the button is
illuminated.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Using a suitable tool, turn child lock
switch on sliding side door towards
the horizontal position. The door
cannot be opened from inside.
To deactivate, turn the child lock
switch to the vertical position.

26Keys, doors and windowsThe door is opened from inside the
vehicle by pressing down the interior
handle.
The right hand rear door is released
using the lever.
9 Warning
The rear lights may be obscured if
the rear doors are open and the
vehicle is parked on the roadside.
Make other road users aware of the vehicle, by using a warning
triangle or other equipment
specified in the road traffic
regulations.
The doors are retained in the 90º
position by locking stays. To open the
doors to 180º, push the latch and
swing open to the desired position.
9 Warning
Ensure extended opening doors
are secured when fully opened.
Opened doors may slam closed due to the force of the wind!
Always close the right hand doorbefore the left hand door.
Central locking system 3 23.
Load compartment
TailgateOpening
Unlock the tailgate with the remote
control 3 23.
Press the button underneath the
tailgate handle.
9 Danger
Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust
gases, which cannot be seen or

Keys, doors and windows27smelled, could enter the vehicle.
This can cause unconsciousness and even death.Caution
Before opening the tailgate check
overhead obstructions, such as a
garage door, to avoid damage to
the tailgate. Always check the
moving area above and behind the
tailgate.
Notice
The installation of certain heavy
accessories onto the tailgate may
affect its ability to remain open.
Closing
Use the interior loop.
Notice
To avoid damage, place fingers
through the loop before pulling
downwards.
Ensure tailgate is fully closed before
driving.
Central locking system 3 23.
Emergency tailgate opening from
inside the vehicle
An access hole (arrowed) enables the
tailgate latch to be released using a
suitable tool. Push lever to the right to
unlock and open the tailgate.

88Instruments and controlsFog light> illuminates green.
The front fog lights are on 3 99.
Rear fog light ø illuminates yellow.
The rear fog light is on 3 99.
Cruise control
m illuminates green.
The system is switched on.
Depending on version, a
corresponding message, e.g. Cruise
Control on , may also be displayed in
the Driver Information Centre 3 88.
Cruise control 3 126.
Door open
( illuminates red.
Illuminates when a door, the bonnet
or the tailgate is open.
Depending on version, a warning
message may also be displayed in
the Driver Information Centre 3 88.When the vehicle starts to move, a
warning chime also sounds.Information displays

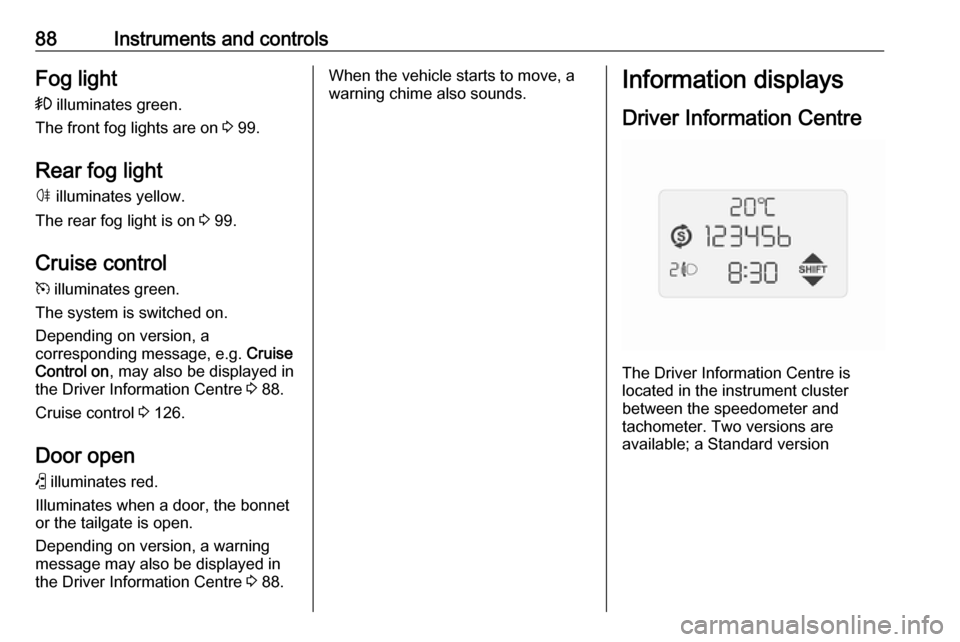

Driver Information Centre
The Driver Information Centre is
located in the instrument cluster
between the speedometer and
tachometer. Two versions are
available; a Standard version

Instruments and controls93Passenger bag or Passenger airbag
(Passenger front and side airbags
activation/deactivation)
Activate the front passenger airbags if an adult is occupying the front
passenger seat. Deactivate airbags
when a child restraint system is
installed on this seat.9 Danger
Risk of fatal injury for a child using
a child restraint system on a seat
with activated front passenger
airbag.
Risk of fatal injury for an adult
person on a seat with deactivated
front passenger airbag.
After accessing this menu option,
activate or deactivate the airbags
( Bag Pass On or Bag Pass Off ) and
confirm; a confirmation message
appears in the display. Select YES (to
confirm changes) or No (to cancel
changes).
Airbag deactivation 3 51.
Day lights or Daytime running lights
Activate the daytime running lights to
increase visibility of the vehicle during
daylight (set to On). Deactivate when
not required (set to Off).
Daytime running lights 3 98.
Exit Menu
Select this menu option to exit the
settings menu.Vehicle messages
Warning chimesOnly one warning chime will sound at
a time.
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
When starting the engine or whilst driving
● If seat belt is not fastened.
● If a certain speed is exceeded with the parking brake applied.
● If the parking assist detects an object.
● If a fault is detected in the parking
assist.
● If a door, the bonnet or the tailgate is not fully closed when
starting-off.
● If the vehicle speed briefly exceeds a set limit.
● If the stop-start system cannot restart the engine automatically.
