3458-1. Specifications
8
Vehicle specifications
15-inch tires
16-inch tires
Compact spare tires
Tires and wheels
Tire sizeP175/65R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Driving under normal conditions
Front:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size15 × 5 1/2J
Wheel nut torque76 ft·lbf (103 N·m, 10.5 kgf·m)
Tire sizeP195/50R16 83V
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Driving under normal conditions
Front:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear:
29 psi (200 kPa, 2.0 kgf/cm
2 or bar)
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size16 × 6J
Wheel nut torque76 ft·lbf (103 N·m, 10.5 kgf·m)
Tire sizeT125/70D16 96M
Tire inflation pressure
(Recommended cold
tire inflation pressure)60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size16 × 4T
Wheel nut torque76 ft·lbf (103 N·m, 10.5 kgf·m)

3528-1. Specifications
DOT symbol*
Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code
*: The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.
■Typical tire size information
The illustration indicates typical tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol (alphabet with one letter)
Typical DOT and Tire Identification Number (TIN)
Ty p e AType B
1
2
3
4
Tire size
5
6
7
8
1
2
3
4
5
6
7

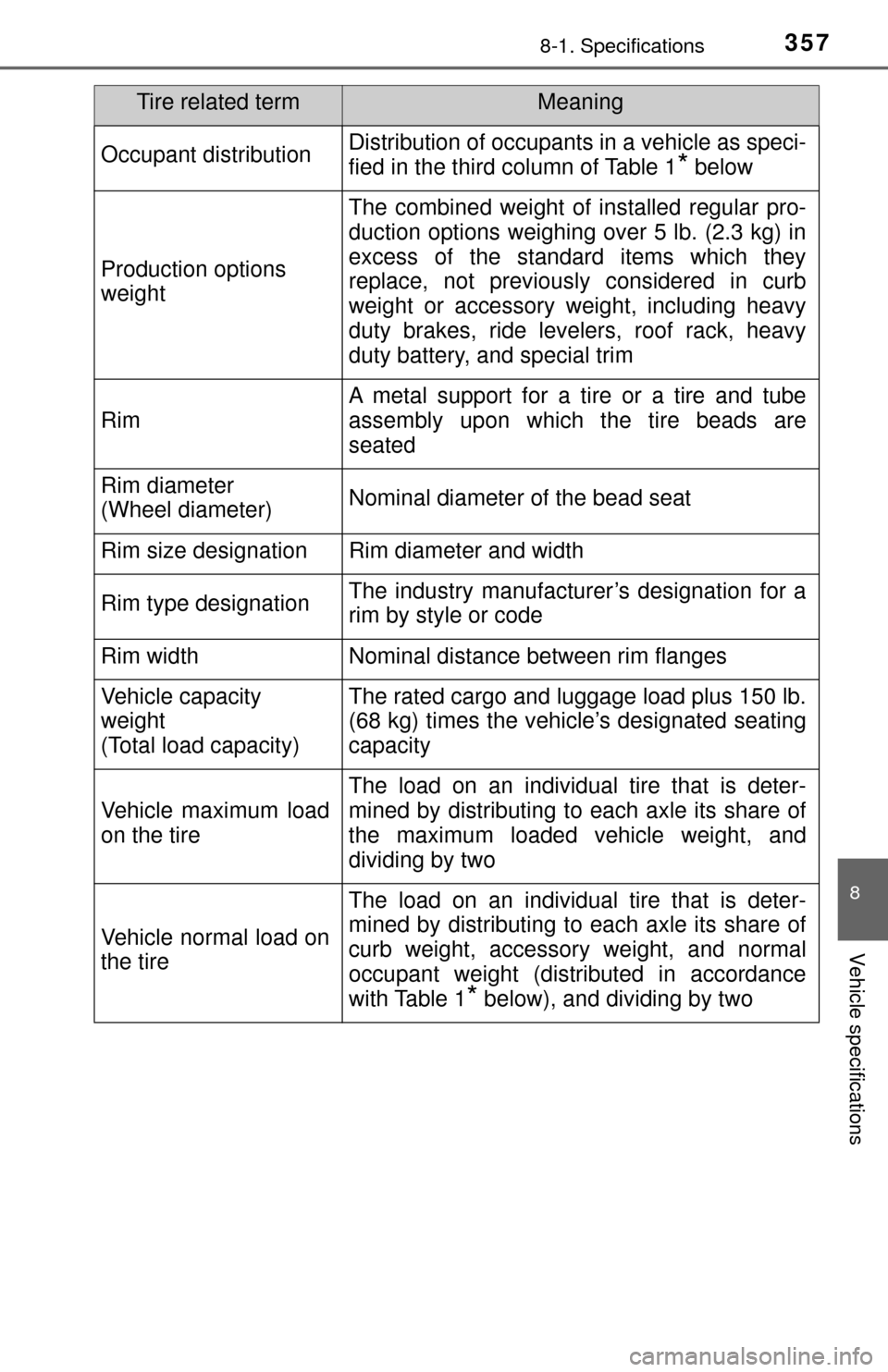

3578-1. Specifications
8
Vehicle specifications
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a
rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity
weight
(Total load capacity)The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
curb weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1
* below), and dividing by two
Tire related termMeaning

395Alphabetical index
Warning buzzersBrake system ....... ................. 302
Key reminder ........................ 137
Open door ............................. 304
PCS (Pre-Collision System).. 165
Seat belt reminder ................ 304
Warning lights............................ 73
ABS....................................... 303
Automatic High Beam indicator .............................. 304
Brake system ....... ................. 302
Charging system ................... 302
Cruise control indicator ......... 304
Driver’s and front passenger’s seat belt reminder light ....... 304
Electric power steering
system ......... ....................... 303
High engine coolant temperature ........................ 302
LDA (Lane Departure Alert) indicator .............................. 304
Low engine oil pressure ........ 302
Low fuel level ........................ 304
Low windshield washer fluid ..................................... 305
Maintenance required reminder light...................... 306
Malfunction indicator lamp .... 302
Open door ............................. 304
PCS (Pre-Collision System).. 303
Slip indicator ......................... 304
SRS ...................................... 303
Tire pressure......................... 305 Washer ............................. 150, 153
Checking............................... 251
Preparing and checking before winter ...................... 197
Switch ........................... 150, 153
Washing and waxing ............... 224
Weight ...................................... 336
Wheels ...................................... 265 Replacing.............................. 265
Size....................................... 345
Window glasses ...................... 113
Window lock switch ................ 113
Windows................................... 113 Power windows..................... 113
Rear window defogger.......... 206
Washer ................................. 150
Windshield wipers ................... 150
Winter driving tips ................... 197
Wireless remote control key ............................................ 85 Locking/Unlocking .................. 85
Replacing the battery............ 270
W
