9
YARIS_HB_OM_USA_OM52G64UThe SRS airbag and seat belt pretensioner
devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensiv ely. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusti ng controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.
YARIS_HB_OM_USA_OM52G64U.book 9 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1924-6. Using the driving support systems
YARIS_HB_OM_USA_OM52G64U
Driving assist systems
◆ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly,
or if the brakes are applied while driving on a slippery road surface
◆Brake assist
Generates an increased level of braking force after the brake pedal
is depressed when the system detects a panic stop situation
◆VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or
turning on slippery road surfaces
◆TRAC (Traction Control)
Helps to maintain drive power and prevent the drive wheels from
spinning when starting the vehicle or accelerating on slippery roads
◆EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to
turn the steering wheel
◆PCS (Pre-Collision System) (if equipped)
P. 1 6 5
To help enhance driving safety and performance, the following
systems operate automatically in response to various driving
situations. Be aware, however, that these systems are supple-
mentary and should not be relied upon too heavily when operat-
ing the vehicle.
YARIS_HB_OM_USA_OM52G64U.book 192 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3548-1. Specifications
YARIS_HB_OM_USA_OM52G64U
This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the
U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Toyota
vehicles with information on uniform tire quality grading.
Your Toyota dealer will help answer any questions you may have as
you read this information.
■DOT quality grades
All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found
where applicable on the tire sidewall between tread shoulder and
maximum section width.
For example: Treadwear 200 Traction AA Temperature A
■Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.
For example, a tire graded 150 would wear one and a half (1 - 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual condi-
tions of their use. Performance may differ significantly from the norm
due to variations in driving habits, service practices and differences
in road characteristics and climate.
Uniform Tire Quality Grading
YARIS_HB_OM_USA_OM52G64U.book 354 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3558-1. Specifications
8
Vehicle specifications
YARIS_HB_OM_USA_OM52G64U■

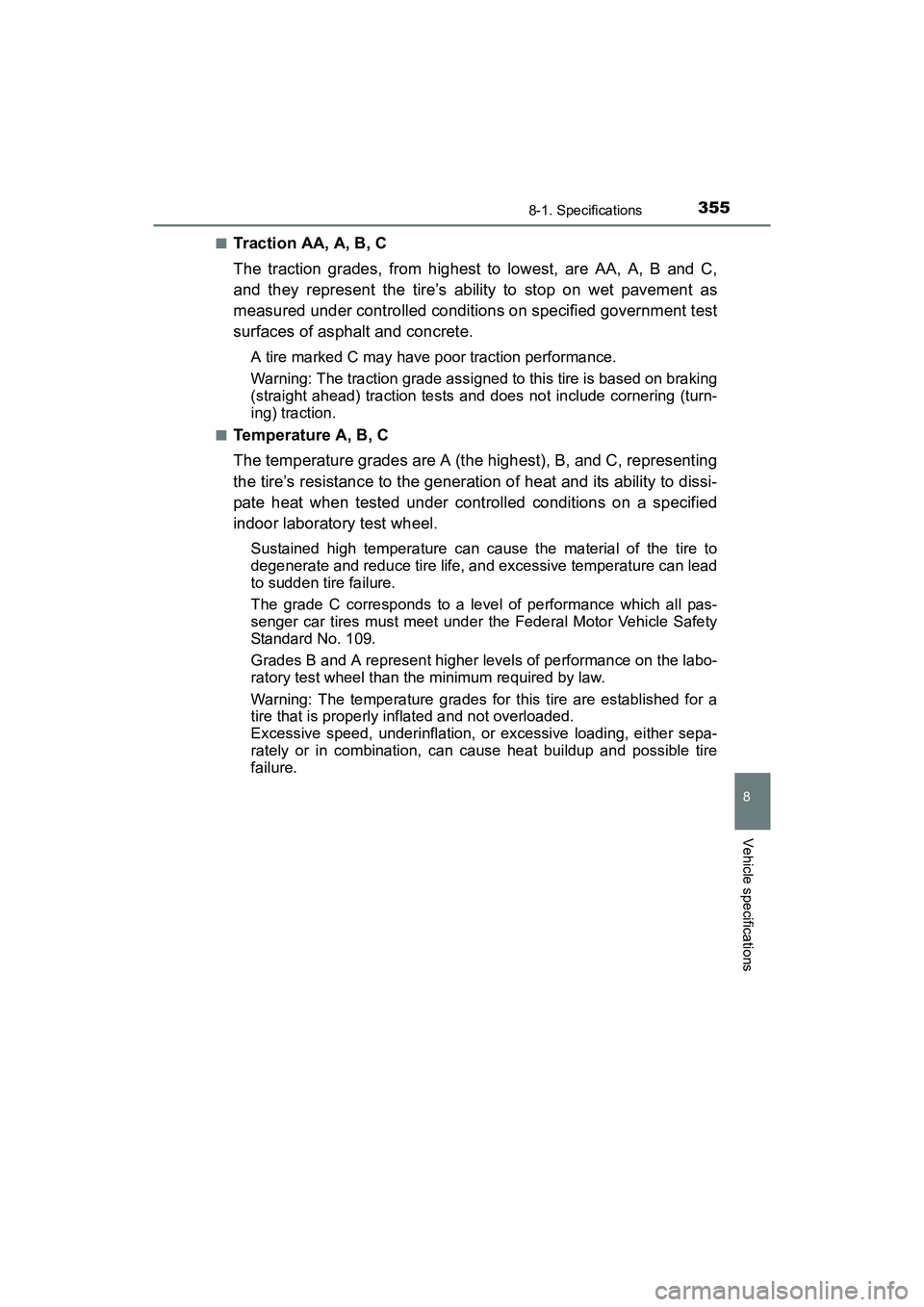

Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.
■Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissi-
pate heat when tested under controlled conditions on a specified
indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.
The grade C corresponds to a level of performance which all pas-
senger car tires must meet under the Federal Motor Vehicle Safety
Standard No. 109.
Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire
failure.
YARIS_HB_OM_USA_OM52G64U.book 355 ページ ２０１６年２月１６日　火曜日　午後３時２０分

394Alphabetical index
YARIS_HB_OM_USA_OM52G64U
Tachometer ................................ 77
Tail lights .................................. 145Light switch ........................... 145
Replacing light bulbs............. 285
Wattage ................................ 346
Theft deterrent system Engine immobilizer system ..... 67
Tire inflation pressure............. 261
Maintenance data ................. 345
Warning light ......................... 305
Tire pressure warning system.................................... 254Function ................................ 254
Initializing .............................. 254
Installing tire pressure warning valves and
transmitters......................... 254
Registering ID codes ............ 255
Tire pressure warning reset switch ................................. 255
Warning light ......................... 305
Tires .......................................... 253 Chains................................... 198
Checking ............................... 253
If you have a flat tire ............. 312
Inflation pressure .................. 345
Replacing .............................. 312
Rotating tires......................... 254
Size ....................................... 345
Snow tires ............................. 199
Spare tire .............................. 312
Tire pressure warning reset switch ........................ 255
Warning light ......................... 305 Tools......................................... 313
Top tether strap ......................... 63
Towing
Emergency towing ................ 295
Dinghy towing ............... 133, 134
Towing eyelet ....................... 297
Trailer towing ........................ 132
Toyota Safety sense C ............ 159
Traction control ....................... 192
Transmission ................... 139, 142 Automatic transmission ........ 139
If the shift lever cannot
be shifted from P ................ 140
Manual transmission............. 142
Trip meters................................. 80
Turn signal lights .................... 143 Replacing light
bulbs........................... 284, 285
Turn signal lever ................... 143
Wattage ................................ 346
USB port................................... 211
Vanity mirrors .......................... 220
Vehicle data recordings .............. 7
Vehicle identification number................................... 337
Vehicle Stability Control
(VSC) ...................................... 192
VSC (Vehicle Stability Control) .................................. 192
