2017 TOYOTA YARIS HATCHBACK airbag off

641-1. For safe use
YARIS_HB_OM_USA_OM52G64U
WARNING
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. ( P. 2 9 )
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking, sudden swerving or an accident.
●When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failure to do so may result in death or serious injury in the event
of a sudden braking, sudden swerving or an accident.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the rear right
seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing child restraint
system on the front passenger seat
when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible even if the “AIR BAG OFF” indica-
tor light is illuminated.
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).
YARIS_HB_OM_USA_OM52G64U.book 64 ページ ２０１６年２月１６日　火曜日　午後３時２０分

2286-1. Maintenance and care
YARIS_HB_OM_USA_OM52G64U
■Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.
■ Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge
or brush to apply the foam. Rub in overlapping circles. Do not use water.
Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-
ing the carpet as dry as possible.
■ Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
WARNING
■Water in the vehicle
●Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components, etc., to malfunction or catch
fire.
● Do not get any of the SRS components or wiring in the vehicle interior wet.
(P. 35)
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
■ Cleaning the interior (especially instrument panel)
Do not use a polish wax or polish cleaner. The instrument panel may reflect
off the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.
YARIS_HB_OM_USA_OM52G64U.book 228 ページ ２０１６年２月１６日　火曜日　午後３時２０分

301
7
When trouble arises
7-2. Steps to take in an emergency
YARIS_HB_OM_USA_OM52G64U
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
YARIS_HB_OM_USA_OM52G64U.book 301 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3077-2. Steps to take in an emergency
7
When trouble arises
YARIS_HB_OM_USA_OM52G64U
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors, driver’s seat belt buckle switch, front passen-
ger occupant classification system (ECU and sensors), “AIR BAG ON” indica-
tor, “AIR BAG OFF” indicator, front passenger’s seat belt buckle switch, seat
belt pretensioner assemblies, airbags, interconnecting wiring and power
sources. ( P. 34)
■ Front passenger detection sensor, passenger seat belt reminder and
warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sounds.
■ If the malfunction indicator lamp comes on while driving
First check the following:
● Is the fuel tank empty?
If it is, fill the fuel tank immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The malfunction indicator lamp will go off after several driving trips.
If the malfunction indicator lamp does not go off even after several trips, con-
tact your Toyota dealer as soon as possible.
■
When the tire pressure warning light comes on (vehicles with a tire
pressure warning system)
Check the tire inflation pressure and adjust to the appropriate level. Push-
ing the tire pressure warning reset switch will not turn off the tire pressure
warning light.
YARIS_HB_OM_USA_OM52G64U.book 307 ページ ２０１６年２月１６日　火曜日　午後３時２０分

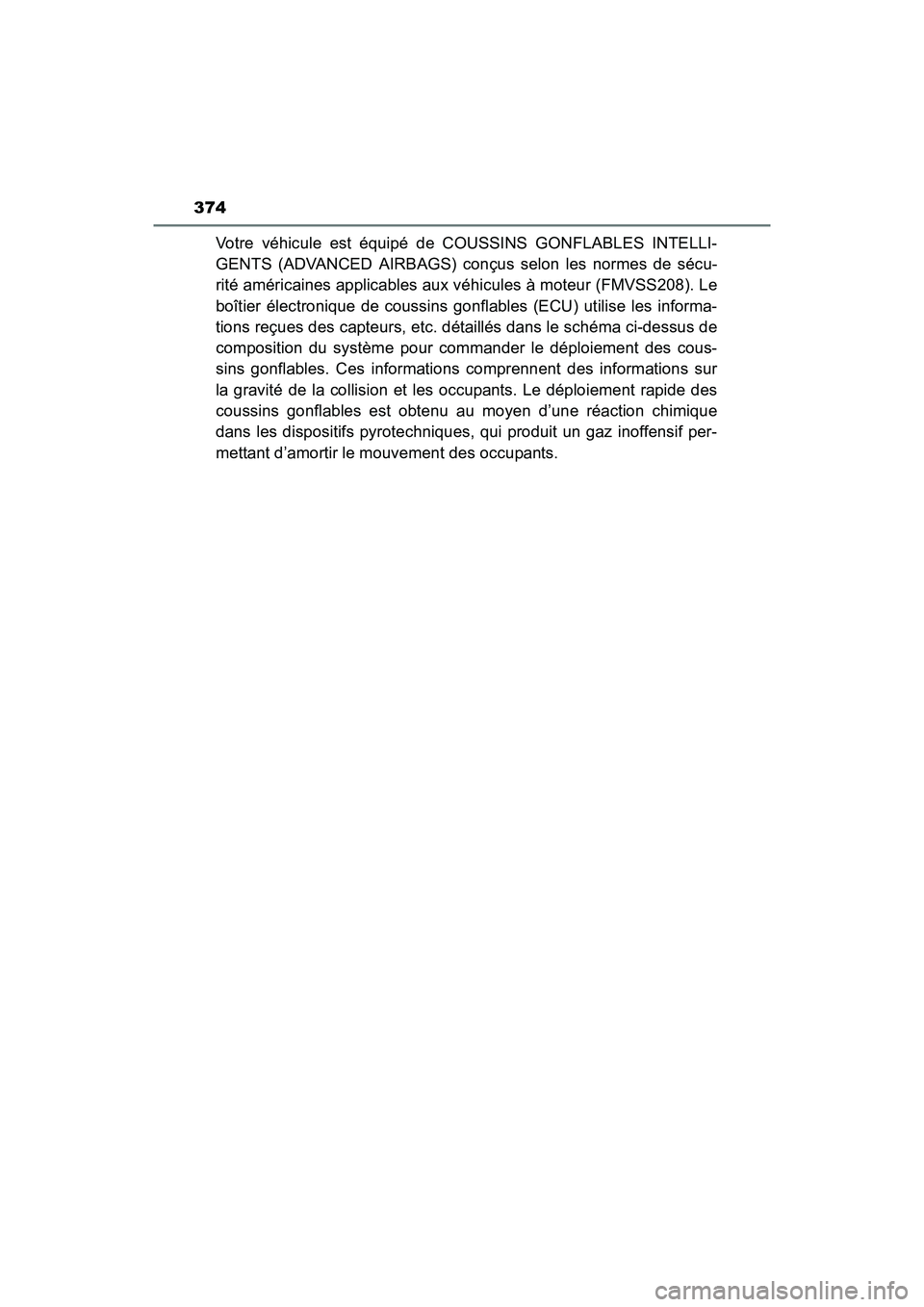

374
YARIS_HB_OM_USA_OM52G64U
Votre véhicule est équipé de COUSSINS GONFLABLES INTELLI-
GENTS (ADVANCED AIRBAGS) conçus selon les normes de sécu-
rité américaines applicables aux véhicules à moteur (FMVSS208). Le
boîtier électronique de coussins gonflables (ECU) utilise les informa-
tions reçues des capteurs, etc. détaillés dans le schéma ci-dessus de
composition du système pour commander le déploiement des cous-
sins gonflables. Ces informations comprennent des informations sur
la gravité de la collision et les occupants. Le déploiement rapide des
coussins gonflables est obtenu au moyen d’une réaction chimique
dans les dispositifs pyrotechniques, qui produit un gaz inoffensif per-
mettant d’amortir le mouvement des occupants.
YARIS_HB_OM_USA_OM52G64U.book 374 ページ ２０１６年２月１６日　火曜日　午後３時２０分

393Alphabetical index
YARIS_HB_OM_USA_OM52G64U
Shift lever ......................... 139, 142Automatic transmission......... 139
If the shift lever cannot be shifted from P ................ 140
Manual transmission ............. 142
Shift lock system ..................... 140
Side airbags ............................... 34
Side doors .................................. 89
Side mirrors ............................. 111 Adjusting and folding ............ 111
Snow tires ................................ 197
Spare tire .................................. 313
Inflation pressure .................. 345
Storage location .................... 313
Spark plug ................................ 342
Specifications .......................... 336
Speedometer .............................. 77
Steering lock ............................ 137
Steering wheel ......................... 107 Adjustment ............................ 107
Audio switches ...................... 210
Stop lights Replacing light bulbs............. 285
Wattage ................................ 346
Storage feature ........................ 214
Stuck If the vehicle becomes stuck ................................... 333
Sun visors ................................ 220 Switches
Audio remote control switches ............................. 210
Automatic High Beam switch ................................. 183
Cruise control switch ............ 188
Door lock switches.................. 91
Emergency flashers switch ... 292
Engine switch ....................... 136
Fog light switch ..................... 148
Hazard switch ....................... 292
Ignition switch ....................... 136
LDA (Lane Departure Alert) switch........................ 178
Light switch ........................... 145
Outside rear view mirror switches ............................. 111
PCS (Pre-Collision System) switch ................... 168
Power door lock switch ........... 91
Power window switches........ 113
Rear window defogger switch ................................. 206
Rear window wiper and washer switch..................... 153
Tire pressure warning reset switch ........................ 255
VSC OFF switch ................... 193
Window lock switch .............. 113
Windshield wipers and washer switch..................... 150
YARIS_HB_OM_USA_OM52G64U.book 393 ページ ２０１６年２月１６日　火曜日　午後３時２０分
