4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
16 SPARE 10 A Spare fuse
17 SPARE 30 A Spare fuse
18 SPARE 20 A Spare fuse
19 EFI MAIN
NO.2*17.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system
20 ECU-B2 10 A
Smart entry & start system, air con-
ditioning system, power windows,
gateway ECU
21 D.C.C SHORT No circuit
22 ECU-B 10 A
Gauges and meters, sub-battery,
steering sensor, double locking
system, wireless remote control,
smart entry & start system
23 RAD NO.1*220 A Audio system
24 DOME 10 A
Luggage compartment light, vanity
lights, front door courtesy lights,
personal/interior lights, foot lights
25 AM2 NO.2 7.5 A Starting system
26 TURN-HAZ 10 A Turn signal lights, emergency
flashers
27 ETCS*210 A Electronic throttle control system
28 AM2 30 A Starting system
29 STRG LOCK 20 A Steering lock system
30 IGT/INJ*215 A
Multiport fuel injection system/
sequential multiport fuel injection
system
FuseAmpereCircuit
Page 502 of 668

502
4-3. Do-it-yourself maintenance
VERSO_EE_OM64517E
9 RR FOG 7.5 A Rear fog light
10 IGN 7.5 A
Steering lock system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injec-
tion system, starting system,
gateway ECU
11 M E T E R 7 . 5 A Gauges and meters, Stop & Start
system*1
12 SEAT HTR 15 A Seat heaters
13 HTR-IG 10 A Air conditioning system, power
heater
14 WIPER 25 A Windshield wipers, rain-sensing
windshield wipers
15 RR WIPER 15 A Rear window wiper
16 WASHER 15 A Windshield washers, rear window
washer
17 ECU-IG NO.1 10 A
Main body ECU*2, electric cooling
fan(s), shift lock system, anti-lock
brake system, steering sensor, yaw
rate sensor, VSC+, headlight
cleaners, SEQUENTIAL switch,
automatic headlight leveling sys-
tem, electric power steering, tire
pressure warning system
18 ECU-IG NO.2 10 A
Back-up light, charging system*2,
emergency flashers, rear window
defogger, “PASSENGER AIRBAG”
indicator, air conditioning system,
Toyota parking assist-sensor indi-
cator, Toyota parking assist-sensor
switch, sub-battery
FuseAmpereCircuit
Page 545 of 668

5
545
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning lightWarning light/DetailsCorrection procedure
PCS warning light
(if equipped)
When the warning light
flashes (and a buzzer
sounds):
Indicates a malfunction in
the PCS (Pre-Collision Sys-
tem)
Have the vehicle inspected
by any authorized Toyota
dealer or repairer, or
another duly qualified and
equipped professional
immediately.
When the warning light illu-
minates:
Indicates that the PCS (Pre-
Collision System) is tempo-
rarily unavailable, possibly
due to either of the follow-
ing:
• The part of the windshield
around the front sensor
being dirty, fogged up or
covered with condensation,
ice, stickers, etc.
• Front sensor temperature
being outside of its opera-
tional range.
• Clear the dirt, fog, conden-
sation, ice, stickers, etc.
( P. 265)
• Wait for a while until the
area around the front sen-
sor has cooled down suffi-
ciently.
When the warning light is
illuminated:
Either the VSC (Vehicle Sta-
bility Control) system or
PCS (Pre-Collision System)
is disabled or both are dis-
abled.
To enable the PCS, enable
both the VSC system and
PCS. ( P. 272, 318)
Page 548 of 668

548
5-2. Steps to take in an emergency
VERSO_EE_OM64517E
■ Front passenger detection sensor and passenger seat belt reminder
● If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash, even if a passen-
ger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
■ When the tire pressure warning light comes on (vehicles with a tire
pressure warning light system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: P. 566, 583
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
● Check the tire inflation pressure and adjust to the appropriate level.
● If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes
(vehicles with a tire pr essure warning light system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).
■ When a tire is replaced with a spare tire (vehicles with a tire pressure
warning light system)
The spare tire is not equipped with a tire pressure warning valve and trans-
mitter. If a tire goes flat, the tire pressure warning light will not turn off even
though the flat tire has been replaced with the spare tire. Replace the spare
tire with the repaired tire and adjust the tire inflation pressure. The tire pres-
sure warning light will go off after a few minutes.
Page 557 of 668

5
557
5-2. Steps to take in an emergency
When trouble arises
VERSO_EE_OM64517E
*2
Indicates that, since
the VSC (Vehicle Sta-
bility Control) system
was turned off, the
pre-collision braking
and pre-collision
brake assist are dis-
abled (The pre-colli-
sion warning function
will be operational)
Turn the VSC on.
( P. 282318)
The system is tempo-
rarily canceled
because the operating
conditions of the front
sensor (temperature,
etc.) are not met.
The following systems
may be suspended:
• PCS (Pre-Collision
System) (if equipped).
• LDA (Lane Departure
Alert) (if equipped);
• Automatic High Beam
(if equipped)
The system can be
operated when the
operating conditions of
the front sensor (tem-
perature, etc.) are met.
Turn the system off,
wait for a while, and
then turn the system
back on.
The area of the wind-
shield in front of the
front sensor is fogged
up or covered with
dirt, rain, ice, snow,
etc.
The following systems
may be suspended:
• PCS (Pre-Collision
System) (if equipped).
• LDA (Lane Departure
Alert) (if equipped);
• Automatic High Beam
(if equipped)
Turn the system off,
clear the windshield of
dirt, fog, ice, etc. then
turn the system back
on. ( P. 265)
Warning messageDetailsCorrection procedure
Page 647 of 668
647
6-2. Customization
6
Vehicle specifications
VERSO_EE_OM64517E
Smart entry
& start
system
( P. 42)/
Wireless
remote
control
( P. 64)
Wireless remote
control ON OFF —O
Operation signal
(Emergency flashers) ON OFF OO
Time elapsed before
automatic door lock
function is activated
if door is not opened
after being unlocked
30 seconds
60 seconds
—O
120 seconds
Door lock
( P. 73)
Shifting the shift
lever to position
other than “P” locks
all doors*1
OFF ON OO
Shifting the shift
lever to “P” unlocks
all doors*1OFF ON OO
Speed-detecting
automatic door lock
function
ON OFF OO
Opening driver’s
door unlocks all
doors
ON OFF OO
Automatic
light control
system
( P. 248)
Light sensor
sensitivity Level 3 Level 1 to 5 OO
ItemFunctionDefault
setting
Customized
setting
Page 648 of 668
648
6-2. Customization
VERSO_EE_OM64517E
Illumination
( P. 394)
Time elapsed before
lights turn off 15 seconds
7.5 seconds
OO 30 seconds
OFF
Operation after the
engine switch
(vehicles without
smart entry & start
system) or “ENGINE
START STOP”
switch (vehicles with
smart entry & start
system) turned off
ON OFF —O
Operation when the
doors are unlocked ON OFF —O
Operation when you
approach the
vehicle with the
electronic key on
your person*2
(When the interior
light switch is in the
door position)
ON OFF —O
Foot lights ON OFF —O
Lounge illumination ON OFF —O
Lights
( P. 248)
Time that the low
beam headlights are
on when the vehicle
is parked
30 seconds
60 seconds
—O 90 seconds
120 seconds
To y o t a
parking
assist-sensor
( P. 301)
Buzzer volume 3 1 to 5 —O
ItemFunctionDefault
setting
Customized
setting
Page 658 of 668

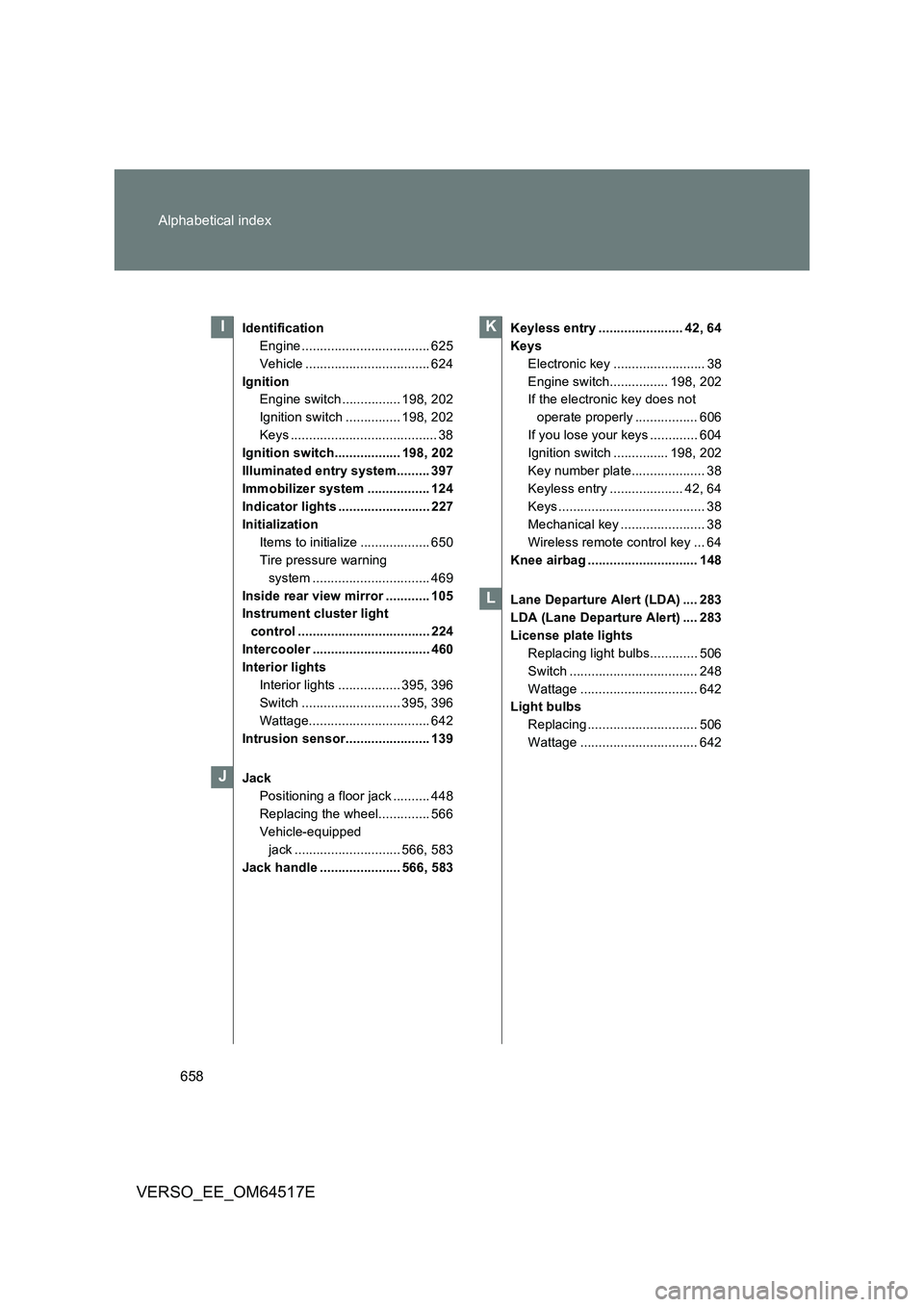

658
Alphabetical index
VERSO_EE_OM64517E
Identification
Engine ................................... 625
Vehicle .................................. 624
Ignition
Engine switch ................ 198, 202
Ignition switch ............... 198, 202
Keys ........................................ 38
Ignition switch.................. 198, 202
Illuminated entry system......... 397
Immobilizer system ................. 124
Indicator lights ......................... 227
Initialization
Items to initialize ................... 650
Tire pressure warning
system ................................ 469
Inside rear view mirror ............ 105
Instrument cluster light
control .................................... 224
Intercooler ................................ 460
Interior lights
Interior lights ................. 395, 396
Switch ........................... 395, 396
Wattage................................. 642
Intrusion sensor....................... 139
Jack
Positioning a floor jack .......... 448
Replacing the wheel.............. 566
Vehicle-equipped
jack ............................. 566, 583
Jack handle ...................... 566, 583
Keyless entry ....................... 42, 64
Keys
Electronic key ......................... 38
Engine switch................ 198, 202
If the electronic key does not
operate properly ................. 606
If you lose your keys ............. 604
Ignition switch ............... 198, 202
Key number plate.................... 38
Keyless entry .................... 42, 64
Keys ........................................ 38
Mechanical key ....................... 38
Wireless remote control key ... 64
Knee airbag .............................. 148
Lane Departure Alert (LDA) .... 283
LDA (Lane Departure Alert) .... 283
License plate lights
Replacing light bulbs............. 506
Switch ................................... 248
Wattage ................................ 642
Light bulbs
Replacing .............................. 506
Wattage ................................ 642
I
J
K
