2017 TOYOTA TACOMA window

4166-4. Other interior features
WARNING
■Using a power outlet
Observe the following precautions to reduce the risk of injury.
● Use of the power outlet when it is wet with water or snow may result in
electrical shocks and is extremely dangerous. The power outlet must be
thoroughly dried before use.
● Do not allow children to use or play with the power outlet.
● Be careful not to get any part of your body caught in the power outlet lid.
● When using electrical appliances, strictly follow any cautions and notices
written on their labels and in the manufacturers’ instruction manuals.
● Do not modify, disassemble or repair the power outlet or its inverter in any
way. Doing so may result in unexpected malfunctions or accidents, which
could cause serious damage or injuries. Contact your Toyota dealer for
any necessary repairs.
■ To prevent injuries and accidents, secure all electric appliances before
use and do not use any appliances th at may do any of the following:
● Distract the driver while driving, or hamper safe driving.
● Result in a fire or burn injuries due to the appliance rolling, falling or over-
heating while driving.
● Emit steam while the windows of the cabin are closed.
■ To prevent unexpected accidents, su ch as electric shocks, do not per-
form any of the following actions:
● Using the power outlet for electric heaters while sleeping.
● Contaminating the power outlet with liquid substances or mud.
● Handling electrical appliance plugs at the power outlet with wet hands or
feet.
● Inserting foreign objects into the power outlet.
● Using malfunctioning electric appliances.
● Inserting inappropriate or badly fitting plugs into the power outlet.

4387-1. Maintenance and care
Cleaning and protecting the vehicle exterior
●Working from top to bottom, liber ally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the wate rproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the fron\
t of
the vehicle. Make sure to extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
● In certain automatic car washes, the roof antenna may interfere with
machine operation. This may prevent the vehicle from being cleaned prop-
erly or result in damage to the antenna.
■ High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of
the windows.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
■ Aluminum wheels (if equipped)
●Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical clean-
ers.
Use the same mild detergent and wax as used on the paint.
● Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
● Wash detergent from the wheels immediately after use.
■ Bumpers and side moldings
Do not scrub with abrasive cleaners.
Perform the following to protect the vehicle and maintain it in
prime condition:

4727-3. Do-it-yourself maintenance
■Initializing the tire pressure warning system (if equipped)
Initialize the system with the tire inflation pressure adjusted to the speci-
fied level.
■If the tread on snow tires wears down below 0.16 in. (4 mm)
The effectiveness of the tire s as snow tires is lost.
■Situations in which the tire pressure warning system may not oper-
ate properly (if equipped)
●In the following cases, the tire pr essure warning system may not operate
properly.
• If non-genuine Toyota wheels are used.
• A tire has been replaced with a tire that is not an OE (Original Equip- ment) tire.
• A tire has been replaced with a tire that is not of the specified size.
• Tire chains, etc., are equipped.
• An auxiliary-supported run- flat tire is equipped.
• If a window tint that affects the radio wave signals is installed.
• If there is a lot of snow or ice on the vehicle, particularly around the wheels or wheel housings.
• If the tire inflation pressure is extremely higher than the specified level.
• If wheel without the tire pressure warning valve and transmitter is
used.
• If the ID code on the tire pressure warning valves and transmitters is not registered in the tire pressure warning computer.
●Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, largedisplay, airport or other facility that generates strong radio waves or
electrical noise
• When carrying a portable radio, cellular phone, cordless phone or other wireless communication device
●When the vehicle is parked, the time taken for the warning to start or go
off could be extended.
●When tire inflation pressure declines rapidly for example when a tire has
burst, the warning may not function.

5909-1. Specifications

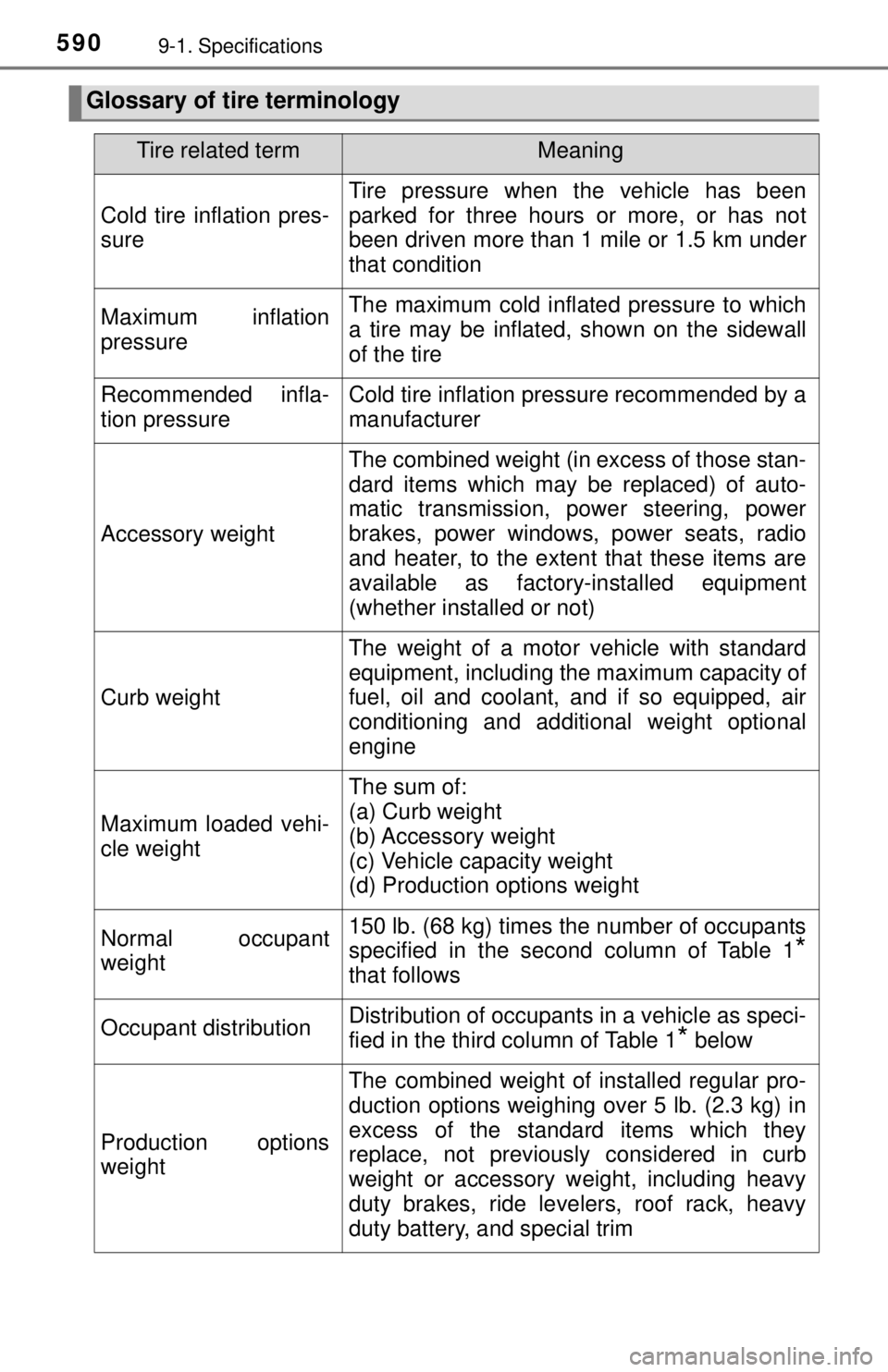

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim

624What to do if... (Troubleshooting)
●Vehicles without a smart key system:
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. (→P. 190)
●Vehicles with a smart key system:
It is locked automatically to prevent theft of the vehicle. ( →P. 195)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( →P. 145)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( →P. 194)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( →P. 516)
●The parking brake indicator is on
Is the parking brake released? (→P. 205)
Depending on the situation, other types of warning buzzer may also sound.
( →P. 516, 529)
●Is the electronic key left inside the vehicle?
Check the message on the multi-information display. ( →P. 523)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically
(vehicles with a smart key system)
A warning buzzer sounds during driving
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart key system)

627Alphabetical index
Automatic transmissionAutomatic transmission......... 197
If the shift lever cannot be shifted from P ..................... 200
S mode ................................. 199
Power mode switch............... 198
AUX port ................................... 289
Auxiliary boxes ........................ 401
Back window
Back window ......................... 148
Power back window .............. 149
Back-up lights Replacing light bulbs............. 499
Wattage ................................ 580
Battery ...................................... 463 If the vehicle battery is discharged .......................... 559
Preparing and checking before winter....................... 273
Warning light ......................... 514
Warning message ................. 524
Blind Spot Monitor (BSM) ....... 239
Bluetooth
®*
Audio system ................. ....... 332
Hands-free system (for cellular phone) ............. 333
Bottle holders .......................... 396
Brake Fluid ...................................... 460
Parking brake........................ 205
Warning buzzer..................... 514
Warning light ......................... 514
Warning message ................. 523
Brake assist ............................. 267
Break-in tips ............................. 158
Brightness control Instrument panel light control................................... 90 BSM (Blind Spot Monitor) ....... 239
Blind Spot Monitor function............................... 241
Rear Cross Traffic Alert function............................... 244
Camera mounting bracket ...... 424
Camper information ................ 615
Care .................................. 438, 441 Aluminum wheels ................. 438
Exterior ................................. 438
Interior .................................. 441
Seat belts.............................. 442
Cargo capacity......................... 169
Cargo lamp Light switch ........................... 391
Replacing light bulbs ............ 501
CD player
*............................... 304
Certification label .................... 571
Chains ...................................... 274
Child restraint system............... 51 Booster seats, definition ......... 52
Booster seats, installation....... 62
Convertible seats, definition ... 52
Convertible seats, installation ...................... 60, 61
Front passenger occupant
classification syst em ............ 45
Infant seats, definition............. 52
Infant seats, installation .......... 60
Installing CRS with LATCH anchors ...... 58, 59
Installing CRS with seat
belts...................................... 60
Installing CRS with top tether strap........ 63, 65
B
C
*: For vehicles with Entune Audio Plus or Entune Premium Audio, refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”

628Alphabetical index
Child safety ................................ 50Airbag precautions .................. 37
Battery precautions ............... 562
Child restraint system ............. 51
How your child should wear the seat belt ................. 30
Installing child restraints ......... 55
Moon roof precautions .......... 154
Power back window precations ........................... 150
Power window lock switch .... 145
Power window precautions ... 147
Rear door child-protector ...... 113
Removed wireless remote control/electronic key
battery precautions ............. 487
Seat belt extender precautions ........................... 33
Seat belt precautions .............. 54
Seat heater precautions........ 387
Child-protectors....................... 113
Cleaning ........................... 438, 441 Aluminum wheels.................. 438
Exterior ................................. 438
Interior................................... 441
Seat belts .............................. 442
Clock
*....................................... 411
Compass .................................. 432
Condenser ................................ 460
Console box ............................. 394
Consumption screen ........... 94, 98
Cooling system ........................ 458
Capacity ................................ 575
Checking ............................... 458
Engine overheating ............... 563
Preparing and checking before winter....................... 273
Crawl Control ........................... 262
CRS ............................................. 51
Cruise control .......................... 218
Cup holders.............................. 395
Curtain shield airbags ............... 35
Customizable features ............ 595 Daytime running light
system.................................... 208
Deck hooks .............................. 403
Defogger Outside rear view mirrors ........................ 376, 383
Windshield .................... 376, 383
Differential................................ 576
Dimensions .............................. 568
Dinghy towing.......................... 189
Display Drive information .................... 94
Multi-information display ......... 93
Warning message................. 523
Do-it-yourself maintenance .... 450
Door lock Doors .................................... 109
Key ....................................... 109
Smart key system ................. 110
Wireless remote control ........ 109
Doors ........................................ 109 Automatic door locking
and unlocking system......... 113
Door lock .............................. 111
Door windows ....................... 145
Open door warning light ....... 516
Open door warning message............................. 528
Outside rear view mirrors ..... 143
Rear door child-protector ...... 113
Driving ...................................... 156
Break-in tips.......................... 158
Correct driving posture ........... 26
Driving assist system ............ 267
Procedures ........................... 156
Winter drive tips .................... 273
D

632Alphabetical index
JackPositioning the jack ............... 547
Vehicle-equipped jack........... 541
Jack handle .............................. 545
Jam protection function
Moon roof.............................. 152
Power windows ..................... 146
Keyless entry Smart key system ................. 110
Wireless remote control ........ 109
Keys .......................................... 102
Battery-saving function ......... 123
Electronic key ....................... 102
Engine switch................ 189, 192
If the electronic key does not operate properly ................. 557
If you lose your keys ............. 105
Ignition switch ............... 189, 192
Key number plate.................. 102
Keyless entry ........................ 109
Mechanical key ..................... 104
Replacing the battery ............ 485
Warning buzzer..................... 122
Wireless remote control ........ 109
Knee airbags .............................. 35 Language
(multi-information display)..... 95
LATCH anchors ................... 58, 59
Lever Auxiliary catch lever.............. 452
Hood lock release lever ........ 452
Shift lever...................... 197, 202
Tilt and telescopic steering lock release lever ............... 138
Turn signal lever ................... 204
Wiper lever ........................... 211
License plate lights Light switch ........................... 206
Replacing light bulbs ............ 500
Wattage ................................ 580
Light bulbs
Replacing.............................. 491
Wattage ................................ 580
Lights
Cargo lamp switch ................ 391
Center tray light .................... 389
Engine switch light (ignition switch light) ........... 389
Fog light switch ..................... 210
Headlight switch ................... 206
Illuminated entry system ....... 391
Interior lights ......................... 390
Interior lights list.................... 389
Personal lights ...................... 390
Replacing light bulbs ............ 491
Turn signal lever ................... 204
Vanity lights .......................... 410
Wattage ................................ 580
Load capacity .......................... 169
Lock steering column ............. 138
Luggage compartment features .................................. 400
Luggage storage box .............. 397
J
K
L
