2017 TOYOTA RAV4 HYBRID bulb

RAV4-HV_OM_OM42B03U_(U)
5257-3. Do-it-yourself maintenance
7
Maintenance and care
Replace the light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Install the bulb base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
3
4
5

526
RAV4-HV_OM_OM42B03U_(U)
7-3. Do-it-yourself maintenance
■Front turn signal lights/parking lights (halogen headlights) or
front turn signal lights (LED headlights)
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
3

RAV4-HV_OM_OM42B03U_(U)
5277-3. Do-it-yourself maintenance
7
Maintenance and care
■Front side maker lightsTurn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
■Fog lights
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.
Remove the screws from the
fender liner.
1
2
3
1
2

528
RAV4-HV_OM_OM42B03U_(U)
7-3. Do-it-yourself maintenance
Remove the fender liner clip
and open the fender liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
3
4
5
6

RAV4-HV_OM_OM42B03U_(U)
5297-3. Do-it-yourself maintenance
7
Maintenance and care
Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner and
install the clip.
Insert the clip and turn to lock.
Reinstall the fender liner and
install the screws.
Make sure that the fender liner
is attached to the inside of the
bumper.
7
8
9

530
RAV4-HV_OM_OM42B03U_(U)
7-3. Do-it-yourself maintenance
■Stop/tail lights, rear side marker lights (bulb type) and rear turn
signal lights
Open the back door and
remove the bolts, and
remove the lamp assembly
by pulling it directly backward
from the rear of the vehicle.
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
Stop/tail lights and rear side
marker lightsRear turn signal lights
3
Stop/tail lights and rear side
marker lightsRear turn signal lights
4

RAV4-HV_OM_OM42B03U_(U)
5317-3. Do-it-yourself maintenance
7
Maintenance and care

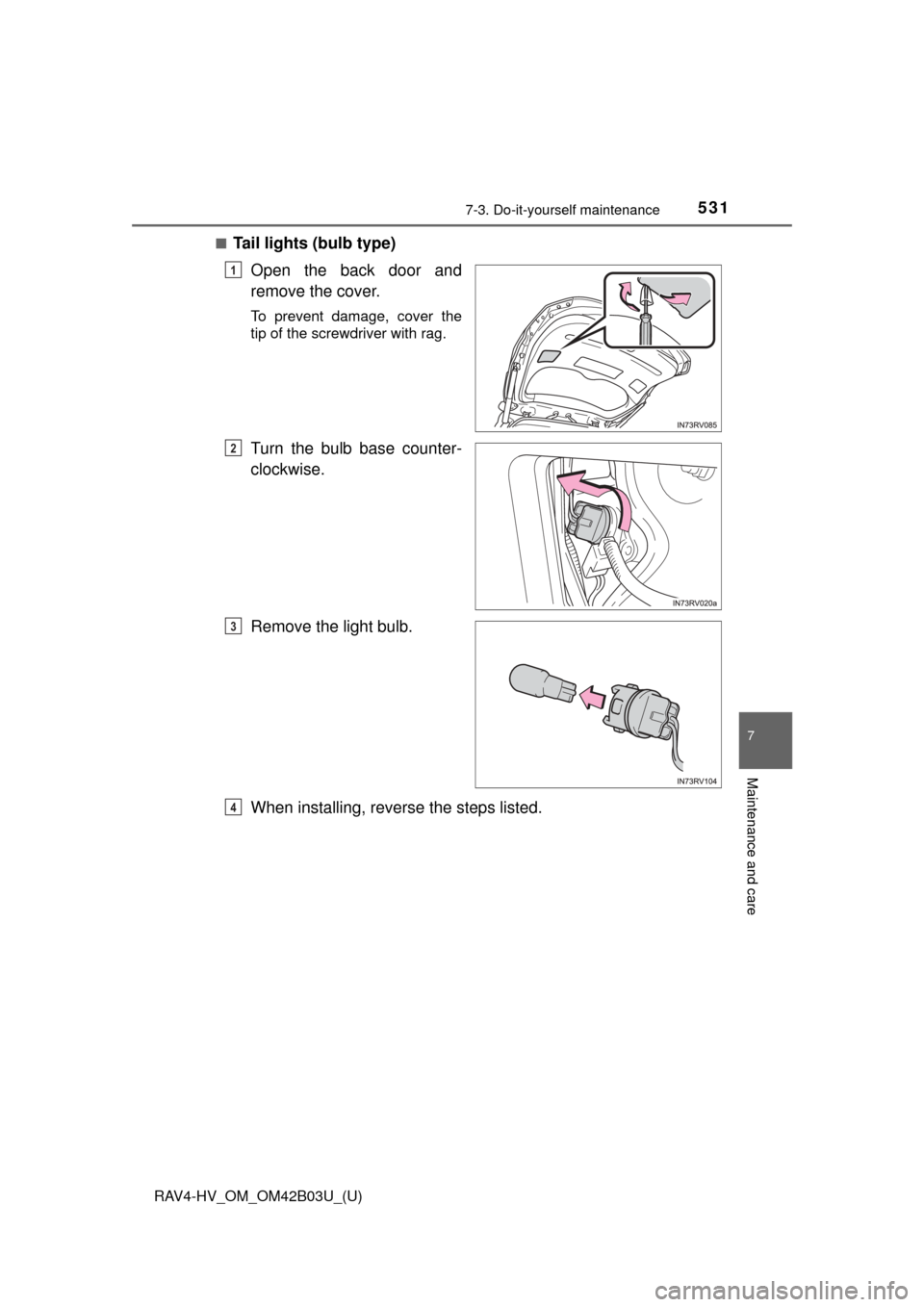

■Tail lights (bulb type)Open the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with rag.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, revers e the steps listed.
1
2
3
4

532
RAV4-HV_OM_OM42B03U_(U)
7-3. Do-it-yourself maintenance

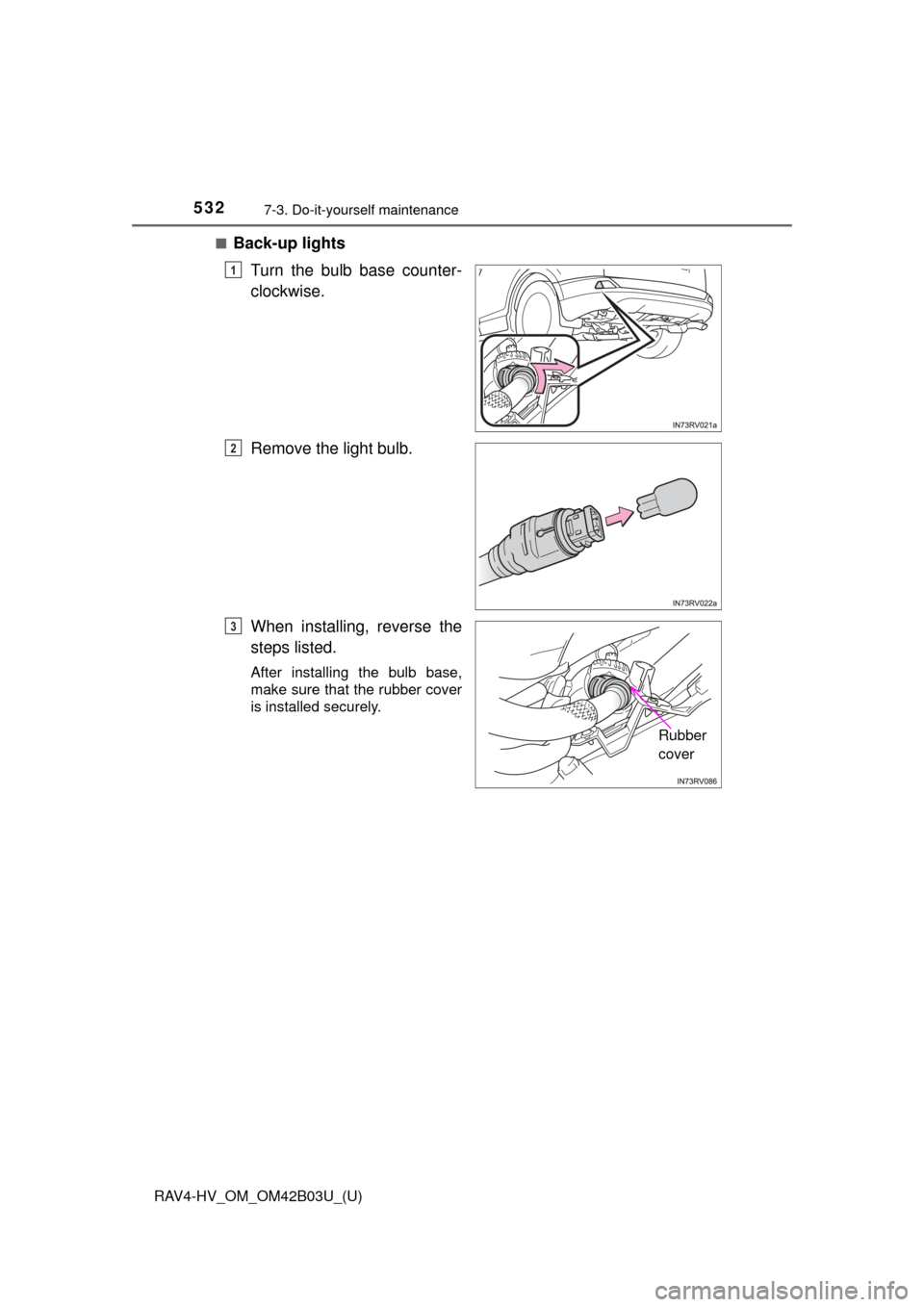

■Back-up lightsTurn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the
steps listed.
After installing the bulb base,
make sure that the rubber cover
is installed securely.
1
2
Rubber
cover
3
