2017 TOYOTA PROACE check engine

322
Starting using another
battery
Never try to start the engine by connecting a battery charger.Never use a 24 V or higher battery b o o s t e r.First check that the slave battery has a nominal voltage of 12 V and a capacity at least equal to that of the discharged battery.The two vehicles must not be in contact with each other.Switch off the electrical consumers on both vehicles (audio system, wipers, lighting, ...).Ensure that the jump lead cables do not pass close to moving parts of the engine (cooling fan, belts, ...).Do not disconnect the (+) terminal when the engine is running.
F Raise the plastic cover on the (+) terminal, if your vehicle has one.F Connect the red cable to the positive terminal (+) of the flat battery A (at the metal elbow) then to the positive terminal (+) of the slave battery B or the b o o s t e r.F Connect one end of the green or black cable to the negative terminal (-) of the slave battery B or the booster (or earth point on the other vehicle).F Connect the other end of the green or black cable to the earth point C on the broken down vehicle.
F Start the engine of the vehicle with the good battery and leave it running for a few minutes.
F Operate the starter on the broken down vehicle and let the engine run.If the engine does not start straight away, switch off the ignition and wait a few moments before trying again.
When your vehicle's battery is discharged, the engine can be started using a slave battery (external or on another vehicle) and jump lead cables or a battery booster.
Some functions, including Stop & Start, are not available if the battery is not sufficiently charged.
F Wait until the engine returns to idle then disconnect the jump lead cables in the reverse order.F Refit the plastic cover to the (+) terminal, if your vehicle has one.F Allow the engine to run for at least 30 minutes, by driving or with the vehicle stationary, so that the battery reaches an adequate state of charge.
In the event of a breakdown

428
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources.
For optimum sound quality, the audio settings for Loudness, Ambience, Treble, Bass and Volume can be adapted to the different sound sources, which may result in audible differences when changing source.
Check that the audio settings for Loudness, Ambience, Treble, Bass and Volume are adapted to the sources listened to. Adjust the Balance, Treble and Bass to the middle position, select the "None" musical ambience and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's operating time depends on the state of charge of the battery.The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
Audio and Telematics

482
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources.
For optimum sound quality, the audio settings for Loudness, Ambience, Treble, Bass and Volume can be adapted to the different sound sources, which may result in audible differences when changing source.
Check that the audio settings for Loudness, Ambience, Treble, Bass and Volume are adapted to the sources listened to. Adjust the Balance, Treble and Bass to the middle position, select the "None" musical ambience and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's operating time depends on the state of charge of the battery.The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
Audio and Telematics

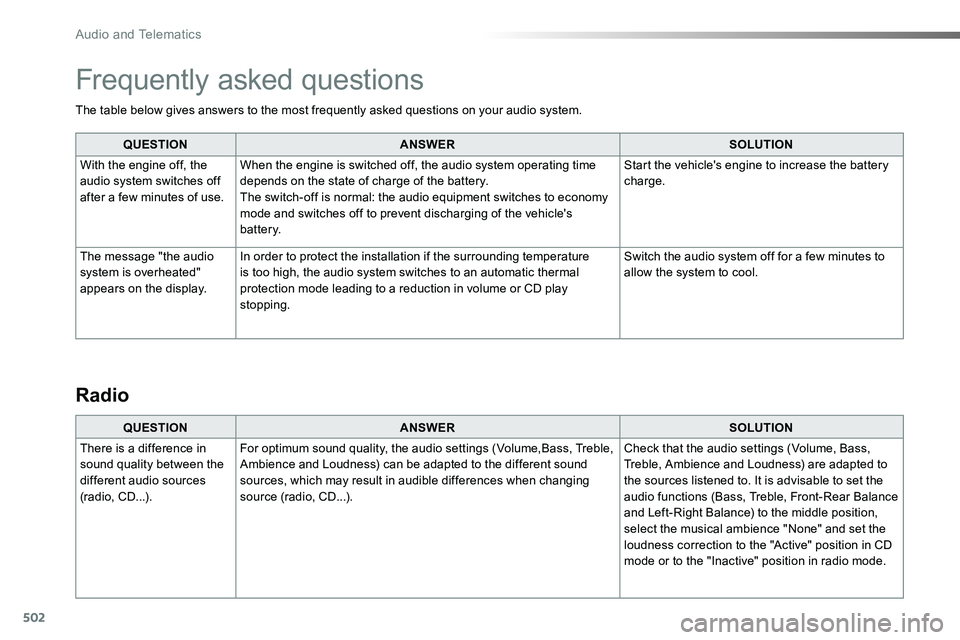

502
The table below gives answers to the most frequently asked questions on your audio system.
QUESTIONANSWERSOLUTION
With the engine off, the audio system switches off after a few minutes of use.
When the engine is switched off, the audio system operating time depends on the state of charge of the battery.The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is too high, the audio system switches to an automatic thermal protection mode leading to a reduction in volume or CD play stopping.
Switch the audio system off for a few minutes to allow the system to cool.
Frequently asked questions
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume,Bass, Treble, Ambience and Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience and Loudness) are adapted to the sources listened to. It is advisable to set the audio functions (Bass, Treble, Front-Rear Balance and Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
Radio
Audio and Telematics

506
180° rear vision .............................................259
ABS ...............................................................161Access to the spare wheel ............................297Access, AdBlue tank .....................................285Accessories ..................................203, 271, 272AdBlue® ................................26, 35 -37, 283 -285Additive, AdBlue ...................26, 35 -37, 283 -285Additive, Diesel .....................................280, 281Adjusting head restraints ......................103, 104Adjusting headlamp beam height .................155Adjusting headlamps ....................................155Adjusting seat .........................................99, 102Adjusting the air distribution .........................128Adjusting the air flow .....................................128Adjusting the date ...........................46, 420, 476Adjusting the height and reach of the steering wheel ....................................99Adjusting the lumbar support ........................10 0Adjusting the seat belt height .......................166Adjusting the temperature ............................128Adjusting the time ...........................46, 421, 477Advice on driving ..................................19 6 -198Air conditioning ...............12, 127, 129, 130, 137Air conditioning, automatic ...........................13 5Air conditioning, digital .........................132, 13 6Air conditioning, dual-zone automatic ..........128Air conditioning, manual .......126, 132, 13 5, 13 6Air intake ...............................125, 126, 128, 131Airbags ............................................24, 170, 17 7Airbags, curtain .............................................173
Airbags, front.........................................171, 173Airbags, lateral ......................................172 , 173Alarm ...............................................................95Alarm, volumetric ............................................95Anti-lock braking system (ABS) ....................161Anti-theft ...........................................52, 67, 205Area, loading .......................................47, 55, 73Armrest, front ................................................103ASR ...............................................................161Assistance call ......................................160, 338Assistance, emergency braking ...........161, 247Audio streaming (Bluetooth) ........398, 454, 495Audio system ..................89, 150 -152, 158, 226, 245, 247, 250, 256, 264, 483Autonomous emergency braking ...23, 243, 246Auxiliary ...............................................398, 454
A
C
B
Boot lid ................................64, 65, 94, 313, 314Boot .................................................................94Brake discs ....................................................282Brake lamps ...........................310, 311, 313 - 315Brakes ...............................................18, 22, 282Braking, automatic emergency ............................23, 243, 245 -247Bulbs (changing) ...................303, 304, 310, 313Bulbs (changing, type) ..................................303
Cable, audio .........................................398, 454Cable, jack ...........................................398, 454Cap, fuel filler ................................................265Capacity, fuel tank ........................................265CarPlay connection..............................386, 442CD ................................................398, 454, 494CD, MP3 .......................................398, 454, 494Central locking ..........................................59, 64Changing a bulb (boot lid))............................313Changing a bulb (rear wing doors with glass windows) ....................................310Changing a bulb .....3 03, 3 0 4, 310, 311, 313 - 315Changing a fuse ............................316, 317, 320Changing a wheel .........................................296Changing a wiper blade ........................15 9 , 2 74Changing the remote control battery ........54, 70Checking the engine oil level ..........................34Checking the levels ...............................278-280Checking tyre pressures (using the kit) ........290Checks ..........................................277, 281, 282
Battery capacity ............................................325Battery ....................................270, 281, 321-325Battery, charging ...........................................323Battery, remote control ...............54, 70, 71, 139Bench seat, one-piece, fixed ........................11 0Blind spot monitoring system .........29, 252, 254Blinds, side ....................................................123BlueHDi .....................................31, 35, 208, 283Bluetooth (hands-free) ...............406, 407, 462, 463, 497Bluetooth (telephone) ............406-408, 462-464Bonnet ...........................................................276
Alphabetical index

507
Checks, routine .....................................281, 282Child lock on rear windows ...........................195Child lock ...............................................19 4, 195Child lock, electric .........................................19 4Child seats .....169, 174-176, 180 -182, 184, 193Child seats, conventional ..............180 -182, 18 4Child seats, ISOFIX ......................187, 188, 190Children (safety) ............................................19 4Children .................................182, 187, 188, 190Closing the boot ..............................................94Closing the doors .............59, 64, 74, 75, 77, 82, 91, 93Compressor, tyre inflation ............................290Connection, Bluetooth ................380, 406-408,436, 462- 464, 498Connection, MirrorLink ........382, 384, 438, 440Connection, Wi-Fi network ...................3 81, 4 37Connectivity ..........................................378, 434Control stalk, lighting ..............................3 0, 146Control stalk, wipers .............................15 6, 157Control, emergency boot release ...................94Control, emergency door ..........................53, 68Control, heated seats ............................103, 105Courtesy lamp ...............................................312Courtesy lamp, front ..............141, 142, 312, 315Courtesy lamp, rear ...............141, 142, 312, 315Courtesy lamps ......................141, 142, 312, 315Cover, load space .........................................123Crew cab, fixed .............................................117Cruise control by Road Sign Assist ..............227Cruise control ................224, 227, 232, 233, 237Cruise control, adaptive ........................2 2 7, 2 3 6
Filling the fuel tank ................................265, 267Filter, air ........................................................281Filter, oil .........................................................281Filter, particle ........................................280, 281Filter, passenger compartment .....................281Finisher .........................................................302Fitting a wheel ...............................................299Fitting roof bars .............................................273Fitting the mat ...............................................11 9Fittings, interior .....................................120, 123Fittings, rear ..................................................123Flap, fuel filler ................................................265
D
F
E
DAB (Digital Audio Broadcasting) - Digital radio ...................396, 397, 452, 453, 490, 491Date (setting) ...................................46, 420, 476Daytime running lamps .........146, 149, 3 0 4 - 3 0 6Deactivating the passenger airbag .......171, 17 7Deactivation of DSC (ESC) ...........................163Deadlocking ........................................51, 58, 65Defrosting ..............................................132, 14 4Demisting ......................................................132Demisting, rear screen .........................13 3, 13 4Demisting, rear ......................................13 3, 13 4Diagnostic system, engine ..............................21Dial ............................................................15, 16Dials and gauges ............................................14Dimensions ...........................................328-330Dipstick ....................................................34, 278Direction indicators .............................................148, 304, 307, 308, 310, 313, 315Display screen, instrument panel ......14 -16, 2 0 8Display, head-up ...........................................222Door pockets .................................................120Doors ...............................................................74Doors, rear wing door ....64, 65, 91-93, 310, 311Doors, rear ......................................................91Driver Attention Alert ............................250, 251Driver’s fatigue warning ........................250, 251Driver's door open warning .............................75Driving abroad...............................................148Driving economically.......................................12Driving time warning .............................250, 251DSC ...............................................................161Dynamic stability control (DSC) ....................................25, 161, 163, 16 4
EBA ...............................................................161EBFD .............................................................161Eco-driving (advice) ........................................12Economy mode .............................................270Electric windows .............................................98Electronic brake force distribution (EBFD) ...161Emergency call .....................................160, 338Emergency warning lamps ...................160, 287Emissions control system, SCR .....................27Energy economy mode .................................270Engine compartment ....................................277Engine, Diesel ............21, 267, 277, 327, 333, 335, 336Environment ................................12, 54, 70, 139ESC (electronic stability control) ....................25ESC system .....................................................25ESC/ASR .......................................................161
.
Alphabetical index

509
Maintenance, routine ......................................12Markings, identification .................................337Mat ........................................................11 9 , 2 0 2Memorising a speed .....................................224Menu ...................352, 354, 356, 358, 360, 362, 370, 372, 374, 378, 384, 386, 388, 390, 392, 400, 402, 404, 412, 414, 416, 434, 440, 442, 444, 446, 448, 456, 458, 460, 468, 470, 472Menu, main ...................................................487Menus (audio) ......................................345, 433Messages ..............................................410 , 4 6 6Messages, quick ...................................411, 4 6 7Mirror, rear view ............................................145Mirror, vanity .................................................11 9Mirrors, door..................133, 134, 143, 144, 252Misfuel prevention .........................................266Mountings, Isofix ...................................18 6, 19 0MP3 CD .........................................................494
Labels ......................................................11, 11 6Labels, identification .....................................337Ladder ...........................................................272Lane Departure Alert (LDWS) ........29, 248, 249Level, brake fluid ...........................................279Level, Diesel additive ............................280, 281Level, engine coolant ..............................31, 279Level, engine oil ......................................34, 278Level, headlamp wash ..........................15 8, 28 0Level, power steering fluid ............................279Level, screenwash fluid ........................15 8, 28 0Levels and checks ................................27 7-2 8 0Lighting dimmer ..............................................39Lighting ....................................................3 0, 146Lighting, cornering ........................................152Lighting, guide-me home ..............................150Lighting, welcome .........................................151Load reduction mode ....................................270Load restraint ................................................12 2Loading area fittings .....................................12 2Loading ...................................................12, 273Localised Assistance Call .............................338Locating your vehicle ................................52, 67Locking from the inside .............................72, 73Locking ....................................50, 55, 57, 64, 71Low fuel level ..........................................20, 265Lumbar ..........................................................10 0
LM
Navigation ............352, 354, 356, 358, 360, 362Navigation, connected ..................370, 372, 374Net, cargo......................................................10 6Net, high load retaining .................................123Number plate lamps ..............................311, 314
N
Oil change .....................................................278Oil consumption ............................................278Oil, engine .....................................................278On-board tools ......................................287, 289Opening the bonnet ......................................276Opening the boot ................................47, 59, 94Opening the doors .......47, 59, 74, 78 - 81, 83, 93Opening to 180° ..............................................91Opening to 90/180/235° ..................................92
Pads, brake ...................................................282Paint colour code ..........................................337Parking brake ..................................18, 205, 282Parking sensors, audible and visual .............256Parking sensors, front ...................................256Parking sensors, rear............................255, 256Plates, identification......................................337Platform cab ..........................................315, 332Player, Apple® ..............................399, 455, 495Player, MP3 CD .............................................494Player, USB ..................................398, 454, 492Port, USB .............................122, 398, 454, 492Pressures, tyres ...................290, 295, 302, 337Pre-tensioning seat belts ..............................169Priming pump ................................................327Priming the fuel system ................................327Profiles ..................................................418 , 474Protecting children ........................171, 174 -176 , 182, 187, 188, 190, 193Puncture ........................................................290
O
P
.
Alphabetical index
