2017 TOYOTA PRIUS V display

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
Engine maintenance 9
Fuel tank door release and cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1,2 6
Light control-Instrument panel 8
Smart Key system
1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instruction\
s and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS SAFETY & EMERGENCY FEATURES
Air Conditioning/Heating 17
Audio
18
Auto lock/unlock
1,2 10
Bluetooth® Device Pairing Section 28-37
Clock 23
Cruise control 20
Dynamic Radar Cruise Control
(DRCC) 21
EV drive mode 12
Garage door opener (HomeLink
®)3 23
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System 10
Lane Departure Alert (LDA) 16
Lights
1 & turn signals 15
Panoramic roof shades1 19
Parking brake 12
Power outlets 20
Seat adjustments-Front 13
Seat heaters 16
Seat-Folding down rear seat 14
Seats-Flattening front seatbacks 13
Seats-Head restraints 13
Steering wheel switches 19
Telephone controls (Bluetooth
®) 22
Tilt and telescopic steering wheel 12
Transmission 11
Trip information display 22
Windows-Power 16
Windshield wipers & washers 14 Doors-Child safety locks
25
Door locks 25
Floor mat installation 27
Seat belts 24
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety System
™ 26-27
Tire Pressure Monitoring
(warning) System (TPMS) 24

Steering wheel controls
2
OVERVIEWInstrument panel
Type A
Type AType B
Meter control switches
Type B
Lane Departure Alert
(LDA) switch2
Automatic High Beams
(AHB) switch2
Pre-Collision System
(PCS) switch2
VSC off switch
VSC off switch Instrument panel
light control
Instrument panel
light control Hood lock release lever
Tire Pressure Monitoring
(warning) System reset
switch
Tilt and telescopic steering
lock release lever
Headlight and turn signal controls/
Headlight, turn signal and front fog light controls
2
Steering wheel
audio controls1
“TRIP” button
Trip information
display button
“TRIP” button
Steering wheel
climate controls
Cruise control
Dynamic Radar Cruise Control
Vehicle-to-vehicle distance button2
Telephone controls1
Voice command
button1
Multi-Information Display (MID)2
Wiper and washer controls
Fuel tank door
release lever

4
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2017 Owner’s
Manual.
Vehicles with Multi-Information display
Vehicles without Multi-Information display
1 If indicator does not turn off within a few seconds of starting Hybrid \
System, there may be a mal-
function. Have vehicle inspected by your Toyota dealer.
Anti-lock Brake System warning1
Charging system warning1
Brake system warning1
Brake system warning
(yellow indicator)1
Malfunction/
Check Engine indicator1
Maintenance required reminder1,3
Master warning1,3
Go to service warning1,3
OVERVIEW
Instrument cluster
Instrument symbols
Hybrid System Indicator Speedometer
Transmission shift
position indicator Fuel gauge Trip information
displayOdometer and trip meter
display
Hybrid battery
(traction battery) status Clock
Speedometer Transmission shift
position indicator Fuel gauge
Trip information
display
Odometer and trip
meter display
Hybrid battery
(traction battery) status
Multi-Information Display
Clock
Hybrid System Indicator
Service indicators and reminders

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
HEADLIGHTS
TURN SIGNALS
Push the lever away from you with
the headlight switch in AUTO or
position.
Indicator displays when headlights
are turned on automatically and
system is active.
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds or when lock switch on remote is pushed after all doors are lock\
ed.
High beams Push forward to turn high beams ON and pull toward you to flash
high beams.
Type A
(1) (2)
Type A Type B
Type B
FRONT FOG LIGHTS (IF EQUIPPED)
AUTOMATIC HIGH BEAMS (AHB)(IF EQUIPPED)
Lights & turn signals
Push
Front fog lights come on only when the headlights are on low beam.
Parking lights Headlights
OFF
DRL
Parking lights
Headlights
OFF
*DRL* If equipped
Turn Turn
Off Off
On
On
Right turn
Lane change
Lane change Left turn

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17

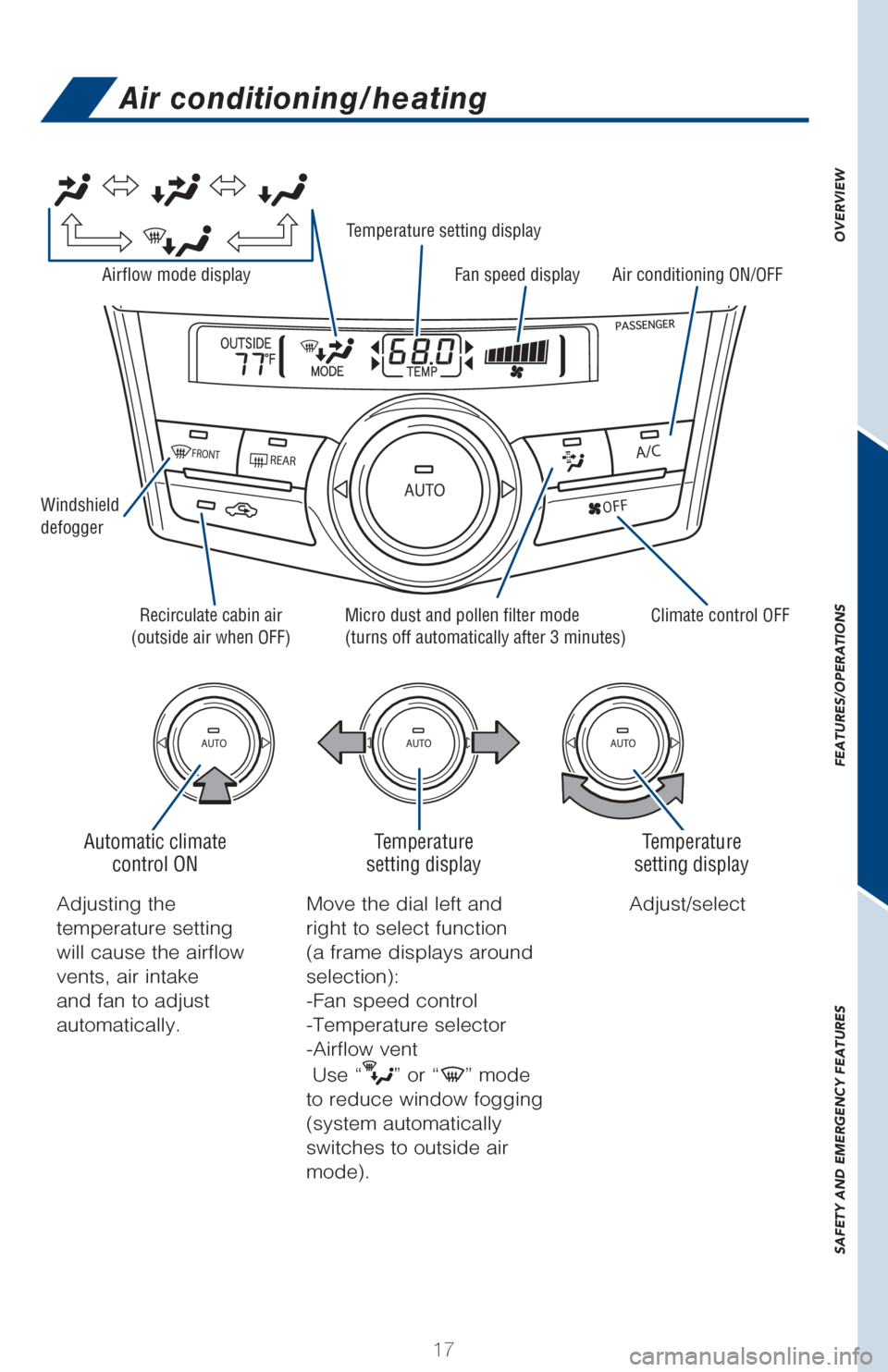

Air conditioning/heating
Adjust/selectAdjusting the
temperature setting
will cause the airflow
vents, air intake
and fan to adjust
automatically.Move the dial left and
right to select function
(a frame displays around
selection):
-Fan speed control
-Temperature selector
-Airflow vent
Use “
” or “” mode
to reduce window fogging
(system automatically
switches to outside air
mode).
Climate control OFF
Recirculate cabin air
(outside air when OFF)
Automatic climate control ONTemperature
setting displayTemperature
setting display
Airflow mode display Temperature setting display
Fan speed display
Micro dust and pollen filter mode
(turns off automatically after 3 minutes) Air conditioning ON/OFF
Windshield
defogger

18
Entune™ Audio1,2
Entune™ Premium JBL® Audio with Integrated Navigation and App Suite2
Entune™ Premium Audio with Integrated Navigation and App Suite2
FEATURES/OPERATIONSAudio
(if equipped)
1 Refer to the “OWNER’S MANUAL.”2 Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” and “2017 E\
ntune™ Audio Quick Reference Guide.”
NOTE: Concentrating on the road should always be your first priority whi\
le driving. Do not
use the Entune system if it will distract you.
Access to
navigation
system
2
Push to display
home screen
MAP CARD Slot
Seek station/
CD track selectTurn to tune
radio stations
manually or
select tracks or
files
Push to pause or
resume playing
Push to access hands
free Bluetooth
® system
Eject CD Push to turn
ON/OFF
Push to display
audio screen
Push to display
Setup screen
Push to display
vehicle information
Touch screen display

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Steering wheel switches
Panoramic roof shades (if equipped)
* If equipped
OPENING OPERATION
CLOSING OPERATION
Push
Push
Push once to close. To stop partway,
press the switch lightly.
Push once to open. To stop partway,
press the switch lightly.
Multi-Information control*
Type A
Climate control*
Type B
Audio/telephone controls
“+-” Volume switch
“MODE” Push to turn audio ON and select an audio mode.
Push and hold to mute/unmute or pause/resume audio.
“vv” Use to search within the selected audio medium (radio, CD, etc.).
Select/Change
Enter/Set
Return to
previous
Switch between odometer and trip meter display
Temperature selector*
Outside or
recirculated cabin air
Switch between odometer and trip meter display

22
FEATURES/OPERATIONSTrip information display
(if equipped)
Telephone controls (Bluetooth®)
Bluetooth® technology allows dialing or receipt of calls without taki\
ng hands from
the steering wheel or using a cable to connect the telephone and the sys\
tem.
Refer to the “Navigation System Owner’s Manual” or the “2017 Entune™ Audio
Quick Reference Guide” for more information about phone connections and
compatibility.
Microphone (Type A)
Audio unitSteering wheel telephone switches
Microphone (Type B)
Push “DISP” to change between the following information screens:
(1) Current fuel consumption
(2) Average fuel consumption
(3) Cruising range
(4) Hybrid System Indicator set up
NOTE: Concentrating on the road should always be your first priority whi\
le driving. Do not
use the hands-free phone system if it will distract you.
Volume
Start call
End call
Voice command
button
