THE NEW WORLD OF
ANTI-THEFT TECHNOLOGY
This Toyota vehicle may be equipped with
an electronic “immobilizer” anti-theft
system. When the key is inserted into the
ignition switch it transmits an electronic
code to an immobilizer computer. The
engine will only start if the code in the key
matches the code in the immobilizer. If the
code does not match, the immobilizer
disables the ignition and fuel systems.
While an exact physical copy of the key
will open the door and allow retrieval of
items locked in the vehicle, it won’t start
the vehicle unless the key has the same
code as the immobilizer.
SECURITY
For security purposes, access to key
codes and service procedures for
electronically registering replacement keys
is restricted. Only a Toyota dealer or
certain bonded/registered independent
locksmiths can generate replacement keys.
The Immobilizer Key
INTRODUCTION
Introduction7

JOBNAME: 2372846-en-2017_Priu PAGE: 8 SESS: 4 OUTPUT: Thu Sep 22 09:51:35 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372846-en-2017_P\
rius_Prime.00505-17WMG-PRIPM_/TS_Warr_Maint_v1
REPLACING THE KEY
Upon purchase, each vehicle should have
two master keys and an aluminum tag
with a key-code imprinted on it.
To generate a fully functional replacement
key (one that will both open the doors and
start the engine), one of the master keys
is required. To make a key that will open
the door for retrieval of items locked
inside the vehicle, the aluminum key-code
tag can be used. If a master key or the
aluminum key-code tag is not available, a
Toyota dealer or certain registered
locksmiths can obtain the key code from a
restricted-access database. These
businesses can also access a service
utility to reprogram the immobilizer if all
registered master keys have been lost. If a
Toyota dealer is not available, please refer
towww.aloa.org to find a
bonded/registered locksmith who performs
high security key service.
KEEPING THE KEY SAFE
Replacing an immobilizer key may be
costly. It is advisable to keep a spare
master key and the aluminum key-code
tag in a safe place. If you record the
key-code in more than one place, do not
record it in a way that can be easily
identified and associated with the vehicle.
It is wise to keep a copy of the key-code
outside of the vehicle.
If the vehicle was delivered with less than
two keys and the aluminum key-code tag,
consider having the Toyota dealer or a
qualified independent automotive
locksmith make a duplicate key before you
need it.
The Immobilizer Key
INTRODUCTION
Introduction8

JOBNAME: 2372846-en-2017_Priu PAGE: 14 SESS: 4 OUTPUT: Thu Sep 22 09:51:35 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372846-en-2017_P\
rius_Prime.00505-17WMG-PRIPM_/TS_Warr_Maint_v1
WHAT IS COVERED AND
HOW LONG
Basic Warranty
This warranty covers repairs and
adjustments needed to correct defects in
materials or workmanship of any part
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 15-16.
Coverage is for 36 months or
36,000 miles, whichever occurs first, with
the exception of wheel alignment and
wheel balancing, which are covered for
12 months or 12,000 miles, whichever
occurs first.
Hybrid System Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of the components listed
here and supplied by Toyota, subject to
the exceptions indicated under “What Is
Not Covered” on pages 15-16.
•Battery control module (battery voltage
sensor)
•Hybrid battery
•Hybrid control module (power
management control module)
•Inverter with converter
Coverage is for 96 months or
100,000 miles, whichever occurs first.
Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any component listed
below and in the next column and
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 15-16.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
Engine
Cylinder block and head and all internal
parts, timing gears and gaskets, timing
chain/belt and cover, valve covers, oil pan,
oil pump, engine mounts, engine control
computer, water pump, fuel pump, seals
and gaskets.
Transaxle/Motor/Generator
Case and all internal parts, transaxle
mounts, seals and gaskets.
Front-Wheel-Drive System
Final drive housing and all internal parts,
axle shafts, drive shafts, constant velocity
joints, front hub and bearings, seals and
gaskets.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail14

JOBNAME: 2372846-en-2017_Priu PAGE: 16 SESS: 4 OUTPUT: Thu Sep 22 09:51:35 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372846-en-2017_P\
rius_Prime.00505-17WMG-PRIPM_/TS_Warr_Maint_v1
Gradual Capacity Reduction of
Traction Battery (Lithium-ion
Battery)
Lithium-ion battery capacity (the ability to
hold a charge) gradually reduces with time
and use. This is a natural characteristic of
lithium-ion batteries. The extent at which
capacity is reduced changes drastically
depending on the environment (ambient
temperature, etc.) and usage conditions
such as how the vehicle is driven and how
the lithium-ion battery is charged.
Reduction of lithium-ion battery capacity is
NOTcovered under warranty. In order to
lessen the possibility of capacity reduction,
follow the directions listed in the Owner’s
Manual under “Capacity Reduction of the
Hybrid Battery (Traction Battery).”
Maintenance Expense
Normal maintenance services such as:
•Engine tune-ups
•Replacement of fluids and filters
•Lubrication
•Cleaning and polishing
•Replacement of spark plugs and fuses
•Replacement of worn wiper blades,
brake pads/linings and clutch linings
Vehicles With Altered Odometer
Failure of a vehicle on which the odometer
has been altered so that actual vehicle
mileage cannot be readily determined.
Salvage or Total-Loss Vehicles
Any vehicle that has ever been issued a
“salvage” title or similar title under any
state’s law; or has ever been declared a
“total loss” or equivalent by a financial
institution or insurer, such as by payment
for a claim in lieu of repairs because the
cost of repairs exceeded the cash value of
the vehicle. This exclusion does not apply
to the emission control warranties.
Incidental Damages
Incidental or consequential damages
associated with a vehicle failure. Such
damages include but are not limited to
inconvenience; the cost of transportation,
telephone calls and lodging; the loss of
personal or commercial property; and the
loss of pay or revenue.
Disclaimer of Extra Expenses and
Damages
The performance of necessary repairs
and adjustments is the exclusive
remedy under this warranty or any
implied warranty. Toyota does not
authorize any person to create for it any
other obligation or liability in connection
with this vehicle. Toyota shall not be
liable for incidental or consequential
damages resulting from breach of this
written warranty or any implied
warranty. Any implied warranty of
merchantability or fitness for a
particular purpose is limited to the
duration of this written warranty, except
in states where this limitation is not
allowed.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail16

JOBNAME: 2372846-en-2017_Priu PAGE: 19 SESS: 4 OUTPUT: Thu Sep 22 09:51:35 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372846-en-2017_P\
rius_Prime.00505-17WMG-PRIPM_/TS_Warr_Maint_v1
WHAT IS NOT COVERED
These warranty obligations do not apply to
failures or noncompliance caused by:
•The use of replacement parts not
certified in accordance with aftermarket
parts certification regulations.
•The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
WARRANTY PARTS LIST
Air/Fuel Metering System
•Air/fuel ratio feedback control system
•Electronic fuel injection system
components
–Airflow sensor
–Engine control module (8/80)
–Throttle body
–Other components
Air Induction System
•Intake manifold and intake air surge
tank
Catalyst System
•Catalytic converter and protector (8/80)
•Constricted fuel filler neck
•Exhaust manifold
•Exhaust pipe (manifold to catalyst
and/or catalyst to catalyst)
Evaporative Control System
•Charcoal canister
•Diaphragm valve
•Fuel filler cap
•Fuel tank
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
Your Warranties in Detail19

JOBNAME: 2372846-en-2017_Priu PAGE: 24 SESS: 4 OUTPUT: Thu Sep 22 09:51:35 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372846-en-2017_P\
rius_Prime.00505-17WMG-PRIPM_/TS_Warr_Maint_v1

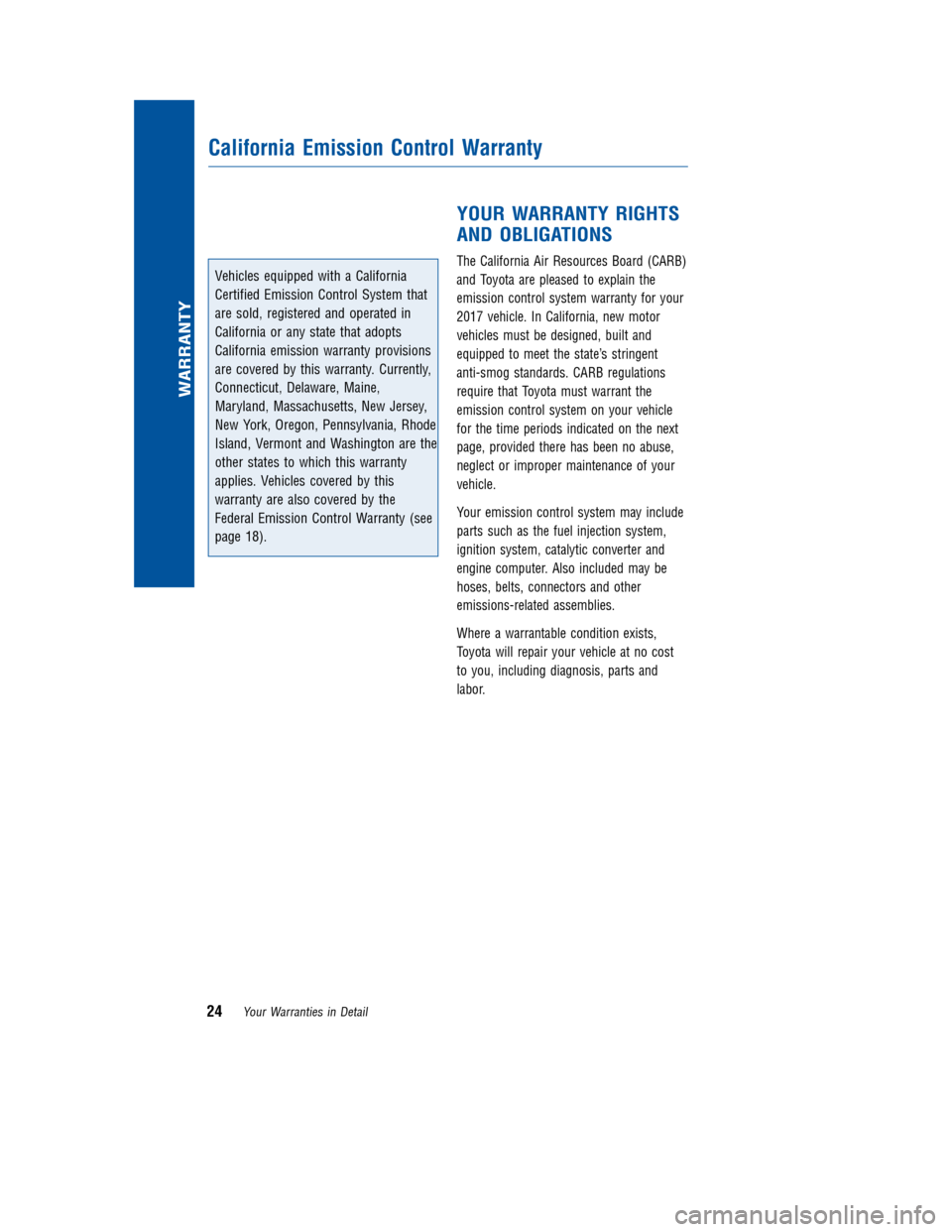

Vehicles equipped with a California
Certified Emission Control System that
are sold, registered and operated in
California or any state that adopts
California emission warranty provisions
are covered by this warranty. Currently,
Connecticut, Delaware, Maine,
Maryland, Massachusetts, New Jersey,
New York, Oregon, Pennsylvania, Rhode
Island, Vermont and Washington are the
other states to which this warranty
applies. Vehicles covered by this
warranty are also covered by the
Federal Emission Control Warranty (see
page 18).
YOUR WARRANTY RIGHTS
AND OBLIGATIONS
The California Air Resources Board (CARB)
and Toyota are pleased to explain the
emission control system warranty for your
2017 vehicle. In California, new motor
vehicles must be designed, built and
equipped to meet the state’s stringent
anti-smog standards. CARB regulations
require that Toyota must warrant the
emission control system on your vehicle
for the time periods indicated on the next
page, provided there has been no abuse,
neglect or improper maintenance of your
vehicle.
Your emission control system may include
parts such as the fuel injection system,
ignition system, catalytic converter and
engine computer. Also included may be
hoses, belts, connectors and other
emissions-related assemblies.
Where a warrantable condition exists,
Toyota will repair your vehicle at no cost
to you, including diagnosis, parts and
labor.
California Emission Control Warranty
WARRANTY
Your Warranties in Detail24

JOBNAME: 2372846-en-2017_Priu PAGE: 27 SESS: 4 OUTPUT: Thu Sep 22 09:51:35 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372846-en-2017_P\
rius_Prime.00505-17WMG-PRIPM_/TS_Warr_Maint_v1
PARTS LIST: LONG-TERM
EMISSION DEFECT WARRANTY
(DELAWARE, PENNSYLVANIA
AND WASHINGTON VEHICLES
ONLY
*)
The parts listed here are covered for seven
years or 70,000 miles, whichever occurs
first.
Air/Fuel Metering System
•Engine control computer (engine
control module)
•Fuel pump
•Throttle body
Air Induction System
•Intake manifold
Catalyst System
•Exhaust front pipe (including catalytic
converter)
•Exhaust manifold
EGR System
•EGR valve
Evaporative Control System
•Charcoal canister
•Fuel tank
Hybrid System
•Battery†
•Battery control computer
•Brake master cylinder for HV
•Electric vehicle charger
•Hybrid battery heater
•Hybrid battery heater relay
•Hybrid battery junction block
•Hybrid control module†
•Inverter with converter†
•Plug-in charge control computer
•Transaxle (including motor and
generator)
*Applies to Delaware, Pennsylvania and Washington vehicles equipped with a California Certified Emission Control
Warranty.
+Covered under the Hybrid System Warranty for eight years or 100,000 miles, whichever occurs first.
California Emission Control Warranty
WARRANTY
Your Warranties in Detail27

JOBNAME: 2372846-en-2017_Priu PAGE: 37 SESS: 4 OUTPUT: Thu Sep 22 09:51:35 2016
/InfoShareAuthorCODA/InfoShareAuthorCODA/TS_Warr_Maint/2372846-en-2017_P\
rius_Prime.00505-17WMG-PRIPM_/TS_Warr_Maint_v1
IMPORTANT MAINTENANCE
INFORMATION
It is especially important to both
routinely check your vehicle’s engine oil
level (once a month) and regularly
replace the engine oil and oil filter (see
the Maintenance Log section of this
booklet to determine how often you
should change your vehicle’s oil and
filter). Failure to do so can cause oil
starvation and or oil gelling, which can
result in severe damage to your vehicle
and require costly repairs that are not
covered by the New Vehicle Limited
Warranty.
Maintenance Records
Maintaining your vehicle according to the
recommendations in this booklet is
required to ensure that your warranty
coverage remains intact. You should keep
detailed records of vehicle maintenance,
including date of service, mileage at time
of service and a description of service
and/or parts installation performed. The
scheduled maintenance log in this booklet
can help you document this information. If
you sell your vehicle, be sure to give your
maintenance records to the new owner.
Toyota will not deny a warranty claim
solely because you do not have records to
show that you maintained your vehicle.
However, damage or failure caused by lack
of proper maintenance are not covered
under warranty.
Maintenance Providers
Maintenance and repair services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely because
you used a service provider other than a
Toyota dealership for maintenance and
repairs. However, damage or failure
caused by improper maintenance or
repairs are not covered under warranty.
Dealer-Recommended
Maintenance
Your dealer may recommend more
frequent maintenance intervals or more
maintenance services than those listed in
the scheduled maintenance log. These
additional services are not required to
maintain your warranty coverage. Ask your
dealer to explain any recommended
maintenance not included in the scheduled
maintenance log.
For a complete description of Toyota
warranty coverages, see the Warranty
Information portion of this booklet.
Maintaining Your Warranty
Maintenance Log37
MAINTENANCE
