2017 TOYOTA PRIUS PLUS emergency towing

16Pictorial index
PRIUS +_OM_OM47B24E_(EE)
■Instrument panel (Left-hand drive vehicles)
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207
Starting the hybrid system/changing the modes . . . . . . . P. 207, 210
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 379
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 448
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
Reading the meters/adjusting the instrument
cluster light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111, 114
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 106
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 3871
2
3

24Pictorial index
PRIUS +_OM_OM47B24E_(EE)
■Instrument panel (Right-hand drive vehicles)
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 207
Starting the hybrid system/changing the modes . . . . . . . P. 207, 210
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 379
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 448
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
Reading the meters/adjusting the instrument
cluster light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111, 114
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 106
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 3871
2
3

2384-5. Using the driving support systems
PRIUS +_OM_OM47B24E_(EE)

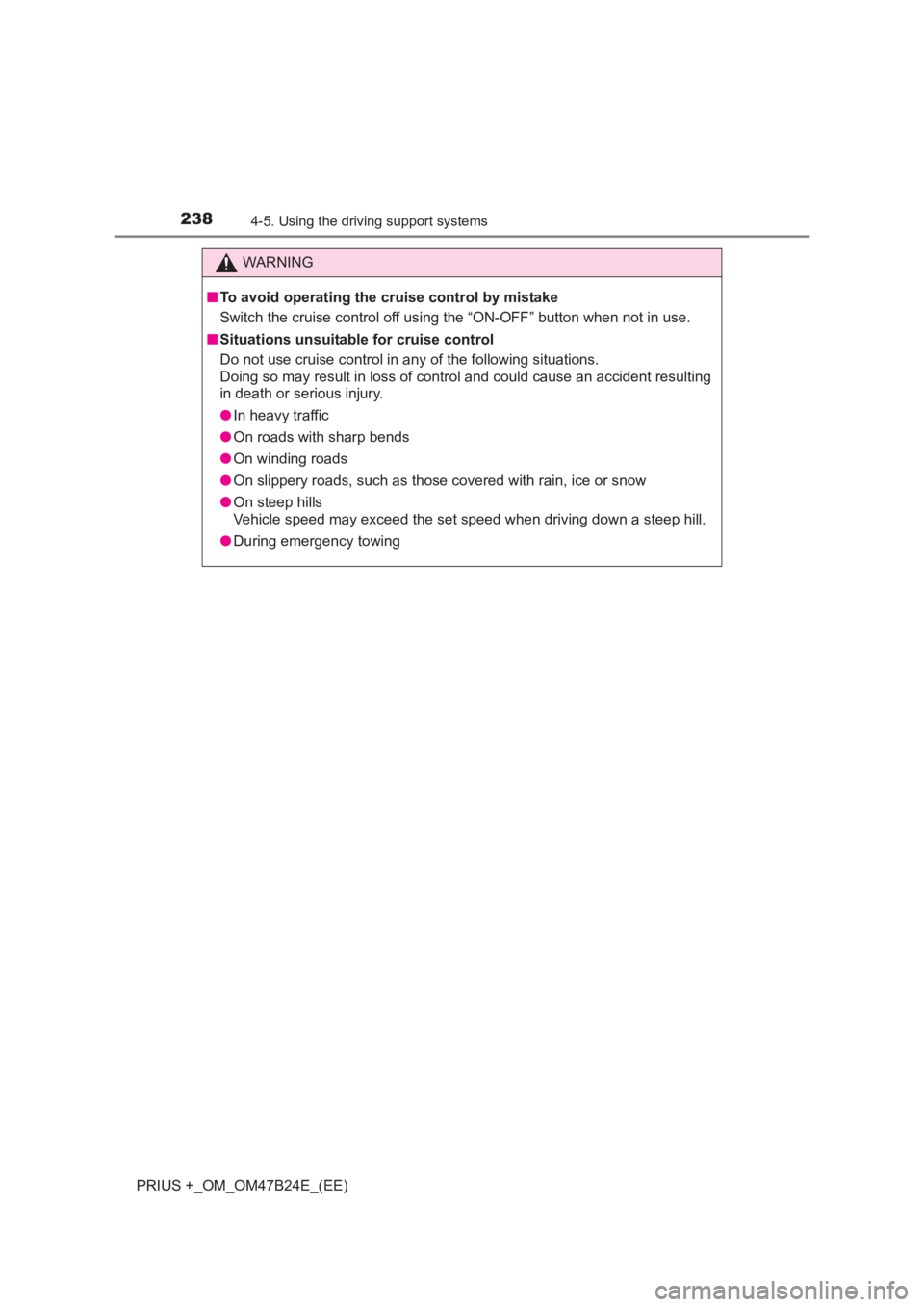

WARNING
■ To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
●In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● During emergency towing

3807-2. Steps to take in an emergency
PRIUS +_OM_OM47B24E_(EE)
If your vehicle needs to be towed
In the following situations, it is not possible to be towed by another
vehicle using cables or chains, as the front wheels may be locked due
to the parking lock. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional or commercial
towing service.
●There is a malfunction in the shift control system. ( →P. 389, 402)
● There is a malfunction in the immobilizer system. ( →P. 9 1 )
● There is a malfunction in the smart entry & start system. ( →P. 450)
● The 12-volt battery is discharged. ( →P. 452)
The following may indicate a problem with your hybrid transmission.
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional or commercial towing service
before towing.
● The hybrid system warning light turns on or the hybrid system
warning message is displayed on the multi-information display and
the vehicle does not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional or commercial towing
service, using a wheel-lift type truck or flat bed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is not possible to be towed by another vehicle
Situations when it is necessary to contact dealers before towing

3817-2. Steps to take in an emergency
PRIUS +_OM_OM47B24E_(EE)
7
When trouble arises
Do not tow with a sling-type truck
to prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
XFrom the frontXFrom the rear
Release the parking brake. Use a towing dolly under the front wheels.

3827-2. Steps to take in an emergency
PRIUS +_OM_OM47B24E_(EE)

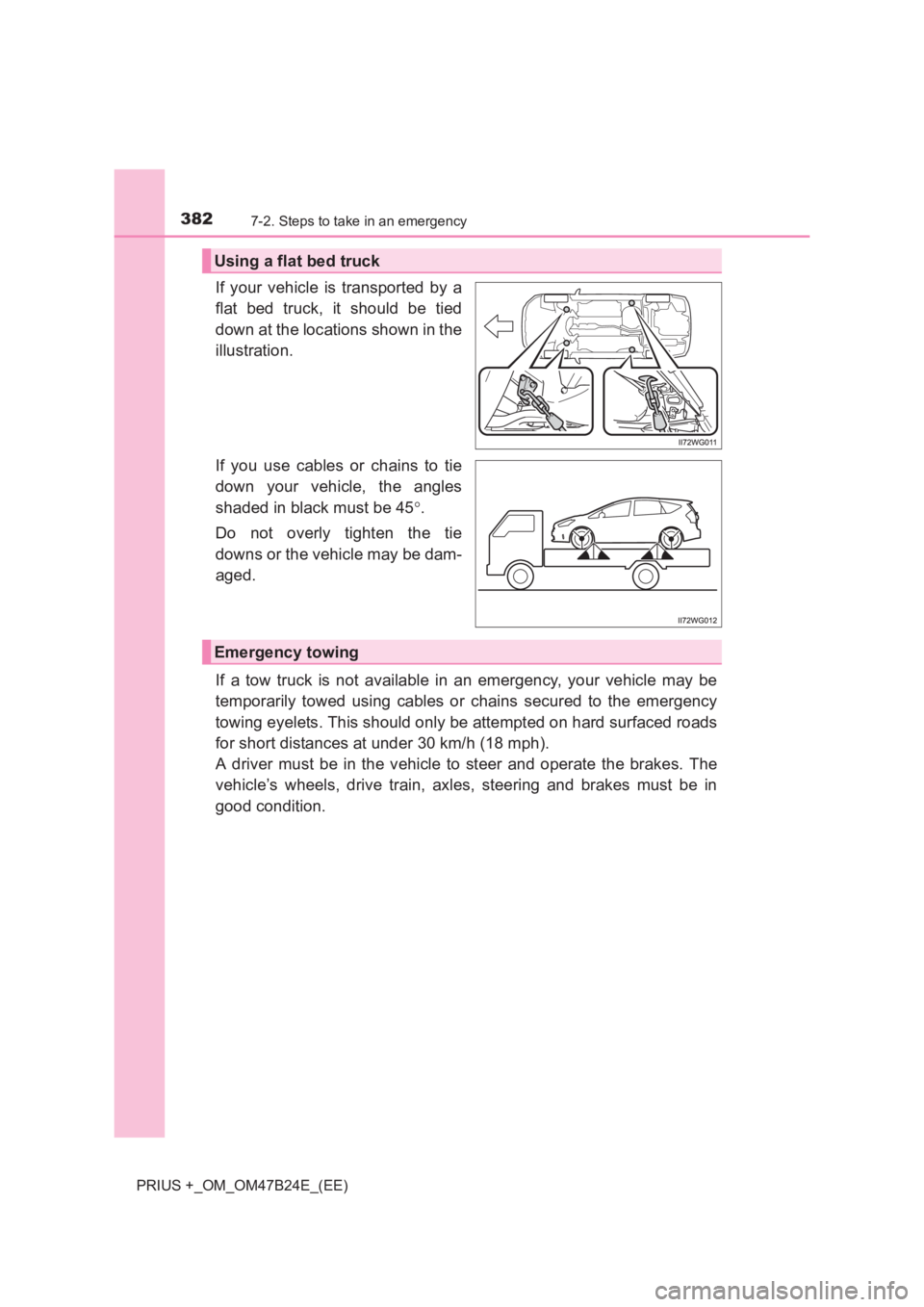

If your vehicle is transported by a
flat bed truck, it should be tied
down at the locations shown in the
illustration.
If you use cables or chains to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing eyelets. This should only be attempted on hard surfaced roads
for short distances at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Using a flat bed truck
Emergency towing

3837-2. Steps to take in an emergency
PRIUS +_OM_OM47B24E_(EE)
7
When trouble arises
Take out the towing eyelet. (→P. 418, 433)
Remove the eyelet cover using
a flathead screwdriver.
To prevent damage, cover the tip of
the screwdriver with a rag.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the hybrid system.
If the hybrid system does not start, turn the power switch to ON mode.
Shift the shift position to N and release the parking brake.

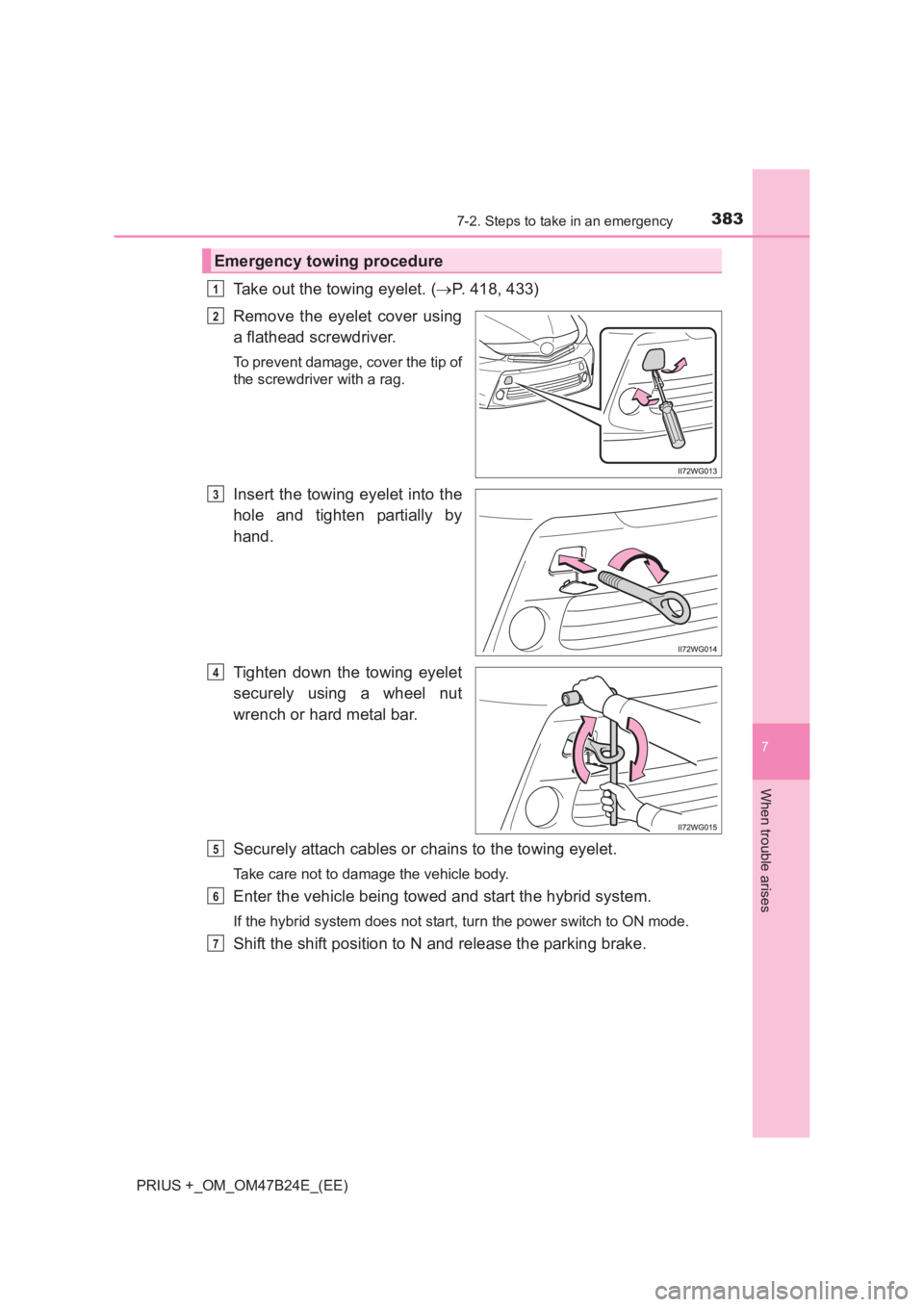

Emergency towing procedure
1
2
3
4
5
6
7

3847-2. Steps to take in an emergency
PRIUS +_OM_OM47B24E_(EE)

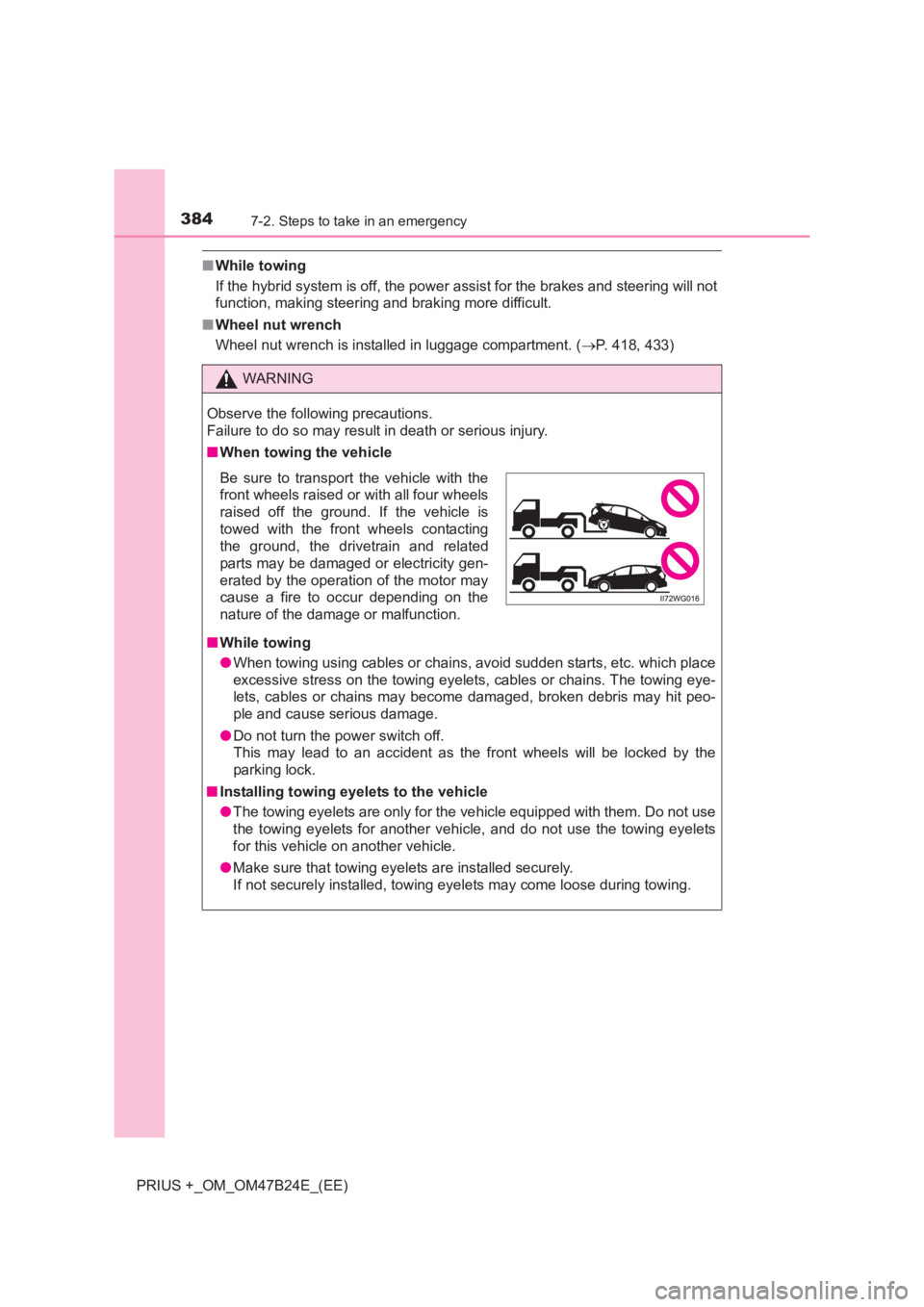

■While towing
If the hybrid system is off, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
■ Wheel nut wrench
Wheel nut wrench is installed in luggage compartment. ( →P. 418, 433)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When towing the vehicle
■ While towing
●When towing using cables or chains, avoid sudden starts, etc. which place
excessive stress on the towing eyelets, cables or chains. The towing eye-
lets, cables or chains may become damaged, broken debris may hit peo-
ple and cause serious damage.
● Do not turn the power switch off.
This may lead to an accident as the front wheels will be locked by the
parking lock.
■ Installing towing eyelets to the vehicle
●The towing eyelets are only for the v ehicle equipped with them. Do not use
the towing eyelets for another vehicle, and do not use the towing eyelets
for this vehicle on another vehicle.
● Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting
the ground, the drivetrain and related
parts may be damaged or electricity gen-
erated by the operation of the motor may
cause a fire to occur depending on the
nature of the damage or malfunction.
