6428-2. Steps to take in an emergency
HIGHLANDER_U (OM0E017U)
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ To prevent battery discharge
●Turn off the headlights and the audio system while the engine is stopped.
(Vehicles with Stop & Start system: except when the engine is stopped by
the Stop & Start system.)
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ When recharging or replacing the battery
●Vehicles with a smart key system: In some cases, it may not be possible to
unlock the doors using the smart key system when the battery is dis-
charged. Use the wireless remote control or the mechanical key to lock or
unlock the doors.
● Vehicles with a smart key system: The engine may not start on the first
attempt after the battery has recharged but will start normally after the sec-
ond attempt. This is not a malfunction.
● Vehicles with a smart key system: The engine switch mode is memorized by
the vehicle. When the battery is reconnected, the system will return to the
mode it was in before the battery was discharged. Before disconnecting the
battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
● Vehicle with power back door: The power back door must be initialized.
(→P. 692)
● Vehicles with Stop & Start system: After the battery terminals have been dis-
connected then reconnected or the battery has been replaced, the Stop &
Start system may not automatically stop the engine for approximately 5 to
60 minutes.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■ When exchanging the battery (veh icles with Stop & Start system)
Use a genuine battery specifically designed for use with a Stop & Start sys-
tem or equivalent. If an unsupported battery is used, Stop & Start system
functions may be restricted to protect the battery. Also, battery performance
may decrease and the engine may not be able to restart. Contact your Toyota
dealer for details.

6859-2. Customization
9
Vehicle specifications
HIGHLANDER_U (OM0E017U)■

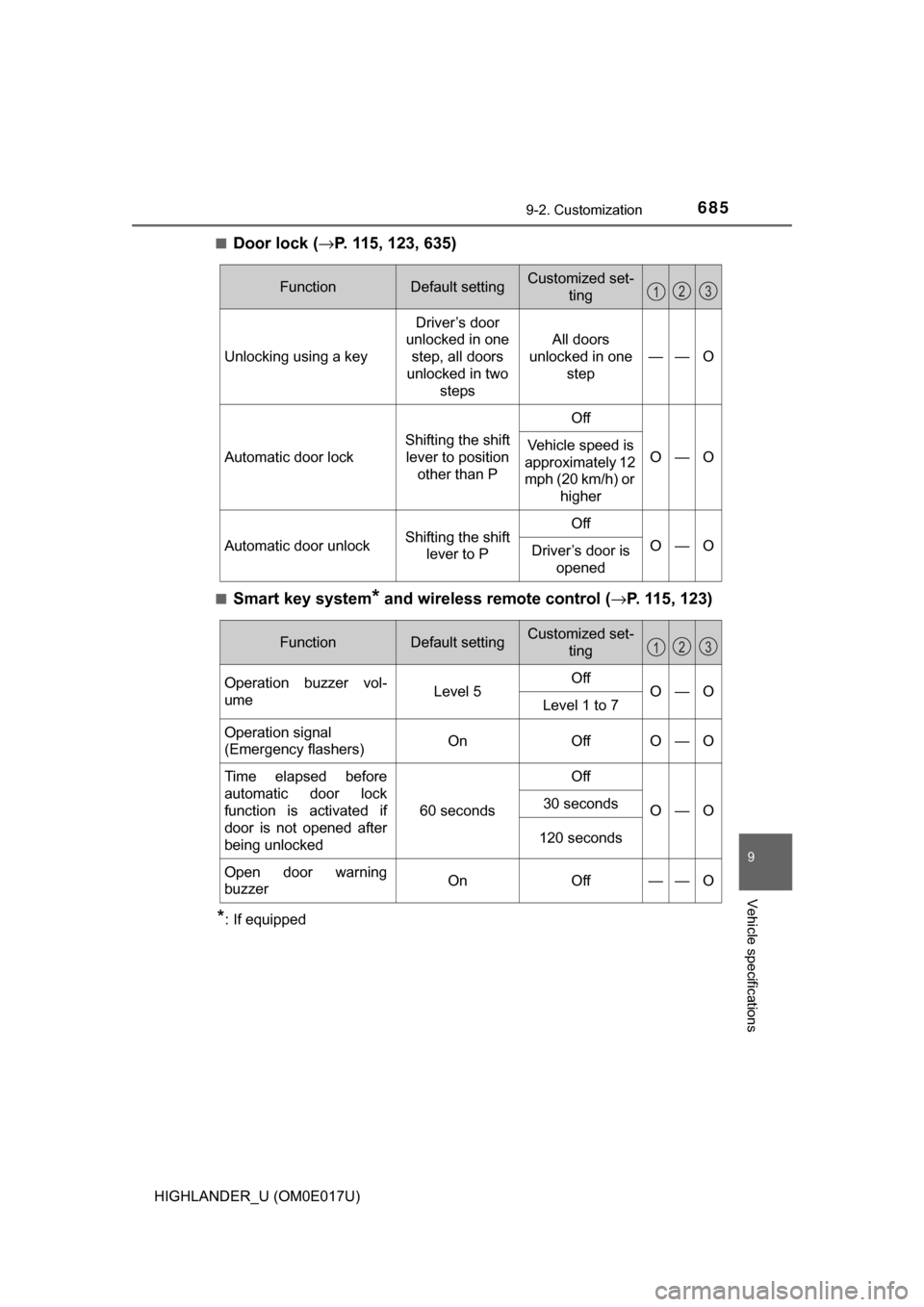

Door lock (
→P. 115, 123, 635)
■Smart key system* and wireless remote control ( →P. 115, 123)
*: If equipped
FunctionDefault settingCustomized set-
ting
Unlocking using a key
Driver’s door
unlocked in one step, all doors
unlocked in two steps
All doors
unlocked in one
step
——O
Automatic door lock
Shifting the shift lever to position other than P
Off
O—OVehicle speed is
approximately 12
mph (20 km/h) or higher
Automatic door unlockShifting the shift lever to POff
O—ODriver’s door is opened
123
FunctionDefault settingCustomized set-
ting
Operation buzzer vol-
umeLevel 5OffO—OLevel 1 to 7
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Open door warning
buzzerOnOff——O
123

6869-2. Customization
HIGHLANDER_U (OM0E017U)■
Smart key system* (
→ P. 115, 123, 141)
*: If equipped
■
Wireless remote control ( →P. 108, 115, 123)
*: Vehicles without smart key system
■
Power back door* ( → P. 123)
*: If equipped
FunctionDefault settingCustomized set-
ting
Smart key systemOnOff——O
Number of consecutive
door lock operations2 timesAs many as
desired——O
123
FunctionDefault settingCustomized set- ting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two
steps
All doors
unlocked in one step
O—O
Reservation lock*OnOffO—O
Alarm (panic mode)OnOff——O
123
FunctionDefault settingCustomized set-
ting
Power back door open-
ing angleOpening angle 5Opening angle 1 to 4O—O
123

6879-2. Customization
9
Vehicle specifications
HIGHLANDER_U (OM0E017U)■
Driving position memory* (
→ P. 158)
*: If equipped
■
Power windows and moon roof*( → P. 172, 176)
*: If equipped
■
Power windows ( →P. 172)
FunctionDefault settingCustomized set-
ting
Selecting the door link-
ing driving position mem-
ory with door unlock
operation
Driver’s doorAll doors——O
123
FunctionDefault settingCustomized set-ting
Key linked operationOffOn——O
Wireless remote control
linked operation (open
only)
OffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
123
FunctionDefault settingCustomized set-ting
One-touch close opera-
tion using the power win-
dow switches on the
front passenger door
and each rear door
OnOff——O
One-touch front passen-
ger window or rear side
window close operation
using the power window
switch on the driver’s
door
OnOff——O
123

6889-2. Customization
HIGHLANDER_U (OM0E017U)■
Moon roof* (
→ P. 176)
*: If equipped
■
Turn signal lever ( →P. 233)
*1: After flashing the turn signal lights when turning left or right while this func-
tion is off and the turn signal lever is moved to the first position in the direc-
tion of the flashing light, the turn signal lights can be selected to be flashing
or off.
*2: The turn signal lights will be off if the turn signal lever is moved to the firstposition in the direction of flashing light.
FunctionDefault settingCustomized set- ting
Linked operation of com-
ponents when mechani-
cal key is used (open
only)
Slide onlyTilt only——O
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only——O
123
FunctionDefault settingCustomized set-ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is
moved to the first posi-
tion during a lane
change
*1
3
Off*2
——O4 to 7
123

6909-2. Customization
HIGHLANDER_U (OM0E017U)■
Illumination (
→P. 458)
*1: Vehicles with a smart key system
*2: Vehicles with driving position memory
■
Seat belt reminder ( →P. 582)
FunctionDefault settingCustomized set-
ting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the
engine switch is turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
*1
OnOff——O
Ambient lights*2OnOff——O
Time elapsed before the
outer foot lights turn
off
*215 seconds
Off
O—O7.5 seconds
30 seconds
Operation of the outer
foot lights when you
approach the vehicle
with the electronic key
on your person
*2
OnOff——O
Operation of the outer
foot lights when the
doors are unlocked
*2OnOff——O
123
FunctionDefault settingCustomized set-ting
Vehicle speed linked
seat belt reminder
buzzer
OnOff——O
123

6919-2. Customization
9
Vehicle specifications
HIGHLANDER_U (OM0E017U)
■Vehicle customization
●When the smart key system is off, the entry unlock function cannot be cus-
tomized.
● When the doors remain closed after unlocking the doors and the timer act\
i-
vated automatic door lock function activates, signals will be generated in
accordance with the operation buzzer volume and operational signal (Emer-
gency flashers) function settings.
■ Changing of the power back door opening angle (if equipped)
The opening angle setting can be changed through operation of either the
power back door switch or the audio system screen.
However, if the engine switch is on and the power back door switch is used to
change the opening angle setting, the changed opening angle will not be
reflected on the audio system screen until the engine switch is turned off and
then on again.
■ When customizing on the audio system screen
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent battery discharge, leave the engine running while
customizing the features.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

708
HIGHLANDER_U (OM0E017U)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by your Toyota dealer. ( →P. 1 1 1 )
●If you lose your keys or electronic keys, the risk of vehicle theft increases
significantly. Contact your Toyota dealer immediately. (→P. 114)
●Is the key battery weak or depleted? ( →P. 549)
●Vehicles with a smart key system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( →P. 222)
●Vehicles with a smart key system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. ( →P. 111, 144)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (→P. 120)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
