2017 TOYOTA CAMRY key

1003-2. Opening, closing and locking the doors
CAMRY_U (OM33C64U)

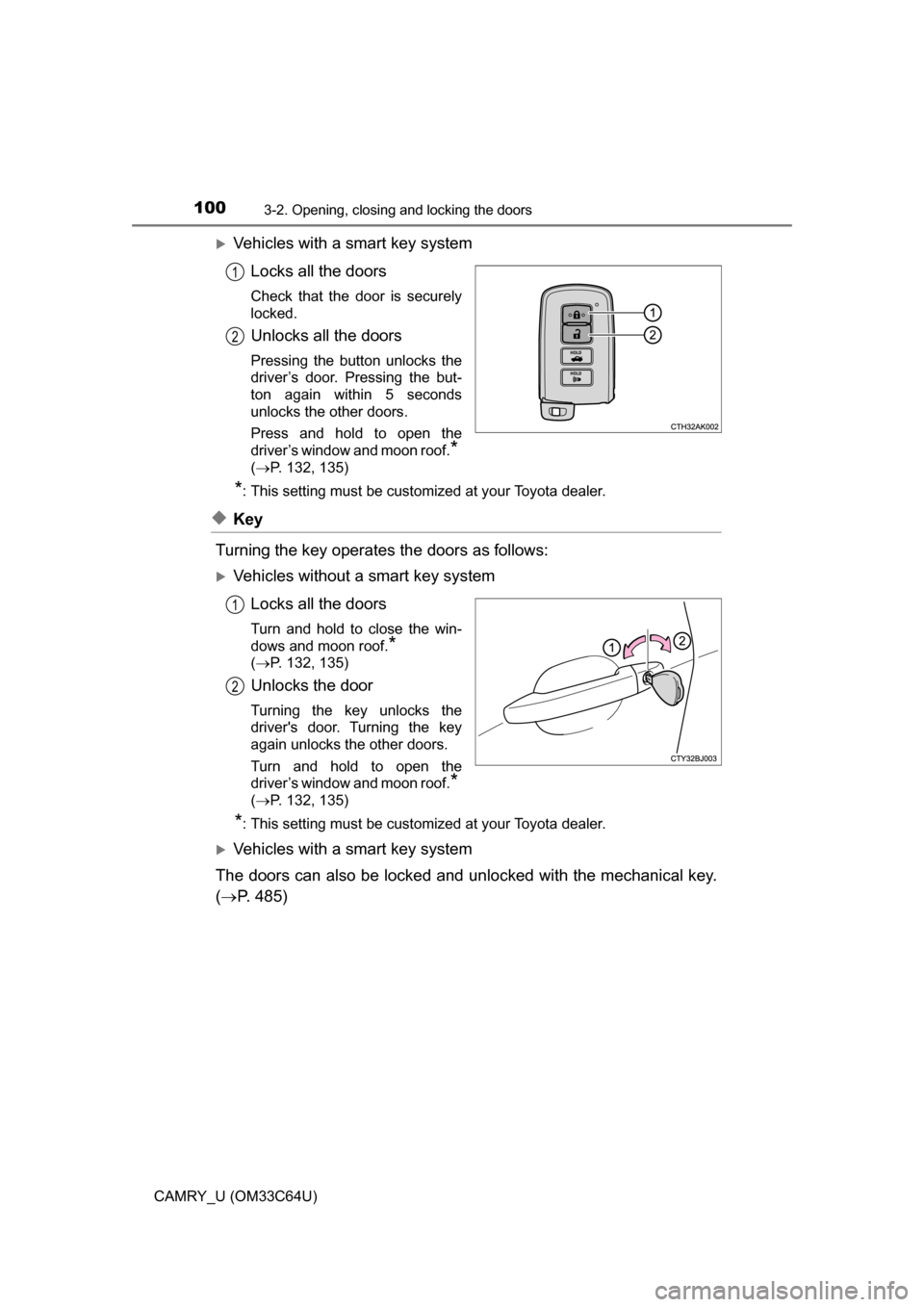

Vehicles with a smart key systemLocks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
Press and hold to open the
driver’s window and moon roof.
*
(P. 132, 135)
*: This setting must be customized at your Toyota dealer.
◆Key
Turning the key operates the doors as follows:
Vehicles without a smart key system Locks all the doors
Turn and hold to close the win-
dows and moon roof.
*
(P. 132, 135)
Unlocks the door
Turning the key unlocks the
driver's door. Turning the key
again unlocks the other doors.
Turn and hold to open the
driver’s window and moon roof.
*
(P. 132, 135)
*: This setting must be customized at your Toyota dealer.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical key.
(  P. 485)
1
2
1
2

1013-2. Opening, closing and locking the doors
3
Operation of each component
CAMRY_U (OM33C64U)
■Operation signals
Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Driver’s window and moon roof:
A buzzer sounds to indicate that the driver’s window and moon roof are open-
ing.
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ When the door ca nnot be locked by the lock sen sor on the upper part of
the door handle
■ Door lock buzzer (vehicles with a smart key system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer will sound for 5 seconds. Fully close the door to stop the buzzer, and
lock the doors again.
■ Alarm (if equipped)
Locking the doors will set the alarm system. ( P. 69)
■ If the smart key system or the wireless remote control does not operate
properly (vehicles with a smart key system)
Use the mechanical key to lock and unlock the doors. ( P. 485)
Replace the battery with a new one if it is depleted. ( P. 420)
If the door will not lock even when the top-
side sensor area is touched, try using
your palm to touch the lock sensor.

1023-2. Opening, closing and locking the doors
CAMRY_U (OM33C64U)

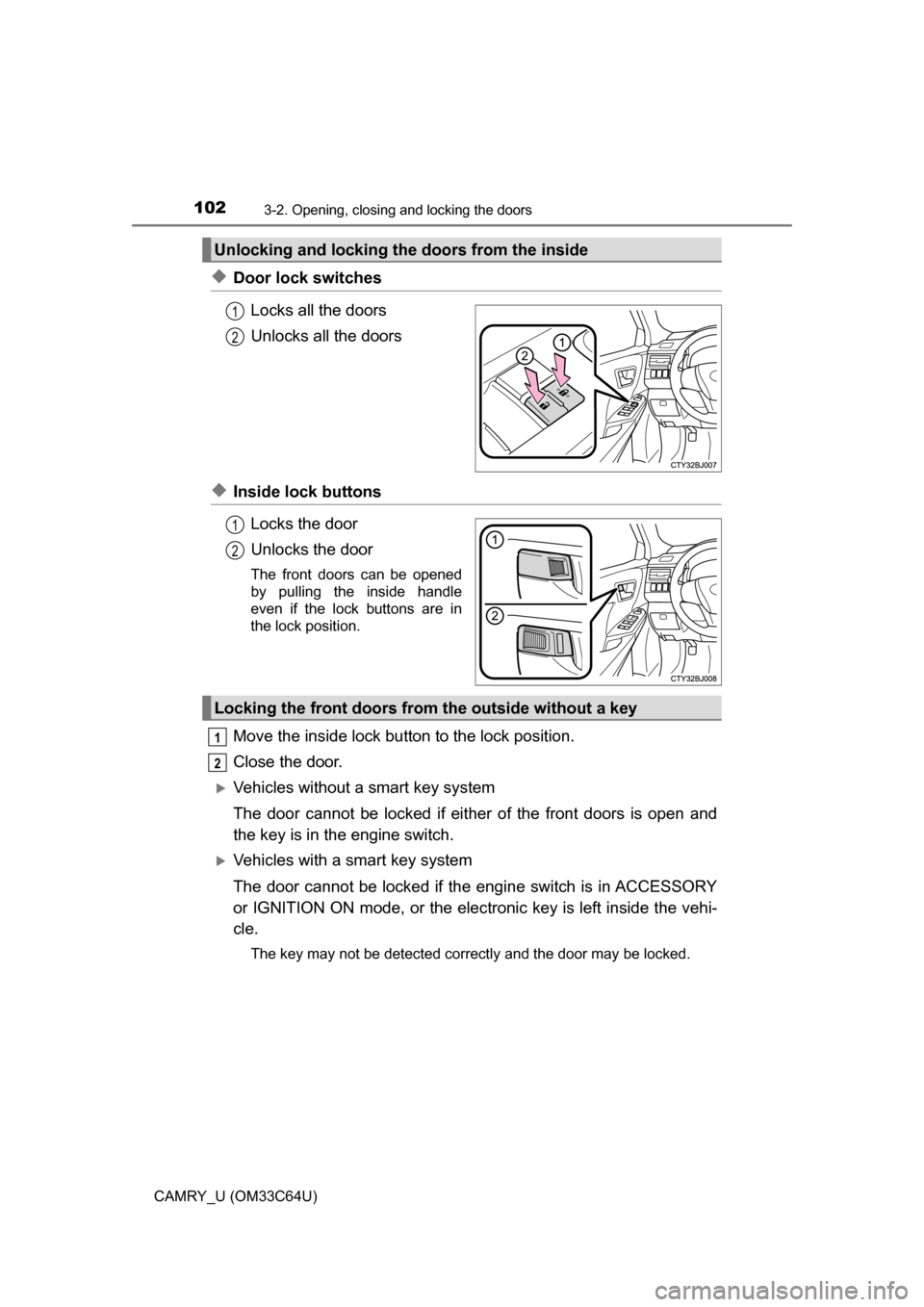

◆Door lock switchesLocks all the doors
Unlocks all the doors
◆Inside lock buttonsLocks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside lock button to the lock position.
Close the door.
Vehicles without a smart key system
The door cannot be locked if eit her of the front doors is open and
the key is in the engine switch.
Vehicles with a smart key system
The door cannot be locked if t he engine switch is in ACCESSORY
or IGNITION ON mode, or the elec tronic key is left inside the vehi-
cle.
The key may not be detected correctly and the door may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2

1033-2. Opening, closing and locking the doors
3
Operation of each component
CAMRY_U (OM33C64U)

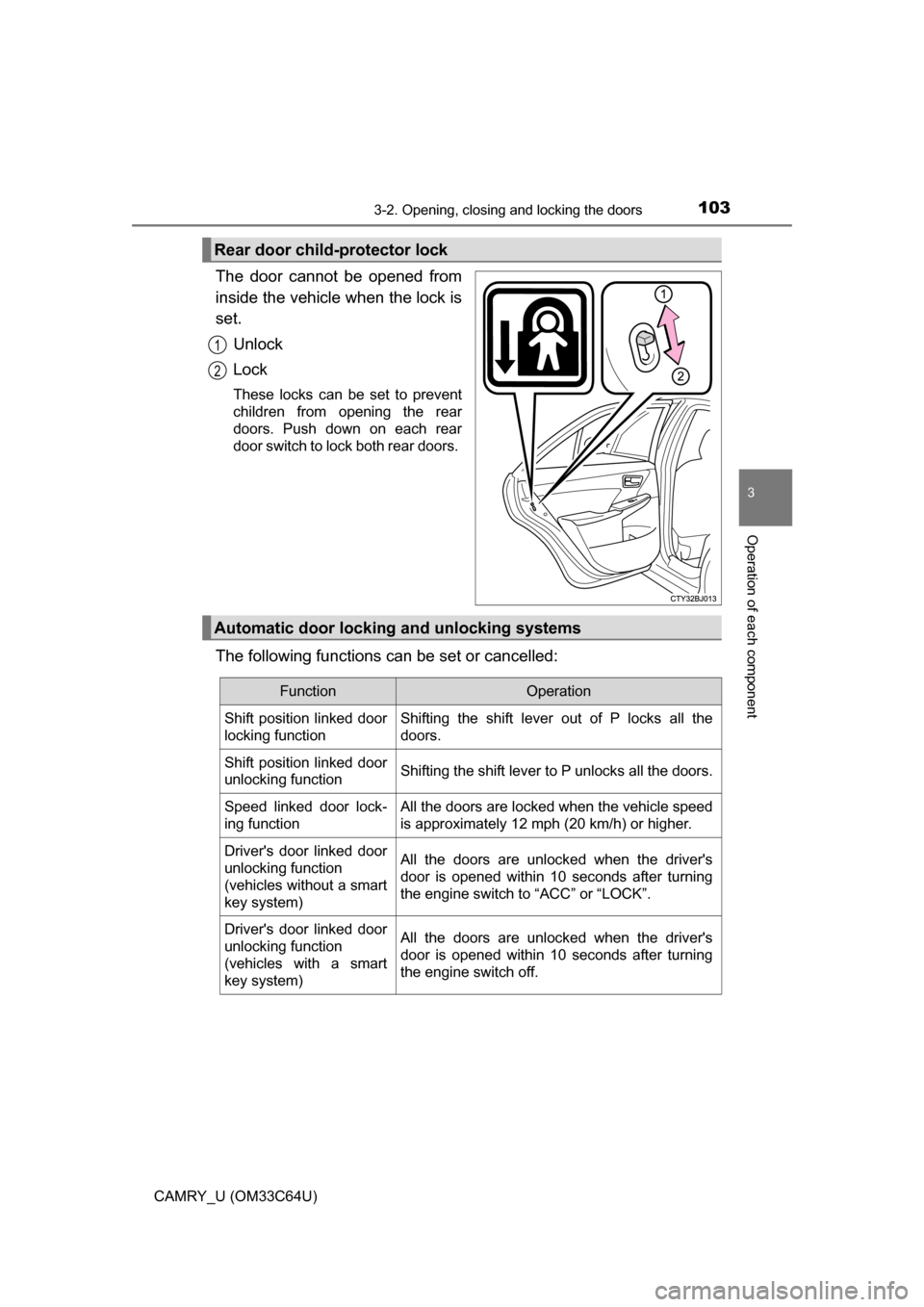

The door cannot be opened from
inside the vehicle when the lock is
set.Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
The following functions can be set or cancelled:
Rear door child-protector lock
1
2
Automatic door lockin g and unlocking systems
FunctionOperation
Shift position linked door
locking function Shifting the shift lever out of P locks all the
doors.
Shift position linked door
unlocking function Shifting the shift lever to P unlocks all the doors.
Speed linked door lock-
ing function All the doors are locked when the vehicle speed
is approximately 12 mph (20 km/h) or higher.
Driver's door linked door
unlocking function
(vehicles without a smart
key system) All the doors are unlocked when the driver's
door is opened within 10 seconds after turning
the engine switch to “ACC” or “LOCK”.
Driver's door linked door
unlocking function
(vehicles with a smart
key system) All the doors are unlocked when the driver's
door is opened within 10 seconds after turning
the engine switch off.

1043-2. Opening, closing and locking the doors
CAMRY_U (OM33C64U)■

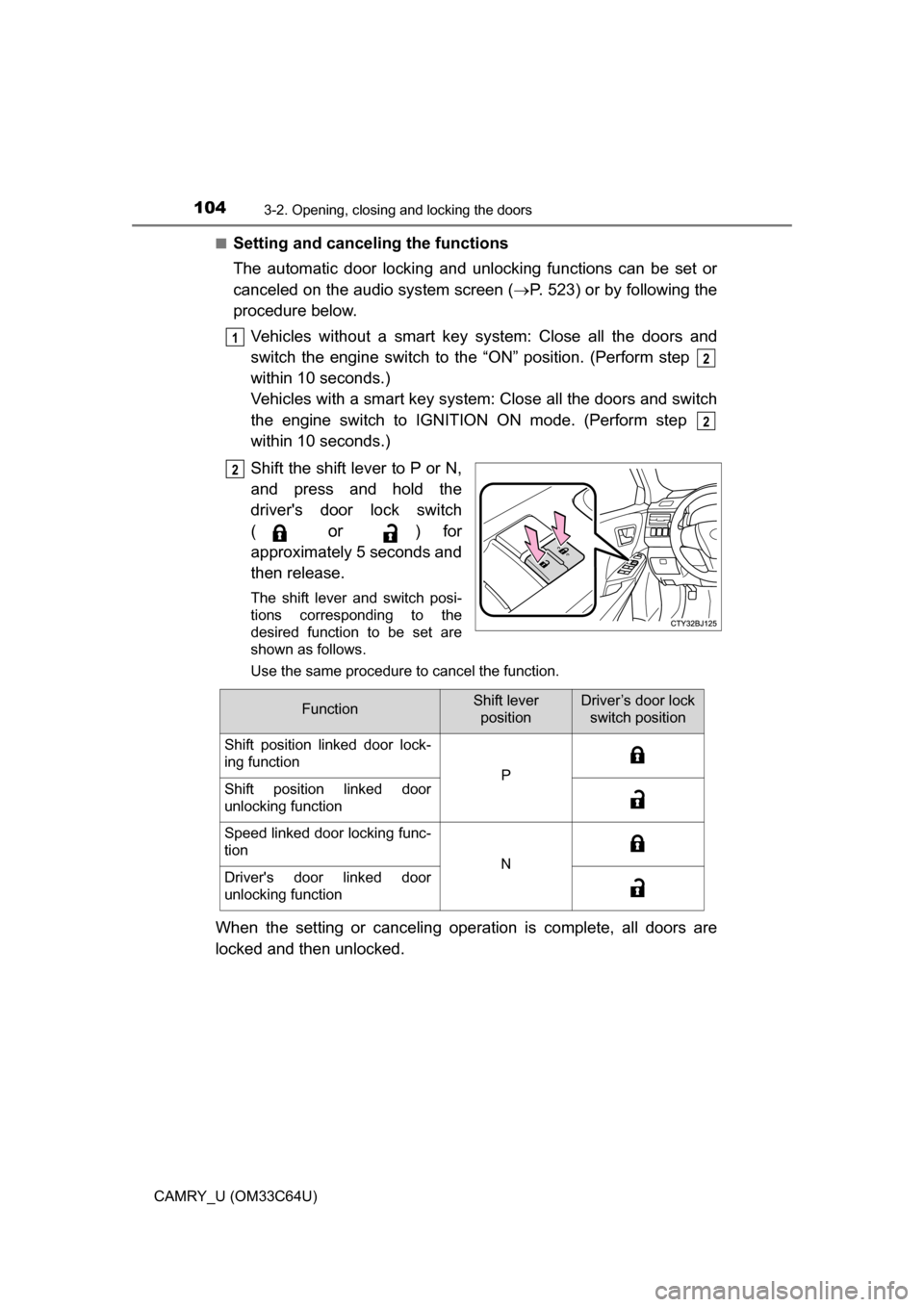

Setting and canceling the functions
The automatic door locking and unlocking functions can be set or
canceled on the audio system screen (
P. 523) or by following the
procedure below.
Vehicles without a smart key sy stem: Close all the doors and
switch the engine switch to the “ON” position. (Perform step
within 10 seconds.)
Vehicles with a smart key system: Close all the doors and switch
the engine switch to IGNITION ON mode. (Perform step
within 10 seconds.)
Shift the shift lever to P or N,
and press and hold the
driver's door lock switch
(
or ) for
approximately 5 seconds and
then release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown as follows.
Use the same procedure to cancel the function.
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
1
2
2
2
FunctionShift lever positionDriver’s door lock switch position
Shift position linked door lock-
ing function
PShift position linked door
unlocking function
Speed linked door locking func-
tion
NDriver's door linked door
unlocking function

1053-2. Opening, closing and locking the doors
3
Operation of each component
CAMRY_U (OM33C64U)
■Switching the door unlock functi on (vehicles with a smart key system)
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the engine switch off.
When the indicator light on the key surface is not on, press and hold ,
or for approximately 5 seconds while pressing and holding
.
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step .)
Vehicles with an alarm: To prevent unintended triggering of the alarm, unlock
the doors using the wireless remote control and open and close a door once
after the settings have been changed. (If a door is not opened within 6\
0 sec-
onds after is pressed, the doors will be locked again and the alarm will
automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. ( P. 69)
■ Conditions affecting the operation of the smart key system or wireless
remote control
Vehicles without a smart key system
P. 9 6
Vehicles with a smart key system
P. 1 1 5
■ Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 523)
1
2
2
Multi-information
displayUnlocking functionBeep
Holding the driver’s door
handle unlocks only the
driver’s door.
Exterior: Beeps 3
times
Interior: Pings once
Holding the front passen-
ger’s door handle unlocks
all the doors.
Holding either front door
handle unlocks all the
doors.Exterior: Beeps
twice
Interior: Pings once

1073-2. Opening, closing and locking the doors
3
Operation of each component
CAMRY_U (OM33C64U)

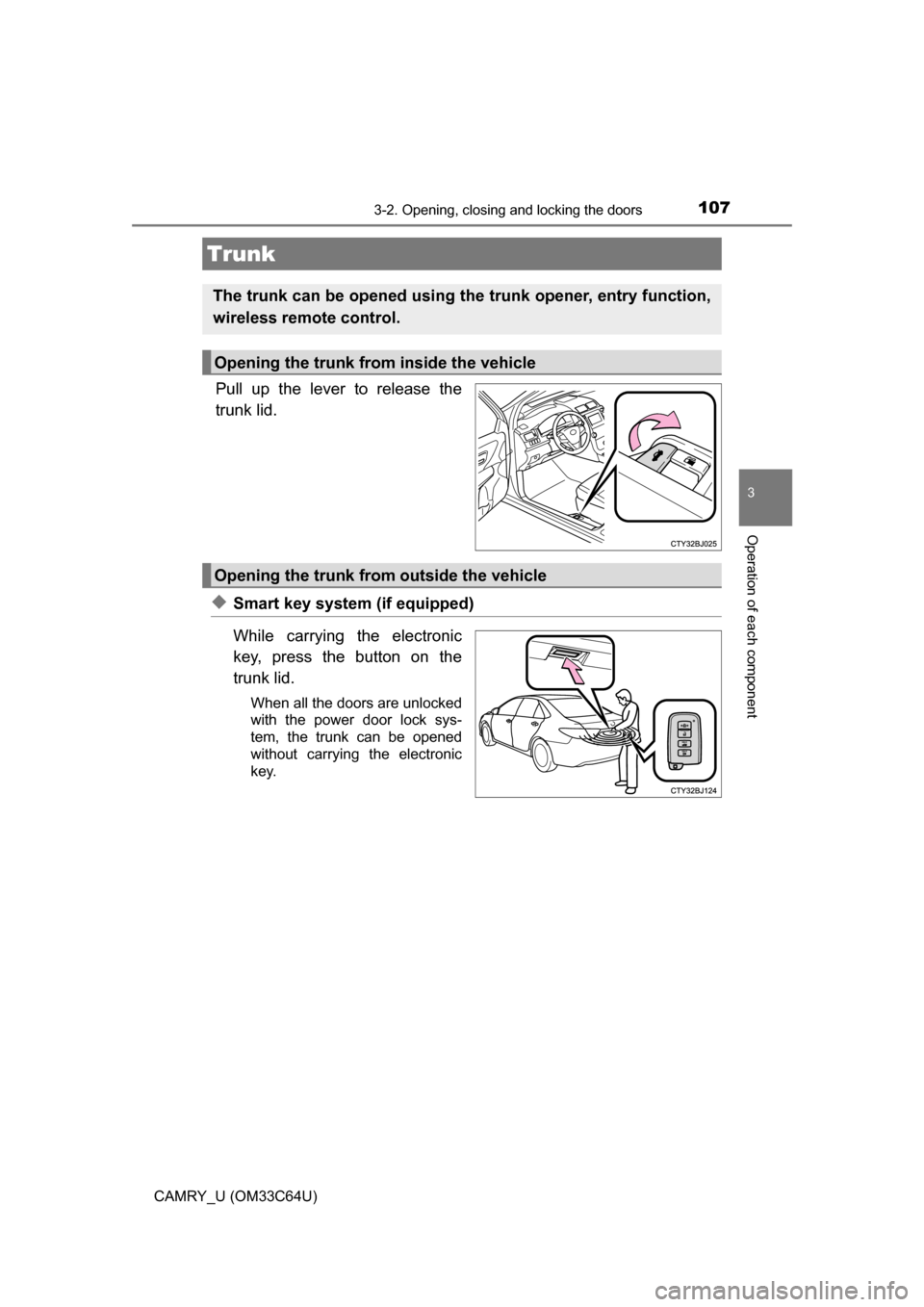

Pull up the lever to release the
trunk lid.
◆Smart key system (if equipped)
While carrying the electronic
key, press the button on the
trunk lid.
When all the doors are unlocked
with the power door lock sys-
tem, the trunk can be opened
without carrying the electronic
key.
Trunk
The trunk can be opened using the trunk opener, entry function,
wireless remote control.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle

1083-2. Opening, closing and locking the doors
CAMRY_U (OM33C64U)
◆Wireless remote control
Vehicles without a smart key system
Press and hold the switch.
Vehicles with a smart key system
Press and hold the switch.
Type A
Type B
