2017 TOYOTA CAMRY headlights

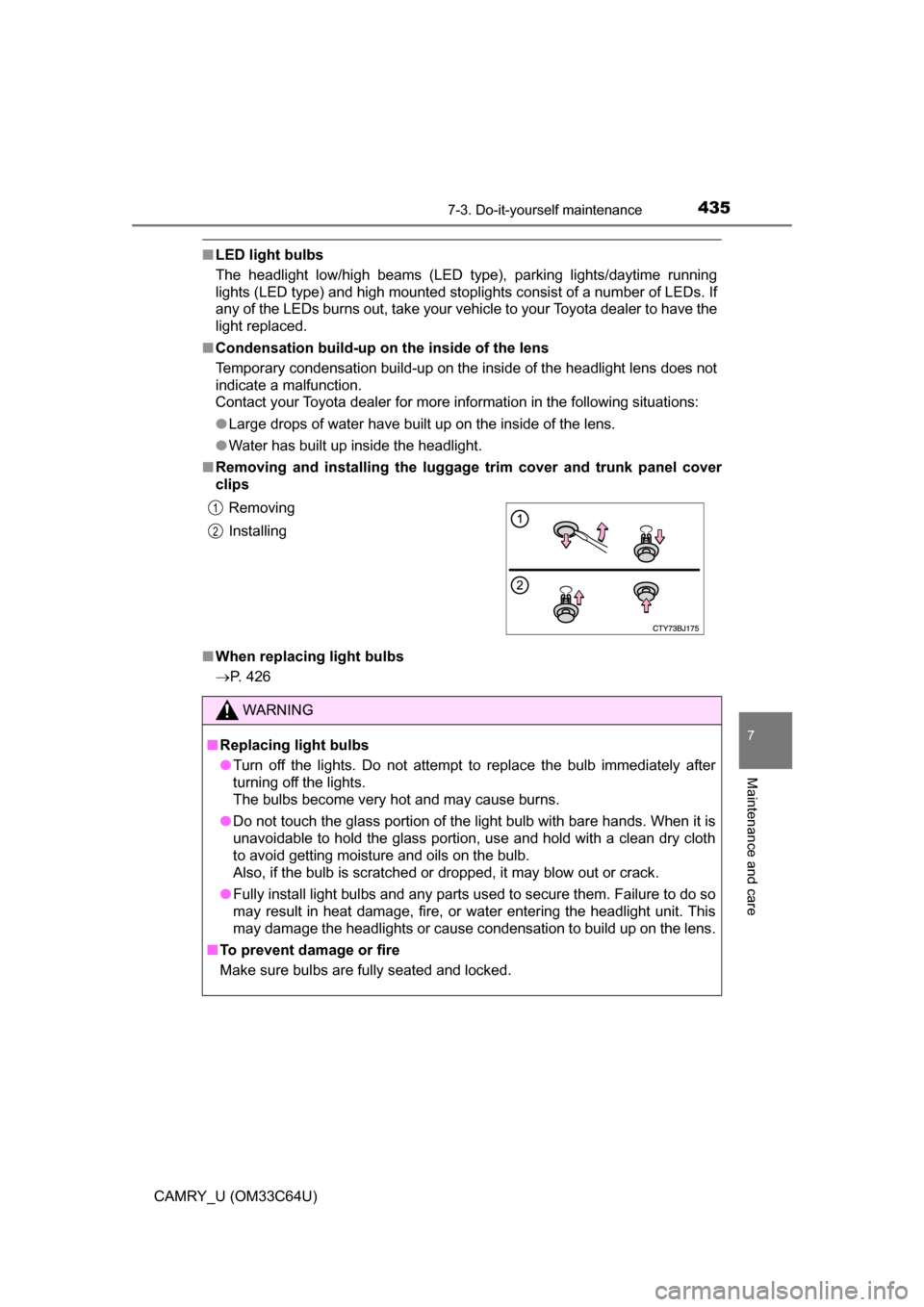

4357-3. Do-it-yourself maintenance
7
Maintenance and care
CAMRY_U (OM33C64U)
■LED light bulbs
The headlight low/high beams (LED ty pe), parking lights/daytime running
lights (LED type) and high mounted stoplights consist of a number of LEDs. If
any of the LEDs burns out, take your vehicle to your Toyota dealer to have the
light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ Removing and installing the luggag e trim cover and trunk panel cover
clips
■ When replacing light bulbs
P. 426Removing
Installing
WARNING
■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
1
2

4908-2. Steps to take in an emergency
CAMRY_U (OM33C64U)
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the batter y of your vehicle.
Vehicles with a smart key system: Open and close any of the doors
of your vehicle with the engine switch off.
Vehicles without a smart key system:
Maintain the engine speed of the second vehicle and turn the
engine switch to the “ON” position, then start the vehicle's engine.
Vehicles with a smart key system:
Maintain the engine speed of the second vehicle and turn the
engine switch to IGNITION ON mode, then start the vehicle's
engine.
Once the vehicle’s engine has star ted, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the v ehicle inspected at your Toyota
dealer as soon as possible.
■ Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■ When recharging or replacing the battery
●Vehicles with a smart key system: In some cases, it may not be possible to
unlock the doors using the smart key system when the battery is dis-
charged. Use the wireless remote control or the mechanical key to lock or
unlock the doors.
● Vehicles with a smart key system: The engine may not start on the first
attempt after the battery has recharged but will start normally after the sec-
ond attempt. This is not a malfunction.
5
6
7
8

5069-1. Specifications
CAMRY_U (OM33C64U)
*1: Light bulbs not listed in this table are LED bulbs.
*2: If equipped
Light bulbs*1
Light bulbsBulb No.WTy p e
ExteriorHeadlights
Low beam
(halogen bulbs)
*2
High beam
(halogen bulbs)
*2

9005 55
60A
B
Front side marker
lights W5W 5 C
Front turn signal/
parking lights
(bulb type)
*27444NA 28/8 D
Rear turn signal lights WY21W 21 D
Stop/tail/rear side
maker lights 7443 21/5 C
License plate lights W5W 5 C
Back-up lights 921 16 C
Interior Front interior/
personal lights
*2
5C
Rear interior/
personal lights
*2 8C
Interior light
*2 8E
Door courtesy lights 168 5 C
Vanity lights
*2 8C
Trunk light 194 3.8 C
A: H11 halogen bulbs
C: Wedge base bulbs (clear)
E: Double end bulbs B: HB3 halogen bulbs
D: Wedge base bulbs (amber)

5299-2. Customization
9
Vehicle specifications
CAMRY_U (OM33C64U)■
Turn signal lever (
P. 164)
*1: After flashing the turn signal lights when turning left or right while this func-
tion is off and the turn signal lever is moved to the first position in the direc-
tion of the flashing light, the turn signal lights can be selected to be flashing
or off.
*2: The turn signal lights will be off if the turn signal lever is moved to the firstposition in the direction of flashing light.
■
Automatic light control system ( P. 166)
■Lights ( P. 166, 170)
*: If equipped
FunctionDefault settingCustomized set-
ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is
moved to the first posi-
tion during a lane
change
*1
3
Off*2
——O4 to 7
123
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityLevel 3Level 1 to 5OOO
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
OOO60 seconds
90 seconds
123
FunctionDefault settingCustomized set-ting
Daytime running light
system (except Canada)OnOffOOO
Automatic high beam*OnOff—OO
123

558Alphabetical index
CAMRY_U (OM33C64U)
Hands-free system (for cellular phone)
*..... 276, 289
Head restraints ........................ 123
Headlights ................................ 166 Automatic High Beam
system ......... ....................... 170
Light switch ........................... 166
Replacing light bulbs ................... 428, 429, 434
Wattage ................................ 506
Heaters
Outside rear view mirrors ........................ 327, 333
Seat heaters ......................... 337
Hood ......................................... 390
Hooks Coat hooks............................ 357
Grocery bag hooks ............... 351
Retaining hooks (floor mat)..... 24
Horn .......................................... 125 I/M test ...................................... 387
Identification ............................ 499
Engine .................................. 499
Vehicle .................................. 499
Ignition switch
(engine switch) .............. 153, 155
Illuminated entry system ........ 341
Immobilizer system ................... 67
Indicators ................................... 75
Initialization Maintenance ......................... 381
Moon roof ............................. 136
Power windows..................... 132
Tire pressure
warning system .... .............. 404
Inside rear view mirror ............ 127
Instrument panel light control ...................................... 78
Interior lights ........................... 340 Switch ................................... 340
Wattage ................................ 506
Jack Positioning the jack............... 391
Vehicle-equipped jack .......... 471
Jack handle .............................. 471
Jam protection function
Moon roof ............................. 135
Power window ...................... 132
