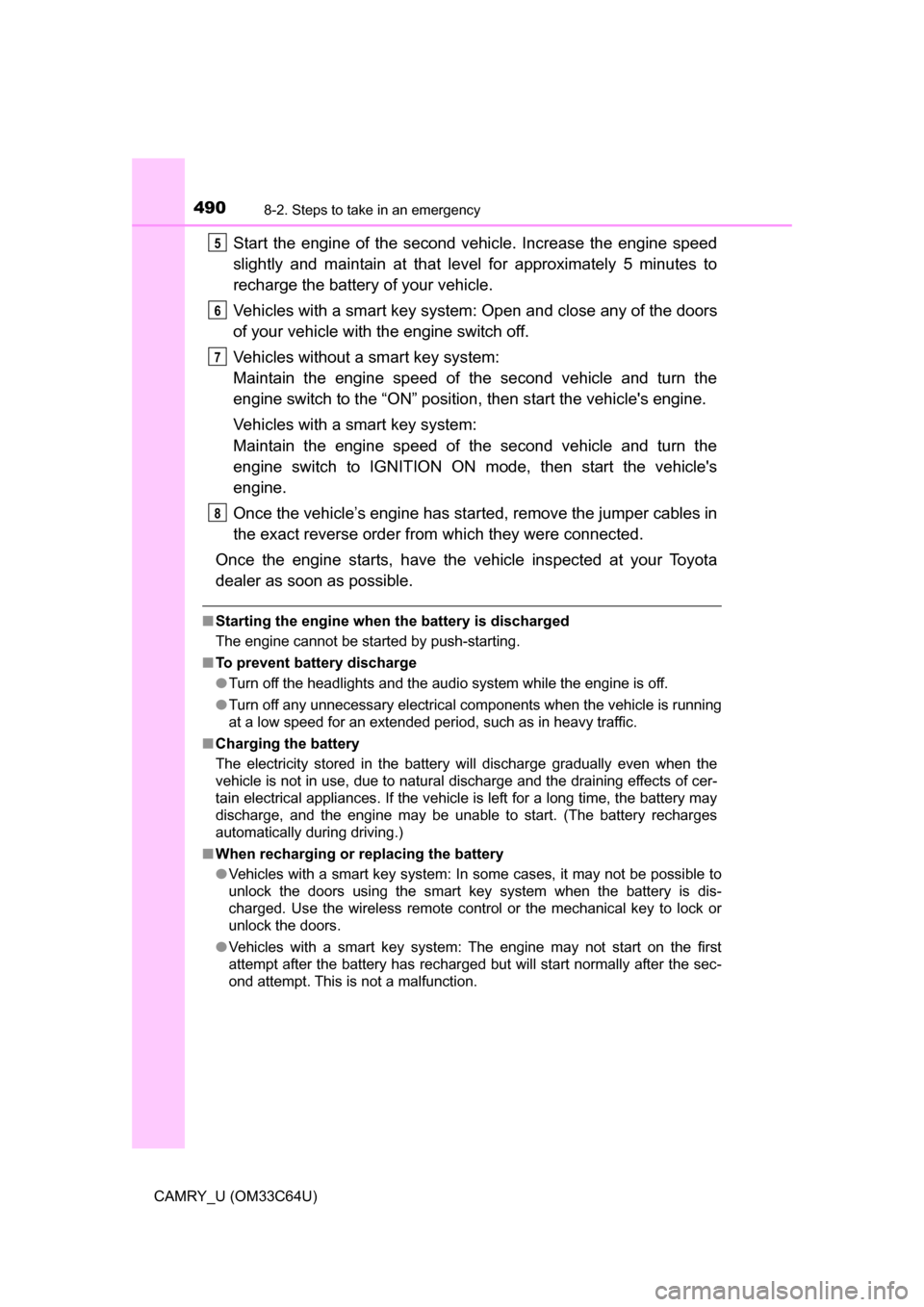

4908-2. Steps to take in an emergency
CAMRY_U (OM33C64U)
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the batter y of your vehicle.
Vehicles with a smart key system: Open and close any of the doors
of your vehicle with the engine switch off.
Vehicles without a smart key system:
Maintain the engine speed of the second vehicle and turn the
engine switch to the “ON” position, then start the vehicle's engine.
Vehicles with a smart key system:
Maintain the engine speed of the second vehicle and turn the
engine switch to IGNITION ON mode, then start the vehicle's
engine.
Once the vehicle’s engine has star ted, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the v ehicle inspected at your Toyota
dealer as soon as possible.
■ Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■ To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■ When recharging or replacing the battery
●Vehicles with a smart key system: In some cases, it may not be possible to
unlock the doors using the smart key system when the battery is dis-
charged. Use the wireless remote control or the mechanical key to lock or
unlock the doors.
● Vehicles with a smart key system: The engine may not start on the first
attempt after the battery has recharged but will start normally after the sec-
ond attempt. This is not a malfunction.
5
6
7
8

555Alphabetical index
CAMRY_U (OM33C64U)
Door lockDoors ...................................... 99
Key........................................ 100
Smart key system ................... 99
Wireless remote control .......... 99
Doors .......................................... 99 Automatic door locking and unlocking systems ....... 103
Door lock............................... 102
Door windows ....................... 131
Open door warning ............... 455
Open door warning buzzer ... 101
Outside rear view mirrors...... 129
Rear door child-protector ...... 103
Driving ...................................... 140 Break-in tips .......................... 141
Correct posture ....................... 26
Procedures ........................... 140
Winter drive tips .................... 234
Dynamic radar cruise
control .................................... 186 Eco Driving Indicator ................ 79
EDR (Event data recorder)........ 10
Electric Power Steering
(EPS) ...................................... 214 Function ................................ 214
Warning light......................... 447
Electronic key ............................ 92 Battery-saving function ......... 115
If the electronic key does not
operate properly ................. 485
Replacing the battery............ 420
Emergency flashers ................ 438
Emergency, in case of If a warning buzzer
sounds................................ 446
If a warning light turns on ..... 446
If a warning message or indicator is displayed .......... 454
If the battery is discharged ... 488
If the electronic key does not operate properly ................. 485
If the engine will not start ...... 482
If the shift lever cannot be shifted from P ..................... 484
If you have a flat tire ............. 470
If you think something is wrong ................................. 444
If your vehicle becomes stuck ................................... 495
If your vehicle has to be
stopped in an emergency ... 439
If your vehicle needs to be towed.................................. 441
If your vehicle overheats....... 492E
*: For vehicles with a Entune Premium Audio or Entune Audio Plus,
refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.

563Alphabetical index
CAMRY_U (OM33C64U)
SensorAutomatic headlight
system ......... ....................... 167
Automatic High Beam system ......... ....................... 175
Inside rear view mirror .......... 128
LDA (Lane Departure Alert) ................................... 199
Radar sensor ........ 194, 220, 224
Shift lever ................................. 160 Automatic transmission......... 160
If the shift lever cannot
be shifted from P ................ 484
S mode ................................. 161
Shift lock system ..................... 484
Side airbags ............................... 35
Side marker lights ................... 166 Light switch ........................... 166
Replacing light bulbs..... 429, 431
Wattage ................................ 506
Side mirrors ............................. 129 Adjusting and folding ............ 129
BSM (Blind Spot Monitor) ..... 226
Smart key system .................... 112 Antenna location ................... 112
Entry functions ................ 99, 107
Starting the engine................ 155
Warning message ................. 464
Snow tires ................................ 236
Spare tire .................................. 470 Inflation pressure .................. 504
Storage location .................... 471 Spark plug ................................ 502
Specifications .......................... 498
Speech command system
*
Speedometer.............................. 77
Steering lock
Column lock release ............. 154
Warning message................. 467
Steering wheel ......................... 125
Adjustment............................ 125
Audio remote control switches
*........................... 244
Meter control switches ............ 82
Stop/tail lights Replacing light bulbs ............ 431
Wattage ................................ 506
Storage feature ........................ 342
Stuck If the vehicle becomes stuck ................................... 495
Sun shade
Roof ...................................... 135
Sun visors ................................ 352
*: For vehicles with a Entune Premium Audio or Entune Audio Plus,
refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
