2017 TOYOTA CAMRY load capacity

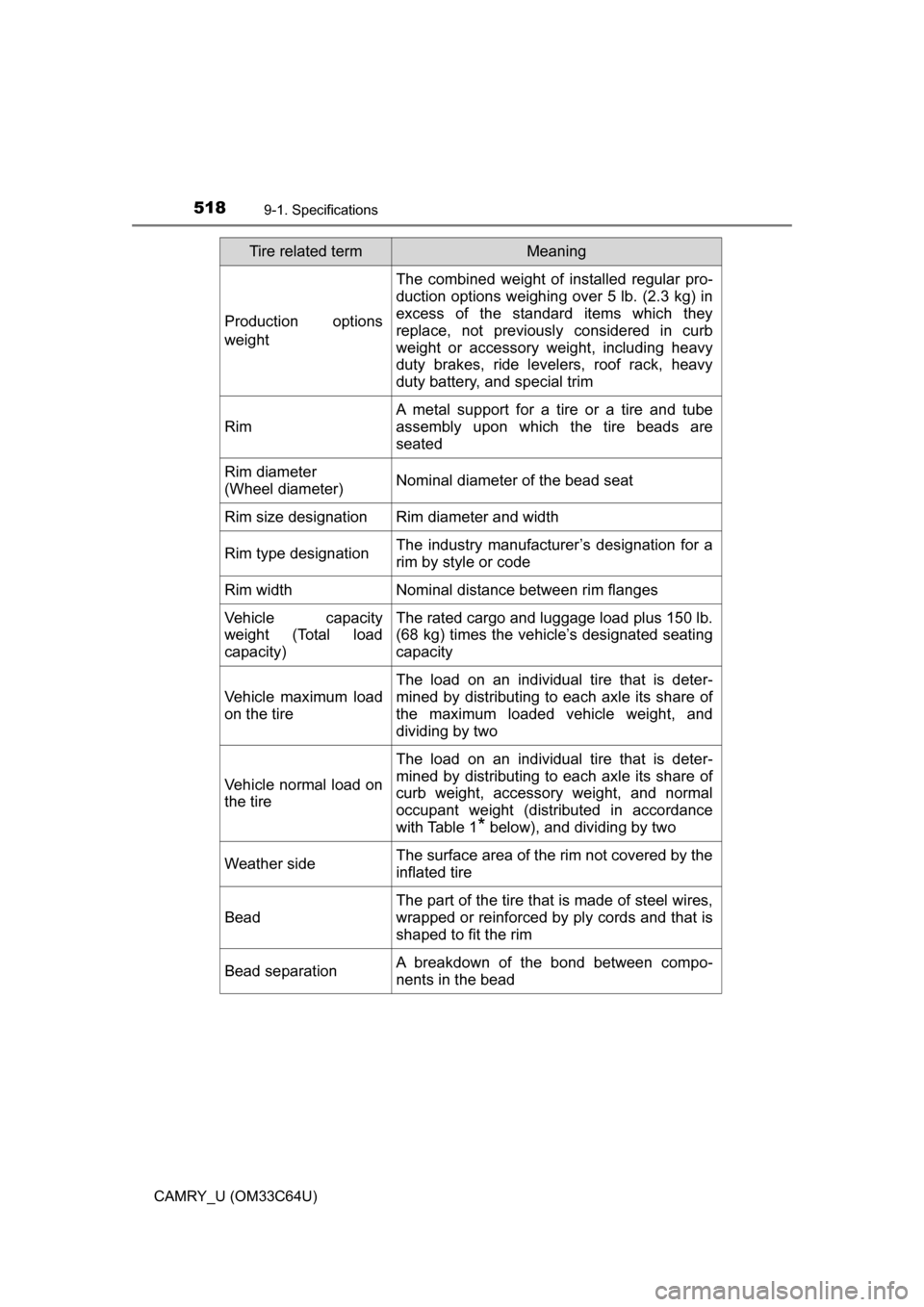

5189-1. Specifications
CAMRY_U (OM33C64U)
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a
rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
curb weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1
* below), and dividing by two
Weather sideThe surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separationA breakdown of the bond between compo-
nents in the bead
Tire related termMeaning

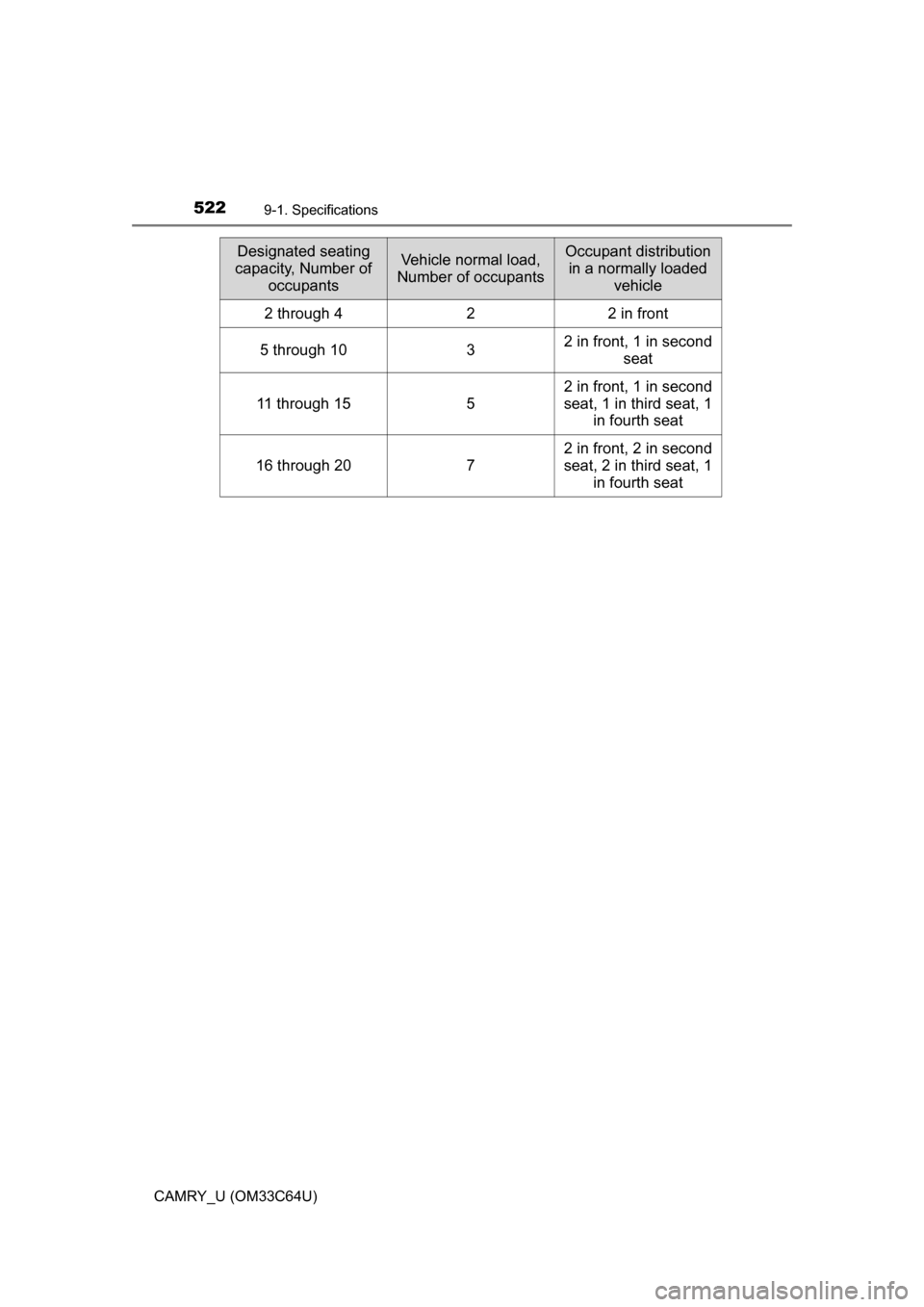

5229-1. Specifications
CAMRY_U (OM33C64U)
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second
seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat

559Alphabetical index
CAMRY_U (OM33C64U)
Keyless entrySmart key system ........... 99, 107
Wireless remote
control........................... 99, 108
Keys ............................................ 92
Battery-saving function ......... 115
Electronic key ......................... 92
Engine switch................ 153, 155
If the electronic key does not operate properly ........... 485
If you lose your keys ............... 95
Key number plate.................... 92
Keyless entry .......................... 93
Mechanical key ....................... 94
Replacing the battery ............ 420
Warning buzzer..................... 101
Wireless remote control .......... 93
Knee airbags .............................. 34 Lane Departure Alert (LDA) .... 199
LATCH anchors ......................... 59
LDA (Lane Departure Alert) .... 199
Lever
Auxiliary catch lever.............. 390
Fuel filler door opener........... 178
Hood lock release lever ........ 390
Internal trunk release lever ... 109
Shift lever.............................. 160
Tilt and telescopic steering lock release lever ............... 125
Trunk opener ........................ 107
Turn signal lever ................... 164
Wiper lever ........................... 176
License plate lights ................. 166 Light switch ........................... 166
Replacing light bulbs ............ 434
Wattage ................................ 506
Light bulbs Replacing.............................. 427
Wattage ................................ 506
Lights Automatic High Beam
system .......... ...................... 170
Headlight switch ................... 166
Illuminated entry system ....... 341
Interior lights ......................... 340
Interior lights list.................... 339
Personal lights ...................... 340
Replacing light bulbs ............ 427
Trunk light ............................. 109
Turn signal lever ................... 164
Vanity lights .......................... 352
Wattage ................................ 506
Load capacity .......................... 150
Lock steering column ............. 125
KL
*: For vehicles with a Entune Premium Audio or Entune Audio Plus,
refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.

565Alphabetical index
CAMRY_U (OM33C64U)
Tires .......................................... 403Chains................................... 235
Checking ............................... 403
If you have a flat tire ............. 470
Inflation pressure .................. 504
Information ............................ 510
Replacing .............................. 470
Rotating tires......................... 403
Size ....................................... 504
Snow tires ............................. 236
Spare tire .............................. 470
Tire pressure warning
system ......... ....................... 404
Warning light ......................... 448
Warning message ......... 459, 460
Tools ......................................... 471
Top tether strap ......................... 63
Total load capacity .................. 150
Towing Dinghy towing ....................... 152
Emergency towing ................ 441
Trailer towing ........................ 151
TRAC (Traction Control) ......... 214
Traction Control (TRAC) ......... 214
Trailer towing .......................... 151 Transmission ........................... 160
Automatic transmission ........ 160
If the shift lever cannot be
shifted from P ..................... 484
Paddle shift switches ............ 162
S mode ................................. 161
Trip information ......................... 78
Trip meters ................................. 77
Trunk ........................................ 107 Grocery bag hooks ............... 351
Internal trunk release lever ... 109
Smart key system ................. 107
Trunk light ............................. 109
Trunk opener ........................ 107
Wireless remote control ........ 108
Trunk light Trunk light ............................. 109
Wattage ................................ 506
Turn signal lights .................... 164 Replacing light bulbs .... 430, 431
Turn signal lever ................... 164
Wattage ................................ 506
*: For vehicles with a Entune Premium Audio or Entune Audio Plus,
refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.

567Alphabetical index
CAMRY_U (OM33C64U)
Washing and waxing ............... 374
Weight....................................... 498Cargo capacity ...................... 150
Load limits............................. 150
Vehicle capacity weight ........ 498
Wheels ...................................... 416 Replacing .............................. 416
Size ....................................... 504
Window lock switch ................ 131
Windows ................................... 131 Power windows ..................... 131
Rear window
defogger ..................... 327, 333
Windshield wipers ................... 176
Winter driving tips ................... 234
Wireless remote control............ 93 Battery-Saving Function ....... 115
Locking/Unlocking........... 99, 108
Replacing the battery ............ 420
WMA disc
*............................... 261
*: For vehicles with a Entune Premium Audio or Entune Audio Plus,
refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
