TABLE OF CONTENTS6
CAMRY_HV_U (OM33C65U)7-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 378
Cleaning and protecting the vehicle interior ........... 381
7-2. Maintenance Maintenance requirements ................... 384
General maintenance ........ 387
Emission inspection and maintenance (I/M)
programs ......................... 391
7-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 392
Hood.................................. 394
Positioning a floor jack ...... 395
Engine compartment ......... 396
12-volt battery ................... 404
Tires .................................. 408
Tire inflation pressure........ 418
Wheels .............................. 421
Air conditioning filter .......... 423
Electronic key battery ........ 425
Checking and replacing fuses ................ 427
Light bulbs ......................... 430 8-1. Essential information
Emergency flashers ........... 440
If your vehicle has to be stopped
in an emergency .............. 441
8-2. Steps to take in an emergency
If your vehicle needs to be towed ........... 442
If you think something is wrong............................... 445
If a warning light turns on or a warning
buzzer sounds ................. 446
If a warning message or indicator is displayed ....... 455
If you have a flat tire .......... 473
If the hybrid system will not start ..................... 484
If the shift lever cannot be shifted from P ............. 486
If the electronic key does not operate properly ........ 487
If the vehicle 12-volt battery is discharged ....... 490
If your vehicle overheats.... 496
If the vehicle becomes stuck ................ 500
7Maintenance and care8When trouble arises

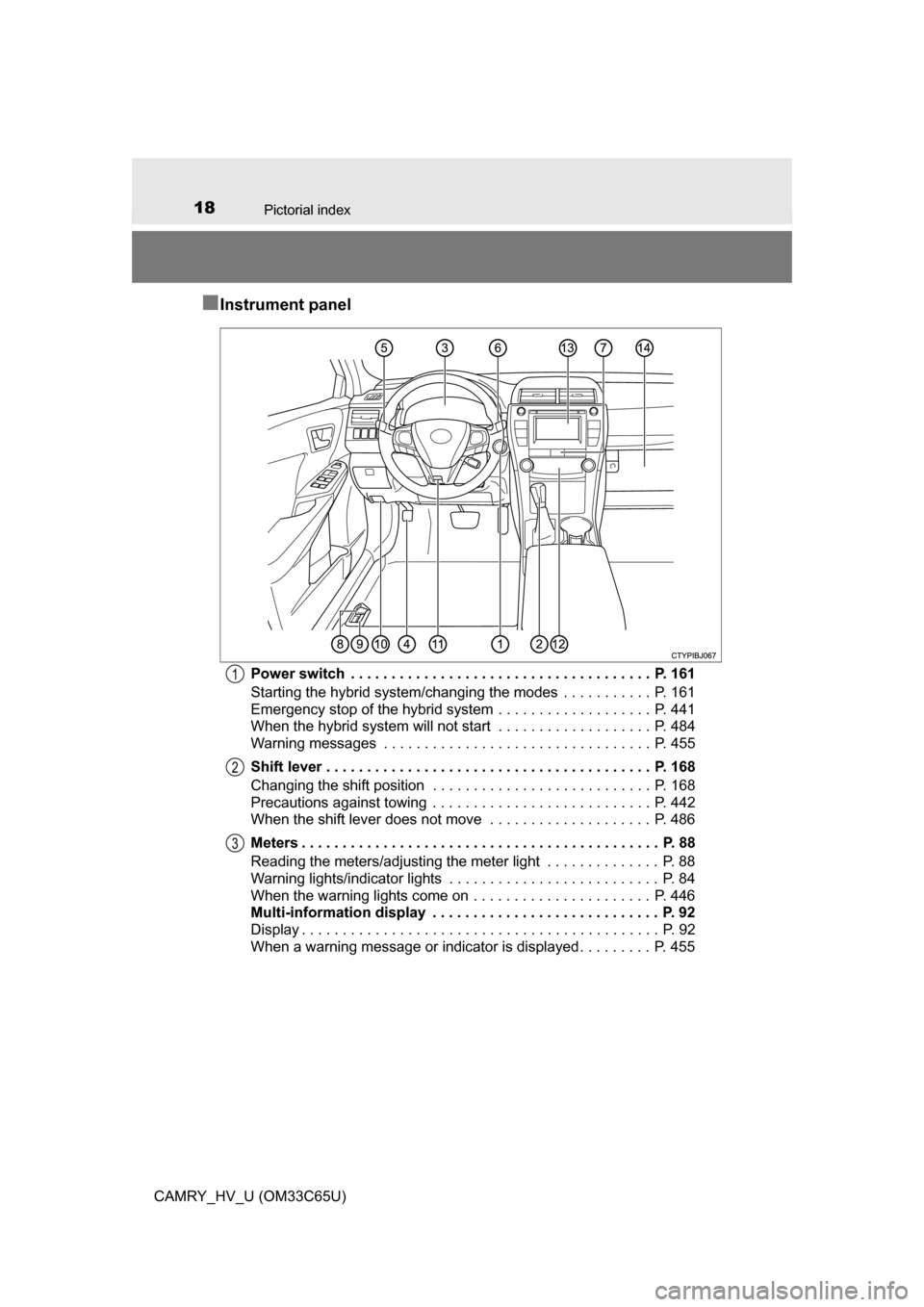

18Pictorial index
CAMRY_HV_U (OM33C65U)
■Instrument panel
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
Starting the hybrid system/changing the modes . . . . . . . . . . . P. 161
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 441
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 484
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 442
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 486
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 88
Reading the meters/adjusting the meter light . . . . . . . . . . . . . . P. 88
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 84
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 446
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 92
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 92
When a warning message or indicator is displayed . . . . . . . . . P. 4551
2
3

291-1. For safe use
1
For safety and security
CAMRY_HV_U (OM33C65U)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (P. 136, 138)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

701-2. Hybrid system
CAMRY_HV_U (OM33C65U)
◆When stopped/during start off
The gasoline engine stops
*, when the vehicle is stopped. During
start off, the electric motor (traction motor) drives the vehicle. At
slow speeds or when traveling down a gentle slope, the engine is
stopped
*, and the electric motor (traction motor) is used.
When the shift lever is in N, the hybrid battery (traction battery) is
not being charged. When the v ehicle is stopped, always put the
shift lever to P.
Also, even in heavy traffic conditio ns, drive the vehicle in D or B.
*When the hybrid battery (traction battery) requires charging or the engine
is warming up, etc., the gasoline engine will not automatically stop.
( P. 71)
◆During normal driving
The gasoline engine is predomin antly used. The electric motor
(traction motor) charges the hybrid battery (traction battery) as nec-
essary.
◆When accelerating sharply
When the accelerator pedal is depressed heavily, the power of the
hybrid battery (traction battery) is added to that of the gasoline
engine via the electric motor (traction motor).
◆When braking (regenerative braking)
The wheels operate the electric motor (traction motor) as a power
generator, and the hybrid battery (traction battery) is charged.
When the gasoline engine is off while driving, a sound is produced to
warn pedestrians, people riding bi cycles or other people and vehicles
in the surrounding area that the vehi cle is approaching. The pitch of
the sound adjusts according to vehi cle speed. When vehicle speed is
approximately 16 mph (25 km/h) or more, the warning system turns
off.
Vehicle proximity notification system

711-2. Hybrid system
1
For safety and security
CAMRY_HV_U (OM33C65U)
■Regenerative braking
In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).
●The accelerator pedal is released while driving with the shift lever in D or B\
.
● The brake pedal is depressed while driving with the shift lever in D or B.
■ EV indicator
■ Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:
●During gasoline engine warm-up
● During hybrid battery (traction battery) charging
● When the temperature of the hybrid battery (traction battery) is high or low
● When the heater is switched on
■ Charging the hybrid battery (traction battery)
As the gasoline engine charges the hybrid battery (traction battery), the bat-
tery does not need to be charged from an outside source. However, if the
vehicle is left parked for a long time the hybrid battery (traction battery) will
slowly discharge. For this reason, be sure to drive the vehicle at least once
every few months for at least 30 minutes or 10 miles (16 km). If the hybrid
battery (traction battery) becomes fully discharged and you are unable to start
the hybrid system, contact your Toyota dealer.
■ Charging the 12-volt battery
P. 493
■ After the 12-volt battery has dischar ged or when the terminal has been
removed and installed during exchange, etc.
The gasoline engine may not stop even if the vehicle is being driven by the
hybrid battery (traction battery). If this continues for a few days, contact your
Toyota dealer. The EV indicator comes on when the
vehicle is driven using only the electric
motor (traction motor) or the gasoline
engine is stopped.

721-2. Hybrid system
CAMRY_HV_U (OM33C65U)■
Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibration even though the vehicle is able to
move with the “READY” indicator is illuminated. For safety, apply the parking
brake and make sure to shift the shift lever to P when parked.
The following sounds or vibrations may occur when the hybrid system is
operating and are not a malfunction:
●Motor sounds may be heard from under the vehicle.
● Sounds may be heard from the hybrid battery (traction battery) behind the
rear seats when the hybrid system starts or stops.
● Relay operating sounds such as a snap or soft clank will be emitted from the
hybrid battery (traction battery), behind the rear seats, when the hybrid sys-
tem is started or stopped.
● Sounds from the hybrid system may be heard when the trunk lid is open.
● Sounds may be heard from the transmission when the gasoline engine
starts or stops, when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is
depressed or as the accelerator pedal is released.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vent beside the rear
left seat.
■ Vehicle proximity notification system
In the following cases, the Vehicle Proximity Notification System sound may
be difficult for pedestrians, people ridi ng bicycles or other people and vehicles
in the surrounding area to hear:
● When there is a lot of noise in the vicinity
● When it is raining or during strong winds
● When in the area surrounding the rear of the vehicle, rather than in front of
the vehicle
■ Maintenance, repair, recycling, and disposal
Contact your Toyota dealer regarding maintenance, repair, recycling and dis-
posal. Do not dispose of the vehicle yourself.

741-2. Hybrid system
CAMRY_HV_U (OM33C65U)
There is an air intake vent beside
the rear left seat for the purpose
of cooling the hybrid battery (trac-
tion battery). If the vent becomes
blocked, the hybrid battery may
overheat, leading to a reduction in
hybrid battery output.
When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks the high voltage current and stops
the fuel pump to minimize the risk of electrocution and fuel leakage. If
the emergency shut off sy stem activates, your vehicle will not restart.
To restart the hybrid system, contact your Toyota dealer.
A message is automatically displa yed when a malfunction occurs in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the
instructions. ( P. 455)
Hybrid battery (traction battery) air intake vent
Emergency shut off system
Hybrid warning message

78
CAMRY_HV_U (OM33C65U)
1-3. Theft deterrent system
The indicator light flashes after
the power switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the power switch has been
turned to ACCESSORY or ON
mode to indicate that the system
has been canceled.
Immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.
