7078-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
■ If “See Owner’s Manual” is shown
● If “Braking Power Low Stop in a Safe Place See Owner’s Manual” is shown,
this may be a malfunction. Immediately stop the vehicle in a safe place and
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer. Continuing to drive the vehicle may be dangerous.
● Vehicles with a color display:
If “Entry & Start System Malfunction See Owner’s Manual” is shown, there
may be a malfunction. Immediately have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
■ If “Charging System Malfunction” is shown
Indicates a malfunction in the vehicle’s charging system. Immediately stop
the vehicle in a safe place and contact any authorized Toyota retailer or
Toyota authorized repairer, or any reli able repairer. Continuing to drive the
vehicle may be dangerous.
■ If “Engine Coolant Temperature high” is shown
Indicates that the engine coolant temperature is too high. Immediately stop
the vehicle in a safe place. ( P. 756)
■ If “Engine Oil Pressure Low” is shown
Indicates that the engine oil pressure is too low. Immediately stop the vehicle
in a safe place and contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
■ If “AWD System Malfunction 2WD Mode Engaged Visit Your Dealer” is
shown (AWD models only)
Indicates a malfunction in the AWD system. The AWD system turns off and
the vehicle switches to front wheel drive.
Have the vehicle inspected by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.

7088-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E
■ If the following messages are shown (AWD models only)
The system may be an overheated. Reduce the vehicle speed or stop the
vehicle in a safe place.
• “AWD System Overheated 2WD Mode Engaged”
• “AWD System Overheated Switching to 2WD Mode”
■ If “Oil Maintenance Required Soon” is shown
Indicates that the engine oil is scheduled to be changed. (The indicator will
not work properly unless the message has been reset.)
Check the engine oil, and change if necessary. After changing the engine oil,
the message should be reset. ( P. 621)
■ If “Oil Maintenance Required Visit Your Dealer.” is shown
Indicates that the engine oil should be changed. (After the engine oil is
changed and the message has been reset.)
Check and change the engine oil, and oil filter by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer. After changing
the engine oil, the message should be reset. ( P. 621)
■ If “A New Key has been Registered Contact Your Dealer for Details” is
shown (vehicles with a smart entry & start system)
This message will be displayed each time the driver's door is opened when
the doors are unlocked from the outside for approximately one week after a
new electronic key has been registered.
If this message is displayed but you have not had a new electronic key regis-
tered, ask any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer to check if an unknown electronic key (other than those in
your possession) has been registered.

7098-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
■ If “Front camera unavailable” or “Front camera vision blocked Clean and
demist windshield” is displayed.
The following systems may be suspended until the problem shown in the
message is resolved.
● PCS (Pre-Collision System)*
●LDA (Lane Departure Alert with steering control)*
●Dynamic radar cruise control with full-speed range*
●Dynamic radar cruise control*
●Automatic High Beam*
*: If equipped
■ Warning buzzer
 P. 701

7208-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E
Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch on, the
tire is too damaged to be
repaired. Turn the compres-
sor switch off and contact any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
• If the tire inflation pressure exceeds the specified air pressure, let out
some air to adjust the tire inflation pressure. ( P. 724, 772)
15
1
2
3

7488-2. Steps to take in an emergency
C-HR_OM_Europe_OM10528E
Multidrive: Ensure that the shift lever is in P and depress the brake
pedal.
Manual transmission: Shift the shift lever to N and depress the
clutch pedal.
Touch the Toyota emblem side
of the electronic key to the
engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the engine switch will turn
to ACCESSORY mode.
Firmly depress the brake pedal (Multidrive) or clutch pedal (manual
transmission) and check that and messages are shown on
the multi-information display.
Press the engine switch.
In the event that the engine still cannot be started, contact any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
Starting the engine
1
2
3
4

7598-2. Steps to take in an emergency
8
When trouble arises
C-HR_OM_Europe_OM10528E
If the vehicle becomes stuck
Stop the engine. Shift the shift lever to P (Multidrive) or N (manual
transmission), and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (Multidrive) or 1 or R (manual trans-
mission) and release the parking brake. Then, while exercising cau-
tion, depress the accelerator pedal.
■ When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
A message will be shown on the multi-
information display.
1
2
3
4
5

7679-1. Specifications
9
Vehicle specifications
C-HR_OM_Europe_OM10528E

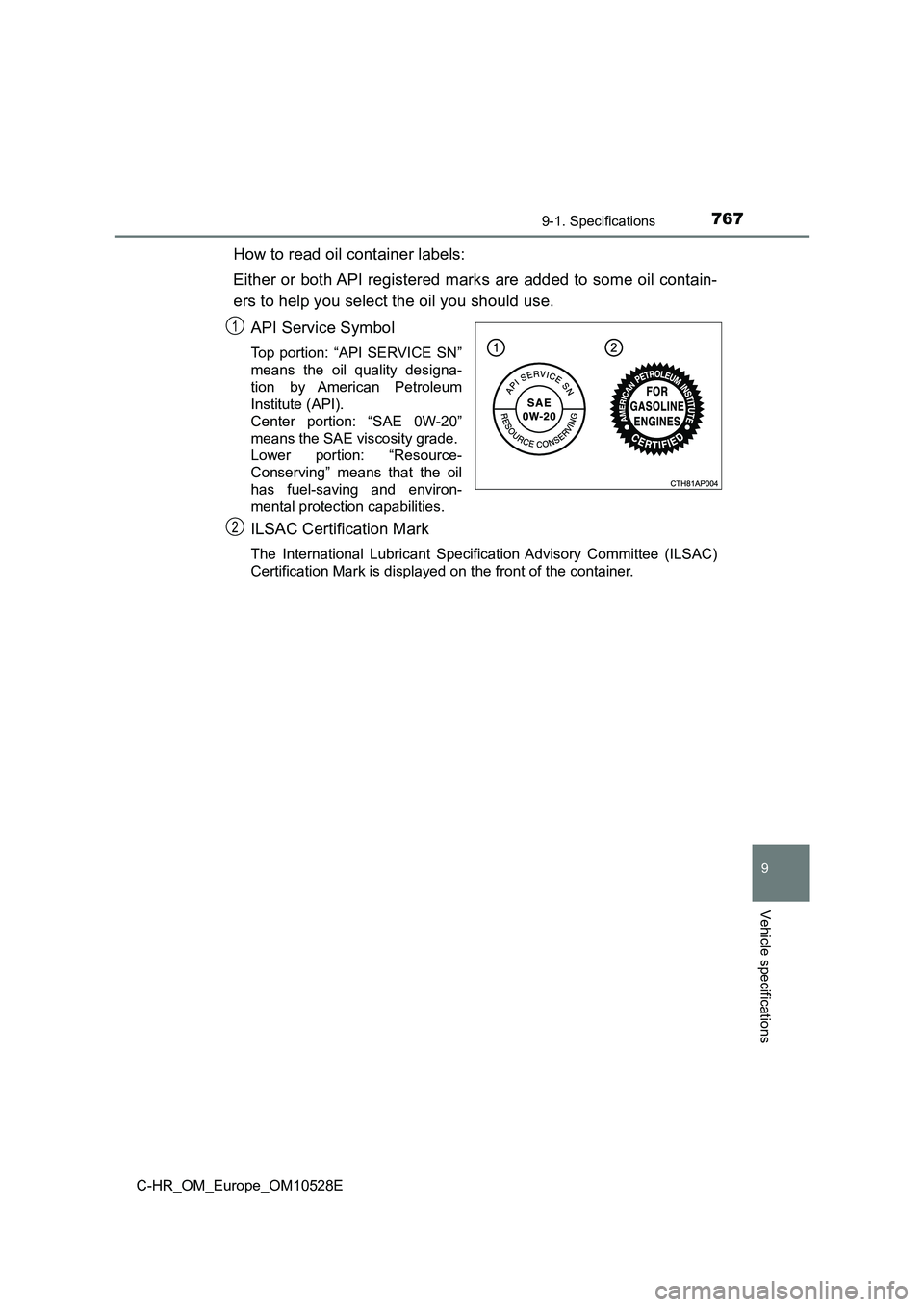

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

7769-2. Customization
C-HR_OM_Europe_OM10528E
Customizable features
■Changing using the multi-information display
Vehicles with monochrome display
Press the “DISP” switch to display the setting screen while the
vehicle is stopped, and then press and hold the “DISP” switch to
display the customize mode screen.
Press the “DISP” switch and select the item, and then press and
hold the “DISP” switch.
Press the “DISP” switch and select the desired setting, and then
press and hold the “DISP” switch.
To exit the customize mode, press the “DISP” switch to select the
“EXIT”, and then press and hold the “DISP” switch.
Your vehicle includes a variety of electronic features that can be
personalized to your preferences. The settings of these features
can be changed using the multi-information display, on the navi-
gation/multimedia system or at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Customizing vehicle features
1
