2017 TOYOTA AYGO display

1464-1. Before driving
AYGO_OM_Europe_OM99Q24E
Multi-mode manual transmission
With the brake pedal depressed, firmly set the parking brake and
shift the shift lever to E or M.
When shifting the shift lever to E: Make sure that the display of the gear
position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the gear
position indicator shows 1.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as gradually
releasing the clutch pedal.
Release the parking brake.
■ When starting off on a uphill (vehicles with a hill-start assist control)
The hill-start assist control will activate. ( P. 223)
■ Driving in the rain
● Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
● For the first 300 km (200 miles):
Avoid sudden stops.
● For the first 1000 km (600 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
Starting off on a steep uphill

1644-2. Driving procedures
AYGO_OM_Europe_OM99Q24E
Shift the shift lever to M and operate the shift lever or paddle shift
switch.
Upshifting
Downshifting
When the accelerator pedal is
depressed further, while driving,
downshifting will be performed.
Shifting operation may be
restricted depending on the vehicle
speed.
When the shift position is in E, the paddle shift switches can be used
to select a gear position temporarily. When a gear position is selected,
the gear position will be displayed.
Upshifting
Downshifting
Changing gear positions in M mode
1
2
Changing gear positions in E mode
1
2

1674-2. Driving procedures
4
Driving
AYGO_OM_Europe_OM99Q24E
WARNING
■Gear Shift Indicator display
For safety, the driver should not look onl y a the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.

1694-2. Driving procedures
4
Driving
AYGO_OM_Europe_OM99Q24E
■Gear Shift Indicator display
The Gear Shift Indicator may not be displayed when your foot is placed on
the clutch pedal.
■ Maximum downshifting speed
Observe the downshifting speeds in the following table to prevent over-
revving the engine.
km/h (mph)
Shift positionMaximum speed
1KR engineHM01 engine
152 (32)51 (32)
297 (60)97 (60)
3142 (88)137 (85)
4170 (106)
WARNING
■ Gear Shift Indicator display
For safety, the driver should not look only at the display. Refer to the display
when it is safe to do so while consi dering actual traffic and road conditions.
Failure to do so may lead to an accident.

1964-5. Toyota Safety Sense
AYGO_OM_Europe_OM99Q24E
■Changing the pre-crash warning timing
Press the PCS switch to turn on the PCS activation indicator and
display the current warning timing in the drive monitor display. Each
time the PCS switch is pressed in the displayed state, the timing for
the warning changes as follows:
If the operation timing setting has been changed, the setting will be
retained the next time the engine is started.
Far
The warning will begin to oper-
ate earlier than with the default
timing.
Middle
This is the default setting.
Near
The warning will begin to oper-
ate later than with the default
timing.
1
2
3

2124-6. Using the driving support systems
AYGO_OM_Europe_OM99Q24E
Speed limiter
A desired maximum speed can be set using the speed limiter switch.
The speed limiter prevents vehicle speed from exceeding the set
speed.
Indicator
Speed limiter switch
Display
*1: For 1KR engine
*2: For HM01 engine
1KR engine
Press the “ON-OFF” button to
activate the speed limiter.
Press the button once more to
deactivate the speed limiter.
: If equipped
Summary of functions
*1*2
*11
2
3
Setting the speed limiter

2144-6. Using the driving support systems
AYGO_OM_Europe_OM99Q24E
1KR engine
Cancel
Pull the lever towards you to can-
cel the speed limiter.
Resume
To resume use of the speed limiter,
push the lever up.
HM01 engine
Cancel/Resume
Pulling the lever towards you can-
cels the speed limiter. Pulling the
lever towards you again resumes
the speed limiter.
■ When setting the speed limiter
If the vehicle speed is set lower than 30 km/h (20 mph), the desired maximum
speed is set to 30 km/h (20 mph).
■ Exceeding the set speed
In the following situations, when the vehicle speed exceeds the set speed,
the display characters will flash:
● When fully depressing the accelerator pedal
● When driving down a slope (a warning buzzer will sound)
■ When the speed limiter is operating (1KR engine only)
Speed limiter information is displayed in the drive monitor display when it is
operating. When the display is switched over to another display, the speed
limiter information returns after 6 seconds.
Canceling and resuming the speed limiter
1
2

2214-6. Using the driving support systems
4
Driving
AYGO_OM_Europe_OM99Q24E

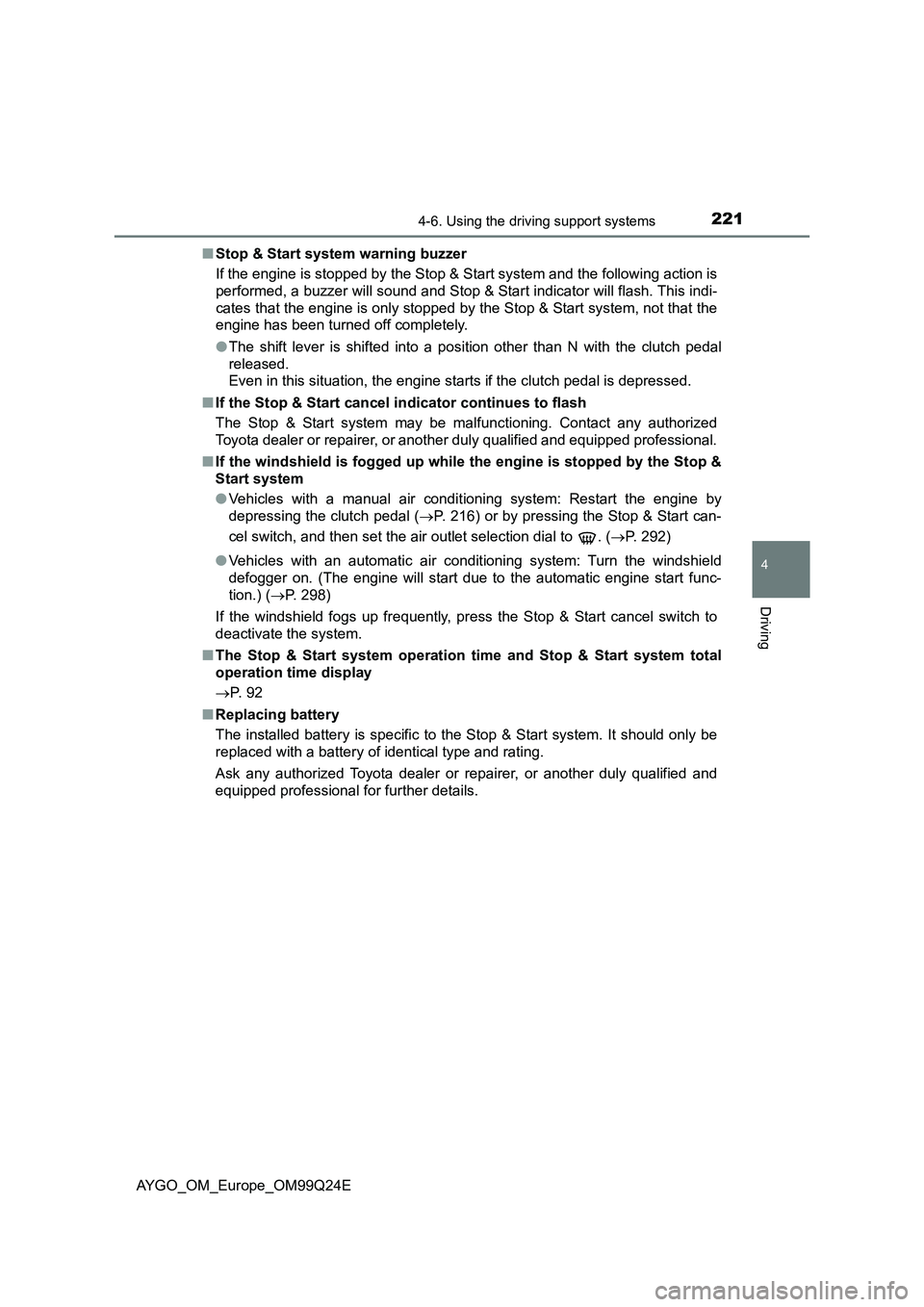

■ Stop & Start system warning buzzer
If the engine is stopped by the Stop & Start system and the following action is
performed, a buzzer will sound and Stop & Start indicator will flash. This indi-
cates that the engine is only stopped by the Stop & Start system, not that the
engine has been turned off completely.
● The shift lever is shifted into a position other than N with the clutch pedal
released.
Even in this situation, the engine starts if the clutch pedal is depressed.
■ If the Stop & Start cancel indicator continues to flash
The Stop & Start system may be malfunctioning. Contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.
■ If the windshield is fogged up while the engine is stopped by the Stop &
Start system
● Vehicles with a manual air conditioning system: Restart the engine by
depressing the clutch pedal ( P. 216) or by pressing the Stop & Start can-
cel switch, and then set the air outlet selection dial to . ( P. 292)
● Vehicles with an automatic air conditioning system: Turn the windshield
defogger on. (The engine will start due to the automatic engine start func-
tion.) ( P. 298)
If the windshield fogs up frequently, press the Stop & Start cancel switch to
deactivate the system.
■ The Stop & Start system operation time and Stop & Start system total
operation time display
 P. 9 2
■ Replacing battery
The installed battery is specific to the Stop & Start system. It should only be
replaced with a battery of identical type and rating.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for further details.
