2704-5. Toyota Safety Sense
UK AURIS_HB_EE (OM12K97E)■If the PCS warning light flashes or illuminates and a warning message is
displayed on the multi-information display
The pre-crash safety system may be temporarily unavailable or there may be
a malfunction in the system.
●In the following situations, the warning light will turn off, the message will
disappear and the system will become operational when normal operating
conditions return:
• When the area around the front sensor is hot, such as in the sun
• When the windshield is fogged up or covered with condensation or ice
(P. 406, 413)
• When the front sensor or the area around either sensor is cold, such as in
an extremely cold environment
• If the area in front of the front sensor is obstructed, such as when the
hood is open
●If the PCS warning light continues to flash or illuminate or the warning mes-
sage does not disappear, the system may be malfunctioning. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately.
■If VSC is disabled
●If TRC and VSC are disabled (P. 334), the pre-crash safety brake assist
and pre-crash safety braking functions are also disabled. However, the pre-
crash safety warning function will still operate.
●The PCS warning light illuminates and “Pre-Crash Brake is disabled due to
VSC OFF.” is displayed on the multi-information display.
UK AURIS_HB_OM_Europe_OM12K97E.book 270 ページ ２０１６年６月２７日　月曜日　午後５時４２分

2714-5. Toyota Safety Sense
UK AURIS_HB_EE (OM12K97E)
4
Driving
When driving on roads with white (yellow) lines, this function alerts the
driver when the vehicle might depart from its lane.
The LDA system recognizes visi-
ble white (yellow) lines with the
front sensor on the upper portion
of the windshield.
When the system determines that
the vehicle might depart from its
lane, a warning is displayed on
the multi-information display and
the warning buzzer sounds to
alert the driver.
When the warning buzzer sounds,
check the surrounding road situa-
tion and carefully operate the
steering wheel to move the vehicle
back to the center within the white
(yellow) lines.
LDA (Lane Departure Alert)
: If equipped
Summary of function
Lane departure alert function
UK AURIS_HB_OM_Europe_OM12K97E.book 271 ページ ２０１６年６月２７日　月曜日　午後５時４２分

2734-5. Toyota Safety Sense
UK AURIS_HB_EE (OM12K97E)
4
Driving
Press the LDA switch to turn the
LDA system on.
The LDA indicator illuminates and
a message is displayed on the
multi-information display.
Press the LDA switch again to turn
the LDA system off.
When the LDA system is turned on
or off, operation of the LDA system
continues in the same condition
the next time the engine is started
Turning the LDA system on
Indication on the multi-information display
Inside of displayed white lines
is whiteInside of displayed white lines
is black
Indicates that the system is recog-
nizing white (yellow) lines. When
the vehicle departs from its lane,
the white line displayed on the
side the vehicle departs from
flashes orange.Indicates that the system is not
able to recognize white (yellow)
lines or is temporarily canceled.
UK AURIS_HB_OM_Europe_OM12K97E.book 273 ページ ２０１６年６月２７日　月曜日　午後５時４２分

2744-5. Toyota Safety Sense
UK AURIS_HB_EE (OM12K97E)

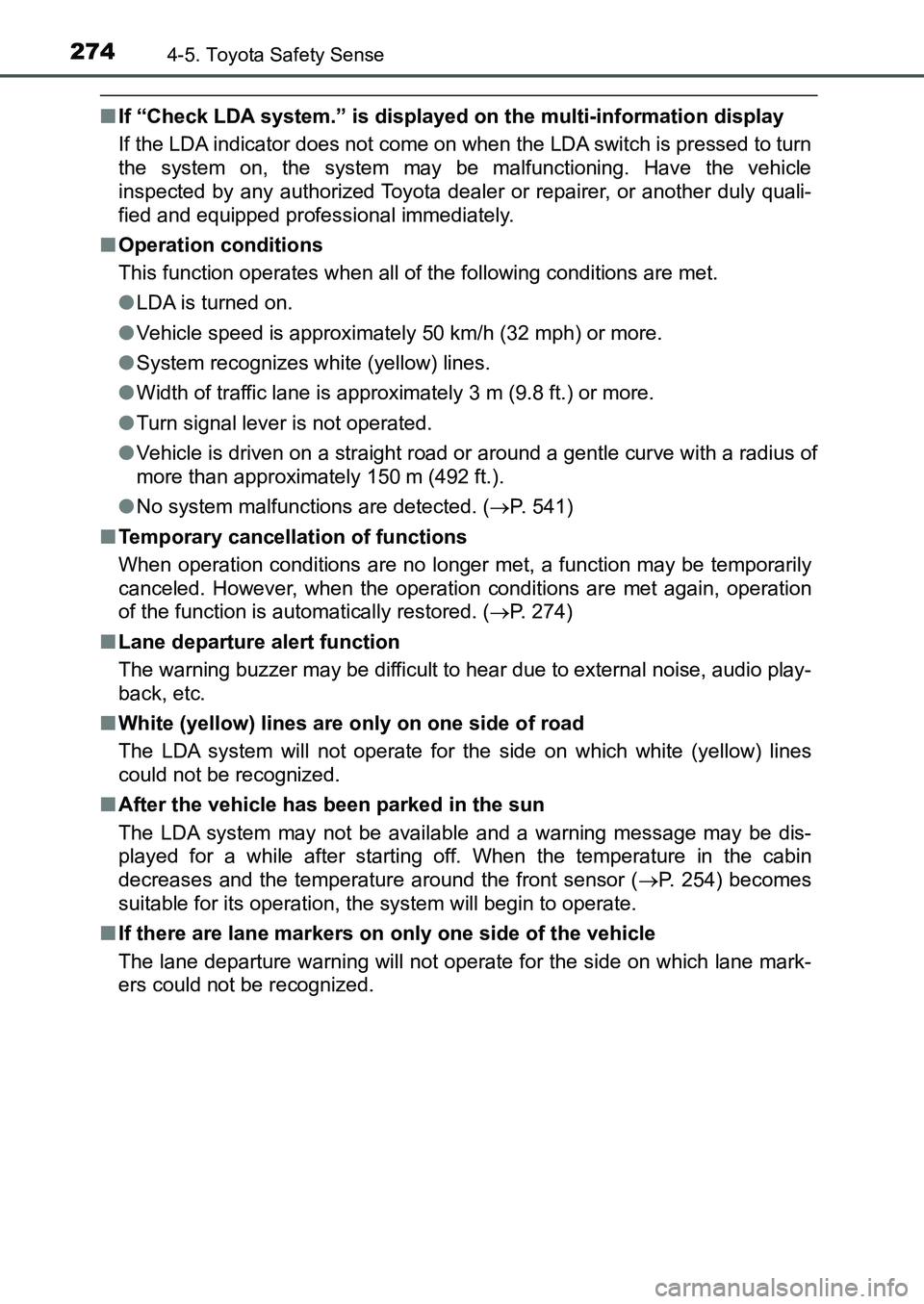

■If “Check LDA system.” is displayed on the multi-information display
