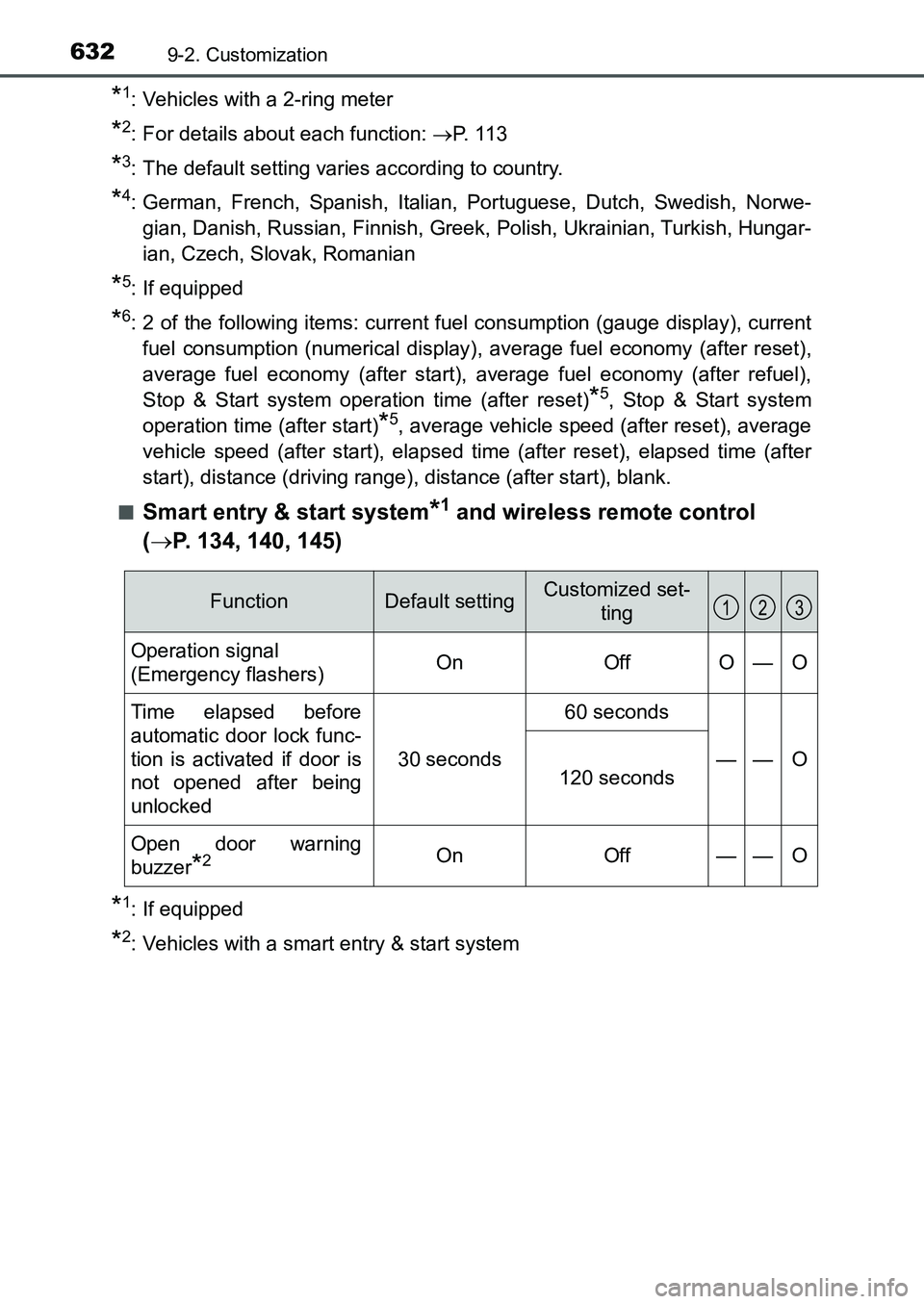

6329-2. Customization
UK AURIS_HB_EE (OM12K97E)
*1: Vehicles with a 2-ring meter
*2: For details about each function: P. 1 1 3
*3: The default setting varies according to country.
*4: German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwe-
gian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hungar-
ian, Czech, Slovak, Romanian
*5: If equipped
*6: 2 of the following items: current fuel consumption (gauge display), current
fuel consumption (numerical display), average fuel economy (after reset),
average fuel economy (after start), average fuel economy (after refuel),
Stop & Start system operation time (after reset)
*5, Stop & Start system
operation time (after start)
*5, average vehicle speed (after reset), average
vehicle speed (after start), elapsed time (after reset), elapsed time (after
start), distance (driving range), distance (after start), blank.
■
Smart entry & start system*1 and wireless remote control
(P. 134, 140, 145)
*1: If equipped
*2: Vehicles with a smart entry & start system
FunctionDefault settingCustomized set-
ting
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before
automatic door lock func-
tion is activated if door is
not opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning
buzzer
*2OnOff——O
123
UK AURIS_HB_OM_Europe_OM12K97E.book 632 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6349-2. Customization
UK AURIS_HB_EE (OM12K97E)■
Automatic light control system* (P. 235)
*: If equipped
■
Follow me home system (P. 237)
■LDA (Lane Departure Alert)* (P. 271)
*: If equipped
■
RSA (Road Sign Assist)* (P. 280)
*: If equipped
FunctionDefault settingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2O—O
123
FunctionDefault settingCustomized set-
ting
Time elapsed before
headlights automatically
turn off
30 seconds
60 seconds
——O90 seconds
120 seconds
123
FunctionDefault settingCustomized set-
ting
LDA warning sensitivityHighStandard—O—
123
FunctionDefault settingCustomized set-
ting
RSA systemOnOff—O—
Notification method of
excessive speed Only display
Display and
buzzer
—O—
Off
Notification methods
other than excessive
speed
Only display
Display and
buzzer
—O—
Off
Notification level of
excessive speed 2 km/h (1 mph)10 km/h (5 mph)—O—5 km/h (3 mph)
123
UK AURIS_HB_OM_Europe_OM12K97E.book 634 ページ ２０１６年６月２７日　月曜日　午後５時４２分

6359-2. Customization
UK AURIS_HB_EE (OM12K97E)
9
Vehicle specifications
■Stop & Start system* (P. 286)
*: If equipped
■
Toyota parking assist-sensor*1 (P. 308)
*1: If equipped
*2: Vehicles with a navigation/multimedia system
*3: When Toyota parking assist-sensor is operating.
■
Automatic air conditioning system* (P. 409)
*: If equipped
FunctionDefault settingCustomized set-
ting
Change the Stop & Start
system duration when the
A/C is on
NormalLong—O—
123
FunctionDefault settingCustomized set-
ting
Toyota parking assist-
sensor systemOnOff—O—
Detection distance of the
front center sensors
*2FarNearO—O
Detection distance of the
rear center sensors
*2FarNearO—O
Buzzer volume*251 to 4O—O
Display setting*2, 3All sensors dis-
playedDisplay offO—O
123
FunctionDefault settingCustomized set-
ting
Switching between out-
side air and recirculated
air mode linked to
“AUTO” switch operation
OnOffO—O
A/C auto switch operationOnOff——O
123
UK AURIS_HB_OM_Europe_OM12K97E.book 635 ページ ２０１６年６月２７日　月曜日　午後５時４２分

643What to do if... (Troubleshooting)
UK AURIS_HB_EE (OM12K97E)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 545)
●The brake system warning light (red indicator) is on
Is the parking brake released? (P. 234)
Depending on the situation, other types of warning buzzer may also sound.
(P. 541, 553)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects them and the alarm sounds. (P. 87)
Vehicles without a smart entry & start system:
To stop the alarm, turn the engine switch to the “ON” position or start the
engine.
Vehicles with a smart entry & start system:
To stop the alarm, turn the engine switch to IGNITION ON mode or start
the engine.
●Is the electronic key left inside the vehicle?
Vehicles with a 2-ring meter: Check the message on the multi-information
display. (P. 553)
●When a warning light turns on, refer to P. 541.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a 3-ring meter)
UK AURIS_HB_OM_Europe_OM12K97E.book 643 ページ ２０１６年６月２７日　月曜日　午後５時４２分

644What to do if... (Troubleshooting)
UK AURIS_HB_EE (OM12K97E)
●When a warning light turns on or a warning message is displayed, refer to
P. 541, 553.
●Vehicles with a spare tire:
Stop the vehicle in a safe place and replace the flat tire with the spare tire.
(P. 559)
●Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. (P. 573)
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. (P. 605)
A warning light turns on or a warning message is displayed
(vehicles with a 2-ring meter)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
UK AURIS_HB_OM_Europe_OM12K97E.book 644 ページ ２０１６年６月２７日　月曜日　午後５時４２分

647Alphabetical index
UK AURIS_HB_EE (OM12K97E)
Child-protectors ....................... 138
Cleaning............................ 446, 450
Aluminum wheels .................. 447
Exterior.................................. 446
Interior ................................... 450
Seat belts .............................. 451
Clock ......................................... 438
Coat hooks ............................... 441
Condenser ................................ 476
Console box ............................. 426
Cooling system ........................ 474
Engine overheating ............... 600
Cruise control .......................... 299
Cup holders .............................. 428
Curtain shield airbags ............... 42
Customizable features ............ 630Daytime running light
system .................................... 239
Deck board ............................... 432
Defogger
Outside rear view
mirrors ........................ 406, 413
Rear window ................. 406, 413
Windshield .................... 406, 413
Dimensions .............................. 608
Display
Multi-information
display ........................ 101, 107
Warning message ................ 553
Do-it-yourself maintenance .... 456
Door lock
Back door.............................. 140
Side doors............................. 134
Smart entry &
start system ................ 134, 140
Wireless remote
control......................... 134, 140D
*: For vehicles with navigation/multimedia system, refer to “Navigation
and multimedia system Owner’s manual”.
UK AURIS_HB_OM_Europe_OM12K97E.book 647 ページ ２０１６年６月２７日　月曜日　午後５時４２分

648Alphabetical index
UK AURIS_HB_EE (OM12K97E)
Doors
Back door .............................. 140
Door lock ....................... 134, 140
Door windows ....................... 181
Double locking system ............ 90
Open door warning
buzzer ......................... 138, 141
Open door warning light ........ 545
Outside rear view mirrors ...... 178
Rear door child-protector ...... 138
Side doors ............................. 134
Double locking system.............. 90
DPF
Diesel Particulate Filter
system ................................ 330
Warning light ......................... 544
Drive information ..................... 111
Driving ...................................... 186
Break-in tips .......................... 190
Correct posture ....................... 36
Procedures............................ 186
Winter drive tips .................... 338Eco Driving Indicator ...... 105, 115
Electric Power Steering
(EPS)....................................... 332
Warning light ......................... 542
Electronic key .......................... 122
Battery-saving function ......... 148
If the electronic key does not
operate properly ................. 591
Replacing the battery ............ 505
Emergency, in case of
If a warning light turns on...... 541
If a warning message is
displayed ............................ 553
If the battery is discharged.... 594
If the electronic key does
not operate properly ........... 591
If the engine will not start ...... 589
If the warning buzzer
sounds ................................ 541
If you have a flat tire ..... 559, 573
If you run out of fuel and
the engine stalls ................. 604
If you think something is
wrong.................................. 539
If your vehicle becomes
stuck ................................... 605
If your vehicle has to be
stopped in an
emergency.......................... 531
If your vehicle needs to be
towed .................................. 533
If your vehicle overheats ....... 600E
UK AURIS_HB_OM_Europe_OM12K97E.book 648 ページ ２０１６年６月２７日　月曜日　午後５時４２分

651Alphabetical index
UK AURIS_HB_EE (OM12K97E)
Identification ............................ 610
Engine ................................... 611
Vehicle .................................. 610
Ignition switch
(engine switch) .............. 209, 213
Illuminated entry system......... 424
Immobilizer system ................... 75
Indicators.................................... 95
Initialization
Engine oil maintenance
data..................................... 472
Meter display settings ........... 113
Power windows ..................... 183
Tire pressure
warning system................... 485
Inside rear view mirror ............ 176
Intercooler ................................ 476
Intercooler coolant .................. 475
Capacity ................................ 621
Checking ............................... 475
Preparing and checking
before winter ....................... 338
Interior lights ............................ 421
ISOFIX rigid anchors ................. 64Jack
Positioning the jack ............... 461
Vehicle-equipped jack........... 560
Jack handle .............................. 560
Jam protection function
Panoramic roof shade........... 443
Power window....................... 182
Keyless entry
Smart entry &
start system ................ 134, 140
Wireless remote
control......................... 134, 140
Keys .......................................... 122
Battery-saving function ......... 148
Electronic key ....................... 122
Engine switch................ 209, 213
If the electronic key does not
operate properly ................. 591
If you lose your keys ............. 124
Key number plate.................. 122
Keyless entry ................ 134, 140
Mechanical key ..................... 124
Replacing the battery ............ 505
Warning buzzer..................... 146
Wireless remote control
key ...................................... 123
Knee airbags .............................. 42
IJ
K
*: For vehicles with navigation/multimedia system, refer to “Navigation
and multimedia system Owner’s manual”.
UK AURIS_HB_OM_Europe_OM12K97E.book 651 ページ ２０１６年６月２７日　月曜日　午後５時４２分
