2017 TOYOTA 4RUNNER battery capacity

3195-4. Other interior features
5
Interior features
4RUNNER (U)_(OM35B37U)
NOTICE
■To avoid damaging the power outlet and the plug
● Close the power outlet lid when not in use.
● Do not allow foreign objects or liquids to enter the power outlet, as this
may cause a short circuit.
● Do not use plug adaptors to connect too many plugs to the power outlet.
● After removing a plug, gently close the power outlet lid.
■ To prevent the fuse from being blown
Do not use a 120 V AC appliance that requires more than the maximum
capacity of the power outlet. If a 120 V AC appliance that consumes more
than the maximum capacity is used, the protection circuit will cut the power
supply.
■ Appliances that may not operate properly (120 V AC)
The following 120 V AC appliances may not operate even if their power con-
sumption is under maximum capacity.
● Appliances with high initial peak wattage
● Measuring devices that process precise data.
● Other appliances that require an extremely stable power supply
■ To prevent battery discharge
Turn off all the vehicle's electronic equipment and accessories, such as the
headlights and air conditioning, when elec trical appliances that consume in
excess of 100 W are used continuously for long periods of time.
■ To prevent any damage caused by heat
● Do not use any electrical appliances that give off intense heat, such as
toasters, in any locations including t he internal or external trim, seats and
deck.
● Do not use any electrical appliances that are easily affected by vibration or
heat inside the vehicle. Vibration while driving, or the heat of the sun while
parking, may result in damage to those electrical appliances.

4698-1. Specifications
8
Vehicle specifications
4RUNNER (U)_(OM35B37U)
*: Your Toyota vehicle is filled with “Toyota Genuine Transfer Gear oil LF” atthe factory. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or
an equivalent of matching quality to satisfy the above specification. Pl\
ease
contact your Toyota dealer for further details.

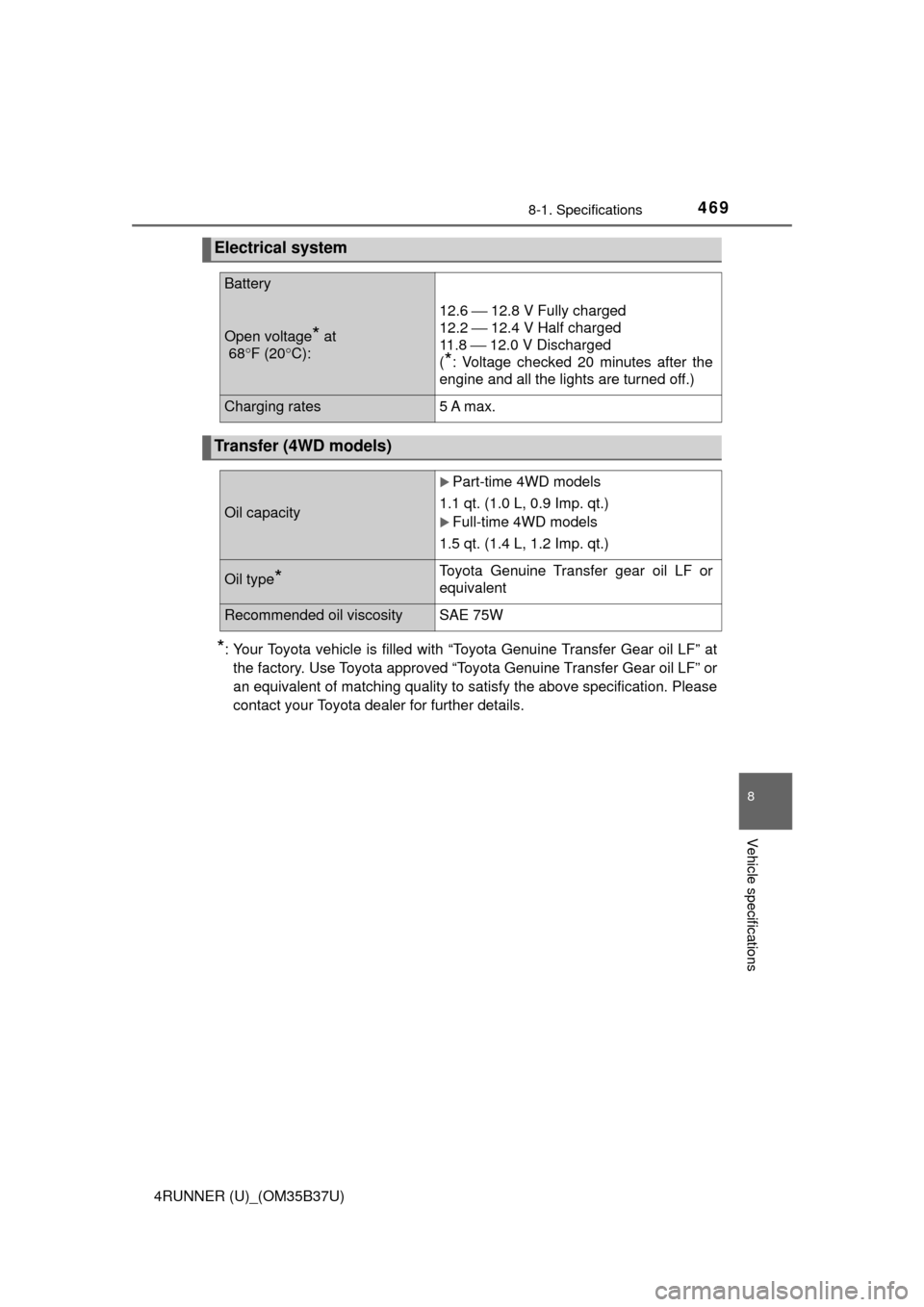

Electrical system
Battery
Open voltage* at
68° F (20 °C):
12.6 ⎯ 12.8 V Fully charged
12.2 ⎯ 12.4 V Half charged
11 . 8 ⎯ 12.0 V Discharged
(
*: Voltage checked 20 minutes after the
engine and all the lights are turned off.)
Charging rates5 A max.
Transfer (4WD models)
Oil capacity
Part-time 4WD models
1.1 qt. (1.0 L, 0.9 Imp. qt.)
Full-time 4WD models
1.5 qt. (1.4 L, 1.2 Imp. qt.)
Oil type*Toyota Genuine Transfer gear oil LF or
equivalent
Recommended oil viscositySAE 75W

4848-1. Specifications
4RUNNER (U)_(OM35B37U)
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a
rim by style or code
Rim widthNominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
curb weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1
* below), and dividing by two
Weather sideThe surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separationA breakdown of the bond between compo-
nents in the bead
Tire related termMeaning

518Alphabetical index
4RUNNER (U)_(OM35B37U)
Bottle holders .......................... 306
BrakeFluid ...................................... 361
Parking brake........................ 207
Warning light ......................... 417
Brake assist ............................. 263
Break-in tips ............................. 161
Brightness control Instrument panel light control................................... 82
Care................................... 338, 341 Aluminum wheels.................. 338
Exterior ................................. 338
Interior................................... 341
Seat belts .............................. 342
Cargo capacity ......................... 175
Cargo hooks............................. 307
Cargo net hooks ...................... 308
Center differential lock............ 239
Chains....................................... 274
Child restraint system ............... 53 Booster seats, definition ......... 54
Booster seats, installation ....... 65
Convertible seats, definition.... 54
Convertible seats, installation ............................ 62
Front passenger occupant
classification syst em............. 46
Infant seats, definition ............. 54
Infant seats, installation .......... 62
Installing CRS with LATCH anchors ............ 59
Installing CRS with seat
belts ...................................... 62
Installing CRS with top tether strap .............. 66 Child safety ................................ 52
Airbag precautions.................. 37
Back door precautions .......... 117
Battery precautions....... 365, 456
Child restraint system ............. 53
How your child should
wear the seat belt ................. 31
Installing child restraints ......... 57
Moon roof precautions .......... 157
Power window lock switch .... 146
Power window precautions ... 149
Rear door child-protectors .... 100
Removed electronic key battery precautions ...... 385
Seat belt extender precautions........................... 34
Seat belt precautions .............. 56
Seat heater precautions ....... 295
Child-protectors ...................... 100
Cleaning ........................... 338, 341 Aluminum wheels ................. 338
Exterior ................................. 338
Interior .................................. 341
Seat belts.............................. 342
Clock......................................... 313
Compass .................................... 85
Condenser................................ 360
Console box ............................. 301
Cooling system Engine overheating............... 457
Crawl Control ........................... 253
Cruise control .......................... 225
Cup holders ............................. 302
Curtain shield airbags............... 35
Customizable features ............ 489
C

523Alphabetical index
4RUNNER (U)_(OM35B37U)
Outer foot lights....................... 297
Outside rear view mirrors ....... 144Adjusting and folding ............ 144
Outside rear view mirror defoggers ......... 284, 290
Outside temperature display .................................... 314
Overhead console ................... 304
Overheating, Engine................ 457
Parking brake ........................... 207 Operation .............................. 207
Parking brake engaged
warning buzzer ................... 417
Parking lights ........................... 208
Light switch ........................... 208
Replacing light bulbs............. 394
Wattage ................................ 473
Pen holder ................................ 305
Personal lights ......................... 298
Power back window ................ 150 Jam protection function......... 152
Operation .............................. 150
Power outlets ................... 315, 320
Power steering
Fluid ...................................... 363
Warning light ......................... 419
Power windows........................ 146
Door lock linked window operation ............... 148
Jam protection function......... 147
Operation .............................. 146
Window lock switch............... 146 Radiator .................................... 360
Rear differential lock
system.................................... 247
Rear seats
Adjustment............................ 123
Folding down ........ 125, 127, 129
Rear step bumper .................... 116
Rear turn signal lights ............ 206
Replacing light bulbs ............ 400
Turn signal lever ................... 206
Wattage ................................ 473
Rear view mirror Inside rear view mirror .......... 142
Outside rear view mirrors ..... 144
Rear view monitor system
*
Rear window ............................ 150
Rear window defoggers....................... 284, 290
Rear window wiper .................. 219
Refueling .................................. 222
Capacity................................ 464
Fuel types ............................. 464
Opening the fuel tank cap..... 224
Replacing Fuses .................................... 386
Key battery ........................... 383
Light bulbs ............................ 389
Tires...................................... 433
Reporting safety defects
for U.S. owners...................... 498
Resetting the message indicating maintenance
is required.............................. 345
Roof luggage carrier ............... 170
P
R
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

527Alphabetical index
4RUNNER (U)_(OM35B37U)
Warning messages .................. 426
Washer...................................... 216Checking ............................... 367
Preparing and checking before winter....................... 272
Switch ........................... 216, 219
Washing and waxing ............... 338
Weight Cargo capacity ...................... 175
Load limits............................. 175
Weight................................... 462
Wheels ...................................... 378 Replacing wheels.................. 378
Size ....................................... 472
Window glasses....................... 146
Window lock switch ................ 146
Windows ................................... 146 Power back window .............. 150
Power windows ..................... 146
Rear window defogger ..................... 284, 290
Washer ......................... 216, 219
Windshield wiper
de-icer ............................ 284, 291
Windshield wipers ........... 216, 219 Intermittent wiper .................. 216
Winter driving tips ................... 272
Wireless remote control
key ............................................ 91 Locking/Unlocking................... 97
Replacing the battery ............ 383
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
