INSPECTION AND MAINTENANCEMaintenance schedule ........................................................ 7-2
Periodic maintenance schedule
(except for EU countries and Israel) .......................... ........ 7-3
Maintenance recommended under severe driving
conditions (except for EU countries and Israel) .............. 7 -8
Periodic maintenance schedule
(for EU countries and Israel) ................................. ............. 7-13
Maintenance recommended under severe driving
conditions (for EU countries and Israel) ........................... 7-18
Drive belt .................................................... .......................... 7-23
Engine oil and filter ......................................... .................... 7-23
Engine coolant ................................................ .................... 7-28
Air cleaner ................................................... ......................... 7-29
Spark plugs ................................................... ....................... 7-31
Continuously variable transaxle (CVT) fluid ................... .. 7-32
Gear oil ...................................................... ........................... 7-34
Clutch pedal .................................................. ....................... 7-36
Brakes ............. ..................................................................... 7-36
Steering ...................................................... .......................... 7-38
Tires ......................................................... ............................. 7-39
Battery ....................................................... ........................... 7-42
Fuses ......................................................... ........................... 7-45
Headlight aiming .............................................. ................... 7-48
Bulb replacement .............................................. .................. 7-49
Wiper blades .................................................. ...................... 7-55
Windshield washer fluid ....................................... .............. 7-58
Air conditioning system ....................................... .............. 7-58

7-4
INSPECTION AND MAINTENANCE
75RM4-01E
• Class 1: K12C engine
• Class 2: K12M engine• For Item 2-1. “Nickel plugs”, replace every 50000 km
if the local law requires.#1: Valve clearance for K12C engin e models is not required for maintenance.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Stan-
dard (Green)”.Interval: This interval should be judged by odometer reading or months, whichever comes
first. km (x1000) 15 30 45 60 75 90
miles (x1000) 9 18 27 36 45 54
months 12 24 36 48 60 72ENGINE*1-1. Engine accessory drive belt [Class 1] Tension check, *Adjust ment, *Replacement – – I – – R
[Class 2] Tension check, *Adjustment, *Replacement
–
–
I
–
–
R
*1-2. Valve clearance [Class 2] (#1) – I – I – I
1-3.
Engine oil and engine oil filter
R
R
R
R
R
R
1-4. Engine coolant SUZUKI LLC: Super (Blue) (#2)

First time only: Replace at 150000 km (90000 miles) or 96 months .

Second time and after:
Replace every 75000 km (45000 miles) or 48 months.
SUZUKI LLC: Standard (Green) – – R – – R
*1-5.
Exhaust system (except catalyst)
–
I
–
I
–
I
IGNITION
2-1.
Spark plugs When unleaded fuel is used
[Class 1] Iridium plug
Replace every 105000 km (63000 miles) or 84 months.
[Class 2] Nickel plug – – R – – R
Spark plugs When leaded fuel is used, refer to “Severe driving condition” schedule.
FUEL 3-1.
Air cleaner filter element
Paved-road
I
I
R
I
I
R
Dusty condition Refer to “Severe driving condition” schedule.
*3-2.
Fuel lines
–
I
–
I
–
I
*3-3. Fuel filter Replace every 105000 km (63000 miles).
*3-4.
Fuel tank
–
–
I
–
–
I
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––– I

7-5INSPECTION AND MAINTENANCE
75RM4-01E
#1: Valve clearance for K12C engine models is not required for maintenance.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Stan-
dard (Green)”.Interval: This interval should be judged by odometer reading or months, whichever comes
first. km (x1000) 105 120 135 150 165 180
miles (x1000) 63 72 81 90 99 108 months 84 96 108 120 132 144ENGINE*1-1. Engine accessory drive belt [Class 1] Tension check, *Adjust ment, *Replacement – – I – – R
[Class 2] Tension check, *Adjustment, *Replacement
–
–
I
–
–
R
*1-2. Valve clearance [Class 2] (#1) – I – I – I
1-3.
Engine oil and engine oil filter
R
R
R
R
R
R
1-4. Engine coolant SUZUKI LLC: Super (Blue) (#2)

First time only: Replace at 150000 km (90000 miles) or 96 months .

Second time and after:
Replace every 75000 km (45000 miles) or 48 months.
SUZUKI LLC: Standard (Green) – – R – – R
*1-5.
Exhaust system (except catalyst)
–
I
–
I
–
I
IGNITION
2-1.
Spark plugs When unleaded fuel is used
[Class 1] Iridium plug
Replace every 105000 km (63000 miles) or 84 months.
[Class 2] Nickel plug – – R – – R
Spark plugs When leaded fuel is used, refer to “Severe driving condition” schedule.
FUEL 3-1.
Air cleaner filter element
Paved-road
I
I
R
I
I
R
Dusty condition Refer to “Severe driving condition” schedule.
*3-2.
Fuel lines
–
I
–
I
–
I
*3-3. Fuel filter Replace every 105000 km (63000 miles).
*3-4.
Fuel tank
–
–
I
–
–
I
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––– I

7-9INSPECTION AND MAINTENANCE
75RM4-01E
• Class 1: K12C engine
• Class 2: K12M engine#1: Valve clearance for K12C engine models is not required for maintenance.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Stan-
dard (Green)”.Interval: This interval should be judged by odometer reading or months, whichever comes
first. km (x1000) 7.5 15 22.5 30 37.5 45
miles (x1000) 4.5 9 13.5 18 22.5 27
months6 1218243036ENGINE*1-1. Engine accessory drive belt Tension check, *Adjustment, *Re placement – I – I – R*1-2.
Valve clearance
[Class 2] (#1)
–
–
–
I
–
–
1-3. Engine oil and engine oil filter RRRRRR
1-4.
Engine coolant
SUZUKI LLC:
Super (Blue) (#2)

First time only:
Replace at 150000 km (90000 miles) or 96 months.
Second time and after: Replace every 75000 km (45000 miles) or 48 months.
SUZUKI LLC:
Standard (Green)
–
–
–
–
–
R
*1-5. Exhaust system (except catalyst) ––– I ––
IGNITION
2-1. Spark plugs [Class 1] Iridium plug – – – R – –
[Class 2] Nickel plug
Replace every 10000 km (6000 miles) or 8 months.
FUEL
3-1.
Air cleaner filter element*
1
Inspect every 2500 km (1500 miles).
Replace every 30000 km (18000 miles) or 24 months.
*3-2.
Fuel lines
–
–
–
I
–
–
*3-3. Fuel filter Replace every 105000 km (63000 miles).
*3-4.
Fuel tank
–
–
–
–
–
I
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––––

7-10
INSPECTION AND MAINTENANCE
75RM4-01E
#1: Valve clearance for K12C engine models is not required for maintenance.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Stan-
dard (Green)”.Interval: This interval should be judged by odometer reading or months, whichever comes
first. km (x1000) 52.5 60 67.5 75 82.5 90
miles (x1000) 31.5 36 40.5 45 49.5 54 months 42 48 54 60 66 72ENGINE*1-1. Engine accessory drive belt Tension check, *Adjustment, *Re placement – I – I – R*1-2.
Valve clearance
[Class 2] (#1)
–
I
–
–
–
I
1-3. Engine oil and engine oil filter RRRRRR
1-4.
Engine coolant
SUZUKI LLC:
Super (Blue) (#2)

First time only:
Replace at 150000 km (90000 miles) or 96 months.
Second time and after: Replace every 75000 km (45000 miles) or 48 months.
SUZUKI LLC:
Standard (Green)
–
–
–
–
–
R
*1-5. Exhaust system (except catalyst) – I ––– I
IGNITION
2-1. Spark plugs [Class 1] Iridium plug – R – – – R
[Class 2] Nickel plug
Replace every 10000 km (6000 miles) or 8 months.
FUEL
3-1.
Air cleaner filter element*
1
Inspect every 2500 km (1500 miles).
Replace every 30000 km (18000 miles) or 24 months.
*3-2.
Fuel lines
–
I
–
–
–
I
*3-3. Fuel filter Replace every 105000 km (63000 miles).
*3-4.
Fuel tank
–
–
–
–
–
I
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––– I

7-14
INSPECTION AND MAINTENANCE
75RM4-01E
#1: For further details, see “Engine oil and filter” in this section.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Standard (Green)”.
Interval: This interval should be judged by
odometer reading or months, whichever comes
first. km (x1000) 20 40 60 80 100 120
miles (x1000) 12.5 25 37.5 50 62.5 75 months 12 24 36 48 60 72ENGINE*1-1. Engine accessory drive belt (with SHVS) Tension check, *Adjustment, *Replacement – I – R – I
(without SHVS) Tension check, *Adjustment, *Replacement
–
I
–
I
–
R
1-2. Engine oil and engine oil filter ACEA Standards or SUZUKI G ENUINE OIL (#1) RRRRRR
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
Other than ACEA Standards or SUZUKI GENUINE OIL (#1) Replace eve ry 15000 km (9375 miles) or 12 months.
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
1-3. Engine coolant SUZUKI LLC: Super (Blue) (#2) First time only : Replace at 160000 km (100000 miles) or 96 months.

Second time and after:
Replace every 80000 km (50000 miles) or 48 months.
SUZUKI LLC: Standard (Green) Replace every 40000 km (25000 mile s) or 36 months.
*1-4.
Exhaust system (except catalyst)
–
I
–
I
–
I
IGNITION
2-1.
Spark plugs When unleaded fuel is used
Iridium plug
Replace every 100000 km (62500 miles) or 84 months.
Spark plugs When leaded fuel is used, refer to “Severe driving condition” schedule.
FUEL
3-1. Air cleaner filter element Paved-road Inspect every 20000 k m (12500 miles) or 12 months.
Replace every 40000 km (25000 miles) or 36 months.
Dusty condition Refer to “Severe driving condition” schedule.
*3-2.
Fuel lines
–
I
–
I
–
I
*3-3. Fuel tank –I–I–I

7-15INSPECTION AND MAINTENANCE
75RM4-01E
#1: For further details, see “Engine oil and filter” in this section.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Standard (Green)”.
Interval: This interval should be judged by
odometer reading or months, whichever comes
first. km (x1000) 140 160 180 200 220 240
miles (x1000) 87.5 100 112.5 125 137.5 150 months 84 96 108 120 132 144ENGINE*1-1. Engine accessory drive belt (with SHVS) Tension check, *Adjustment, *Replacement – R – I – R
(without SHVS) Tension check, *Adjustment, *Replacement
–
I
–
I
–
R
1-2. Engine oil and engine oil filter ACEA Standards or SUZUKI G ENUINE OIL (#1) RRRRRR
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
Other than ACEA Standards or SUZUKI GENUINE OIL (#1) Replace eve ry 15000 km (9375 miles) or 12 months.
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
1-3. Engine coolant SUZUKI LLC: Super (Blue) (#2) First time only : Replace at 160000 km (100000 miles) or 96 months.

Second time and after:
Replace every 80000 km (50000 miles) or 48 months.
SUZUKI LLC: Standard (Green) Replace every 40000 km (25000 mile s) or 36 months.
*1-4.
Exhaust system (except catalyst)
–
I
–
I
–
I
IGNITION
2-1.
Spark plugs When unleaded fuel is used
Iridium plug
Replace every 100000 km (62500 miles) or 84 months.
Spark plugs When leaded fuel is used, refer to “Severe driving condition” schedule.
FUEL
3-1. Air cleaner filter element Paved-road Inspect every 20000 k m (12500 miles) or 12 months.
Replace every 40000 km (25000 miles) or 36 months.
Dusty condition Refer to “Severe driving condition” schedule.
*3-2.
Fuel lines
–
I
–
I
–
I
*3-3. Fuel tank –I–I–I

7-19INSPECTION AND MAINTENANCE
75RM4-01E
#1: For further details, see “Engine oil and filter” in this section.
#2: Perform the engine coolant l evel check under the daily inspection in the “OPERATING YOUR VEHICLE” section.
If you use the engine coolant other than “SUZUKI LLC: Super (Bl ue)” for replacement, follow the schedule of “SUZUKI LLC: Standard (Green)”.

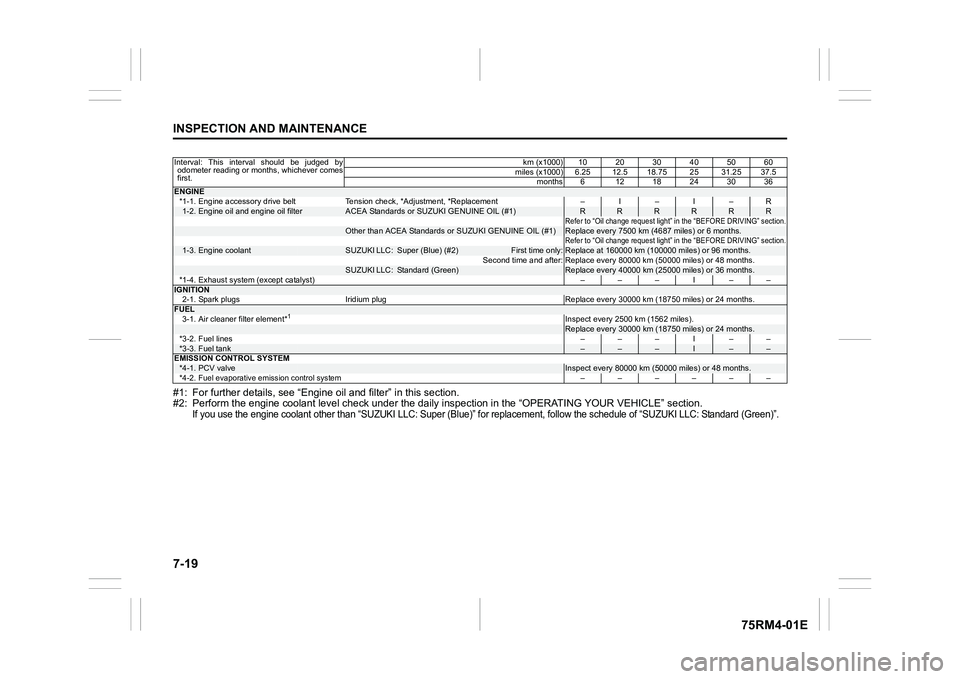

Interval: This interval should be judged by
odometer reading or months, whichever comes
first. km (x1000) 10 20 30 40 50 60
miles (x1000) 6.25 12.5 18.75 25 31.25 37.5 months6 1218243036ENGINE*1-1. Engine accessory drive belt Tension check, *Adjustment, *Re placement – I – I – R 1-2.
Engine oil and engine oil filter
ACEA Standards or SUZUKI GENUINE OIL (#1)
R
R
R
R
R
R
Refer to “Oil change request light” in the “BEFORE DRIVING” section.
Other than ACEA Standards or SUZUKI GENUINE OIL (#1)
Replace every 7500 km (4687 miles) or 6 months.Refer to “Oil change request light” in the “BEFORE DRIVING” section.
1-3.
Engine coolant
SUZUKI LLC:
Super (Blue) (#2)
First time only:
Replace at 160000 km (100000 miles) or 96 months.
Second time and after: Replace every 80000 km (50000 miles) or 48 months.
SUZUKI LLC:
Standard (Green)
Replace every 40000 km (25000 miles) or 36 months.
*1-4. Exhaust system (except catalyst) ––– I ––
IGNITION
2-1. Spark plugs Iridium plug Replace every 30000 km (18750 miles) or 24 months.FUEL
3-1. Air cleaner filter element*
1
Inspect every 2500 km (1562 miles).Replace every 30000 km (18750 miles) or 24 months.
*3-2. Fuel lines ––– I ––
*3-3.
Fuel tank
–
–
–
I
–
–
EMISSION CONTROL SYSTEM
*4-1.
PCV valve
Inspect every 80000 km (5 0000 miles) or 48 months.
*4-2.
Fuel evaporative emi ssion control system
––––––
