12
3AUDIO
BASIC OPERATION ............................................. 54
SOME BASICS ......................................................................54 ” TURNING THE SYSTEM ON AND OFF .........................54
” SELECTING AN AUDIO SOURCE ..................................55
” SOUND SETTINGS.........................................................56
” AUDIO SCREEN ADJUSTMENT ....................................58
” VOICE RECOGNITION SYSTEM ...................................59
RADIO OPERATION ............................................. 60
AM/FM RADIO.......................................................................60
” OVERVIEW ...................................................................\
..60
” PRESETTING A STATION ..............................................61
” SELECTING A STATION FROM THE LIST .....................62
” RADIO BROADCAST DATA SYSTEM ............................62
” AVAILABLE HD Radio™ TECHNOLOGY .......................64
” CACHING RADIO PROGRAMS......................................67
SiriusXM
® Satellite Radio ....................................................69
” OVERVIEW ...................................................................\
..69
” HOW TO SUBSCRIBE TO SiriusXM
® Satellite Radio .....70
” DISPLAYING THE RADIO ID ..........................................73
” PRESETTING A CHANNEL ............................................73
” CACHING RADIO PROGRAMS......................................74
” REGISTERING A SMART FAVORITE CHANNEL ...........75
” TuneStart
TM FUNCTION ..................................................75
” TuneScanTM FUNCTION ..................................................76
” SEARCHING BY FEATURED FAVORITES ....................76
” SELECTING A CHANNEL FROM THE LIST ...................76
” PRESERVING A MUSIC INFORMATION .......................77
MEDIA OPERATION ............................................. 78
CD .....................................................................\
.....................78
” OVERVIEW ...................................................................\
..78
USB MEMORY ......................................................................81 ” OVERVIEW ...................................................................\
..81
iPod ...................................................................\
....................84 ” OVERVIEW ...................................................................\
..84
SD CARD (WITH NAVIGATION FUNCTION) .......................87 ” OVERVIEW ...................................................................\
..87
Bluetooth AUDIO ..................................................................91
” OVERVIEW ...................................................................\
..91
” CONNECTING A Bluetooth DEVICE ...............................94
AUX ....................................................................\
...................94 ” OVERVIEW ...................................................................\
..94
AUDIO/VISUAL REMOTE CONTROLS ............... 96
STEERING SWITCHES ........................................................96
SETUP ................................................................... 98
AUDIO SETTINGS ................................................................98
” AUDIO SETTINGS SCREEN ..........................................98
TIPS FOR OPERATING THE AUDIO/VISUAL
SYSTEM .............................................................. 101
OPERATING INFORMATION ..............................................101
” RADIO ..................................................................\
.........101
” CD PLAYER AND DISC ................................................103
” USB MEMORY ..............................................................106
” iPod ...................................................................\
............106
” SD CARD (WITH NAVIGATION FUNCTION) ...............107
” FILE INFORMATION .....................................................107
” TERMS ..................................................................\
........ 111
Page 28 of 308
BASIC FUNCTION
26
STATUS DISPLAY
The status of the Bluetooth connection and so on is
displayed on the screen.
No. IndicatorsConditions
This icon is displayed when a disc has been
inserted.
This icon is displayed when audio is off or the steering switch is pressed.
No. IndicatorsConditions
This icon is displayed when the Bluetooth
connection is established.
An antenna for the Bluetooth connection is
built into the instrument panel. The condition
of the Bluetooth connection may deteriorate
and the system may not function when a
Bluetooth device is used in the following
conditions and/or places:
The Bluetooth device is obstructed by certain
objects (such as when it is behind the seat or
in the glove box or console box).
The Bluetooth device is touching or is
covered with metal materials.
Leave the Bluetooth device in a place where
the condition of the Bluetooth connection is
good.
The
level of
receptionPoor
Excellent
The level of reception does not always
correspond with the level displayed on the
cellular phone. The level of reception may not
be displayed depending on the phone you
have.
“Rm” is displayed when receiving in a
roaming area. While roaming, display “Rm”
top-left on the icon.
The receiving area may not be displayed
depending on the type of phone you have.
Page 36 of 308
FUNCTION INDEX
34
FUNCTION INDEX
FUNCTION INDEX
XAudio
Function Page
Using the radio 60, 69
Playing an audio CD or MP3/WMA/AAC disc 78
Playing an SD*
1 card 87
Playing a USB memory 81
Playing an iPod
®84
Playing a Bluetooth device 91
Using the aha application 152
Using the AUX port 94
Using the MirrorLink
TM application 150
Using the Pandora
®*2 application 158
Using the steering wheel audio switches 96
Audio system settings 98
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
X Map*
*: With navigation function
Displaying maps Page
Viewing the map screen 200
Displaying the current position 205
Changing the scale 206
Changing the map orientation 207
Displaying the estimated travel/arrival time to the
destination 225
' L V S O D \ L Q J W U D I ¿ F L Q I R U P D W L R Q 208
Searching for destinationsPage
Searching for the destination 210
Page 98 of 308
AUDIO/VISUAL REMOTE CONTROLS
96
AUDIO/VISUAL REMOTE CONTROLS
STEERING SWITCHES
Some parts of the audio/visual system can be adjusted
using the switches on the steering wheel.
No.Switch
“+/-” switch
“/ ” switch
Mute/enter switch
Back switch
List switch
“Source” switch
X“+/-” switch
Mode Operation Function
Volume Press
Volume up/down
Press and hold Volume up/down continuously
List screen Press Cursor up/down
X“/ ” switch
Mode Operation Function
AM/FM Radio,
SiriusXM
®
Press Preset channel up/down
Press and hold Seek up/down continuously
aha Press
Content up/down
Press and hold Rewind the current content
item for 15 seconds/ Fast
forward the current content
item for 30 seconds
Page 116 of 308

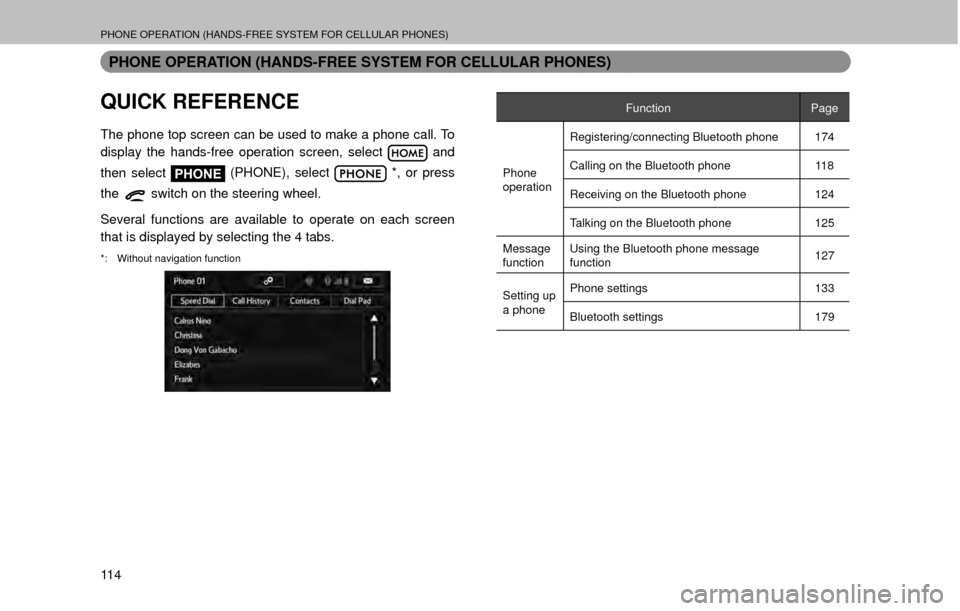

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 4
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
QUICK REFERENCE
The phone top screen can be used to make a phone call. To
display the hands-free operation screen, select
and
then select
PHONE (PHONE), select *, or press
the
switch on the steering wheel.
Several functions are available to operate on each screen
that is displayed by selecting the 4 tabs.
*: Without navigation function
Function Page
Phone
operation Registering/connecting Bluetooth phone 174
Calling on the Bluetooth phone
118
Receiving on the Bluetooth phone 124
Talking on the Bluetooth phone 125
Message
function Using the Bluetooth phone message
function
127
Setting up
a phone Phone settings
133
Bluetooth settings 179
Page 117 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 5
PHONE
4
SOME BASICS
The hands-free system enables calls to be made and
received without having to take your hands off the steering
wheel.
This system supports Bluetooth. Bluetooth is a wireless
data system that enables cellular phones to be used without
being connected by a cable or placed in a cradle.
The operating procedure of the phone is explained here.
WARNING
OWhile driving, do not use a cellular phone or connect the
Bluetooth phone.
O < R X U D X G L R X Q L W L V
Page 118 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 6
NOTE
OKeep call volume down. Otherwise, the other party’s voice
may be audible outside the vehicle and voice echo may
increase. When talking on the phone, speak clearly towards the
microphone.
O The other party may not hear you clearly when:
‡ ' U L Y L Q J R Q D Q X Q S D Y H G U R D G 0 D N L Q J H [ F H V V L Y H W U D I ¿ F Q R L V H
‡ Driving at high speeds.
‡ Driving with a window open.
‡ When air from the ventilator blows directly toward the
microphone.
‡ The sound of the air conditioning fan is loud.
‡ There is a negative effect on sound quality due to the phone
and/or network being used.
REGISTERING/CONNECTING A Bluetooth
PHONE
To use the hands-free system for cellular phones, it is
necessary to register a cellular phone with the system.
: 3
Bluetooth PHONE CONDITION DISPLAY
The condition of the Bluetooth phone appears on the upper
U L J K W V L G H R I W K H V F U H H Q : 3
USING THE PHONE SWITCH/MICROPHONE
XSteering switch
By pressing the phone switch, a call can be received or
ended without taking your hands off the steering wheel.
Volume control switch ” Press the “+” side to increase the volume.
” Press the “-” side to decrease the volume.
Off hook switch
On hook switch
Page 121 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 9
PHONE
4
XWith navigation function
1.Select.
2.SelectPHONE (PHONE).
3.Select the desired tab to call from.
”
The phone top screen can be displayed by pressing
the switch on the steering wheel.
How to make a call list Page
By speed dial list 120
By call history 120
By contacts list 121
By dial pad*
1122
By e-mail/SMS/MMS 131
By POI call*
2201
By off hook switch 123
By voice recognition system 258
By split screen 123
*1: The operation cannot be performed while driving.
*2: With navigation function
