2017 SUBARU LEGACY key

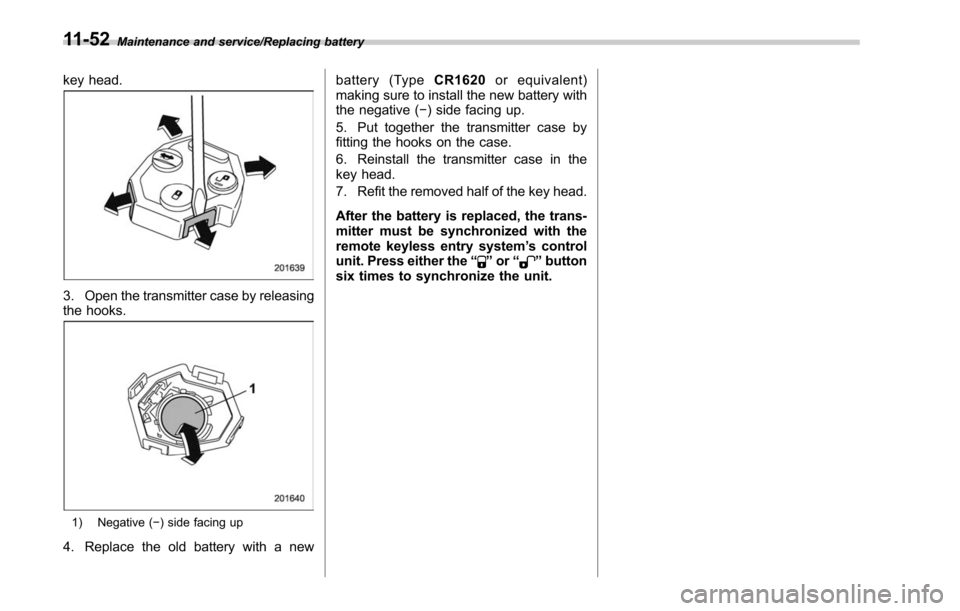

Maintenance and service/Replacing battery
key head.
3. Open the transmitter case by releasing
the hooks.
1) Negative (−) side facing up
4. Replace the old battery with a new battery (Type
CR1620or equivalent)
making sure to install the new battery with
the negative ( −) side facing up.
5. Put together the transmitter case by
fitting the hooks on the case.
6. Reinstall the transmitter case in the
key head.
7. Refit the removed half of the key head.
After the battery is replaced, the trans-
mitter must be synchronized with the
remote keyless entry system ’s control
unit. Press either the “
”or “”button
six times to synchronize the unit.
11-52

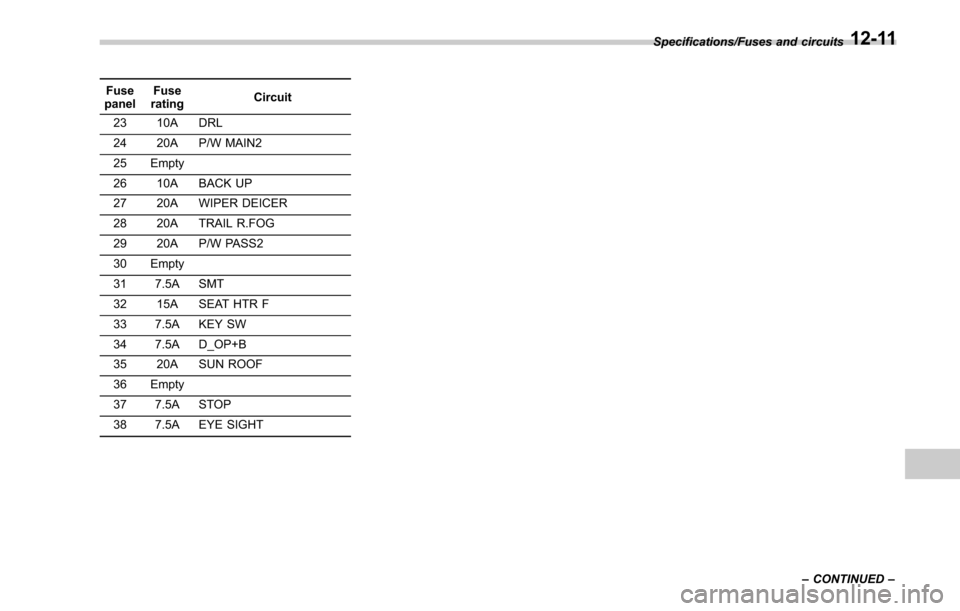

Fuse
panel Fuse
rating Circuit
23 10A DRL
24 20A P/W MAIN2
25 Empty
26 10A BACK UP
27 20A WIPER DEICER
28 20A TRAIL R.FOG
29 20A P/W PASS2
30 Empty
31 7.5A SMT
32 15A SEAT HTR F
33 7.5A KEY SW
34 7.5A D_OP+B
35 20A SUN ROOF
36 Empty
37 7.5A STOP
38 7.5A EYE SIGHT Specifications/Fuses and circuits
–CONTINUED –
12-11

14-2Index
A
Abbreviation................................................................... 3
ABS (Anti-lock Brake System) ..................................... 7-33
Warning light ......................................................... 3-19
Access key ............................................................... 2-10
Warning indicator ................................................... 3-25
Accessories .............................................................. 11-40
Accessory power outlet ............................................... 6-10
Air cleaner element ................................................... 11-15
Air conditioner Automatic climate control system ............................... 4-5
Manual climate control system ................................... 4-6
Air filtration system ..................................................... 4-10
Airflow selection ........................................................... 4-6
Alarm system ............................................................ 2-28
All-Wheel Drive warning light ....................................... 3-23
Aluminum wheel ....................................................... 11-32
Cleaning ............................................................... 10-3
Antenna ...................................................................... 5-2
Anti-lock Brake System (ABS) ..................................... 7-33
Arming the system ..................................................... 2-30
Armrest ..................................................................... 1-15
Ashtray ..................................................................... 6-12
AT OIL TEMP warning light ......................................... 3-17
Audio aha
TMby HARMAN ................................................ 5-44
AM/FM radio ......................................................... 5-28
AUX ..................................................................... 5-61
Base display audio set. ............................................. 5-4
Basic operation ...................................................... 5-18
Bluetooth audio ...................................................... 5-58 CD ....................................................................... 5-53
iPod
...................................................................... 5-56
Pandora
®.............................................................. 5-50
SiriusXM Satellite Radio .......................................... 5-37
Steering switches for audio ...................................... 5-63
SUBARU STARLINK ............................................... 5-26
SUBARU STARLINK
TMMultimedia Plus audio set ... .... 5-6
Unit setting ............................................................ 5-19
USB memory ......................................................... 5-55
Auto on/off headlights ................................................. 3-47
Sensor .................................................................. 3-49
Vehicle setting ........................................................ 3-46
Auto-dimming mirror .................................................... 3-69
Automatic climate control system ................................... 4-5
Automatic headlight beam leveler Warning light .......................................................... 3-32
Automatic Locking Retractor/Emergency Locking Retractor (ALR/ELR) ................................................ 1-17
B
Battery Drainage prevention function ..................................... 2-8
Jump starting ......................................................... 9-11
Replacement (access key) ..................................... 11-50
Replacement (remote engine start transmitter) ........... 7-21
Replacement (transmitter) ...................................... 11-51
Vehicle battery ..................................................... 11-37
Bluetooth
®
Audio .................................................................... 5-58
Hands-free phone system ........................................ 5-71
Settings ................................................................. 5-66

14-4Index
Locks................................................................... 2-34
Chime Key ........................................................................\
3-5
Light ..................................................................... 3-46
Seatbelt ................................................................ 3-13
Cleaning Aluminum wheels ................................................... 10-3
Interior .................................................................. 10-5
Ventilation grille ....................................................... 4-9
Climate control system ................................................. 4-3
Automatic ................................................................ 4-5
Manual ................................................................... 4-6
Clock ........................................................................\
3-34
Clutch Fluid ............................................................ 11-21, 12-8
Pedal .................................................................. 11-23
Coat hook ................................................................. 6-12
Console ...................................................................... 6-6
Continuously variable transmission (CVT) ..................... 7-25
Fluid ............................................................ 11-19, 12-8
Oil temperature warning light (AT OIL TEMP) ............ 3-17
Coolant ............................................................ 11-15, 12-8
Cooling system ......................................................... 11-14
Corrosion protection ................................................... 10-4
Crossbars ................................................................. 8-15
Cruise control ............................................................ 7-50
Indicator. ............................................................... 3-31
Set indicator .......................................................... 3-32
Cup holder .................................................................. 6-8
Front passenger ’s .................................................... 6-8
Rear passenger ’s..................................................... 6-9 D
Daytime running light system
....................................... 3-53
Defogger ................................................................... 3-61
Defrosting ................................................................... 4-9
Deicer ....................................................................... 3-61
Differential gear oil Front ........................................................... 11-19, 12-7
Rear ........................................................... 11-19, 12-7
Dimensions ................................................................ 12-2
Disarming the alarm system ......................................... 2-32
Disc brake pad wear warning indicators ........................ 7-33
Dome light ......................................................... 6-2, 11-48
Door Locks ..................................................................... 2-6
Open indicator light ................................................. 3-23
Step light ............................................................. 11-49
Unlock selection function ................................. 2-18, 3-45
Double trip meter ........................................................ 3-10
Drive belts ............................................................... 11-18
Driving All-Wheel Drive warning light ................................... 3-23
AWD vehicles ......................................................... 8-5
Car phone/cell phone .................................................. 7
Drinking. ....................................................................

6
Drugs ........................................................................\
6
Foreign countries ..................................................... 8-4
Off road .................................................................. 8-6
Pets ........................................................................\
.. 7
Snowy and icy roads .............................................. 8-10
Tips ................................................. 7-24, 7-31, 8-2, 8-5
Tired or sleepy ........................................................... 7

Information display..................................................... 3-33
Inside mirror .............................................................. 3-63
Interior lights ............................................................... 6-2
Internal trunk lid release handle ................................... 2-39
J
Jack-up point ............................................................... 9-5
Jump starting. ............................................................ 9-11
K
Key ........................................................................\
.... 2-3 Number .................................................................. 2-3
Reminder chime. ...................................................... 3-5
Replacement ........................................................... 2-5
Keyless access with push-button start system .. ............. 2-10
Disabling keyless access functions ........................... 2-18
Locking and unlocking doors ................................... 2-14
Opening rear gate .................................................. 2-16
Opening trunk ........................................................ 2-16
Warning chimes and warning indicator ...................... 3-25
When access key does not operate properly ............. 9-18
Keyless entry system ................................................. 2-24
L
LCA ........................................................................\
. 7-55
Leather seat materials ................................................ 10-5
License plate light ..................................................... 11-47
Light Backup ................................................................ 11-46
Cargo area .................................................... 6-3, 11-49
Control switch ........................................................ 3-46 Daytime running
..................................................... 3-53
Dome ............................................................ 6-2, 11-48
Door step ............................................................ 11-49
Front fog ..................................................... 3-56, 11-42
Front side marker ................................................... 3-47
Ignition switch ......................................................... 3-5
License plate ....................................................... 11-47
Map .............................................................. 6-2, 11-48
Rear combination ................................................. 11-44
Rear side marker light ........................................... 11-44
Rear turn signal .................................................... 11-44
Trunk .................................................................. 11-49
Turn signal ........................................ 3-54, 11-42, 11-44
Vanity mirror ........................................................... 6-5
Loading your vehicle ................................................... 8-13
Low fuel warning light ................................................. 3-22
Low tire pressure warning light ..................................... 3-17
Lower and tether anchorage ........................................ 1-36
M
Maintenance Precautions ........................................................... 11-3
Schedule ............................................................... 11-3
Seatbelt. ................................................................ 1-24
Tips ...................................................................... 11-5
Tools ...................................................................... 9-3
Malfunction indicator light (check engine warning light) .... 3-16
Manual Climate control system ............................................. 4-6
Mode (continuously variable transmission) ................. 7-29
Seat .......................................................................
1-4
Index14-7

Turn signal light.................................................... 11-44
Rear seat .................................................................. 1-11
Armrest ................................................................. 1-15
Folding down ......................................................... 1-12
Head restraint adjustment ....................................... 1-14
Reclining ............................................................... 1-11
Rear view camera ...................................................... 6-20
How to adjust the rear view image ........................... 5-25
Rear window
Defogger ............................................................... 3-61
Wiper and washer switch ........................................ 3-60
Wiper blades ........................................................ 11-35
Recommended Brake fluid. ............................................................ 12-8
Clutch fluid ............................................................ 12-8
Continuously variable transmission fluid .................... 12-8
Engine oil .............................................................. 12-4
Front differential gear oil ......................................... 12-7
Manual transmission oil .......................................... 12-7
Rear differential gear oil .......................................... 12-7
Spark plugs ........................................................... 12-9
Refueling .................................................................... 7-4
Remote engine start system ........................................ 7-15
Remote keyless entry system ...................................... 2-24
Replacement Brake pad and lining ............................................. 11-24
Wiper blades ........................................................ 11-33
Replacing Access key battery ................................................ 11-50
Air cleaner element ............................................... 11-16
Lost transmitters (remote keyless entry system) ......... 2-27Remote engine start transmitter battery
..................... 7-21
Remote keyless entry transmitter battery ................. 11-51
Replacing bulbs ............................................. 11-40, 12-14
Backup light ......................................................... 11-46
Cargo area light ................................................... 11-49
Dome light ........................................................... 11-48
Door step light ..................................................... 11-49
Front fog light ....................................................... 11-42
Front side marker light .......................................... 11-42
Front turn signal light ............................................ 11-42
Halogen headlight ................................................. 11-41
HID headlight ....................................................... 11-40
License plate light ................................................. 11-47
Map light ............................................................. 11-48
Rear combination light .......................................... 11-44
Rear side marker light ........................................... 11-44
Rear turn signal light ............................................. 11-44
Trunk light ........................................................... 11-49
Rocking the vehicle .................................................... 8-12
Roof rack .................................................................. 8-15
Roof rails with integrated cross bars ............................. 8-15
Rope hook ................................................................. 8-19
S
Safety Precautions

when driving ............................................. 4
Symbol ...................................................................... 3
Warnings ................................................................... 2
Seat Fabric ................................................................... 10-5
Front ...................................................................... 1-2
Index14-9

Types.................................................................. 11-25
Tire pressure monitoring system (TPMS). .... 7-41, 9-10, 11-25
Warning light ......................................................... 3-17
Tires and wheels. ...................................................... 11-25
Tools ........................................................................\
.. 9-3
Top tether anchorages ........................................ 1-36, 1-39
Towing ...................................................................... 9-13
All wheels on the ground ........................................ 9-17
Flat-bed truck ........................................................ 9-16
Hooks ................................................................... 9-14
Weight.................................................................. 8-22
Trailer Connecting ............................................................ 8-20
Hitch (Outback) .............................................. 8-19, 8-26
Towing .................................................................. 8-22
Towing tips ............................................................ 8-27
Trip meter ................................................................. 3-10
Trunk lid ........................................................... 2-38, 9-19
Release handle ..................................................... 2-39
Trunk light ................................................................ 11-49
Turn signal Indicator lights ....................................................... 3-31
Lever .................................................................... 3-54
U
Under-floor storage compartment ................................. 6-20
V
Valet mode ................................................................ 2-33
Vanity mirror ................................................................ 6-5 Vehicle
Capacity weight ...................................................... 8-14
Identification ........................................................ 12-18
Symbols .................................................................... 4
Vehicle Dynamics Control OFF indicator light .................................................. 3-25
OFF switch ............................................................ 7-37
Operation indicator light ........................................... 3-24
System .................................................................. 7-35
Warning light .......................................................... 3-24
Ventilator .................................................................... 4-2
Voice command operation ........................................... 5-81
W
Warning and indicator lights ......................................... 3-13
Warning chimes Keyless access with push-button start system .... ........ 3-25
Seatbelt. ................................................................ 3-13
Warning light ABS...................................................................... 3-19
Access key ............................................................ 3-25
All-Wheel Drive ...................................................... 3-23
AT OIL TEMP ......................................................... 3-17
Automatic headlight beam leveler ............................. 3-32
Brake system ......................................................... 3-19
BSD/RCTA ............................................................ 3-32
Charge .................................................................. 3-16
CHECK ENGINE .................................................... 3-16
Engine low oil level ................................................. 3-17
High beam assist .................................................... 3-31
Keyless

access with push-button start system .... ........ 3-25
Index14-11
