Table of Contents
1QUICK GUIDE
BASIC FUNCTION ................................................ 20
OVERVIEW BUTTONS .........................................................20
“HOME (HOME)” SCREEN ..................................................22
“APPS (APPS)” SCREEN ....................................................23
“INFO (INFO)” SCREEN .......................................................24
SPLIT SCREEN .....................................................................25
STATUS DISPLAY .................................................................26
QUICK REFERENCE ............................................ 28
“SETTINGS (SETTINGS)” SCREEN ....................................28
NAVIGATION OPERATION .................................. 29
REGISTERING HOME (WITH NAVIGATION FUNCTION) ...29
OPERATION FLOW: GUIDING THE ROUTE
(WITH NAVIGATION FUNCTION) .........................................31 SETTING HOME AS THE DESTINATION
(WITH NAVIGATION FUNCTION) .........................................32
FUNCTION INDEX ................................................ 34
FUNCTION INDEX ................................................................34
2BASIC FUNCTION
BASIC INFORMATION BEFORE OPERATION ... 38
INITIAL SCREEN ..................................................................38 ” INITIAL SCREEN ............................................................38
LOADING AND UNLOADING A DISC ..................................41 ” LOADING A DISC ............................................................41
” UNLOADING A DISC.......................................................41
CONNECTING AND DISCONNECTING A USB MEMORY/
PORTABLE DEVICE .............................................................42 ” CONNECTING A DEVICE ...............................................42
LOADING AND REMOVING AN SD CARD
(WITH NAVIGATION FUNCTION) .........................................42 ” LOADING AN SD CARD .................................................42
” REMOVING AN SD CARD ..............................................44
TOUCH SCREEN GESTURES .............................................45
TOUCH SCREEN OPERATION ............................................46
INFO SCREEN OPERATION ................................................47 ” REORDERING THE MENU ICONS ................................47
SPLIT SCREEN OPERATION ...............................................47
” CUSTOMIZING THE SPLIT SCREEN ............................48
ENTERING LETTERS AND NUMBERS/
LIST SCREEN OPERATION .................................................48 ” ENTERING LETTERS AND NUMBERS .........................48
” LIST SCREEN OPERATION ...........................................49
SCREEN ADJUSTMENT ......................................................\
51 ” CHANGING BETWEEN DAY AND NIGHT MODE ..........52
Page 26 of 308
BASIC FUNCTION
24
“INFO (INFO)” SCREEN
This screen can be used to specify vehicle maintenance
settings, display photos, etc.
Select
, or select and then select INFO
(INFO), to display the “INFO (INFO)” screen.
No. Function Page
Select to display sports information. 162
Select to display weather information. 163
No.Function Page
Select to display stocks information. 167
*1Select to display fuel information. 168
Select to view pictures in the USB
memory connected to USB port 1. 81
Select to display the “Maintenance
(Maintenance)” screen.196
Select to display the “Eco Monitor (Eco
Monitor)” screen.170
Select to display the “Vehicle Monitor
(Vehicle Monitor)” screen.169
Select to view pictures in the USB
memory connected to USB port 2. 81
*2Select to view pictures in the SD card. 87
Select to reorder the menu icons.
47
*1: Service is not available in Canada.
*2: With navigation function
Page 36 of 308

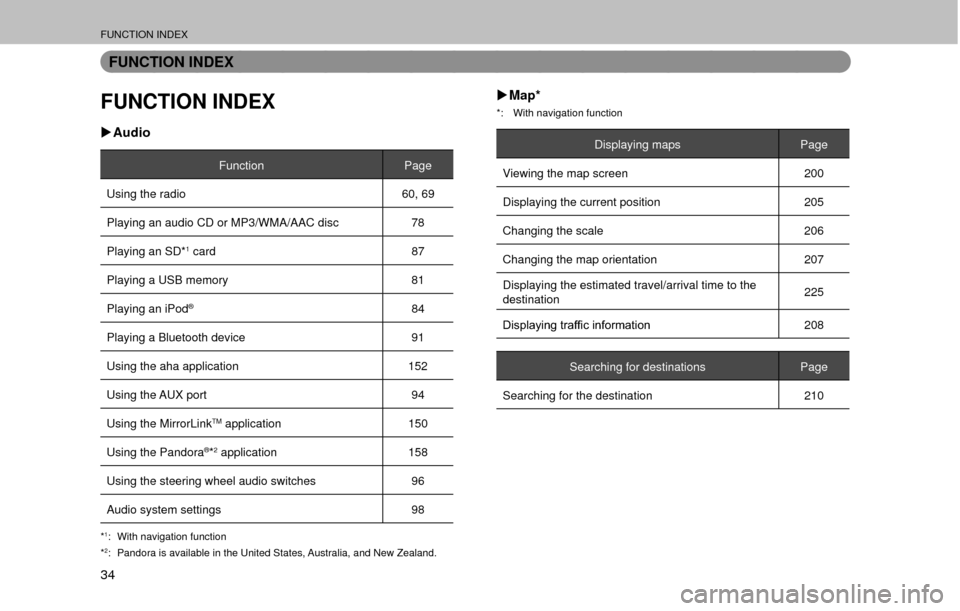

FUNCTION INDEX
34
FUNCTION INDEX
FUNCTION INDEX
XAudio
Function Page
Using the radio 60, 69
Playing an audio CD or MP3/WMA/AAC disc 78
Playing an SD*
1 card 87
Playing a USB memory 81
Playing an iPod
®84
Playing a Bluetooth device 91
Using the aha application 152
Using the AUX port 94
Using the MirrorLink
TM application 150
Using the Pandora
®*2 application 158
Using the steering wheel audio switches 96
Audio system settings 98
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
X Map*
*: With navigation function
Displaying maps Page
Viewing the map screen 200
Displaying the current position 205
Changing the scale 206
Changing the map orientation 207
Displaying the estimated travel/arrival time to the
destination 225
