2017 SUBARU LEGACY navigation

BASIC INFORMATION BEFORE OPERATION
46
Operation methodOutline Main use
Rotate*1
To change the
map direction,
rotate with two
¿QJHUVWRXFKLQJ
the screen.Changing the
horizontal
display angle of
the map.
*1: With navigation function
*2: The above operations may not be performed on all screens.
NOTE
O Flick operations may not be performed smoothly in high
altitudes.
TOUCH SCREEN OPERATION
This system is operated mainly by the buttons on the
screen. (Referred to as screen buttons in this manual.)

”When a screen button is touched, a beep sounds.
7KHEHHSVRXQGFDQEHWXUQHGRQRURII
:3
CAUTION
O To prevent damaging the screen, lightly touch the screen
EXWWRQVZLWK\RXU

BASIC INFORMATION BEFORE OPERATION
50
CHARACTER JUMP BUTTONS IN LISTS
Some lists contain character screen buttons, ABC (ABC),
DEF (DEF) etc., which allow a direct jump to list entries
that begin with the same letter as the character screen
button.
1.Select the desired character jump buttons.
NOTE
O Every time the same character screen button is selected, the list
starting with the subsequent character is displayed.
SORTING (WITH NAVIGATION FUNCTION)
The order of a list displayed on the screen can be sorted in
the order of name, distance, detour, etc.
1.SelectMore (More).
2.Select the desired sorting criteria.

BASIC INFORMATION BEFORE OPERATION
52 XVideo (USB video/SD video*)
*: With navigation function
Screen button Function
“Brightness
(Brightness)”
Select to darken the screen.
Select to brighten the screen.
“Contrast
(Contrast)”
Select to weaken the contrast of
the screen.
Select to strengthen the contrast of
the screen.
“Tone (Tone)”
Select to weaken the tone of the
screen.
Select to strengthen the tone of the
screen.
“Color (Color)”
R (R) Select to strengthen the red color
of the screen.
G (G) Select to strengthen the green
color of the screen.
6.SelectOK
(OK).
CHANGING BETWEEN DAY AND NIGHT
MODE
Depending on the position of the headlight switch, the
screen changes to day or night mode.
NOTE
O
If the screen is set to day mode with the headlight switch turned
on, this condition is memorized even with the engine turned off.

BASIC OPERATION
58
QSAVING THE SOUND QUALITY
You can save the adjusted sound quality settings.
1.Adjust the sound quality.
2.SelectEQ1 (EQ1) or EQ2 (EQ2) for 2 seconds or
more.

” Values cannot be saved for
FLAT (FLAT).
Q USING A PRESET SOUND QUALITY
1.SelectEQ1 (EQ1) or EQ2 (EQ2) to activate the
corresponding preset sound quality.

” To reset the sound quality, select
FLAT (FLAT).

” This function can also be used at the “EQ Settings
(EQ Settings)”.
Q RESETTING THE EQ CURVE
You can return the adjusted value for the currently stored
equalizer to its initial value.
1.Select and hold FLAT (FLAT) for 2 seconds or more.

” The adjusted values for the stored
EQ1 (EQ1) and
EQ2 (EQ2) are returned to their initial values.
AUDIO SCREEN ADJUSTMENT
The screen size can be selected for each type of media.
X
USB video/SD video*
*: With navigation function
1.Select on the audio control screen.
2.SelectScreen Format (Screen Format).
3.Select the desired item to be adjusted.
No.
Function
Select to display a screen with either side in black.
Select to enlarge the image horizontally to full screen.
Select to enlarge the image by the same ratio
horizontally and vertically.

MEDIA OPERATION
87
AUDIO
3
SD CARD (WITH NAVIGATION
FUNCTION)
$XGLR

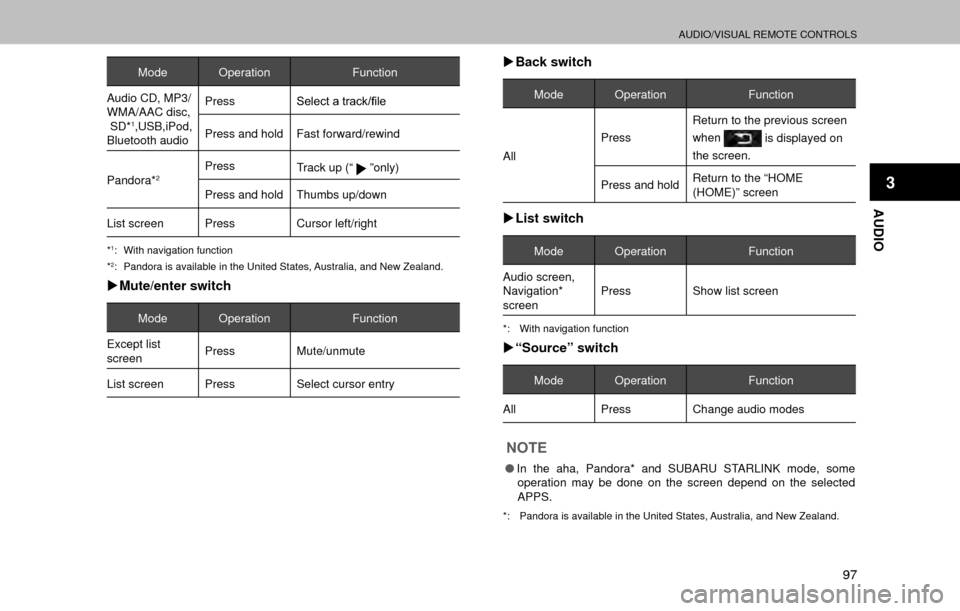

AUDIO/VISUAL REMOTE CONTROLS
97
AUDIO
3
Mode OperationFunction
Audio CD, MP3/
WMA/AAC disc,
SD*
1,USB,iPod,
Bluetooth audio Press
6HOHFWDWUDFN¿OH
Press and hold Fast forward/rewind
Pandora*
2Press Track up (“”only)
Press and hold Thumbs up/down
List screen Press Cursor left/right
*1: With navigation function
*2: Pandora is available in the United States, Australia, and New Zealand.
X Mute/enter switch
Mode Operation Function
Except list
screen Press
Mute/unmute
List screen Press Select cursor entry
XBack switch
Mode Operation Function
All Press
Return to the previous screen
when
is displayed on
the screen.
Press and hold Return to the “HOME
(HOME)” screen
X
List switch
Mode Operation Function
Audio screen,
Navigation*
screen Press
Show list screen
*: With navigation function
X“Source” switch
Mode Operation Function
All PressChange audio modes
NOTE
OIn the aha, Pandora* and SUBARU STARLINK mode, some
operation may be done on the screen depend on the selected
APPS.
*: Pandora is available in the United States, Australia, and New Zealand.

SETUP
99
AUDIO
3
No.Function Page
Select to specify the sound settings. 56
Select to change the number of preset radio
stations/channels displayed on the screen. 99
Select to specify the iPod/SD*1/USB auto play
settings on/off. -
Select to specify the iPod sound signal input
settings.100
Unsupported.
-
Select to specify cover art settings on/off. -
*2Select to specify automatic sound levelizer
settings.100
Select to enable cache radio.
-
Select to reset all setup items. -
*1: With navigation function
*2 7KLVVHWWLQJFDQEHPDGHGHSHQGLQJRQWKHFRQQHFWHGDPSOL

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
107
AUDIO
3
SD CARD (WITH NAVIGATION FUNCTION)
SD cards that are marked as follows can be used.
