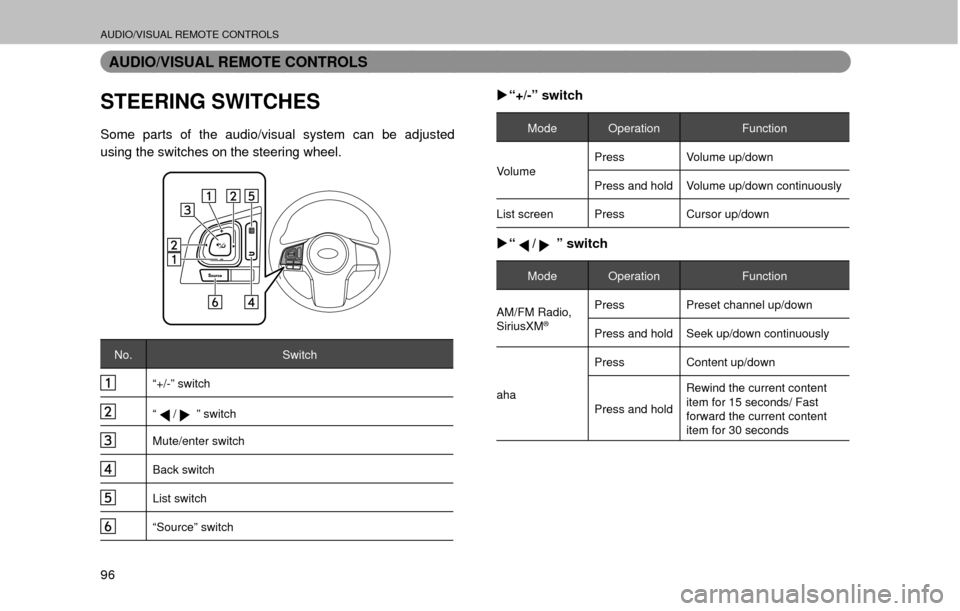

Page 98 of 308
AUDIO/VISUAL REMOTE CONTROLS
96
AUDIO/VISUAL REMOTE CONTROLS
STEERING SWITCHES
Some parts of the audio/visual system can be adjusted
using the switches on the steering wheel.
No.Switch
“+/-” switch
“/ ” switch
Mute/enter switch
Back switch
List switch
“Source” switch
X“+/-” switch
Mode Operation Function
Volume Press
Volume up/down
Press and hold Volume up/down continuously
List screen Press Cursor up/down
X“/ ” switch
Mode Operation Function
AM/FM Radio,
SiriusXM
®
Press Preset channel up/down
Press and hold Seek up/down continuously
aha Press
Content up/down
Press and hold Rewind the current content
item for 15 seconds/ Fast
forward the current content
item for 30 seconds
Page 101 of 308
SETUP
99
AUDIO
3
No.Function Page
Select to specify the sound settings. 56
Select to change the number of preset radio
stations/channels displayed on the screen. 99
Select to specify the iPod/SD*1/USB auto play
settings on/off. -
Select to specify the iPod sound signal input
settings.100
Unsupported.
-
Select to specify cover art settings on/off. -
*2Select to specify automatic sound levelizer
settings.100
Select to enable cache radio.
-
Select to reset all setup items. -
*1: With navigation function
*2 7 K L V V H W W L Q J F D Q E H P D G H G H S H Q G L Q J R Q W K H F R Q Q H F W H G D P S O L
Page 129 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
127
PHONE
4
3.SelectOK (OK).
NOTE
O
The sound quality of the voice heard from the other party’s
speaker may be negatively impacted.
O To reset the transmit volume, select
Default (Default).
O The volume cannot be adjusted while muted.
INCOMING CALL WAITING
When a call is interrupted by a third party while talking, this
screen is displayed.
1.Select or press the switch on the steering
wheel to start talking with the other party.
To refuse to receive the call: Select or press the switch on the steering wheel.
”Select
or press the switch on the steering
wheel to end the current call and return to the
conversation with the party on hold.
Bluetooth PHONE MESSAGE
FUNCTION
Received messages can be forwarded from the connected
Bluetooth phone, enabling checking and replying using the
system.
Depending on the type of Bluetooth phone connected,
received messages may not be transferred to the message
inbox.
If the phone does not support the message function, this
function cannot be used.
X Without navigation function
1.Select.
2.Select.
” The phone top screen can be displayed by pressing
the
switch on the steering wheel.
Page 133 of 308
PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
131
PHONE
4
4.Select the desired message.
5.SelectSend (Send).
” While the message is being sent, a sending message
screen is displayed.
EDITING QUICK REPLY MESSAGES
This operation cannot be performed while driving.
1.SelectQuick Message (Quick Message).
2.Select corresponding to the desired message to
edit.
3.SelectOK (OK) when editing is completed.
NOTE
O
To reset the editquick reply messages, select Default(Default).
O “Quick Message 1” (
I'm driving right now. I will call you back later.
(I'm driving right now. I will call you back later.)*1 or
I am driving and will arrive in approximately [ETA] minutes. (I am
driving and will arrive in approximately [ETA] minutes.)*2)
cannot be edited. [ETA] will automatically be replaced with the
H V W L P D W H G W L P H R I D U U L Y D O R Q W K H F R Q ¿ U P P H V V D J H V F U H H Q
If there are waypoints set, [ETA] to the next waypoint will be
shown.
If there is no route currently set in the navigation system, “Quick
Message 1” cannot be selected.
*1: Without navigation function
*2: With navigation function
CALLING THE MESSAGE SENDER
Calls can be made to an e-mail/SMS/MMS message
sender’s phone number.
This operation can be performed while driving.
Page 137 of 308
SETUP
135
PHONE
4
No.Function
Select to set the desired incoming e-mail tone.
Select or to adjust the incoming e-mail tone
volume.
Select or to adjust the default volume of the
other party’s voice.
Select to reset all setup items.
“Contact/Call History Settings (Contact/Call
History Settings)” SCREEN
The contact can be transferred from a Bluetooth phone
to the system. The contact also can be added, edited and
deleted.
The call history can be deleted and contact and speed dial
can be changed.
1.Display the “Phone/Message Settings (Phone/Message
6 H W W L Q J V
Page 138 of 308
SETUP
136
No.Function Page
Select to add contacts to the speed dial list. 140
Select to delete contacts from the speed dial
list. 141
Select to set the transferred contact image
display on/off. -
*
Select to clear contacts from the call history. -
*Select to add new contacts to the contact list. 137
*Select to edit contacts in the contact list. 138
*Select to delete contacts from the contact list. 139
Select to reset all setup items. -
*: For PBAP compatible Bluetooth phones, this function is available when
“Automatic Contact/History Transfer (Automatic Contact/History Transfer)”
L V V H W W R R I I : 3
NOTE
OContact data is managed independently for every registered
phone. When one phone is connected, another phone’s
registered data cannot be read.
UPDATE CONTACTS FROM PHONE
Operation methods differ between PBAP compatible and
OPP compatible Bluetooth phones.
If your cellular phone is neither PBAP nor OPP compatible,
the contacts cannot be transferred.
NOTE
O During the smartphone Bluetooth connection process, only
individual contacts will be transferred from the smartphone to
the system. Contact group folders that have been created on the
smartphone will not be transferred to the system.
Q FOR PBAP COMPATIBLE Bluetooth PHONES
1.SelectUpdate Contacts from Phone (Update
Contacts from Phone).
” Contacts are transferred automatically.
2. & K H F N W K D W D F R Q
Page 146 of 308
SETUP
144
3.Select the desired item to be set.
No.Function
Select to change the incoming call display.
Full Screen (Full Screen): When a call is received,
the hands-free screen is displayed and can be operated
on the screen.
Drop-Down (Drop-Down): A message is displayed
on the upper side of the screen.
Select to set display of the contact/history transfer
completion message on/off.
Select to reset all setup items.
Page 155 of 308
APPS
5
ahaTM by HARMAN
153
X
Control screen
No.Function
Select to display a list of preset stations.
A maximum of 35 entries can be displayed in this list.
Select to display a list of stations using the location
information.
A maximum of 10 entries can be displayed in this list.
No.Function
Select to display the audio source selection screen.
Station list
Select to display the station operation screen.
Displays station name.
Select to display the top screen.
6 H O H F W W R G L V S O D \ W K H V R X Q G V H W W L Q J V F U H H Q : 3
6 W D W L R Q R S H U D W L R Q V F U H H Q E X W W R Q V : 3
Select to change the station operation screen buttons.
Select to display the content item list.
Displays cover art.
NOTE
OWhen you switch to other modes with the aha application
activated and then turn the system Off/On with the smartphone
device still connected, the aha mode will start instead of
the last mode used. If you do not want to start the aha mode
automatically, turn off the aha application on the smartphone.
